DESCRIPTION
2-2
2
Right view11. Luggage strap holders (page 3-22)
12. Owner’s tool kit (page 6-1)
13. Fuses (page 6-38)
14. Rear brake fluid reservoir
15. Radiator cap (page 6-15)
16. Front brake fluid reservoir
17. Brake pedal (page 3-10)
E_5mt.book Page 2 Monday, September 18, 2000 9:08 AM

DESCRIPTION
2-3
2

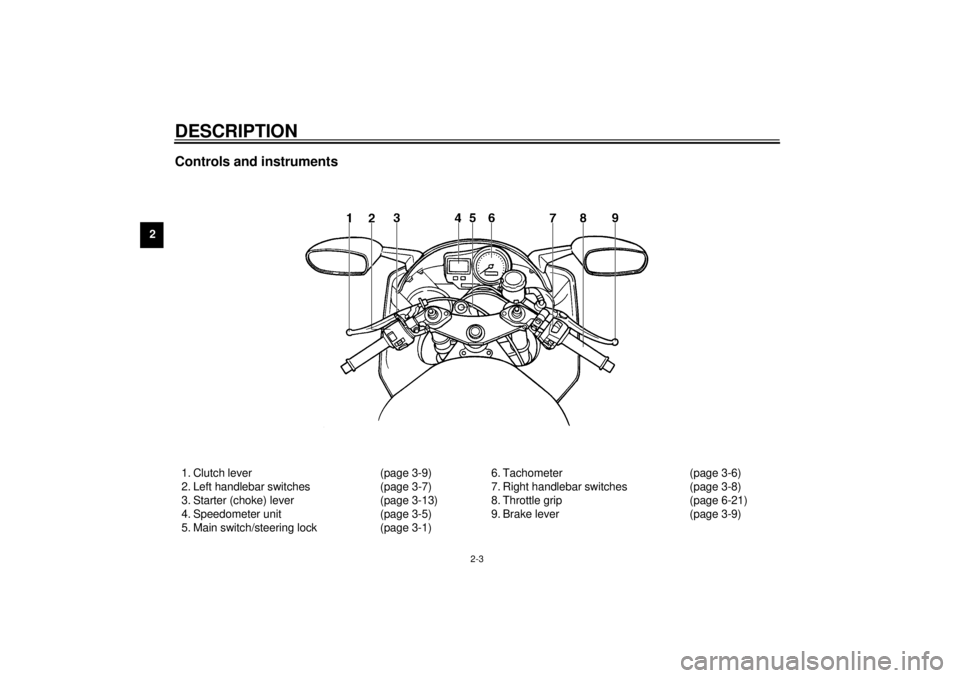

Controls and instruments1. Clutch lever (page 3-9)
2. Left handlebar switches (page 3-7)
3. Starter (choke) lever (page 3-13)
4. Speedometer unit (page 3-5)
5. Main switch/steering lock (page 3-1)6. Tachometer (page 3-6)
7. Right handlebar switches (page 3-8)
8. Throttle grip (page 6-21)
9. Brake lever (page 3-9)
E_5mt.book Page 3 Monday, September 18, 2000 9:08 AM

3
INSTRUMENT AND CONTROL FUNCTIONS
Main switch/steering lock ..................................... 3-1
Indicator and warning lights ................................ 3-2
Speedometer unit ................................................ 3-5
Tachometer .......................................................... 3-6
Self-diagnosis device ........................................... 3-7
Handlebar switches ............................................. 3-7
Clutch lever .......................................................... 3-9
Shift pedal ............................................................ 3-9
Brake lever ........................................................... 3-9
Brake pedal ........................................................ 3-10
Anti-theft alarm (optional) .................................. 3-10
Fuel tank cap ..................................................... 3-11
Fuel .................................................................... 3-11Fuel tank breather hose .................................... 3-12
Starter (choke) lever .......................................... 3-13
Seats ................................................................. 3-13
Helmet holders .................................................. 3-15
Storage compartment ....................................... 3-15
Adjusting the front fork ...................................... 3-17
Adjusting the shock absorber assembly ............ 3-19
Matching the front and rear suspension
settings ............................................................ 3-21
Luggage strap holders ...................................... 3-22
Sidestand .......................................................... 3-22
Ignition circuit cut-off system ............................. 3-23
E_5mt.book Page 1 Monday, September 18, 2000 9:08 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
EAU00152
Clutch lever The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the ignition
circuit cut-off system. (See page 3-23
for an explanation of the ignition circuit
cut-off system.)
EAU00157
Shift pedal The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 6-speed con-
stant-mesh transmission equipped on
this motorcycle.
EAU00161
Brake lever The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
1. Clutch lever
1. Shift pedal
1. Brake lever
E_5mt.book Page 9 Monday, September 18, 2000 9:08 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
The brake lever is equipped with a po-
sition adjusting dial. To adjust the dis-
tance between the brake lever and the
handlebar grip, turn the adjusting dial
while holding the lever pushed away
from the handlebar grip. Make sure that
the appropriate setting on the adjusting
dial is aligned with the arrow mark on
the brake lever.
EAU00162
Brake pedal The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
EAU00109
Anti-theft alarm (optional) This motorcycle can be equipped with
an optional anti-theft alarm by a
Yamaha dealer. Contact a Yamaha
dealer for more information.
1. Brake lever position adjusting dial
2. Arrow mark
a. Distance between brake lever and handlebar
grip
1. Brake pedal
E_5mt.book Page 10 Monday, September 18, 2000 9:08 AM

4-1
4
EAU01114
4-PRE-OPERATION CHECKSThe condition of a vehicle is the owner’s responsibility. Vital components can start to deteriorate quickly and unexpectedly,
even if the vehicle remains unused (for example, as a result of exposure to the elements). Any damage, fluid leakage or loss
of tire air pressure could have serious consequences. Therefore, it is very important, in addition to a thorough visual inspec-
tion, to check the following points before each ride.
EAU03439
Pre-operation check list
CO-01E
ITEM CHECKS PAGE
Fuel• Check fuel level in fuel tank.
• Refuel if necessary.
• Check fuel line for leakage.3-11–3-12
Engine oil• Check oil level in engine.
• If necessary, add recommended oil to specified level.
• Check vehicle for oil leakage.6-10–6-13
Coolant• Check coolant level in reservoir.
• If necessary, add recommended coolant to specified level.
• Check cooling system for leakage.6-13–6-17
Front brake• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.6-28–6-30
Rear brake• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.6-27–6-30
Clutch• Check operation.
• Lubricate cable if necessary.
• Check lever free play.
• Adjust if necessary.6-25–6-26, 6-34
E_5mt.book Page 1 Monday, September 18, 2000 9:08 AM

PRE-OPERATION CHECKS
4-2
4
Throttle grip• Make sure that operation is smooth.
• Lubricate throttle grip, housing and cables if necessary.
• Check free play.
• If necessary, have Yamaha dealer make adjustment.6-21, 6-33
Control cables• Make sure that operation is smooth.
• Lubricate if necessary.6-33
Drive chain• Check chain slack.
• Adjust if necessary.
• Check chain condition.
• Lubricate if necessary.6-31–6-32
Wheels and tires• Check for damage.
• Check tire condition and tread depth.
• Check air pressure.
• Correct if necessary.6-22–6-25
Brake and shift pedals• Make sure that operation is smooth.
• Lubricate pedal pivoting points if necessary.6-34
Brake and clutch levers• Make sure that operation is smooth.
• Lubricate lever pivoting points if necessary.6-34
Sidestand• Make sure that operation is smooth.
• Lubricate pivot if necessary.6-34
Chassis fasteners• Make sure that all nuts, bolts and screws are properly tightened.
• Tighten if necessary.—
Instruments, lights, signals
and switches• Check operation.
• Correct if necessary.—
Engine stop switch• Check operation.3-8
Sidestand switch• Check operation of ignition circuit cut-off system.
• If system is defective, have Yamaha dealer check vehicle.3-22 ITEM CHECKS PAGE
E_5mt.book Page 2 Monday, September 18, 2000 9:08 AM

6
PERIODIC MAINTENANCE AND MINOR REPAIR
Owner’s tool kit .................................................... 6-1
Periodic maintenance and lubrication chart ......... 6-3
Removing and installing cowlings and panels ..... 6-6
Cowlings A and B ................................................. 6-6
Checking the spark plugs .................................... 6-9
Engine oil and oil filter cartridge ........................ 6-10
Coolant .............................................................. 6-13
Checking the air filter element ........................... 6-17
Air intake duct .................................................... 6-20
Adjusting the carburetors ................................... 6-20
Adjusting the engine idling speed ...................... 6-21
Adjusting the throttle cable free play .................. 6-21
Adjusting the valve clearance ............................ 6-22
Tires ................................................................... 6-22
Wheels ............................................................... 6-25
Adjusting the clutch lever free play .................... 6-25
Adjusting the brake pedal position ..................... 6-27
Adjusting the rear brake light switch .................. 6-27
Checking the front and rear brake pads ............. 6-28
Checking the brake fluid level ............................ 6-29
Changing the brake fluid .................................... 6-30
Drive chain slack ................................................ 6-31Lubricating the drive chain ................................ 6-32
Checking and lubricating the cables ................. 6-33
Checking and lubricating the throttle
grip and cable ................................................. 6-33
Lubricating the brake pedal ............................... 6-34
Checking and lubricating the brake and
clutch levers .................................................... 6-34
Checking and lubricating the sidestand ............ 6-34
Lubricating the rear suspension ........................ 6-35
Checking the front fork ...................................... 6-35
Checking the steering ....................................... 6-36
Checking the wheel bearings ............................ 6-36
Battery ............................................................... 6-37
Replacing the fuses .......................................... 6-38
Replacing the headlight bulb ............................. 6-39
Tail/brake light ................................................... 6-40
Replacing a turn signal light bulb ...................... 6-40
Supporting the motorcycle ................................ 6-41
Front wheel ....................................................... 6-41
Rear wheel ........................................................ 6-43
Troubleshooting ................................................. 6-44
Troubleshooting charts ...................................... 6-45
E_5mt.book Page 1 Monday, September 18, 2000 9:08 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
EAU03685
Periodic maintenance and lubrication chart
NOTE:_ l
The annual checks must be performed every year, except if a kilometer-based maintenance is performed instead.
l
From 50,000 km, repeat the maintenance intervals starting from 10,000 km.
l
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and techni-
cal skills.
_
CP-03ENO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (´1,000 km)
ANNUAL
CHECK
1 10203040
1
*Fuel line• Check fuel hoses for cracks or damage.ÖÖÖÖ Ö
2*Fuel filter• Check condition.ÖÖ
3 Spark plugs• Check condition.
• Clean and regap.ÖÖ
•Replace.ÖÖ
4*Valves• Check valve clearance.
• Adjust.Every 40,000 km
5 Air filter element• Clean.ÖÖ
•Replace.ÖÖ
6Clutch• Check operation.
• Adjust.ÖÖÖÖÖ
7*Front brake• Check operation, fluid level and vehicle for fluid leakage.
(See NOTE on page 6-5.)ÖÖÖÖÖ Ö
• Replace brake pads. Whenever worn to the limit
8*Rear brake• Check operation, fluid level and vehicle for fluid leakage.
(See NOTE on page 6-5.)ÖÖÖÖÖ Ö
• Replace brake pads. Whenever worn to the limit
E_5mt_Periodic.fm Page 3 Tuesday, December 12, 2000 5:49 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
9
*Brake hoses• Check for cracks or damage.ÖÖÖÖ Ö
• Replace. (See NOTE on page 6-5.) Every 4 years
10*Wheels• Check runout and for damage.ÖÖÖÖ
11*Tires• Check tread depth and for damage.
• Replace if necessary.
• Check air pressure.
• Correct if necessary.ÖÖÖÖ
12*Wheel bearings• Check bearing for looseness or damage.ÖÖÖÖ
13*Swingarm• Operation and for excessive play.ÖÖÖÖ
• Lubricate with lithium-soap-based grease. Every 50,000 km
14 Drive chain• Check chain slack.
• Make sure that the rear wheel is properly aligned.
• Clean and lubricate.Every 1,000 km and after washing
the motorcycle or riding in the rain.
15*Steering bearings• Check bearing play and steering for roughness.ÖÖÖÖÖ
• Lubricate with lithium-soap-based grease. Every 20,000 km
16*Chassis fasteners• Make sure that all nuts, bolts and screws are properly tightened.ÖÖÖÖ Ö
17 Sidestand• Check operation.
• Lubricate.ÖÖÖÖ Ö
18*Sidestand switch• Check operation.ÖÖÖÖÖ Ö
19*Front fork• Check operation and for oil leakage.ÖÖÖÖ
20*Rear shock absorber
assembly• Check operation and shock absorber for oil leakage.ÖÖÖÖ
21*Rear suspension relay
arm and connecting arm
pivoting points• Check operation.ÖÖÖÖ
• Lubricate with lithium-soap-based grease.ÖÖ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (´1,000 km)
ANNUAL
CHECK
1 10203040
E_5mt_Periodic.fm Page 4 Tuesday, December 12, 2000 5:49 PM
