Black plate (14,1)Cadillac Escalade Hybrid - 2012
10-14 Vehicle Care The vehicle also has a special fuse
in the battery box for the 300-volt
batteries. If this fuse has failed and
needs to be replaced, the vehicle
will be disabled and you will need
to have the vehicle repaired by
your dealer. Do not attempt to
self-service this fuse.
Engine Compartment
Fuse Block Hybrid Auxiliary Engine
Compartment Fuse Block The hybrid auxiliary engine
compartment fuse block is located
in the engine compartment near the
front of the vehicle. Lift the cover for
access to the fuse/relay block. See
Engine Compartment Overview on
page 10 ‑ 4 for more information on
its location. For more information on
the main underhood fuse block, see
“ Engine Compartment Fuse Block ”
in the owner manual. Fuses Usage
1 ACPO (SUV Only)
2 BECM FAN
3 ACCM
4 CAB HTR PMP Fuses Usage
5 EMPTY
6 COOL PUMP
7 EPS
Page 57 of 90
Black plate (15,1)Cadillac Escalade Hybrid - 2012

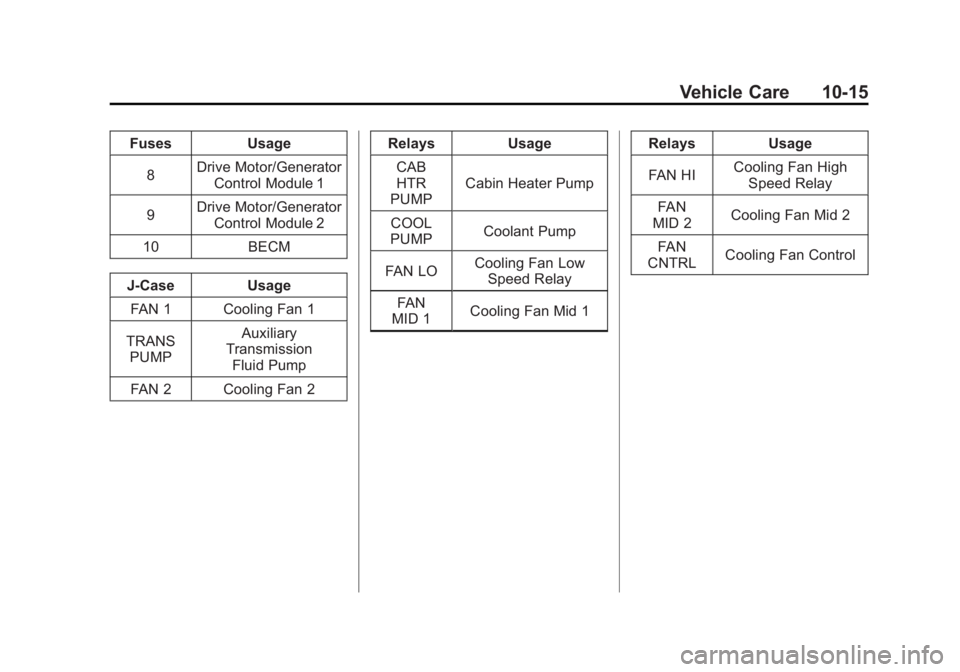

Vehicle Care 10-15Fuses Usage
8 Drive Motor/Generator
Control Module 1
9 Drive Motor/Generator
Control Module 2
10 BECM
J ‐ Case Usage
FAN 1 Cooling Fan 1
TRANS
PUMP Auxiliary
Transmission
Fluid Pump
FAN 2 Cooling Fan 2 Relays Usage
CAB
HTR
PUMP Cabin Heater Pump
COOL
PUMP Coolant Pump
FAN LO Cooling Fan Low
Speed Relay
FAN
MID 1 Cooling Fan Mid 1 Relays Usage
FAN HI Cooling Fan High
Speed Relay
FAN
MID 2 Cooling Fan Mid 2
FAN
CNTRL Cooling Fan Control
