CHRYSLER PACIFICA 2007 1.G Owner's Manual
Manufacturer: CHRYSLER, Model Year: 2007, Model line: PACIFICA, Model: CHRYSLER PACIFICA 2007 1.GPages: 464, PDF Size: 5.92 MB
Page 21 of 464
Two (2) transmitters may be supplied with the vehicle.
Vehicles built without the powered options will be
equipped from the factory with three button transmitters
and those built with power options will be equipped
with six button transmitters.To unlock the doors and liftgate:
Press and release the UNLOCK button on the transmitter
once to unlock the driver’s door, or twice to unlock all
doors and liftgate. When the UNLOCK button is pressed,
the illuminated entry will initiate and the parking lights
will flash on twice.
Remote Unlock Driver’s Door 1st
The system can be programmed to unlock all the doors or
driver’s door only upon the first UNLOCK button press
by using the following procedure:
•On electronic vehicle information center (EVIC)
equipped vehicles refer to “Remote Unlock Driver’s
Door 1st?” under “Use Factory Settings?” in the EVIC
section of this manual.
Keyless Entry Transmitter
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
2

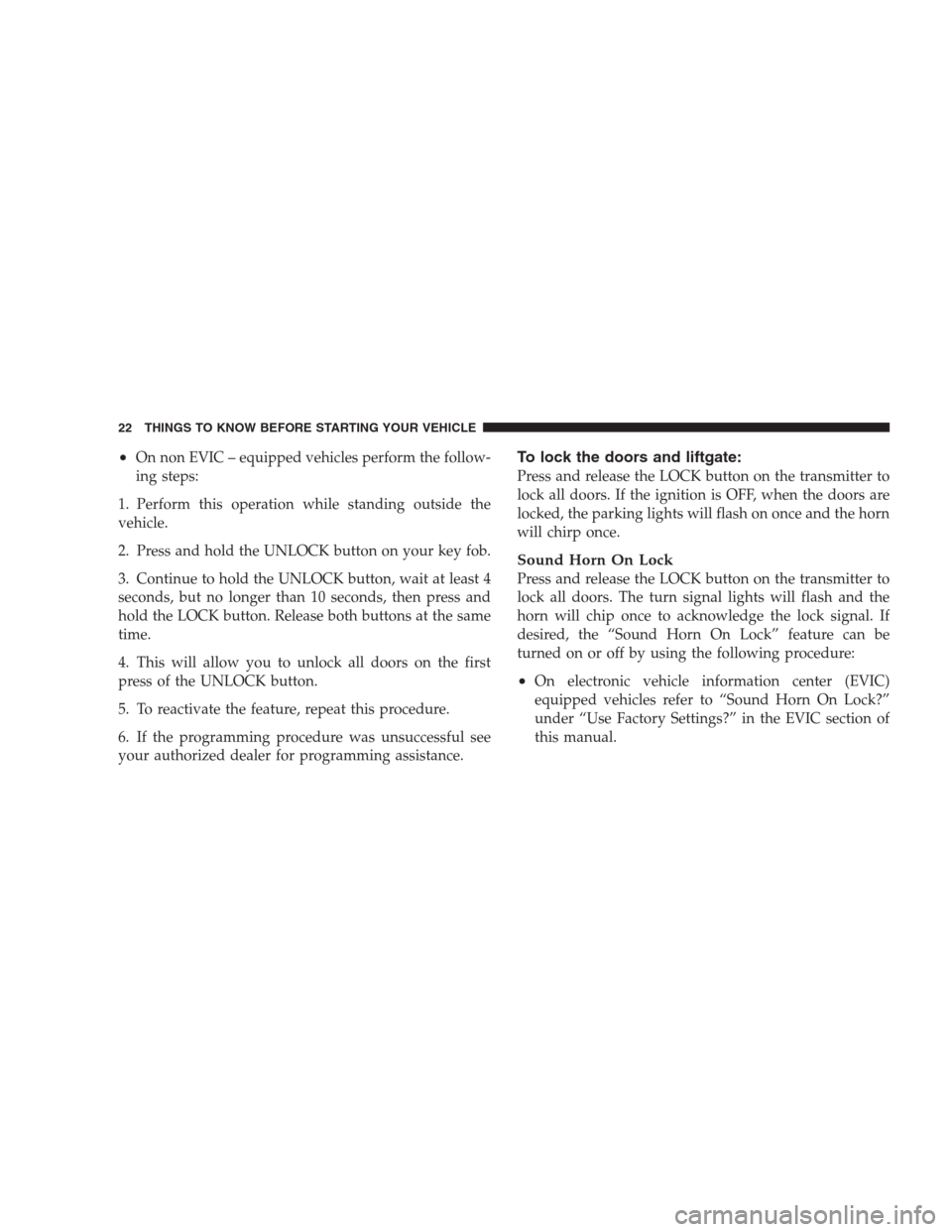

Page 22 of 464
•On non EVIC – equipped vehicles perform the follow-
ing steps:
1. Perform this operation while standing outside the
vehicle.
2. Press and hold the UNLOCK button on your key fob.
3. Continue to hold the UNLOCK button, wait at least 4
seconds, but no longer than 10 seconds, then press and
hold the LOCK button. Release both buttons at the same
time.
4. This will allow you to unlock all doors on the first
press of the UNLOCK button.
5. To reactivate the feature, repeat this procedure.
6. If the programming procedure was unsuccessful see
your authorized dealer for programming assistance.To lock the doors and liftgate:
Press and release the LOCK button on the transmitter to
lock all doors. If the ignition is OFF, when the doors are
locked, the parking lights will flash on once and the horn
will chirp once.
Sound Horn On Lock
Press and release the LOCK button on the transmitter to
lock all doors. The turn signal lights will flash and the
horn will chip once to acknowledge the lock signal. If
desired, the “Sound Horn On Lock” feature can be
turned on or off by using the following procedure:
•On electronic vehicle information center (EVIC)
equipped vehicles refer to “Sound Horn On Lock?”
under “Use Factory Settings?” in the EVIC section of
this manual.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

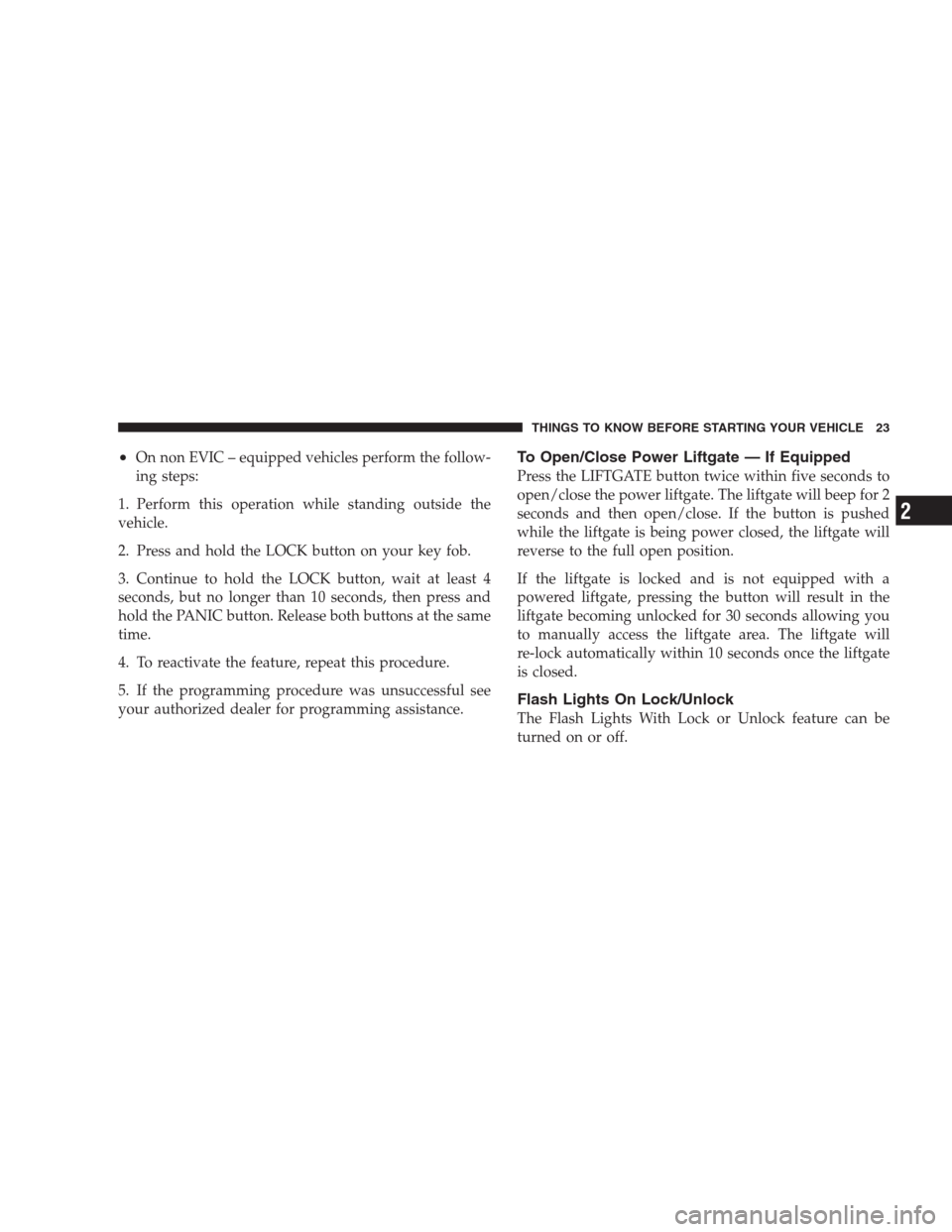

Page 23 of 464
•On non EVIC – equipped vehicles perform the follow-
ing steps:
1. Perform this operation while standing outside the
vehicle.
2. Press and hold the LOCK button on your key fob.
3. Continue to hold the LOCK button, wait at least 4
seconds, but no longer than 10 seconds, then press and
hold the PANIC button. Release both buttons at the same
time.
4. To reactivate the feature, repeat this procedure.
5. If the programming procedure was unsuccessful see
your authorized dealer for programming assistance.To Open/Close Power Liftgate — If Equipped
Press the LIFTGATE button twice within five seconds to
open/close the power liftgate. The liftgate will beep for 2
seconds and then open/close. If the button is pushed
while the liftgate is being power closed, the liftgate will
reverse to the full open position.
If the liftgate is locked and is not equipped with a
powered liftgate, pressing the button will result in the
liftgate becoming unlocked for 30 seconds allowing you
to manually access the liftgate area. The liftgate will
re-lock automatically within 10 seconds once the liftgate
is closed.
Flash Lights On Lock/Unlock
The Flash Lights With Lock or Unlock feature can be
turned on or off.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
2

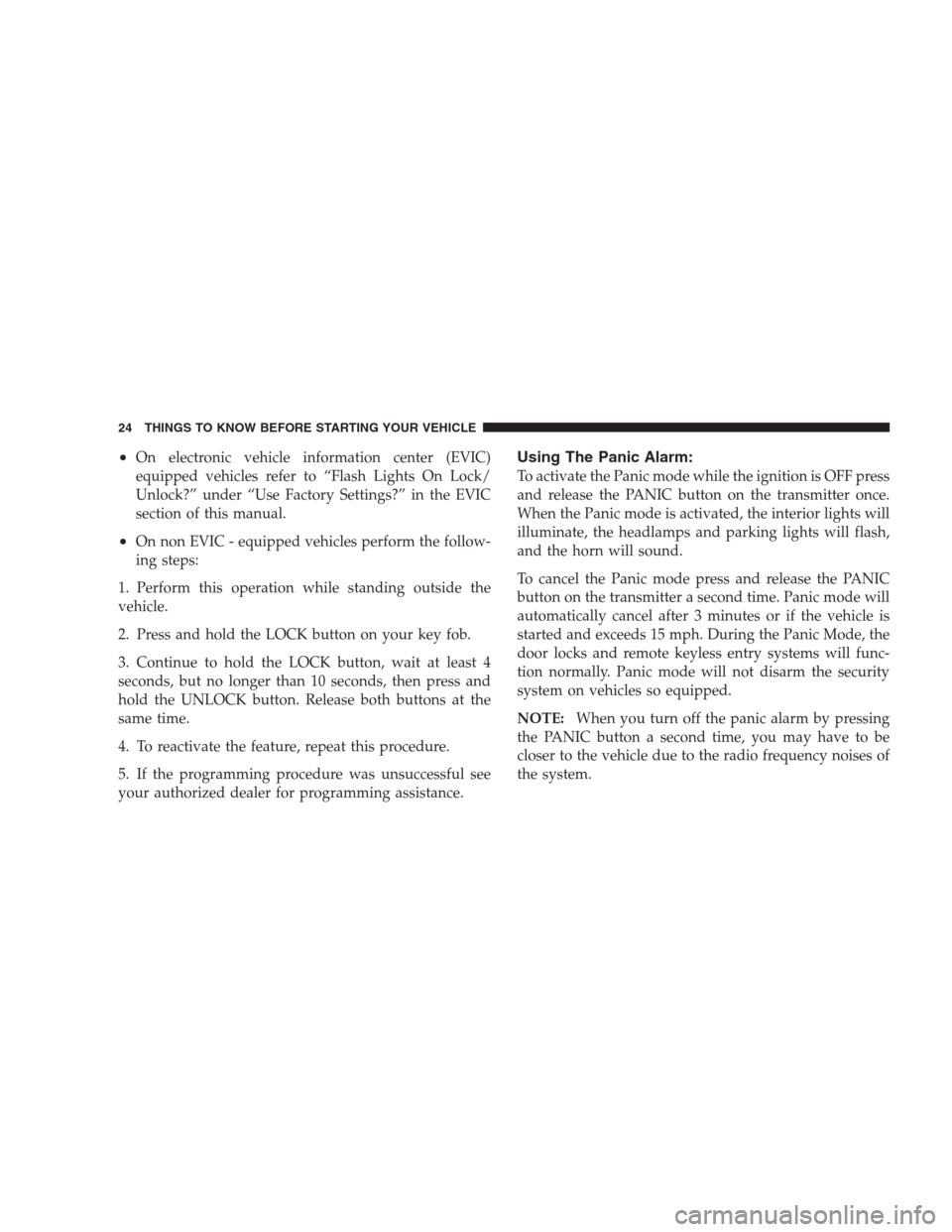

Page 24 of 464
•On electronic vehicle information center (EVIC)
equipped vehicles refer to “Flash Lights On Lock/
Unlock?” under “Use Factory Settings?” in the EVIC
section of this manual.
•On non EVIC - equipped vehicles perform the follow-
ing steps:
1. Perform this operation while standing outside the
vehicle.
2. Press and hold the LOCK button on your key fob.
3. Continue to hold the LOCK button, wait at least 4
seconds, but no longer than 10 seconds, then press and
hold the UNLOCK button. Release both buttons at the
same time.
4. To reactivate the feature, repeat this procedure.
5. If the programming procedure was unsuccessful see
your authorized dealer for programming assistance.
Using The Panic Alarm:
To activate the Panic mode while the ignition is OFF press
and release the PANIC button on the transmitter once.
When the Panic mode is activated, the interior lights will
illuminate, the headlamps and parking lights will flash,
and the horn will sound.
To cancel the Panic mode press and release the PANIC
button on the transmitter a second time. Panic mode will
automatically cancel after 3 minutes or if the vehicle is
started and exceeds 15 mph. During the Panic Mode, the
door locks and remote keyless entry systems will func-
tion normally. Panic mode will not disarm the security
system on vehicles so equipped.
NOTE:When you turn off the panic alarm by pressing
the PANIC button a second time, you may have to be
closer to the vehicle due to the radio frequency noises of
the system.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 25 of 464
Programming Additional Transmitters
Refer to SENTRY KEY “Customer Key Programming.”
NOTE:If you do not have a programmed transmitter,
contact your authorized dealer for assistance.
Battery Replacement
The recommended replacement battery is CR2032 bat-
tery.
NOTE:Do not touch the battery terminals that are on
the back housing or the printed circuit board.
1. With the transmitter buttons facing down, use a small
screwdriver or similar flat object to pry the two halves of
the transmitter apart. Make sure not to damage the
rubber gasket during removal.
Separating Transmitter Halves
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25
2

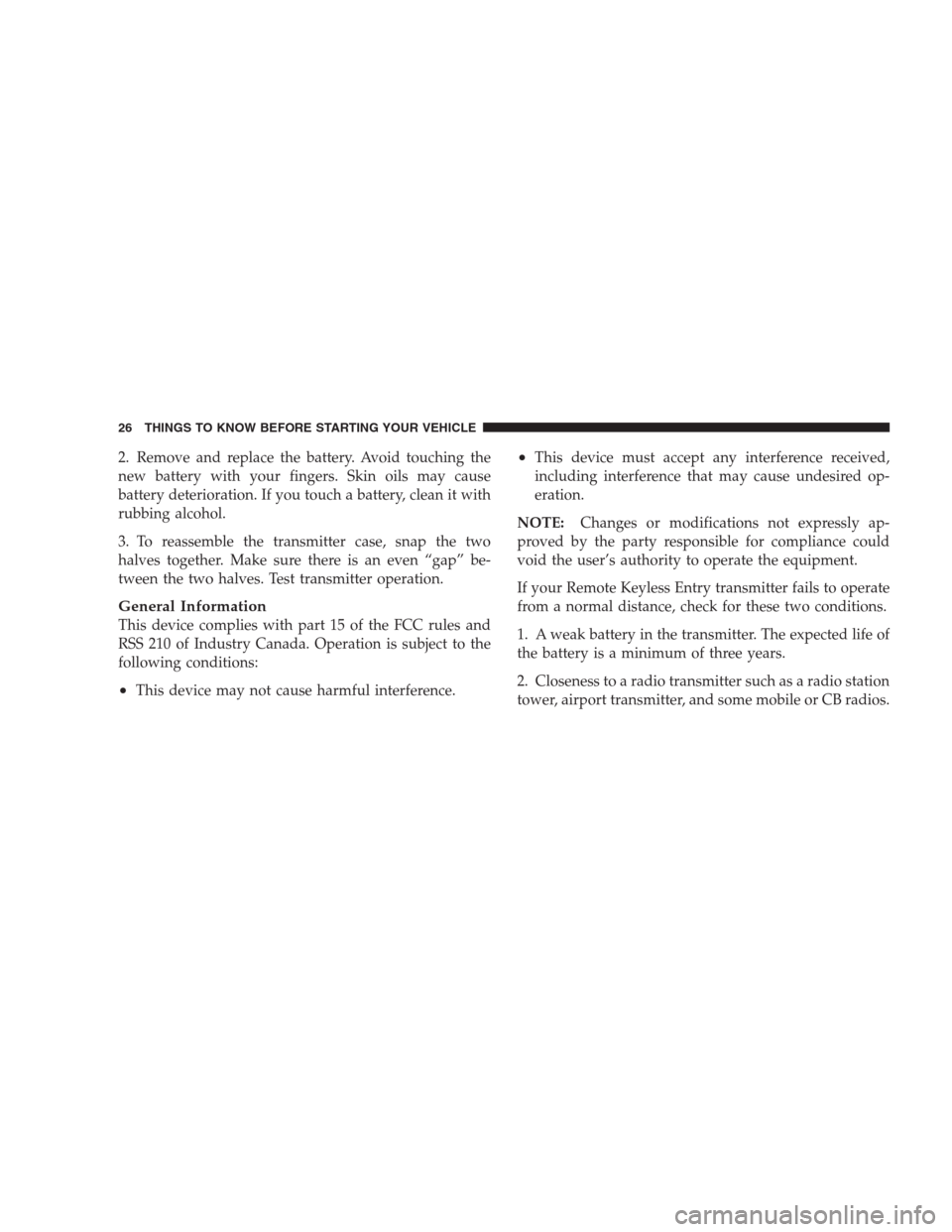

Page 26 of 464
2. Remove and replace the battery. Avoid touching the
new battery with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it with
rubbing alcohol.
3. To reassemble the transmitter case, snap the two
halves together. Make sure there is an even “gap” be-
tween the two halves. Test transmitter operation.
General Information
This device complies with part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired op-
eration.
NOTE:Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user’s authority to operate the equipment.
If your Remote Keyless Entry transmitter fails to operate
from a normal distance, check for these two conditions.
1. A weak battery in the transmitter. The expected life of
the battery is a minimum of three years.
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, and some mobile or CB radios.
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 27 of 464
DOOR LOCKS
Manual Door Locks
Lock the doors by pushing up on the lock knob on each
door trim panel.If the lock knob is up when you shut the door, the door
will lock. Therefore, make sure the keys are not inside the
vehicle before closing the door.
WARNING!
•For personal security and safety in the event of an
accident, lock the vehicle doors as you drive as
well as when you park and leave the vehicle.
•When leaving the vehicle always remove the key
from the ignition lock, and lock your vehicle. Do
not leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause severe per-
sonal injuries and death.
Door Lock Plunger
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27
2
Page 28 of 464
Power Door Locks
A power door lock switch is on each front door trim
panel. Use this switch to lock or unlock the doors.
If you press the power door lock switch while the key is
in the ignition, and any front door is open, the powerlocks will not operate. This prevents you from acciden-
tally locking your keys in the vehicle. Removing the key
or closing the door will allow the locks to operate. A
chime will sound if the key is in the ignition and a door
is open, as a reminder to remove the key.
Auto Door Locks — If Equipped
The doors will lock automatically on vehicles with power
door locks if all of the following conditions are met:
1. The Automatic Door Locks feature is enabled.
2. The transmission is in gear.
3. All doors are closed.
4. The throttle is pressed.
5. The vehicle speed is above 15 mph (24 km/h).
6. The doors were not previously locked using the power
door lock switch or remote keyless entry transmitter.
Power Door Lock Switch
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

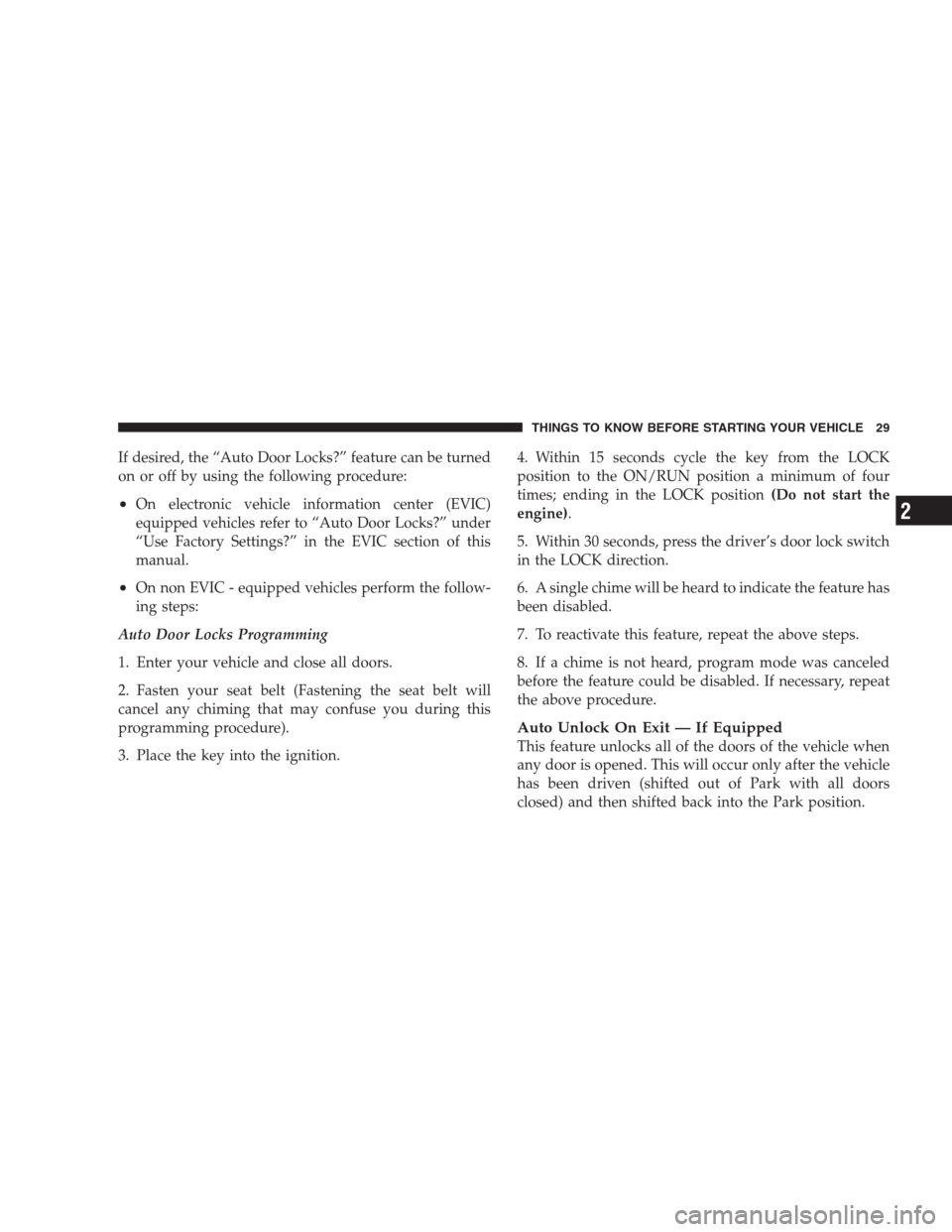

Page 29 of 464
If desired, the “Auto Door Locks?” feature can be turned
on or off by using the following procedure:
•On electronic vehicle information center (EVIC)
equipped vehicles refer to “Auto Door Locks?” under
“Use Factory Settings?” in the EVIC section of this
manual.
•On non EVIC - equipped vehicles perform the follow-
ing steps:
Auto Door Locks Programming
1. Enter your vehicle and close all doors.
2. Fasten your seat belt (Fastening the seat belt will
cancel any chiming that may confuse you during this
programming procedure).
3. Place the key into the ignition.4. Within 15 seconds cycle the key from the LOCK
position to the ON/RUN position a minimum of four
times; ending in the LOCK position(Do not start the
engine).
5. Within 30 seconds, press the driver’s door lock switch
in the LOCK direction.
6. A single chime will be heard to indicate the feature has
been disabled.
7. To reactivate this feature, repeat the above steps.
8. If a chime is not heard, program mode was canceled
before the feature could be disabled. If necessary, repeat
the above procedure.
Auto Unlock On Exit — If Equipped
This feature unlocks all of the doors of the vehicle when
any door is opened. This will occur only after the vehicle
has been driven (shifted out of Park with all doors
closed) and then shifted back into the Park position.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29
2

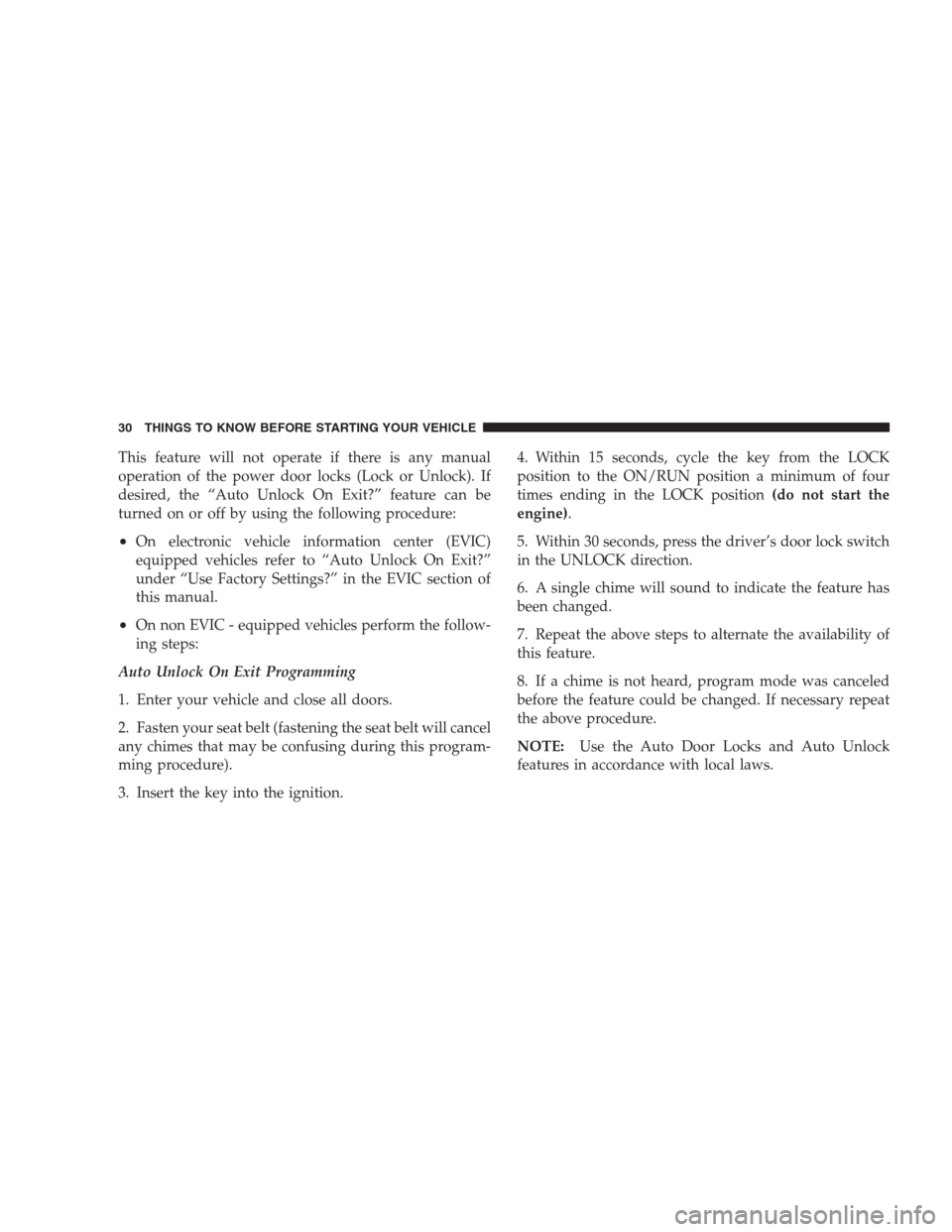

Page 30 of 464
This feature will not operate if there is any manual
operation of the power door locks (Lock or Unlock). If
desired, the “Auto Unlock On Exit?” feature can be
turned on or off by using the following procedure:
•On electronic vehicle information center (EVIC)
equipped vehicles refer to “Auto Unlock On Exit?”
under “Use Factory Settings?” in the EVIC section of
this manual.
•On non EVIC - equipped vehicles perform the follow-
ing steps:
Auto Unlock On Exit Programming
1. Enter your vehicle and close all doors.
2. Fasten your seat belt (fastening the seat belt will cancel
any chimes that may be confusing during this program-
ming procedure).
3. Insert the key into the ignition.4. Within 15 seconds, cycle the key from the LOCK
position to the ON/RUN position a minimum of four
times ending in the LOCK position(do not start the
engine).
5. Within 30 seconds, press the driver’s door lock switch
in the UNLOCK direction.
6. A single chime will sound to indicate the feature has
been changed.
7. Repeat the above steps to alternate the availability of
this feature.
8. If a chime is not heard, program mode was canceled
before the feature could be changed. If necessary repeat
the above procedure.
NOTE:Use the Auto Door Locks and Auto Unlock
features in accordance with local laws.
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
