Page 31 of 464
Child Protection Door Lock
To provide a safer environment for small children riding
in the rear seats, the rear doors are equipped with a child
protection door lock system.
NOTE:When the child lock system is engaged, the door
can be opened only by using the outside door handle
even though the inside door lock is in the unlocked
position.
To Engage the Child Protection Door Lock
1. Open the rear door.
2. Insert the tip of the vehicle’s ignition key (or any
similar item) into the child lock control and slide it
upward.3. Repeat Steps 1 and 2 to engage the Child Protection
Door Lock on the opposite rear door.
NOTE:After engaging the child protection door lock
system, always test the door from the inside to make
certain it is in the desired position.
Child Lock Control
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
2
Page 32 of 464
NOTE:For emergency exit with the system engaged,
move the door lock knob to the UNLOCK position, roll
down the window and open the door with the outside
door handle.
WARNING!
Avoid trapping anyone in the vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the child protection locks are
engaged.
To Disengage the Child Protection Door Lock
1. Open the rear door.
2. Insert the tip of the vehicle’s ignition key (or any
similar item) into the child lock control and slide it
downward.
3. Repeat Steps 1 and 2 to disengage the Child Protection
Door Lock on the opposite rear door.
NOTE:After disengaging the child protection door lock
system, always test the door from the inside to make
certain it is in the desired position.
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 33 of 464
WINDOWS
Power Windows
The window controls on the driver’s door control all the
door windows. The switches will operate only when the
ignition switch is in the ON or ACCESSORY position.The window lock switch on the driver’s door allows you
to disable the window controls on the passenger doors.
When the lock switch is pressed the window controls on
the passenger doors will not illuminate and the passen-
ger windows will be disabled.
Auto Down Feature
All the power window switches have an auto down
feature. Press the window switch to the second detent,
release, and the window will go down automatically.
To open the window part way, press the window switch
to the first detent and release it when you want the
window to stop.
The power window switches remain active for up to 45
seconds after the ignition switch has been turned off.
Opening either front door will cancel this feature.
Power Window Switches
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33
2
Page 34 of 464
The time is customer programmable through the Elec-
tronic Vehicle Information Center (EVIC). Refer to
“Power Accessory Delay?” under “Personal Settings
(Customer Programmable Features)” in Section 4 of this
manual for details.
Auto Up Feature with Anti–Pinch Protection — If
Equipped
Lift the window switch to the second detent, release, and
the window will go up automatically.
To stop the window from going all the way up during the
auto-up operation, push down on the switch briefly.
To close the window part way, lift the window switch to
the first detent and release when you want the window to
stop.NOTE:If the window runs into any obstacle during
auto-closure, it will reverse direction and then stop.
Remove the obstacle and use the window switch again to
close the window.
NOTE:Any impact due to rough road conditions may
trigger the auto reverse function unexpectedly during
auto-closure. If this happens, pull the switch lightly to the
first detent and hold to close window manually.
WARNING!
There is no anti-pinch protection when the window
is almost closed. To avoid personal injury be sure to
clear your arms, hands, fingers and all objects from
the window path before closing.
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

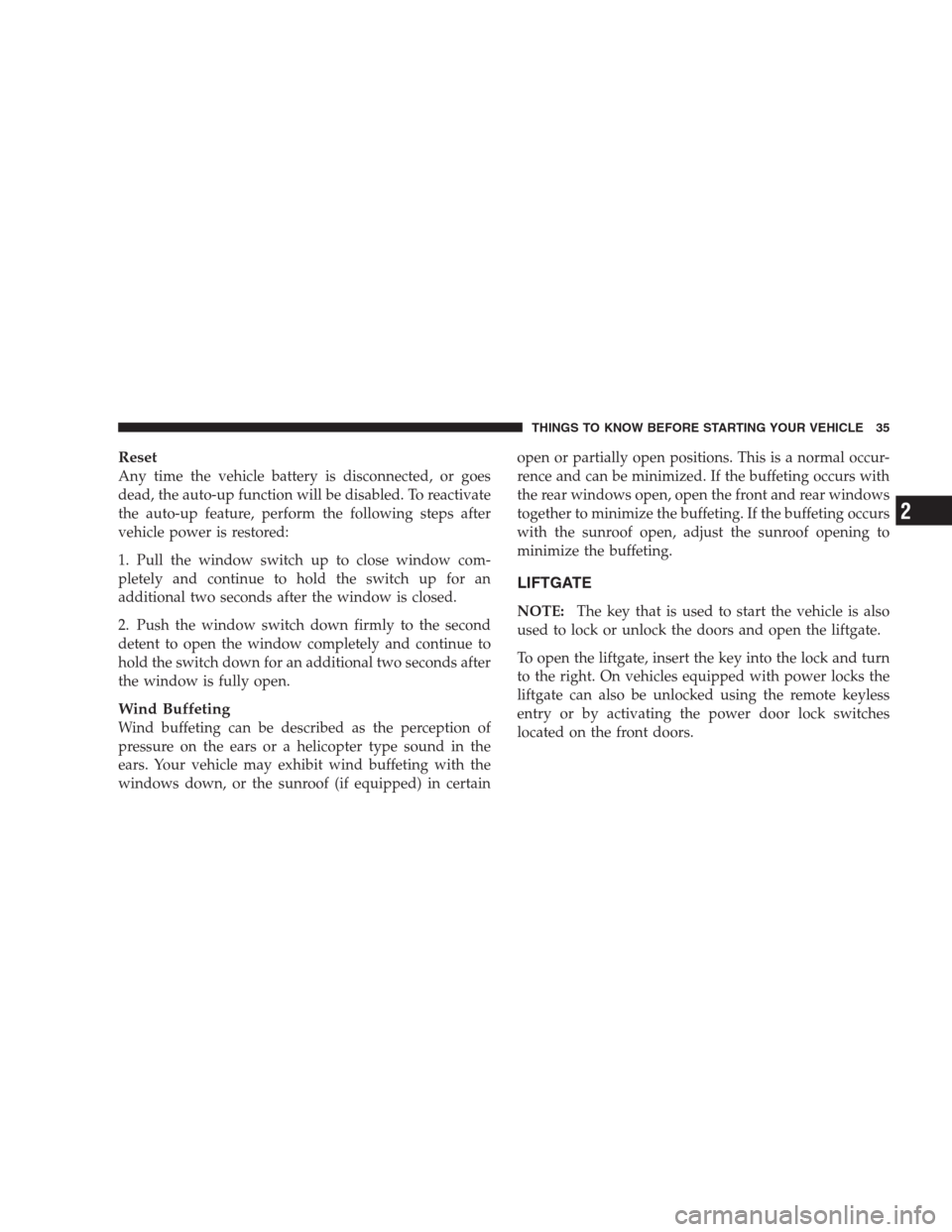

Page 35 of 464
Reset
Any time the vehicle battery is disconnected, or goes
dead, the auto-up function will be disabled. To reactivate
the auto-up feature, perform the following steps after
vehicle power is restored:
1. Pull the window switch up to close window com-
pletely and continue to hold the switch up for an
additional two seconds after the window is closed.
2. Push the window switch down firmly to the second
detent to open the window completely and continue to
hold the switch down for an additional two seconds after
the window is fully open.
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certainopen or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the rear windows open, open the front and rear windows
together to minimize the buffeting. If the buffeting occurs
with the sunroof open, adjust the sunroof opening to
minimize the buffeting.
LIFTGATE
NOTE:The key that is used to start the vehicle is also
used to lock or unlock the doors and open the liftgate.
To open the liftgate, insert the key into the lock and turn
to the right. On vehicles equipped with power locks the
liftgate can also be unlocked using the remote keyless
entry or by activating the power door lock switches
located on the front doors.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35
2
Page 36 of 464
Once unlocked, on vehicles equipped with power locks,
the liftgate can be opened or closed without using the
key. To open the liftgate, depress the liftgate release
switch located on the underside of the license plate bar
and pull the liftgate open with one fluid motion.The liftgate will not manually open if the vehicle is in
gear or the vehicle speed is above 0 mph (0 km/h).
NOTE:
•In the event of a power malfunction to the liftgate, an
emergency liftgate latch release can be used to open
the liftgate. The emergency liftgate latch release can be
accessed through a snap-in cover located on the lift-
gate trim panel.
•If the liftgate is locked and is not equipped with a
powered liftgate, pressing the button on the remote
keyless entry transmitter will result in the liftgate
becoming unlocked for 30 seconds allowing you to
manually access the liftgate area. The liftgate will
re-lock automatically within 10 seconds once the lift-
gate is closed.
Liftgate Release Handle
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 37 of 464
Power Liftgate — If Equipped
The power liftgate may be opened manually or by using
the button on the remote keyless entry transmitter. Press
the button on the remote keyless entry transmitter twice
within five seconds, to open the power liftgate. Once the
liftgate is fully open, pressing the button twice within
five seconds a second time will close the liftgate.
The power liftgate may also be opened by pressing the
button located on the overhead console.
Power Liftgate Button
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37
2
Page 38 of 464
When the remote button is pressed the “Lamp Flash”
feature is enabled the tail lights will flash to signal that
the liftgate is opening or closing. A beeping signal will
sound two seconds before the liftgate starts to open or
close.
WARNING!
During power operation, personal injury or cargo
damage may occur. Ensure the liftgate travel path is
clear. Make sure the liftgate is closed and latched
before driving away.
NOTE:
•If anything obstructs the power liftgate while it is
closing or opening, the liftgate will automatically
reverse to the closed or open position, provided it
meets sufficient resistance.
•There are also pinch sensors attached to the side of the
liftgate. Light pressure anywhere along these strips
will cause the liftgate to return to the open position.
•The power liftgate must be in the full open position for
any of the close buttons to operate. If the liftgate is not
fully open, press the open button to fully open the
liftgate and then press close.
•If the liftgate release switch is activated while the
power liftgate is closing, the liftgate will reverse to the
full open position.
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 39 of 464
•The power liftgate switches will not operate if the
vehicle is in gear or the vehicle speed is above 0 mph
(0 km/h).
•The power liftgate will not operate in temperatures
below12°F(24° C) or temperatures above 143° F
(62° C). Be sure to remove any build-up of snow or ice
from the liftgate before pressing any of the power
liftgate switches.
•If the power liftgate encounters multiple obstructions
within the same cycle, the system will automatically
stop and must be opened or closed manually.
WARNING!
•Driving with the liftgate open can allow poison-
ous exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the liftgate closed when you are operating the
vehicle.
•If you are required to drive with the liftgate open,
make sure that all windows are closed, and the
climate control blower switch is set at high speed.
DO NOT use the recirculation mode.
Gas props support the liftgate in the open position.
However, because the gas pressure drops with tempera-
ture, it may be necessary to assist the props when
opening the liftgate in cold weather.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39
2
Page 40 of 464
OCCUPANT RESTRAINTS
Some of the most important safety features in your
vehicle are the restraint systems. These include the front
and rear seat belts for the driver and all passengers, front
airbags for both the driver and front passenger, and if
equipped, left and right window bags for the driver and
passengers seated next to a window and a driver inflat-
able knee blocker. If you will be carrying children too
small for adult-size seat belts, your seat belts or the
LATCH feature (refer to the Child Restraint section in this
manual), can be used to hold infant and child restraint
systems.
NOTE:The front airbags have a multi stage inflator
design. This allows the airbag to have different rates of
inflation that are based on collision severity.
Passenger Airbag Disabled Light
40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
