CHRYSLER PACIFICA HYBRID 2017 2.G Service Manual
Manufacturer: CHRYSLER, Model Year: 2017, Model line: PACIFICA HYBRID, Model: CHRYSLER PACIFICA HYBRID 2017 2.GPages: 592, PDF Size: 6.73 MB
Page 41 of 592
Five Button Key FobSix Button Key Fob
3
GETTING TO KNOW YOUR VEHICLE 39
Page 42 of 592
General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, in-cluding interference that may cause undesired opera-
tion. NOTE:
Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
To Unlock The Doors
NOTE: Uconnect Settings lets you program the system to
unlock either the driver’s side doors on the first push
(default) or unlock all doors on the first push of the unlock
button on the key fob. To change the default setting, refer
to “Uconnect Settings” in “Multimedia” for further infor-
mation.
Seven Button Key Fob
40 GETTING TO KNOW YOUR VEHICLE
Page 43 of 592
1st Push Of Key Fob Unlocks
Push and release the unlock button on the key fob once to
unlock the driver front door and sliding door or twice
within five seconds to unlock all doors and liftgate. The
hazard lights will flash to acknowledge the unlock signal.
The illuminated entry system will be activated.
2nd Push Of Key Fob Unlocks
Push and release the unlock button on the key fob twice
within five seconds to unlock all doors and liftgate. The
turn signal lights will flash to acknowledge the unlock
signal. The illuminated entry system will be activated.This feature lets you program the system to unlock either
the driver’s side doors or all doors on the first push of the
unlock button on the key fob. To change the current setting,
refer to “Uconnect Settings” in “Multimedia” for further
information.
NOTE:
If the vehicle is equipped with Passive Entry, refer
to “Keyless Enter-N-Go — Passive Entry” in “Getting To
Know Your Vehicle” for further information.
Emergency Key Feature
The key fob also contains and an emergency key, which
stores in the bottom of the key fob.
First Push Unlock
Second Push Unlock
3
GETTING TO KNOW YOUR VEHICLE 41
Page 44 of 592
The emergency key allows for entry into the vehicle should
the battery in the vehicle or the key fob go dead. The
emergency key is also for locking/unlocking the glove
compartment. You can keep the emergency key with you
when valet parking.
To remove the emergency key, press the mechanical button
on the side of the key fob with your thumb and pull the
emergency key out with your other hand while pushing
the mechanical button.
To Lock The Doors And Liftgate
Push and release the lock button on the key fob to lock all
doors and liftgate. The hazard lights will flash once and the
horn will chirp once to acknowledge the signal. Settings in
radio can change to lights only, chirp only, or both.
If the vehicle is equipped with Passive Entry, refer to
“Keyless Enter-N-Go — Passive Entry” in “Getting To
Know Your Vehicle” for further information.
Key Fob With Remote Control And Integrated Vehicle
Key
If one or more doors are open, or the liftgate is open, the
doors will lock. This is signaled by a quick flash of the turn
signals.
Vehicles Equipped With Keyless Enter-N-Go — Passive
Entry
If one or more doors are open, or the liftgate is open, the
doors will lock. The doors will unlock again only if the key
is inside the passenger compartment.
Mechanical Latch To Release Emergency Key
42 GETTING TO KNOW YOUR VEHICLE
Page 45 of 592
Key Fob Battery Replacement
The recommended replacement battery is one CR2032
battery.
NOTE:
•Batteries contain harmful chemicals. Dispose old batter-
ies by placing them in correct containers according to the
law or by taking them to a dealership, where they will be
handled appropriately.
• Perchlorate Material — special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate
• Do not touch the battery terminals that are on the back
housing or the printed circuit board.
1. Remove the emergency key by pushing the mechanical release button on the side of the key fob with your
thumb and then pull the key out with your other hand.
Emergency Key Removal
3
GETTING TO KNOW YOUR VEHICLE 43
Page 46 of 592
2. Insert a coin, a flat blade screw driver, or the tip of youremergency key into the now exposed slot and carefully
pry on both sides to disengage the snaps. Gently remove
the back cover from the fob being careful not to damage
any of the snaps.
3. Remove the battery by sliding the battery rearward in its pocket until the battery lifts up. Remove the depleted
battery from the battery pocket and dispose appropri-
ately. 4. Fit a new CR2032 battery ensuring that the positive (+)
side is facing upwards. Push the battery into the pocket
until it is firmly seated in place and secured under both
tabs.
5. Align the back cover into its original position and snap it back in place by pushing it against the fob until it is
seated all around.
Programming Additional Key Fob
If you do not have a programmed key fob, contact your
authorized dealer for details.
Request For Additional Remote Controls
NOTE: Only key fobs that are programmed to the vehicle
electronics can be used to start and operate the vehicle.
Once a key fob is programmed to a vehicle, it cannot be
programmed to any other vehicle.
Separating The Key Fob Case
44 GETTING TO KNOW YOUR VEHICLE
Page 47 of 592
CAUTION!
•Always remove the key fobs from the vehicle and
lock all doors when leaving the vehicle unattended.
• For vehicles equipped with Keyless Enter-N-Go —
Ignition, always remember to place the ignition in
the OFF mode.
Duplication of key fobs may be performed at an authorized
dealer. This procedure consists of programming a blank
key fob to the vehicle electronics. A blank key fob is one
that has never been programmed.
NOTE: When having the Sentry Key Immobilizer System
serviced, bring all vehicle keys with you to an authorized
dealer.
KeySense Features — If Equipped
This feature provides the vehicle owner with the ability to
identify a specific vehicle key for which a customized
category of vehicle settings can be applied to determine the
driving experience for other drivers of the vehicle. The
vehicle settings are protected by a unique 4-digit PIN,
which the vehicle owner creates when accessing the spe-
cific settings for the first time. This feature also has additional features that are always
enabled when the specific key is in use that cannot be set
by the vehicle owner. While this specific key fob is in use,
the vehicle will respond accordingly to the customized
vehicle settings and mandatory features. This includes
enhanced driving assistance features, increased driver
alerts, and the locking of certain optional features.
KeySense Key Fob
3
GETTING TO KNOW YOUR VEHICLE 45
Page 48 of 592

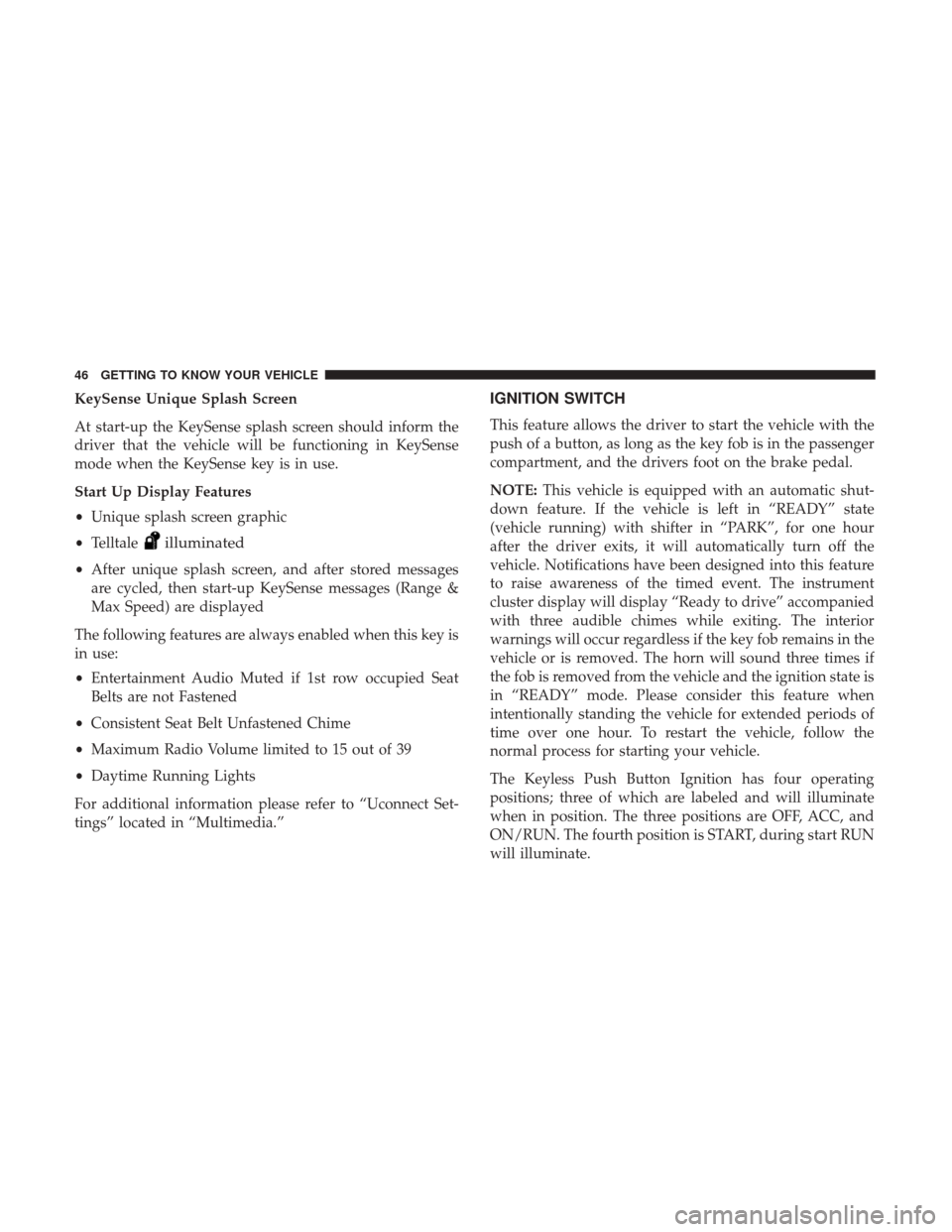

KeySense Unique Splash Screen
At start-up the KeySense splash screen should inform the
driver that the vehicle will be functioning in KeySense
mode when the KeySense key is in use.
Start Up Display Features
•Unique splash screen graphic
• Telltale
illuminated
•After unique splash screen, and after stored messages
are cycled, then start-up KeySense messages (Range &
Max Speed) are displayed
The following features are always enabled when this key is
in use:
• Entertainment Audio Muted if 1st row occupied Seat
Belts are not Fastened
• Consistent Seat Belt Unfastened Chime
• Maximum Radio Volume limited to 15 out of 39
• Daytime Running Lights
For additional information please refer to “Uconnect Set-
tings” located in “Multimedia.”
IGNITION SWITCH
This feature allows the driver to start the vehicle with the
push of a button, as long as the key fob is in the passenger
compartment, and the drivers foot on the brake pedal.
NOTE: This vehicle is equipped with an automatic shut-
down feature. If the vehicle is left in “READY” state
(vehicle running) with shifter in “PARK”, for one hour
after the driver exits, it will automatically turn off the
vehicle. Notifications have been designed into this feature
to raise awareness of the timed event. The instrument
cluster display will display “Ready to drive” accompanied
with three audible chimes while exiting. The interior
warnings will occur regardless if the key fob remains in the
vehicle or is removed. The horn will sound three times if
the fob is removed from the vehicle and the ignition state is
in “READY” mode. Please consider this feature when
intentionally standing the vehicle for extended periods of
time over one hour. To restart the vehicle, follow the
normal process for starting your vehicle.
The Keyless Push Button Ignition has four operating
positions; three of which are labeled and will illuminate
when in position. The three positions are OFF, ACC, and
ON/RUN. The fourth position is START, during start RUN
will illuminate.
46 GETTING TO KNOW YOUR VEHICLE
Page 49 of 592
NOTE:
•Pushing ignition Start/Stop button could just activate
the Electric Propulsion System (Ready will show in
cluster whenever vehicle is operating in EV (Electric
Vehicle) Mode and the vehicle is stationary).
• If the vehicle ignition is in either ACC or RUN the
vehicle charge indicator may not indicator greater than
99% state of charge due to vehicle loads and continue to
charge the vehicle. The ignition can be placed in the following positions:
OFF
•
The vehicle is stopped.
• Some electrical devices are available.
ACC
• Some electrical devices are available.
• Mechanical power (Hybrid Propulsion) is not available.
ON/RUN
• Driving position.
• All the electrical devices are available.
START
• As long as the Readyappears in the instrument cluster
display it does not matter if the engine is running or not,
hybrid propulsion is available.
The vehicle only operates in the ON/RUN ignition posi-
tion or from a remote start request.
Keyless Push Button Ignition
3
GETTING TO KNOW YOUR VEHICLE 47
Page 50 of 592
Reason Vehicle Will Be On
•Hybrid battery SOC maintenance in charge sustaining
operation
• Propulsion power augmentation based on accelerator
pedal request (which will cause the engine to come on
periodically afterward to maintain the emissions sys-
tem)
• Hood open in run (post-start)
• Heat generation for the thermal system in run (post-
start)
• Engine and fuel system maintenance
In case the ignition switch does not change with the push
of a button, the key fob may have a low or dead battery. In
this situation, a back up method can be used to operate the
ignition switch. Put the nose side (side opposite of the
emergency key) of the key fob against the ENGINE
START/STOP button and push to operate the ignition
switch.
WARNING!
• When leaving the vehicle, always remove the key fob
from the vehicle and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or others
could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the gear selector.
(Continued)
Keyless Push Button Ignition
48 GETTING TO KNOW YOUR VEHICLE
