Citroen C4 DAG 2008 1.G Owner's Manual

 68
 65
 96
 114
4
F A M I L I A R I S A T I O N
Directional headlamps
This lighting function automatically improves forward vision when cornering.
EXTERIOR
Lane departure warning system
Above 50 mph, this system is activated automatically if you inadvertently wander from your lane.
Visual and audible parking assistance, front/rear
This system warns you if an obstacle is detected when manoeuvring the vehicle.
Guide-me-home lighting
The headlamps stay on for a short period after switching off the ignition.

 57  63  59
5
F A M I L I A R I S A T I O N

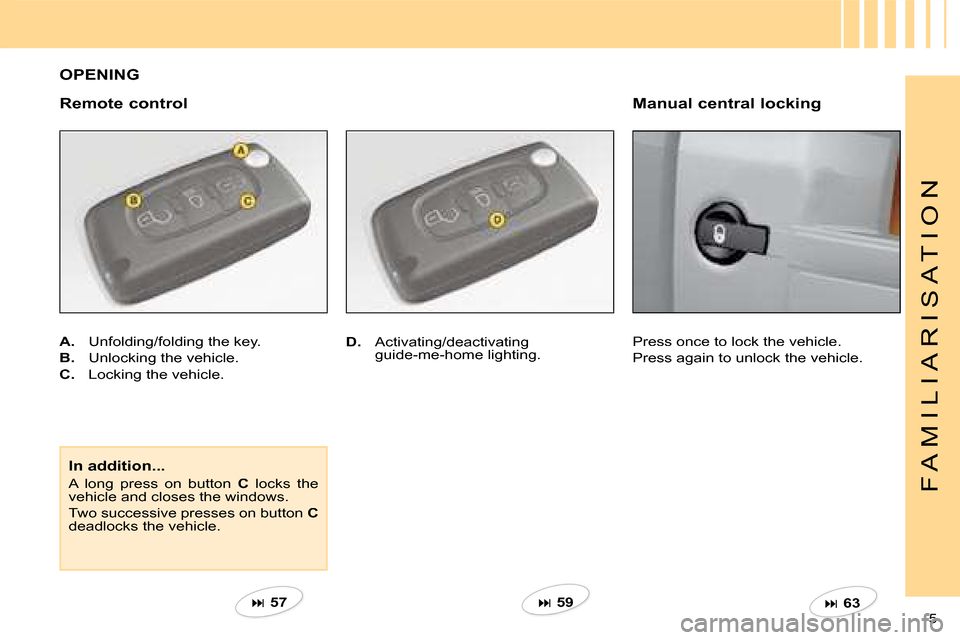

Press once to lock the vehicle.
Press again to unlock the vehicle.
Remote control
A. Unfolding/folding the key.
B. Unlocking the vehicle.
C. Locking the vehicle.
Manual central locking
OPENING
In addition...
A long press on button C locks the vehicle and closes the windows.
Two successive presses on button C deadlocks the vehicle.
D. Activating/deactivating guide-me-home lighting.

 125  124  64 6
F A M I L I A R I S A T I O N

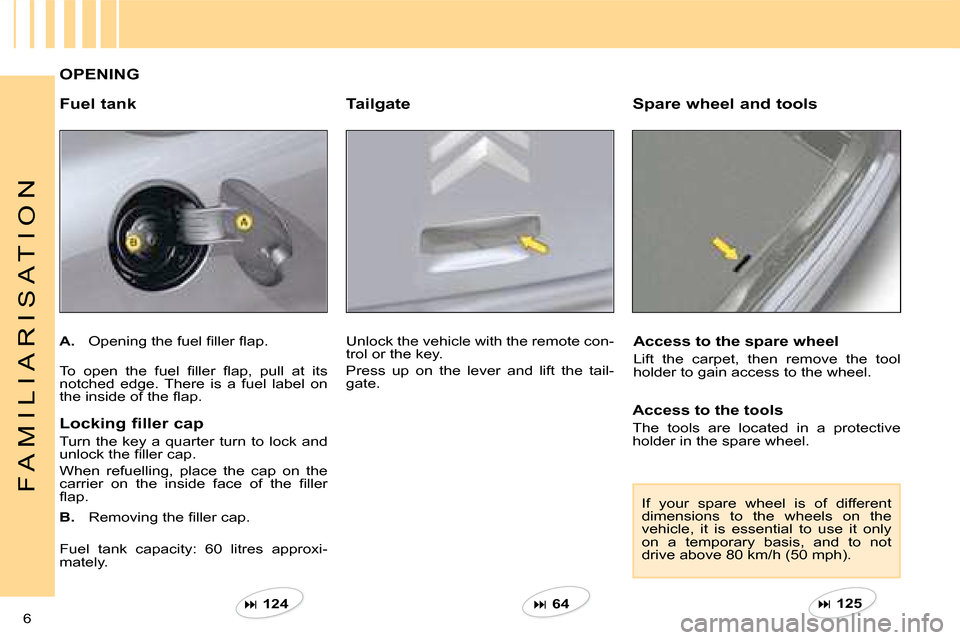

Unlock the vehicle with the remote con-trol or the key.
Press up on the lever and lift the tail-gate.
TailgateSpare wheel and tools
Access to the spare wheel
Lift the carpet, then remove the tool holder to gain access to the wheel.
OPENING
Access to the tools
The tools are located in a protective holder in the spare wheel.
Fuel tank
A. Opening the fuel fi ller fl ap.
B. Removing the fi ller cap.If your spare wheel is of different dimensions to the wheels on the vehicle, it is essential to use it only on a temporary basis, and to not drive above 80 km/h (50 mph).
To open the fuel fi ller fl ap, pull at its notched edge. There is a fuel label on the inside of the fl ap.
Locking filler cap
Turn the key a quarter turn to lock and unlock the fi ller cap.
When refuelling, place the cap on the carrier on the inside face of the fi ller fl ap.
Fuel tank capacity: 60 litres approxi-mately.

 23
 110 , 112
 48
 163 7
F A M I L I A R I S A T I O N

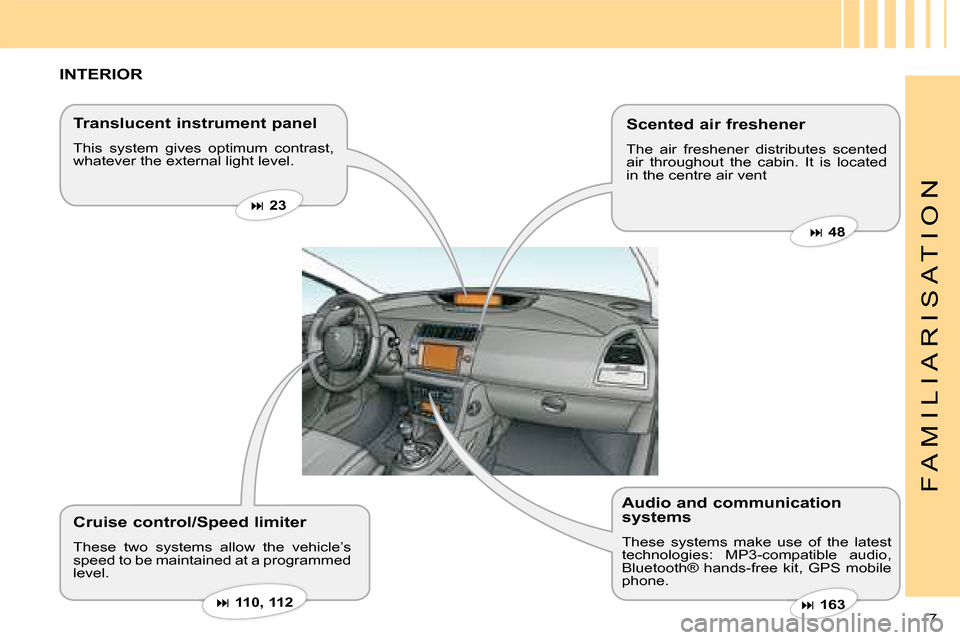

INTERIOR
Translucent instrument panel
This system gives optimum contrast, whatever the external light level.
Cruise control/Speed limiter
These two systems allow the vehicle’s speed to be maintained at a programmed level.
Scented air freshener
The air freshener distributes scented air throughout the cabin. It is located in the centre air vent
Audio and communication systems
These systems make use of the latest technologies: MP3-compatible audio, Bluetooth® hands-free kit, GPS mobile phone.

8
F A M I L I A R I S A T I O N

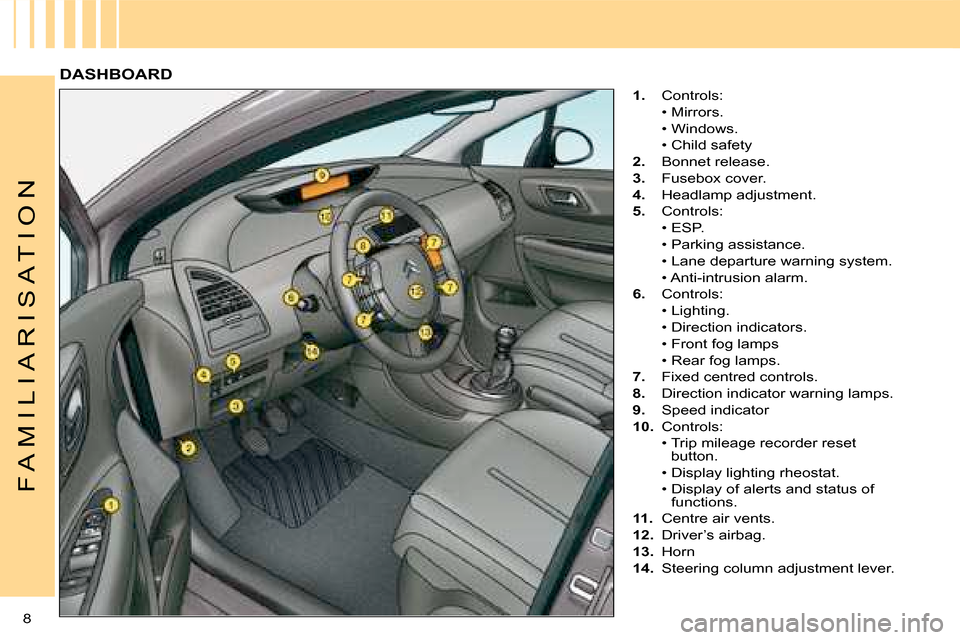

DASHBOARD
1. Controls:

9
F A M I L I A R I S A T I O N

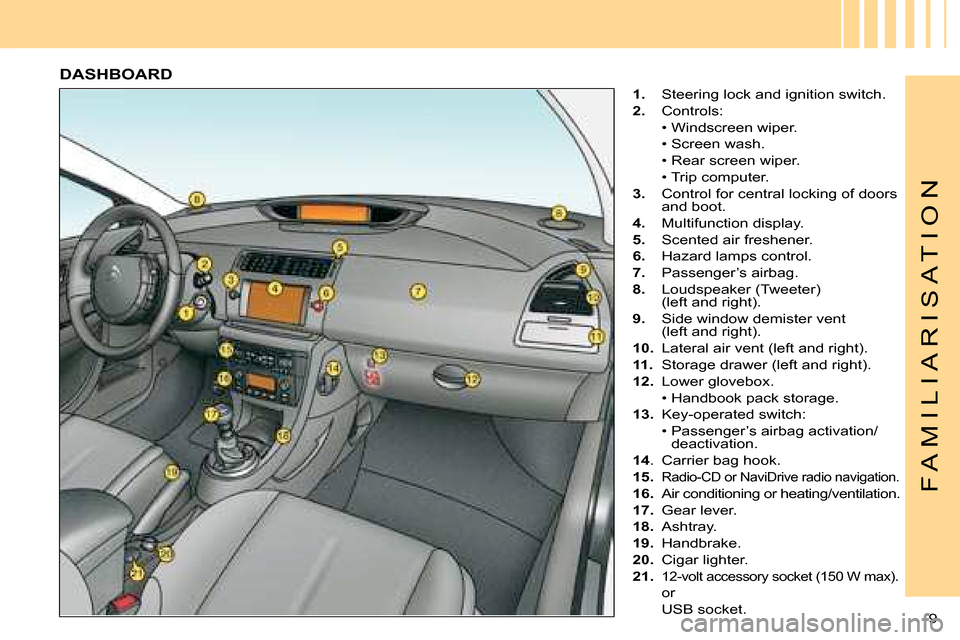

DASHBOARD
1. Steering lock and ignition switch.
2. Controls:

10
F A M I L I A R I S A T I O N

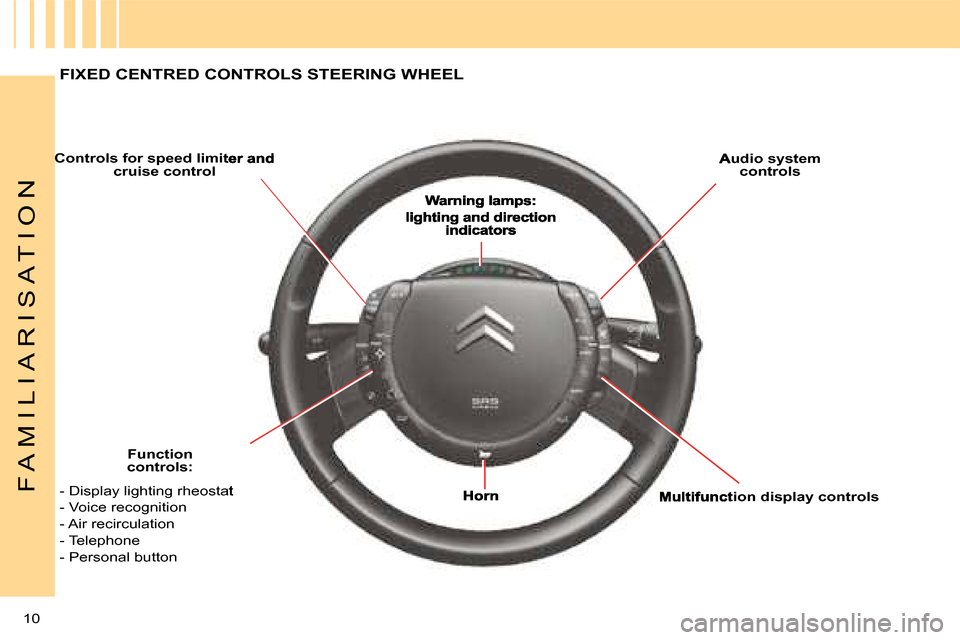

FIXED CENTRED CONTROLS STEERING WHEEL
Controls for speed limiter and cruise control Audio system controls
Function controls:
Multifunction display controls- Display lighting rheostat
- Voice recognition
- Air recirculation
- Telephone
- Personal button

11
F A M I L I A R I S A T I O N

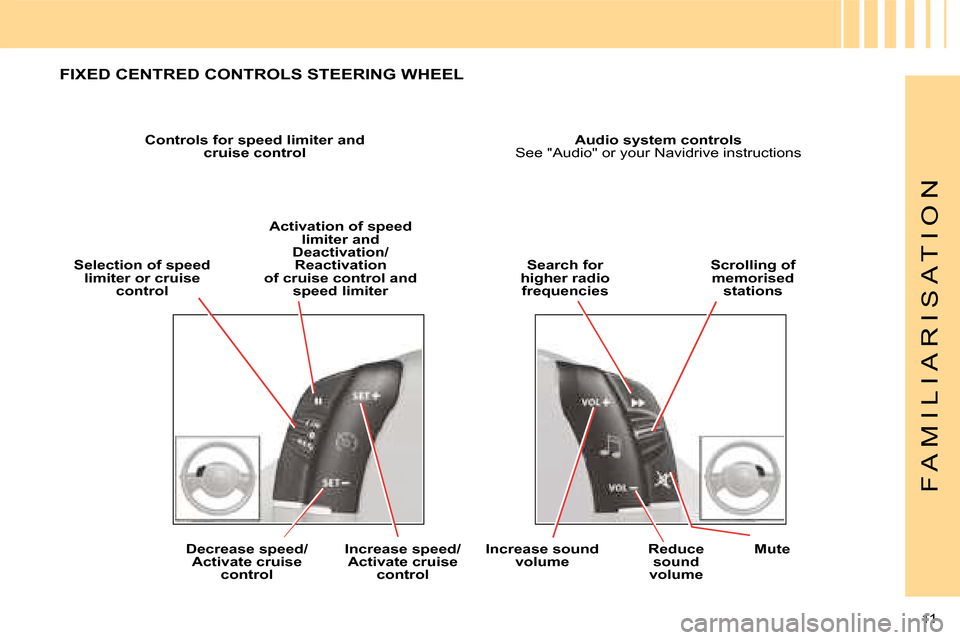

Controls for speed limiter and cruise control Audio system controls See "Audio" or your Navidrive instructions
Selection of speed limiter or cruise control
Activation of speed limiter and Deactivation/Reactivation of cruise control and speed limiter
Search for higher radio frequencies
Scrolling of memorised stations
Decrease speed/Activate cruise control
Increase speed/Activate cruise control
Increase sound volumeReduce sound volume
Mute
FIXED CENTRED CONTROLS STEERING WHEEL

12
F A M I L I A R I S A T I O N
Display lighting rheostat
Starting voice recognition
(See "Audio" or your Navidrive instructions)Access to "Main menu"*Scrolling in the multifunction display
Telephone pick-elephone pick-elephone pick-up/hang-up
(See "Audio" or your Navidrive instructions)
Personal button:
- Black panel (default function), or
- Interior lamp on/off, or
- Log of alerts, or
- Status of functions
Give a long press on this button to display the personalisation menu.
Selection of the type of information displayed on the right of the screen (radio, trip computer, navigation/guidance…) and for screen A, choice of activation/deac-tivation of your functions and choice of your adjustments
Cancel the current operation or return to the previous screen
Air recirculation
Validation of the function selected or the value modifi ed
Pick up/hang up
(See "Audio" or your Navigation instructions)
* In compliance with national legislation, in some coun-tries the "menu" control is deactivated when driving.
Display the "Directory" menu
(See "Audio" or your Navidrive instructions)
FIXED CENTRED CONTROLS STEERING WHEEL

 51
 50
13
F A M I L I A R I S A T I O N

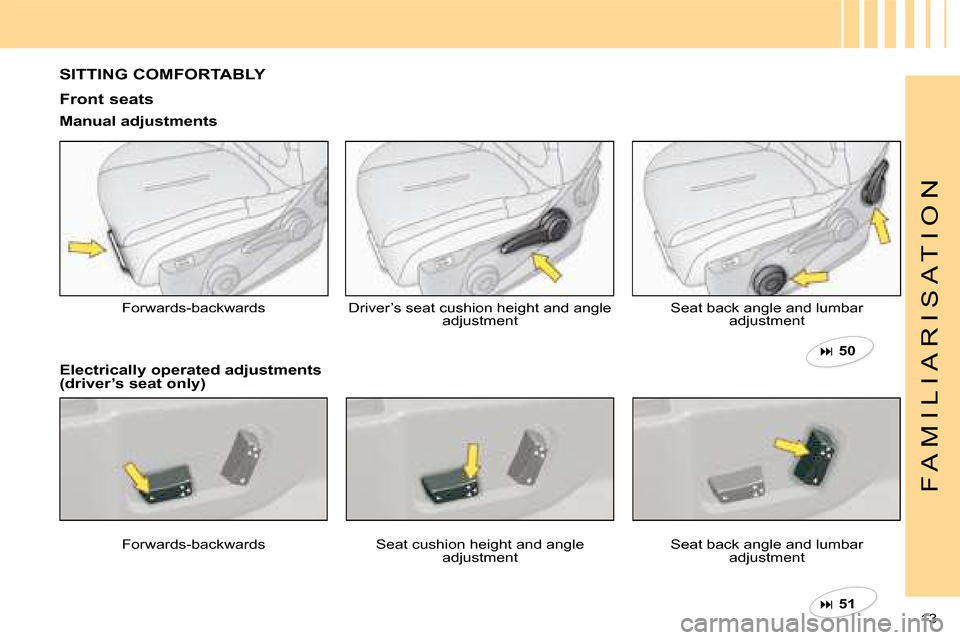

SITTING COMFORTABLY
Front seats
Forwards-backwardsDriver’s seat cushion height and angle adjustmentSeat back angle and lumbar adjustment
Manual adjustments
Electrically operated adjustments (driver’s seat only)
Forwards-backwardsSeat cushion height and angle adjustmentSeat back angle and lumbar adjustment
