Page 361 of 363

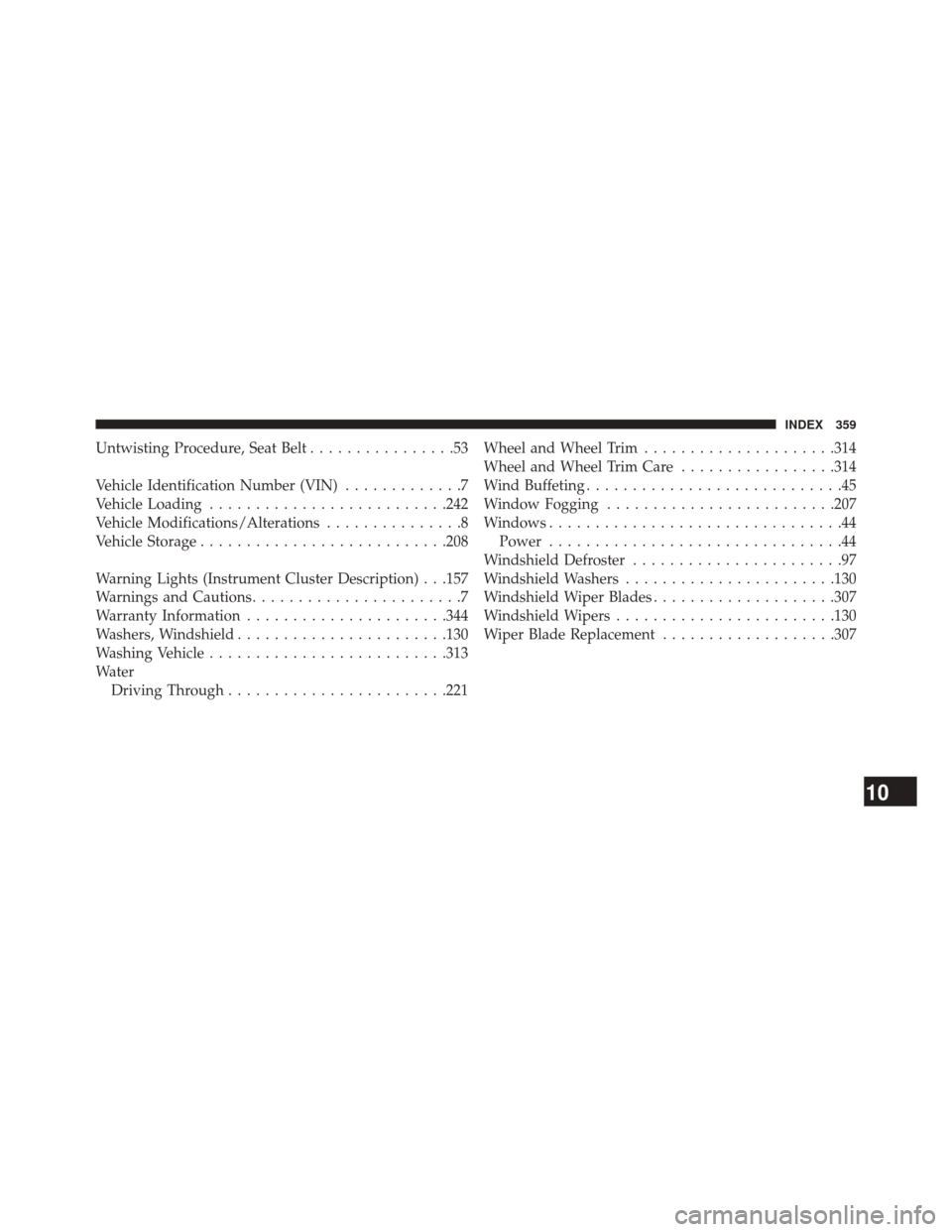

Untwisting Procedure, Seat Belt................53
Vehicle Identification Number (VIN) .............7
Vehicle Loading ......................... .242
Vehicle Modifications/Alterations ...............8
Vehicle Storage .......................... .208
Warning Lights (Instrument Cluster Description) . . .157
Warnings and Cautions .......................7
Warranty Information ..................... .344
Washers, Windshield ...................... .130
Washing Vehicle ......................... .313
Water Driving Through ....................... .221Wheel and Wheel Trim
.....................314
Wheel and Wheel Trim Care .................314
Wind Buffeting ............................45
Window Fogging ........................ .207
Windows ................................44
Power ................................44
Windshield Defroster .......................97
Windshield Washers ...................... .130
Windshield Wiper Blades ....................307
Windshield Wipers ....................... .130
Wiper Blade Replacement ...................307
10
INDEX 359
Page 362 of 363
INSTALLATION OF RADIO TRANSMITTING
EQUIPMENT
Special design considerations are incorporated into this vehicle’s
electronic system to provide immunity to radio frequency signals.
Mobile two-way radios and telephone equipment must be
installed properly by trained personnel. The following must be
observed during installation.
The positive power connection should be made directly to the
battery and fused as close to the battery as possible. The negative
power connection should be made to body sheet metal adjacent
to the negative battery connection. This connection should not
be fused.
Antennas for two-way radios should be mounted on the roof or
the rear area of the vehicle. Care should be used in mounting
antennas with magnet bases. Magnets may affect the accuracy or
operation of the compass on vehicles so equipped.The antenna cable should be as short as practical and routed
away from the vehicle wiring when possible. Use only fully
shielded coaxial cable.
Carefully match the antenna and cable to the radio to ensure a
low Standing Wave Ratio (SWR).
Mobile radio equipment with output power greater than normal
may require special precautions.
All installations should be checked for possible interference
between the communications equipment and the vehicle’s elec-
tronic systems.
Page 363 of 363
Chrysler Group LLCOWNER’S MANUAL
2014
2014 FIAT 500e
14BEV24-126-ACThird EditionPrinted in U.S.A.
FIAT 500e
