FIAT 600 2007 1.G Owners Manual

1
Dear New Car Owner
Thank you for selecting Fiat and congratulations on your choice of a Fiat 600.
We have written this handbook to help you get to know all your new Fiat 600 features and use it in the best pos-
sible way.
You should read it right through before taking the road for the first time. You will find information, tips and im-
portant warnings regarding the driving of your car to help you derive the maximum from your Fiat 600’s techno-
logical features.
You are recommended to read carefully the warnings and indications, marked with the respective symbols:
personal safety;
the car’s wellbeing;
environmental protection.
The enclosed Fiat Warranty Booklet list the services that Fiat offers its Customers:
• the Warranty Certificate with terms and conditions for maintaining its validity
• the range of additional services available to Fiat Customers.
Best regards and good motoring.
This Owner Handbook describes all the Fiat 600 versions. As a consequence, you should consider only
the information which is related to the engine and bodywork version of the car you purchased.
001-069 Seicento GB 22-11-2007 10:49 Pagina 1

2

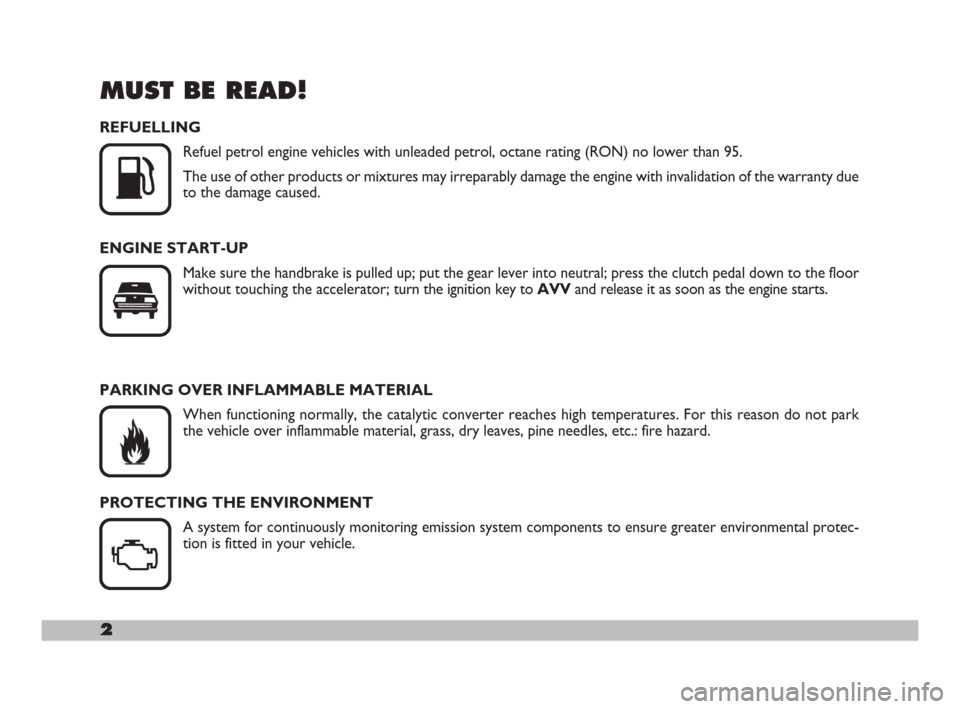

MUST BE READ!
REFUELLING
Refuel petrol engine vehicles with unleaded petrol, octane rating (RON) no lower than 95.
The use of other products or mixtures may irreparably damage the engine with invalidation of the warranty due
to the damage caused.
ENGINE START-UP
Make sure the handbrake is pulled up; put the gear lever into neutral; press the clutch pedal down to the floor
without touching the accelerator; turn the ignition key to AVV and release it as soon as the engine starts.
PARKING OVER INFLAMMABLE MATERIAL
When functioning normally, the catalytic converter reaches high temperatures. For this reason do not park
the vehicle over inflammable material, grass, dry leaves, pine needles, etc.: fire hazard.
K

PROTECTING THE ENVIRONMENT
A system for continuously monitoring emission system components to ensure greater environmental protec-
tion is fitted in your vehicle.
U
001-069 Seicento GB 22-11-2007 10:49 Pagina 2

3

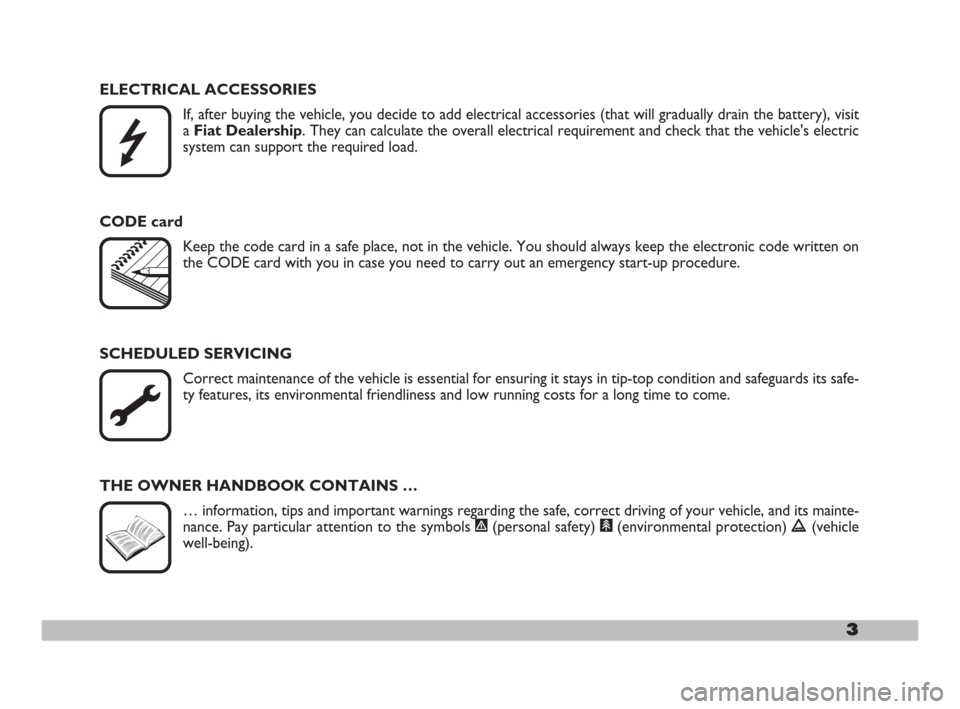

ELECTRICAL ACCESSORIES
If, after buying the vehicle, you decide to add electrical accessories (that will gradually drain the battery), visit
a Fiat Dealership. They can calculate the overall electrical requirement and check that the vehicle's electric
system can support the required load.

CODE card
Keep the code card in a safe place, not in the vehicle. You should always keep the electronic code written on
the CODE card with you in case you need to carry out an emergency start-up procedure.
SCHEDULED SERVICING
Correct maintenance of the vehicle is essential for ensuring it stays in tip-top condition and safeguards its safe-
ty features, its environmental friendliness and low running costs for a long time to come.
THE OWNER HANDBOOK CONTAINS …
… information, tips and important warnings regarding the safe, correct driving of your vehicle, and its mainte-
nance. Pay particular attention to the symbols "(personal safety) #(environmental protection) â(vehicle
well-being).
001-069 Seicento GB 22-11-2007 10:49 Pagina 3

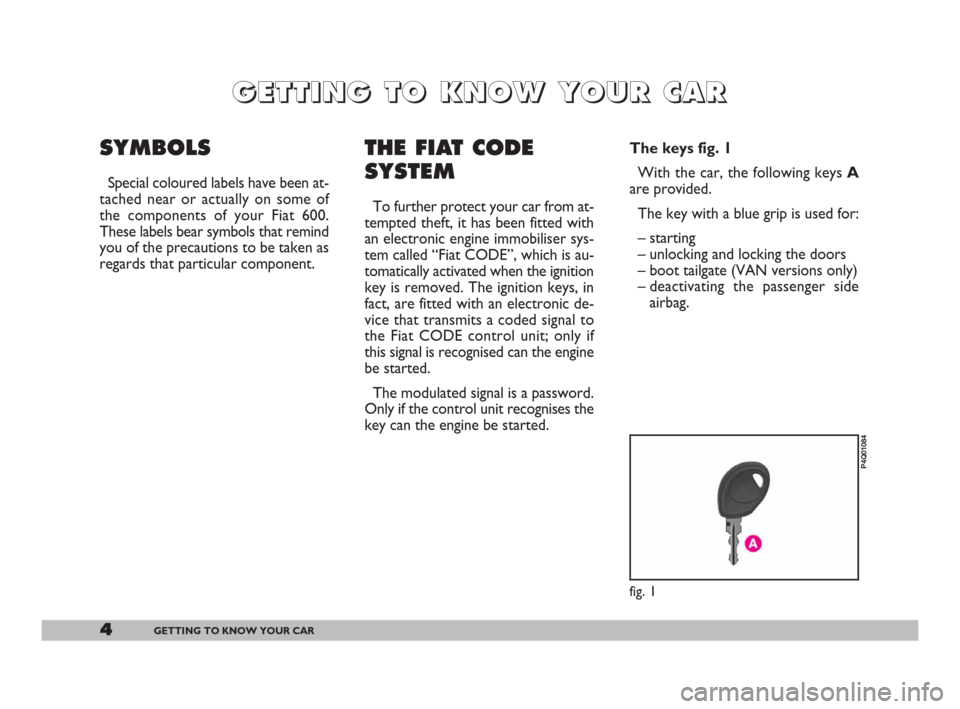

4GETTING TO KNOW YOUR CAR
SYMBOLS
Special coloured labels have been at-
tached near or actually on some of
the components of your Fiat 600.
These labels bear symbols that remind
you of the precautions to be taken as
regards that particular component.
THE FIAT CODE
SYSTEM
To further protect your car from at-
tempted theft, it has been fitted with
an electronic engine immobiliser sys-
tem called “Fiat CODE”, which is au-
tomatically activated when the ignition
key is removed. The ignition keys, in
fact, are fitted with an electronic de-
vice that transmits a coded signal to
the Fiat CODE control unit; only if
this signal is recognised can the engine
be started.
The modulated signal is a password.
Only if the control unit recognises the
key can the engine be started.The keys fig. 1
With the car, the following keys A
are provided.
The key with a blue grip is used for:
– starting
– unlocking and locking the doors
– boot tailgate (VAN versions only)
– deactivating the passenger side
airbag.
fig. 1
P4Q01084
G G
E E
T T
T T
I I
N N
G G
T T
O O
K K
N N
O O
W W
Y Y
O O
U U
R R
C C
A A
R R
001-069 Seicento GB 22-11-2007 10:49 Pagina 4

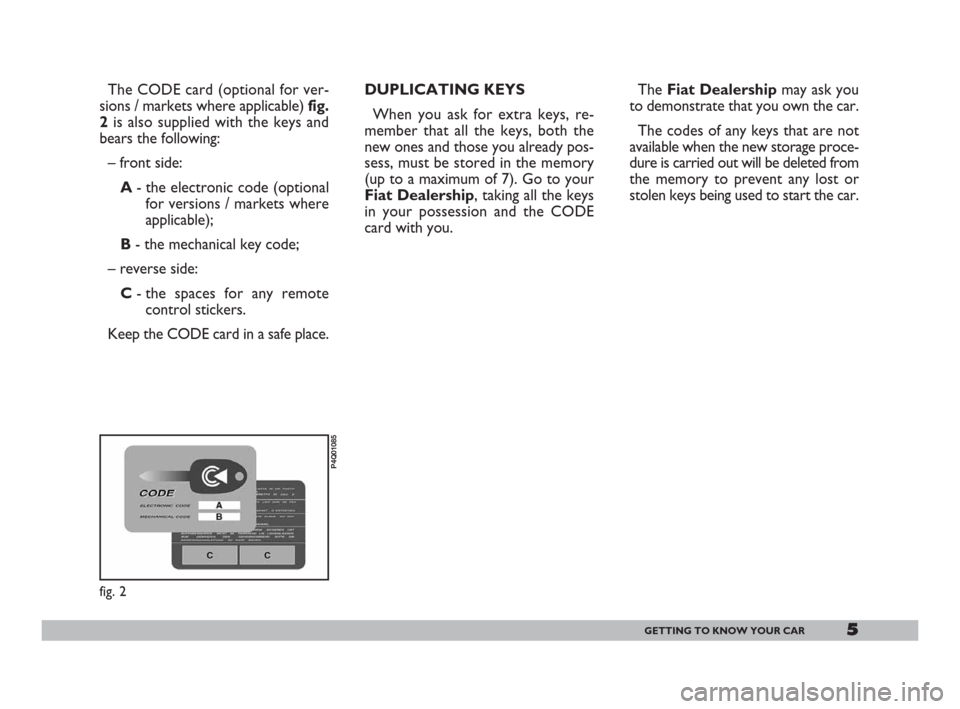

5GETTING TO KNOW YOUR CAR
The CODE card (optional for ver-
sions / markets where applicable) fig.
2 is also supplied with the keys and
bears the following:
– front side:
A - the electronic code (optional
for versions / markets where
applicable);
B - the mechanical key code;
– reverse side:
C - the spaces for any remote
control stickers.
Keep the CODE card in a safe place.DUPLICATING KEYS
When you ask for extra keys, re-
member that all the keys, both the
new ones and those you already pos-
sess, must be stored in the memory
(up to a maximum of 7). Go to your
Fiat Dealership, taking all the keys
in your possession and the CODE
card with you.The Fiat Dealershipmay ask you
to demonstrate that you own the car.
The codes of any keys that are not
available when the new storage proce-
dure is carried out will be deleted from
the memory to prevent any lost or
stolen keys being used to start the car.
fig. 2
P4Q01085
001-069 Seicento GB 22-11-2007 10:49 Pagina 5

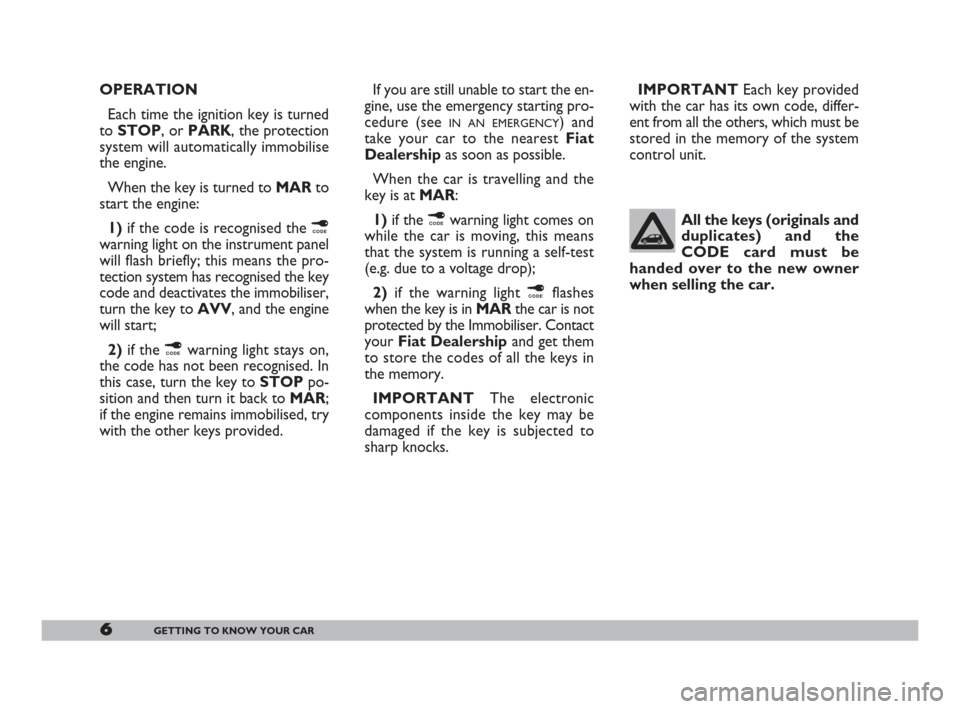

6GETTING TO KNOW YOUR CAR
OPERATION
Each time the ignition key is turned
to STOP, or PARK, the protection
system will automatically immobilise
the engine.
When the key is turned to MARto
start the engine:
1) if the code is recognised the ¢
warning light on the instrument panel
will flash briefly; this means the pro-
tection system has recognised the key
code and deactivates the immobiliser,
turn the key to AVV, and the engine
will start;
2) if the ¢warning light stays on,
the code has not been recognised. In
this case, turn the key to STOP po-
sition and then turn it back to MAR;
if the engine remains immobilised, try
with the other keys provided.If you are still unable to start the en-
gine, use the emergency starting pro-
cedure (see
IN AN EMERGENCY) and
take your car to the nearest Fiat
Dealershipas soon as possible.
When the car is travelling and the
key is at MAR:
1) if the ¢warning light comes on
while the car is moving, this means
that the system is running a self-test
(e.g. due to a voltage drop);
2) if the warning light ¢flashes
when the key is in MAR the car is not
protected by the Immobiliser. Contact
your Fiat Dealershipand get them
to store the codes of all the keys in
the memory.
IMPORTANT The electronic
components inside the key may be
damaged if the key is subjected to
sharp knocks.IMPORTANTEach key provided
with the car has its own code, differ-
ent from all the others, which must be
stored in the memory of the system
control unit.
All the keys (originals and
duplicates) and the
CODE card must be
handed over to the new owner
when selling the car.
001-069 Seicento GB 22-11-2007 10:49 Pagina 6

7GETTING TO KNOW YOUR CAR
When the car is parked on a steep
slope the reel mechanism may block;
this is normal. The reel mechanism
prevents the webbing coming out
when it is jerked or if the car brakes
sharply, as in a collision or when cor-
nering at high speed.
The rear seat is fitted with inertial
seat belts with three anchor points
and reel. To unfasten the seat belts, press but-
ton D. Guide the seat belt with your
hand while it is rewinding, to prevent
it from twisting.SEAT BELTS
USING THE SEAT BELTS
The belt should be worn keeping the
chest straight and rested against the
seat back.
Take hold the tongue B-fig. 3and
insert it into the buckle C, until hear-
ing the locking click.
If it jams, let it rewind for a short
stretch, then pull it out again without
jerking.
fig. 3
P4Q01060
Do not press button D
when running.
Through the reel, the belt automat-
ically adapts to the body of the pas-
senger wearing it, allowing freedom of
movement.
001-069 Seicento GB 22-11-2007 10:49 Pagina 7

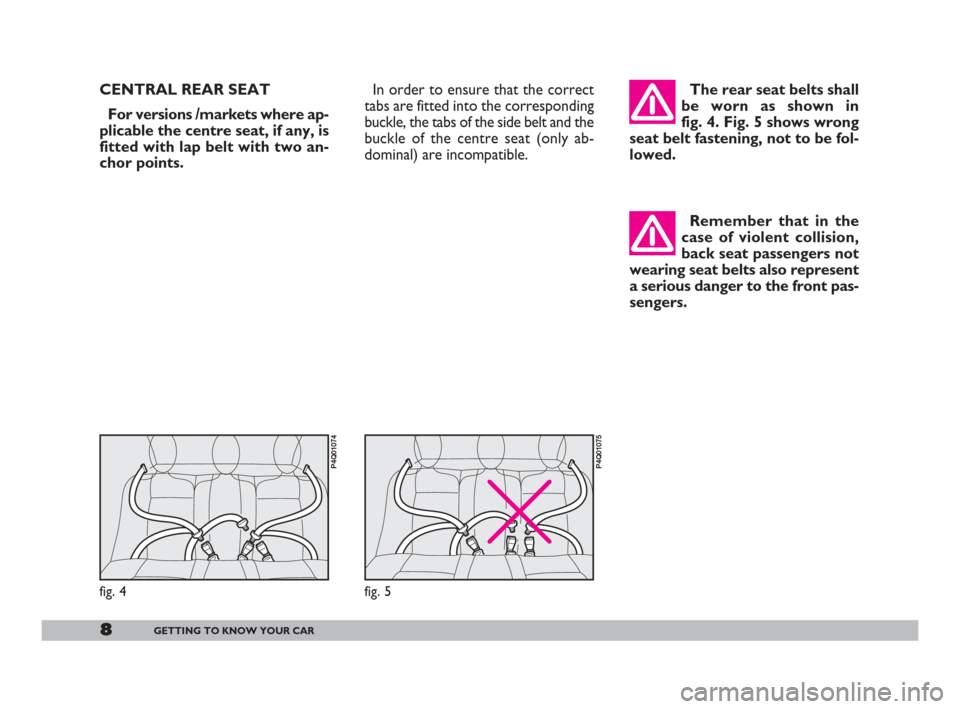

The rear seat belts shall
be worn as shown in
fig. 4. Fig. 5 shows wrong
seat belt fastening, not to be fol-
lowed.
Remember that in the
case of violent collision,
back seat passengers not
wearing seat belts also represent
a serious danger to the front pas-
sengers.In order to ensure that the correct
tabs are fitted into the corresponding
buckle, the tabs of the side belt and the
buckle of the centre seat (only ab-
dominal) are incompatible.
8GETTING TO KNOW YOUR CAR
CENTRAL REAR SEAT
For versions /markets where ap-
plicable the centre seat, if any, is
fitted with lap belt with two an-
chor points.
fig. 4
P4Q01074
fig. 5
P4Q01075
001-069 Seicento GB 22-11-2007 10:49 Pagina 8

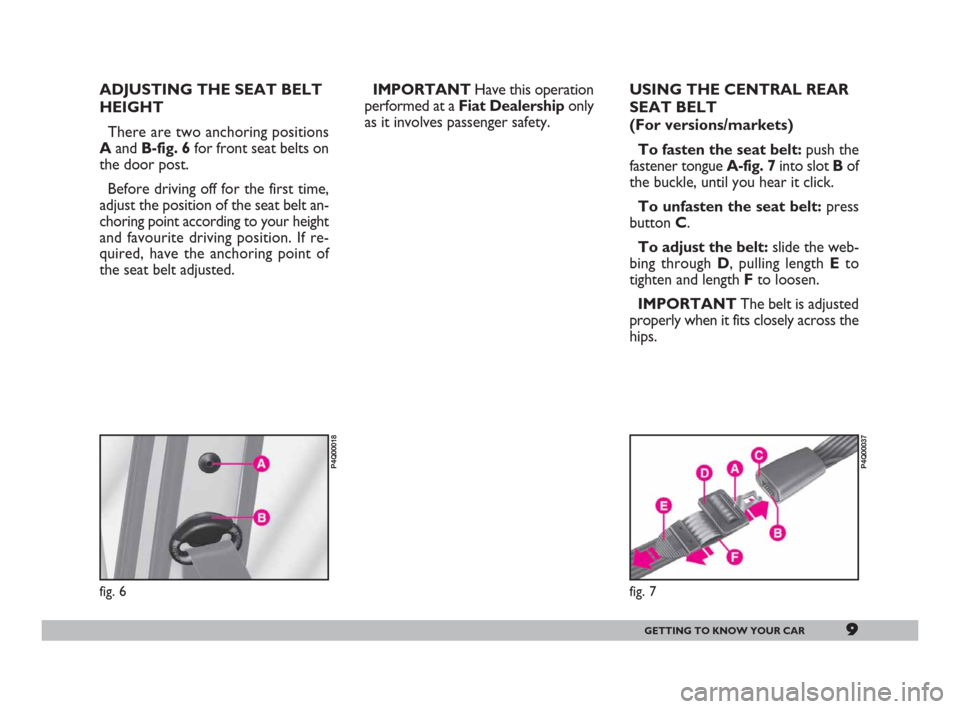

9GETTING TO KNOW YOUR CAR
fig. 6
P4Q00018
ADJUSTING THE SEAT BELT
HEIGHT
There are two anchoring positions
A and B-fig. 6 for front seat belts on
the door post.
Before driving off for the first time,
adjust the position of the seat belt an-
choring point according to your height
and favourite driving position. If re-
quired, have the anchoring point of
the seat belt adjusted.USING THE CENTRAL REAR
SEAT BELT
(For versions/markets)
To fasten the seat belt:push the
fastener tongue A-fig. 7into slot Bof
the buckle, until you hear it click.
To unfasten the seat belt:press
button C.
To adjust the belt:slide the web-
bing through D, pulling length Eto
tighten and length Fto loosen.
IMPORTANTThe belt is adjusted
properly when it fits closely across the
hips.
fig. 7
P4Q00037
IMPORTANT Have this operation
performed at a Fiat Dealership only
as it involves passenger safety.
001-069 Seicento GB 22-11-2007 10:49 Pagina 9
