The Innovative Telematic Solution for cars
based on Windows Mobile™

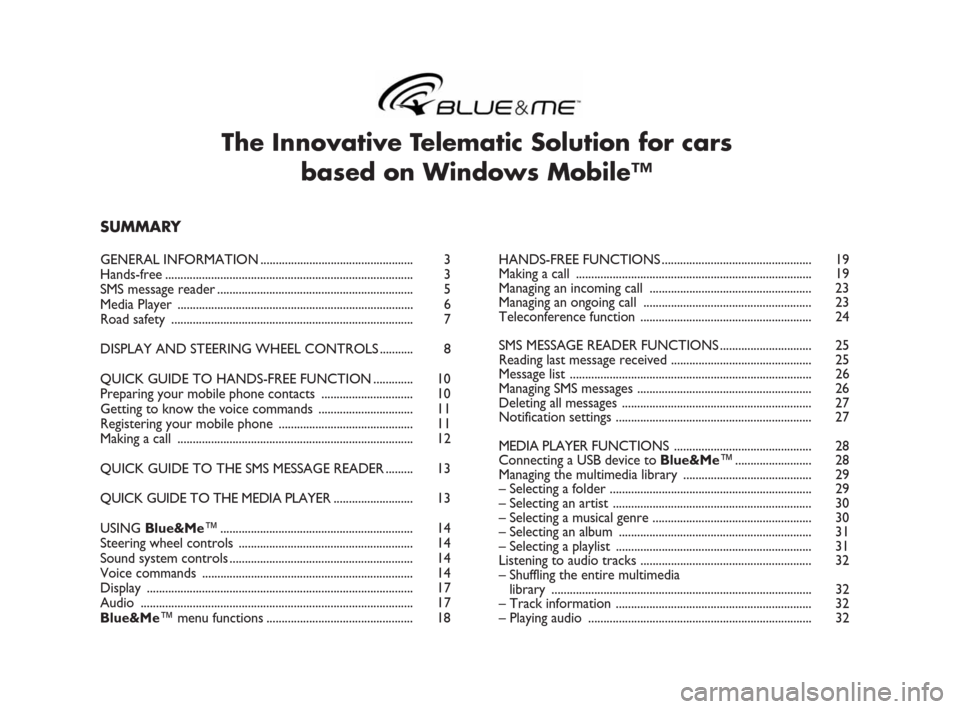

SUMMARY
GENERAL INFORMATION .................................................. 3
Hands-free................................................................................. 3
SMS message reader................................................................ 5
Media Player ............................................................................. 6
Road safety ............................................................................... 7

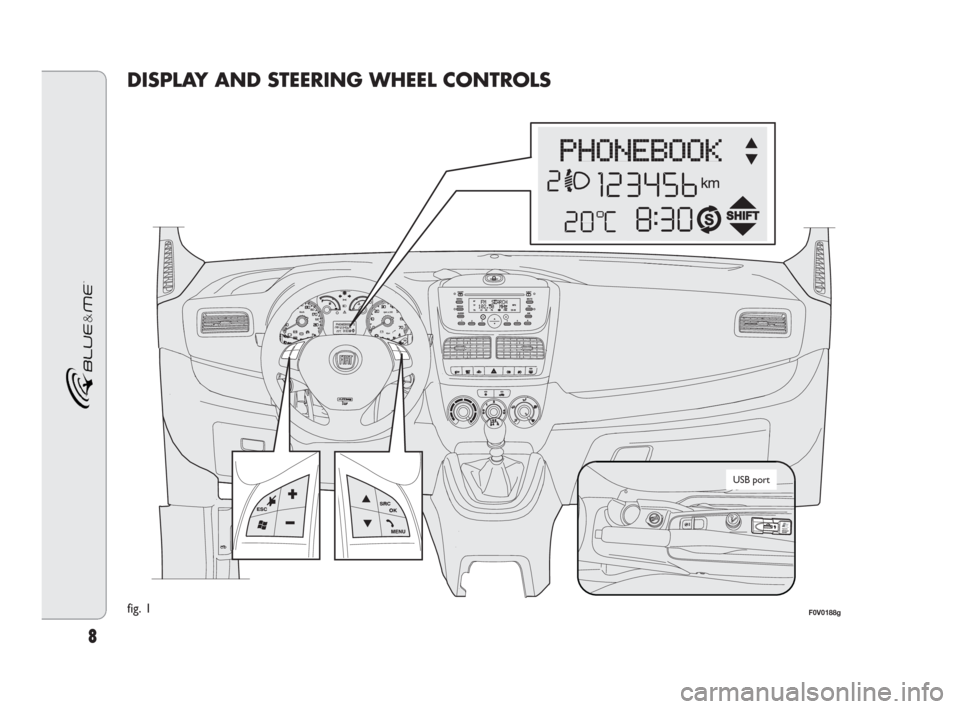

DISPLAY AND STEERING WHEEL CONTROLS ........... 8
QUICK GUIDE TO HANDS-FREE FUNCTION............. 10
Preparing your mobile phone contacts .............................. 10
Getting to know the voice commands ............................... 11
Registering your mobile phone ............................................ 11
Making a call ............................................................................. 12
QUICK GUIDE TO THE SMS MESSAGE READER......... 13
QUICK GUIDE TO THE MEDIA PLAYER.......................... 13
USING Blue&Me™ ............................................................... 14
Steering wheel controls ......................................................... 14
Sound system controls ............................................................ 14
Voice commands ..................................................................... 14
Display ....................................................................................... 17
Audio ......................................................................................... 17
Blue&Me™ menu functions ................................................ 18HANDS-FREE FUNCTIONS................................................. 19
Making a call ............................................................................. 19
Managing an incoming call ..................................................... 23
Managing an ongoing call ....................................................... 23
Teleconference function ........................................................ 24
SMS MESSAGE READER FUNCTIONS .............................. 25
Reading last message received .............................................. 25
Message list ............................................................................... 26
Managing SMS messages ......................................................... 26
Deleting all messages .............................................................. 27
Notification settings ................................................................ 27
MEDIA PLAYER FUNCTIONS ............................................. 28
Connecting a USB device to Blue&Me™ ......................... 28
Managing the multimedia library .......................................... 29
– Selecting a folder .................................................................. 29
– Selecting an artist ................................................................. 30
– Selecting a musical genre .................................................... 30
– Selecting an album ............................................................... 31
– Selecting a playlist ................................................................ 31
Listening to audio tracks ........................................................ 32
– Shuffling the entire multimedia
library ..................................................................................... 32
– Track information ................................................................ 32
– Playing audio ......................................................................... 32
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 1

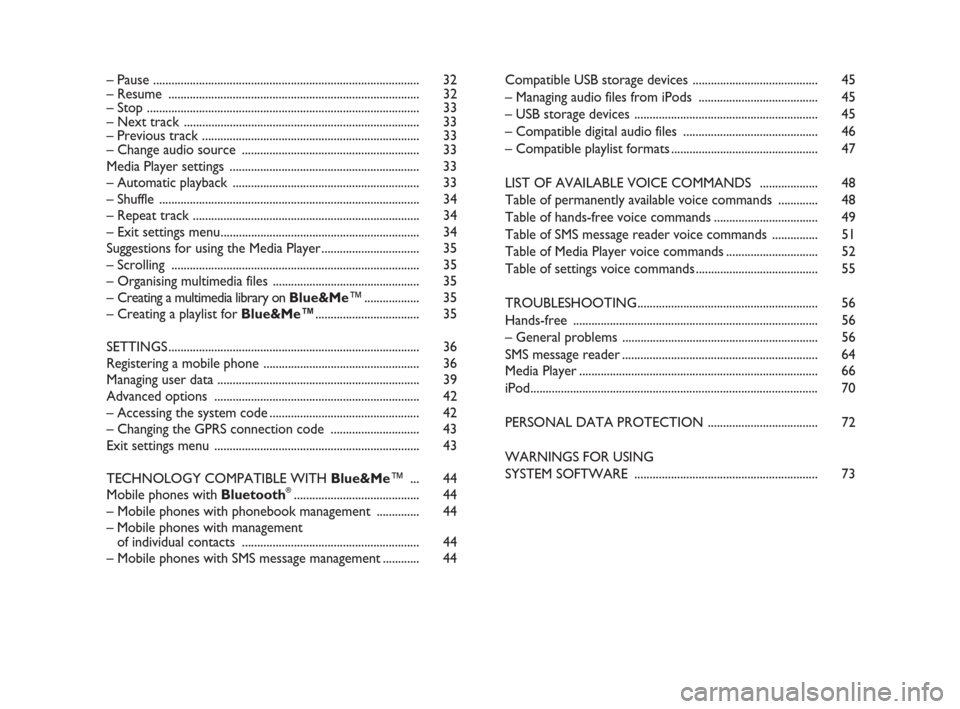

Page 3 of 82
– Pause ....................................................................................... 32
– Resume .................................................................................. 32
– Stop ......................................................................................... 33
– Next track ............................................................................. 33
– Previous track ....................................................................... 33
– Change audio source .......................................................... 33
Media Player settings .............................................................. 33
– Automatic playback ............................................................. 33
– Shuffle ..................................................................................... 34
– Repeat track .......................................................................... 34
– Exit settings menu................................................................. 34
Suggestions for using the Media Player................................ 35
– Scrolling ................................................................................. 35
– Organising multimedia files ................................................ 35
– Creating a multimedia library onBlue&Me™ .................. 35
– Creating a playlist for Blue&Me™.................................. 35
SETTINGS .................................................................................. 36
Registering a mobile phone ................................................... 36
Managing user data .................................................................. 39
Advanced options ................................................................... 42
– Accessing the system code ................................................. 42
– Changing the GPRS connection code ............................. 43
Exit settings menu ................................................................... 43
TECHNOLOGY COMPATIBLE WITH Blue&Me™ ... 44
Mobile phones with Bluetooth
®......................................... 44
– Mobile phones with phonebook management .............. 44
– Mobile phones with management
of individual contacts .......................................................... 44
– Mobile phones with SMS message management............ 44Compatible USB storage devices ......................................... 45
– Managing audio files from iPods ....................................... 45
– USB storage devices ............................................................ 45
– Compatible digital audio files ............................................ 46
– Compatible playlist formats................................................ 47
LIST OF AVAILABLE VOICE COMMANDS ................... 48
Table of permanently available voice commands ............. 48
Table of hands-free voice commands .................................. 49
Table of SMS message reader voice commands ............... 51
Table of Media Player voice commands.............................. 52
Table of settings voice commands ........................................ 55
TROUBLESHOOTING........................................................... 56
Hands-free ................................................................................ 56
– General problems ................................................................ 56
SMS message reader................................................................ 64
Media Player.............................................................................. 66
iPod.............................................................................................. 70
PERSONAL DATA PROTECTION .................................... 72
WARNINGS FOR USING
SYSTEM SOFTWARE ............................................................ 73
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 2
Page 4 of 82
3
Thanks to its complete integration with
the voice commands, the steering wheel
controls, the sound system controls and
the information on the on-board multi-
function display, the Blue&Me™system
allows customers who have a mobile
phone with Bluetooth
®to use it even if
it is in their jacket pocket or handbag with-
out ever having to take their hands off the
steering wheel. To use the voice com-
mands, the voice recognition system does
not need time to learn your voice. The
system is capable of recognising the voice
commands given, irrespective of gender,
by the tone of voice and intonation of the
person giving the instructions.
It is also possible to listen to your favourite
music saved on a USB device by selecting
the tracks and playback method with ei-
ther the steering wheel buttons or voice
commands.HANDS-FREE
The main feature of this function is hands-
free telephone communication with voice
recognition and Bluetooth
®technology.
This system allows you to make and receive
phone calls using voice commands or man-
ual controls on the steering wheel in com-
plete safety, freedom and comfort while
driving, in full compliance with the law.
Bluetooth
®technology allows you to use
your mobile phone through the vehicle's
hands-free system, without the need for
wires.

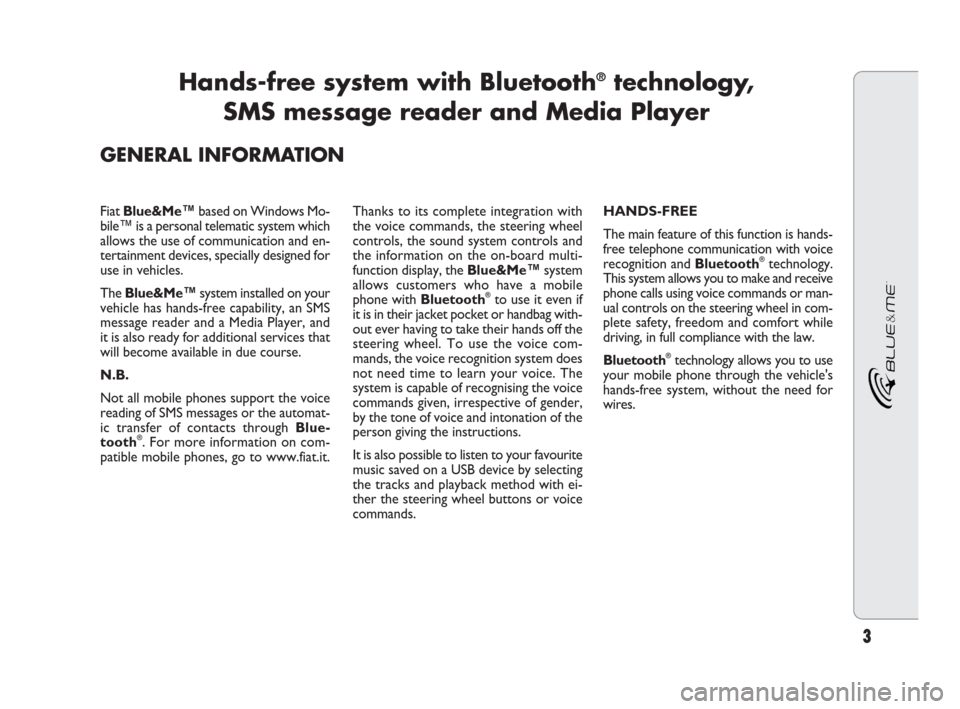

Hands-free system with Bluetooth®technology,
SMS message reader and Media Player
Fiat Blue&Me™based on Windows Mo-
bile™ is a personal telematic system which
allows the use of communication and en-
tertainment devices, specially designed for
use in vehicles.
The Blue&Me™system installed on your
vehicle has hands-free capability, an SMS
message reader and a Media Player, and
it is also ready for additional services that
will become available in due course.
N.B.
Not all mobile phones support the voice
reading of SMS messages or the automat-
ic transfer of contacts through Blue-
tooth
®. For more information on com-
patible mobile phones, go to www.fiat.it.
GENERAL INFORMATION
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 3
Page 5 of 82
4

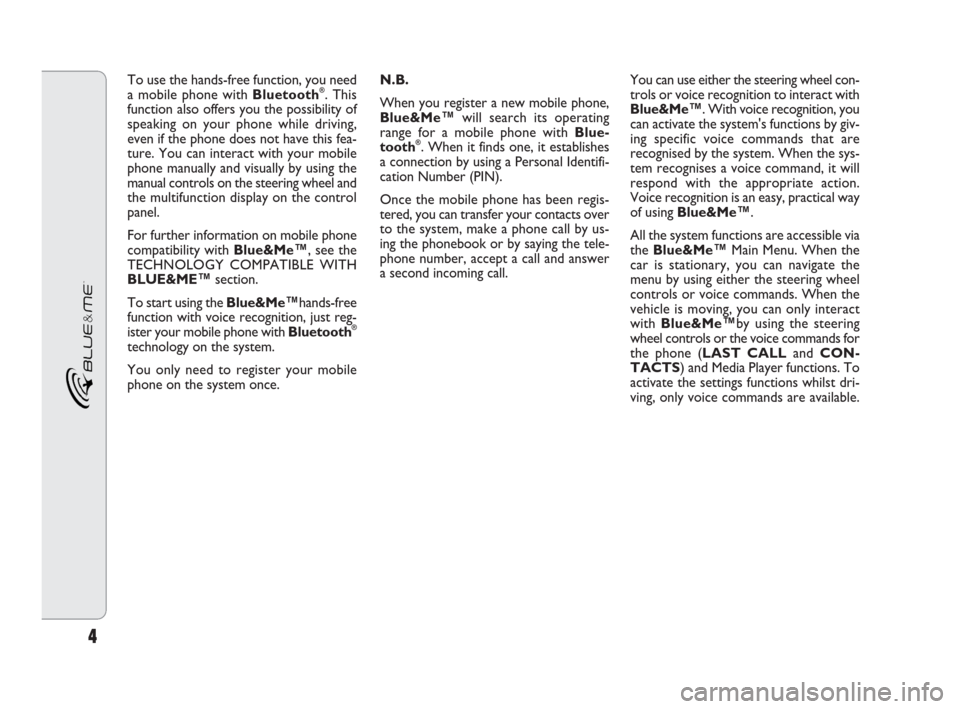

To use the hands-free function, you need
a mobile phone with Bluetooth®. This
function also offers you the possibility of
speaking on your phone while driving,
even if the phone does not have this fea-
ture. You can interact with your mobile
phone manually and visually by using the
manual controls on the steering wheel and
the multifunction display on the control
panel.
For further information on mobile phone
compatibility with Blue&Me™, see the
TECHNOLOGY COMPATIBLE WITH
BLUE&ME™section.
To start using the Blue&Me™hands-free
function with voice recognition, just reg-
ister your mobile phone with Bluetooth
®
technology on the system.
You only need to register your mobile
phone on the system once.N.B.
When you register a new mobile phone,
Blue&Me™will search its operating
range for a mobile phone with Blue-
tooth
®. When it finds one, it establishes
a connection by using a Personal Identifi-
cation Number (PIN).
Once the mobile phone has been regis-
tered, you can transfer your contacts over
to the system, make a phone call by us-
ing the phonebook or by saying the tele-
phone number, accept a call and answer
a second incoming call.You can use either the steering wheel con-
trols or voice recognition to interact with
Blue&Me™. With voice recognition, you
can activate the system's functions by giv-
ing specific voice commands that are
recognised by the system. When the sys-
tem recognises a voice command, it will
respond with the appropriate action.
Voice recognition is an easy, practical way
of using Blue&Me™.
All the system functions are accessible via
the Blue&Me™Main Menu. When the
car is stationary, you can navigate the
menu by using either the steering wheel
controls or voice commands. When the
vehicle is moving, you can only interact
with Blue&Me™by using the steering
wheel controls or the voice commands for
the phone (LAST CALL andCON-
TACTS) and Media Player functions. To
activate the settings functions whilst dri-
ving, only voice commands are available.
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 4
Page 6 of 82
5

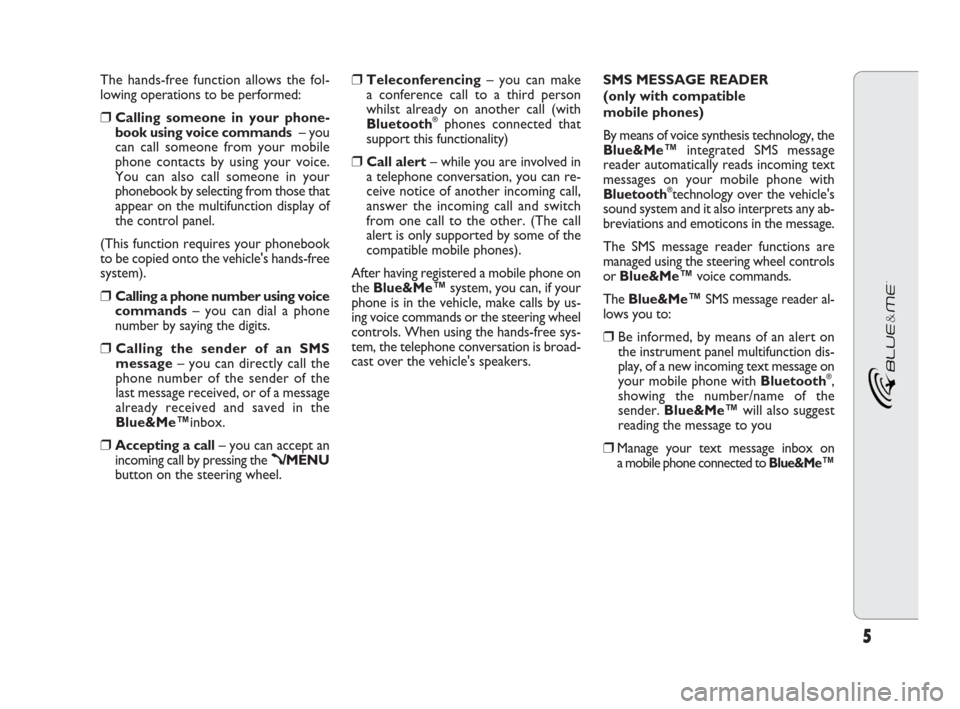

The hands-free function allows the fol-
lowing operations to be performed:
❒Calling someone in your phone-
book using voice commands– you
can call someone from your mobile
phone contacts by using your voice.
You can also call someone in your
phonebook by selecting from those that
appear on the multifunction display of
the control panel.
(This function requires your phonebook
to be copied onto the vehicle's hands-free
system).
❒Calling a phone number using voice
commands– you can dial a phone
number by saying the digits.
❒Calling the sender of an SMS
message– you can directly call the
phone number of the sender of the
last message received, or of a message
already received and saved in the
Blue&Me™inbox.
❒Accepting a call– you can accept an
incoming call by pressing the
ß/MENU
button on the steering wheel.
❒Teleconferencing – you can make
a conference call to a third person
whilst already on another call (with
Bluetooth
®phones connected that
support this functionality)
❒Call alert– while you are involved in
a telephone conversation, you can re-
ceive notice of another incoming call,
answer the incoming call and switch
from one call to the other. (The call
alert is only supported by some of the
compatible mobile phones).
After having registered a mobile phone on
the Blue&Me™system, you can, if your
phone is in the vehicle, make calls by us-
ing voice commands or the steering wheel
controls. When using the hands-free sys-
tem, the telephone conversation is broad-
cast over the vehicle's speakers.SMS MESSAGE READER
(only with compatible
mobile phones)
By means of voice synthesis technology, the
Blue&Me™integrated SMS message
reader automatically reads incoming text
messages on your mobile phone with
Bluetooth
®technology over the vehicle's
sound system and it also interprets any ab-
breviations and emoticons in the message.
The SMS message reader functions are
managed using the steering wheel controls
or Blue&Me™voice commands.
The Blue&Me™SMS message reader al-
lows you to:
❒Be informed, by means of an alert on
the instrument panel multifunction dis-
play, of a new incoming text message on
your mobile phone with Bluetooth
®,
showing the number/name of the
sender. Blue&Me™will also suggest
reading the message to you
❒Manage your text message inbox on
a mobile phone connected to Blue&Me™
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 5
Page 7 of 82
6

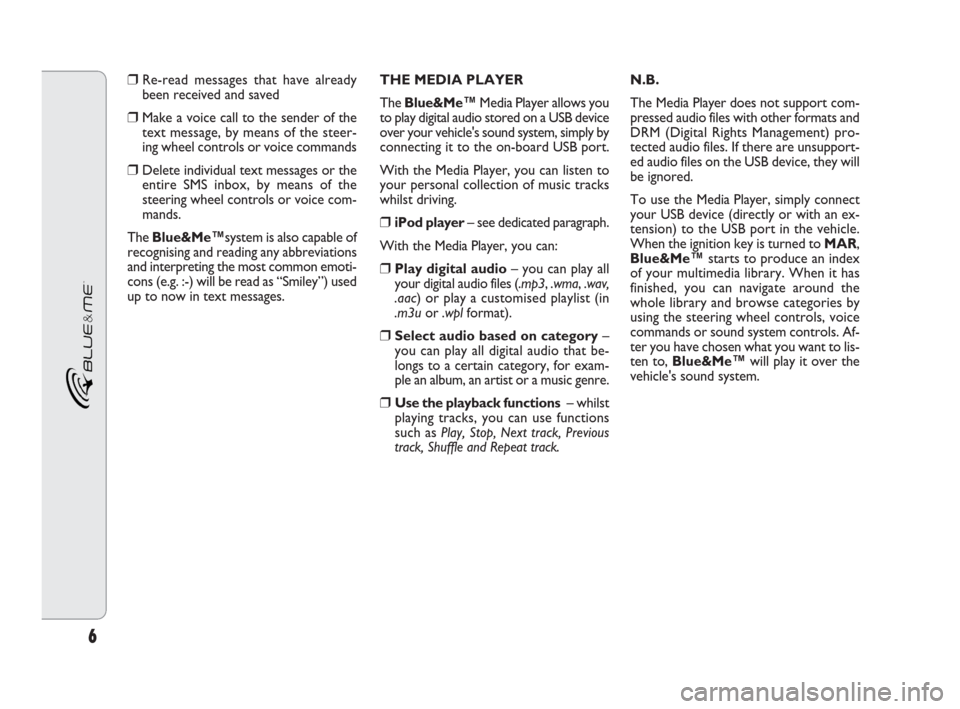

❒Re-read messages that have already
been received and saved
❒Make a voice call to the sender of the
text message, by means of the steer-
ing wheel controls or voice commands
❒Delete individual text messages or the
entire SMS inbox, by means of the
steering wheel controls or voice com-
mands.
The Blue&Me™system is also capable of
recognising and reading any abbreviations
and interpreting the most common emoti-
cons (e.g. :-) will be read as “Smiley”) used
up to now in text messages.THE MEDIA PLAYER
The Blue&Me™Media Player allows you
to play digital audio stored on a USB device
over your vehicle's sound system, simply by
connecting it to the on-board USB port.
With the Media Player, you can listen to
your personal collection of music tracks
whilst driving.
❒iPod player – see dedicated paragraph.
With the Media Player, you can:
❒Play digital audio– you can play all
your digital audio files (.mp3, .wma, .wav,
.aac) or play a customised playlist (in
.m3uor .wplformat).
❒Select audio based on category–
you can play all digital audio that be-
longs to a certain category, for exam-
ple an album, an artist or a music genre.
❒Use the playback functions– whilst
playing tracks, you can use functions
such as Play, Stop, Next track, Previous
track, Shuffle and Repeat track.N.B.
The Media Player does not support com-
pressed audio files with other formats and
DRM (Digital Rights Management) pro-
tected audio files. If there are unsupport-
ed audio files on the USB device, they will
be ignored.
To use the Media Player, simply connect
your USB device (directly or with an ex-
tension) to the USB port in the vehicle.
When the ignition key is turned to MAR,
Blue&Me™starts to produce an index
of your multimedia library. When it has
finished, you can navigate around the
whole library and browse categories by
using the steering wheel controls, voice
commands or sound system controls. Af-
ter you have chosen what you want to lis-
ten to, Blue&Me™will play it over the
vehicle's sound system.
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 6
Page 8 of 82
7
ROAD SAFETY
Read and follow these instructions: before using your system, read and follow all the safety information and instructions in this
manual (“User Guide”). Failure to observe the precautions contained in the User Guide may cause accidents or have other serious
consequences.
Keep the manual in the car: if it is kept in the car, the User Guide will become something quick and easy to consult for those not familiar
with the system. Make sure that, before using the system, anyone who has access to the User Guide reads the instructions and the safety infor-
mation carefully.
IMPORTANT: Looking at the system when driving can divert attention from the road, risking accidents or other serious conse-
quences. When driving, do not change the system settings or enter data by using the manual controls. Before carrying out these
operations, stop the car safely in accordance with the highway code. Adopting these precautions is important since setting or
changing some functions may require drivers to take their eyes off the road and remove their hands from the steering wheel.
GENERAL OPERATION
Voice commands: the system functions can be carried out using only voice commands. The use of voice commands when driving allows you
to manage the system without taking your hands off the steering wheel.
Looking at the display for a long time: while driving, do not use any function that requires looking at the display for a long time. Stop the
car safely in accordance with the highway code before consulting any of the system functions that require such attention. Even occasional quick
glances at the display can be dangerous if the driver's attention is diverted at a critical moment.
Setting the volume: do not turn the volume up too high. When driving, keep the volume at a level that allows you to hear the traffic outside
and emergency sirens. Driving without being able to hear these sounds may cause accidents.
Using the voice recognition: the voice recognition software is based on a statistical process that is subject to error. It is your responsibility
to monitor the system's voice recognition functions and to correct any errors.
Danger of distraction: the functions may require manual settings (not using voice commands). Performing these settings or entering data when
driving can distract you significantly, causing accidents or having other serious consequences. Before carrying out these operations, stop the car
safely in accordance with the highway code.
IMPORTANT
Using some of the system functions whilst driving can distract attention away from the road, risking an accident or other se-
rious consequences; they should therefore be used only when driving conditions allow and, if necessary, only with the vehi-
cle stationary.
IMPORTANT
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 7
Page 9 of 82
8
DISPLAY AND STEERING WHEEL CONTROLS
fig. 1F0V0188g
USB port
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 8
Page 10 of 82
9
Button
ß/MENU
&/ESC
‘
+/–
N/O
SRC/OK
N/O(*)
¯/˙(*)
(*) Sound system buttons❒For several functions, the steering wheel controls SRC/OKand ß/MENUare interchangeable, meaning you can choose whichever you prefer.❒For both methods of operating the steering wheel controls (short press or hold down), the function is activated when you release the button.
Short press
(less than one second)
– Activate the Main Menu of Blue&Me™
– Confirm the selected menu option
– Accept an incoming call
– Change from one telephone conversation to another in second-call mode (call alert)
– Select the message displayed
– Deactivate voice recognition
– Interrupt a voice message
– Interrupt the reading of a text message
– Exit the Main Menu of Blue&Me™
– Exit a sub-menu and return to the previous menu option
– Exit the current selection without saving
– Deactivate/reactivate the microphone during a phone conversation
– Mute the ringtone for incoming phone calls
– Pause/unpause the Media Player
– Activate the voice recognition
– Interrupt a voice message so you can give a new
voice command
– Adjust the volume of Blue&Me™functions: hands-free,
SMS message reader, Media Player, voice announcements
– Scroll through Blue&Me™menu items
– Select Media Playertracks
– Scroll through text messages in your inbox
– Confirm selected menu option during manual operation
– Transfer a telephone conversation from the hands-free system to the mobile phone
and vice versa
– Select the audio source (radio, CD, CD changer, Media Player)
– Select the SMS message displayed
– Select previous/next folder/artist/genre/album according to the selection
method activated
– Play previous/next trackHold down
(more than one second)
– Reject an incoming call
– End a call
–
– Repeat the last
voice message
played by the system
–
–
–
–
–
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 9
