2020
HANDS-FREE KIT
FUNCTIONS
Blue&Me™ Navlets you make and re-
ceive phone calls on your Bluetooth®
wireless technology-enabled mobile phone
using voice commands (keywords) or
steering wheel buttons.
By using voice commands, you can make
calls to people in your phonebook by pro-
nouncing their first and/or last name, or
you can make phone calls to numbers not
stored in your phonebook by pronounc-
ing the digits of the phone number or call
the last message sender.
By using steering wheel buttons, you can
make phone calls to people in your phone-
book or call history list by selecting the as-
sociated item in the LAST CALLSor
PHONEBOOKsubmenus.
In addition, you can use other calling fea-
tures such as responding to incoming calls,
redial, callback, call waiting, read a mes-
sage or delete it.
If you encounter difficulties with any of
the voice recognition operations, consult
section HANDS-FREE KIT - TROU-
BLESHOOTING.
❒MESSAGE READER- This submenu
enables to read the last message re-
ceived, to call the message sender or to
delete the last message received. It
is possible to store up to 20 received
messages in the dedicated inbox and to
play them later, to call the message
sender or to delete the messages.
It is possible to select notification sig-
nals for the arrival of a new SMS text.
❒MEDIA PLAYER- this submenu al-
lows to scroll the digital audio tracks in
the library by folder, artist, genre, al-
bum or by playlist. This sub-menu is to
be used to select and play tracks.
❒NAVIGATION- this submenu gives
access to Blue&Me™ Navnavigation
functions.
You can enter a new destination, use
a recent destination, alter the naviga-
tion settings, gain access to informa-
tion on the vehicle’s GPS position or
simulate a previously calculated route.
❒SETTINGS- this submenu allows you
to perform tasks such as managing your
phonebook entries, creating a pairing
relationship, or setting a connection ID.Launching the Main Menu
To launch the Blue&Me™ NavMain
Menu, press
ß/MAIN, you can then in-
teract with the system through the buttons
on the steering wheel.
Navigating the menu options
To navigate through the items in a menu,
press
NorO.
When the number of characters in a dis-
play message is too long for the allowable
number of display characters, the text in
the display message will be cut to fit the
display size.
To select the option shown on the display,
press SRC/OKor
ß/MAIN.
To quit the selected option or to exit a
submenu, press
&/ /ESC.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 20

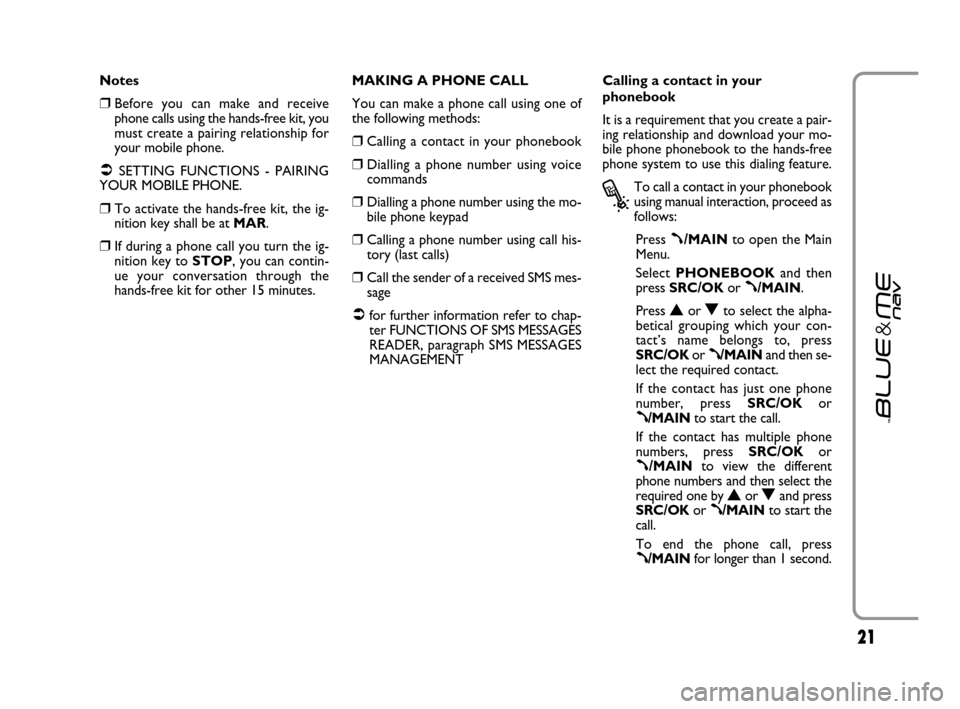

Page 22 of 106
2121
Notes
❒Before you can make and receive
phone calls using the hands-free kit, you
must create a pairing relationship for
your mobile phone.
SETTING FUNCTIONS - PAIRING
YOUR MOBILE PHONE.
❒To activate the hands-free kit, the ig-
nition key shall be at MAR.
❒If during a phone call you turn the ig-
nition key to STOP, you can contin-
ue your conversation through the
hands-free kit for other 15 minutes.MAKING A PHONE CALL
You can make a phone call using one of
the following methods:
❒Calling a contact in your phonebook
❒Dialling a phone number using voice
commands
❒Dialling a phone number using the mo-
bile phone keypad
❒Calling a phone number using call his-
tory (last calls)
❒Call the sender of a received SMS mes-
sage
for further information refer to chap-
ter FUNCTIONS OF SMS MESSAGES
READER, paragraph SMS MESSAGES
MANAGEMENTCalling a contact in your
phonebook
It is a requirement that you create a pair-
ing relationship and download your mo-
bile phone phonebook to the hands-free
phone system to use this dialing feature.
?
To call a contact in your phonebook
using manual interaction, proceed as
follows:
Press
ß/MAINto open the Main
Menu.
Select PHONEBOOKand then
press SRC/OKor
ß/MAIN.
Press
NorOto select the alpha-
betical grouping which your con-
tact’s name belongs to, press
SRC/OKor
ß/MAINand then se-
lect the required contact.
If the contact has just one phone
number, press SRC/OKor
ß/MAINto start the call.
If the contact has multiple phone
numbers, press SRC/OKor
ß/MAINto view the different
phone numbers and then select the
required one by
NorOand press
SRC/OKor
ß/MAINto start the
call.
To end the phone call, press
ß/MAINfor longer than 1 second.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 21
Page 23 of 106
2222
Dialling a phone number using
voice commands
}
To dial a phone number using voice
interaction, proceed as follows:
Press
‘and pronounce “Dial”.
The system will respond with
“Number, please”.
Pronounce the phone number as a
sequence of single digits (e.g.: “0”,
“1”, “2”, “3”, “4”, “5”, “6”, “7”, “8”,
“9”, “+” (plus), “#” (pound) or “*”
(star).
For example, 0113290103 has to be
pronounced as: “zero, one, one,
three, two, nine, zero, one, zero,
three”.
The system will repeat the complete
phone number and display it.
If the number is complete, pro-
nounce “Dial”. If you have not fin-
ished speaking the phone number,
then pronounce the remaining dig-
its and then pronounce “Dial”.
}
Or, using voice interaction:
Assume you would like to call the
contact “John” in your mobile
phone phonebook.
Press
‘and pronounce “Call
John” or “Call John (on/at) Mo-
bile“ (in the previous statement, the
keyword “Mobile” represents the
type of phone number you would
like to call. The phone number type
can either be “(at) Home”, “(at)
Work”, or “(on/at) Other”).
If the name is recognized, the sys-
tem will display the recognized con-
tact’s information (John, in the ex-
ample) on the display screen.
If John has just one phone number,
the system will ask if you would like
to call John. To start the call say
“Yes”, otherwise say “No”.
If John has several phone numbers,
the system will ask which phone
number you would like to call (e.g.:
“Call John (at) Work or (at)
Home?”). Answer with the type of
required phone number (e.g.: “(at)
Home”). If John has several phone numbers
but the “location” (i.e.: the type of
phone number like work, home,
etc.) is missing, the system will dis-
play the selected contact and a list
of related phone numbers.
To call the displayed phone number,
pronounce “Call”.
If the contact is correct but the
phone number is wrong, you can
surf the phone number list manual-
ly by pressing
NorO. When you
find the required number, press
ß/MAINor SRC/OKto start the
call.
To end the phone call, press
ß/MAINfor longer than 1 second.
Practical hint
When you call a contact with multiple
phone numbers, use the “at location” por-
tion of the voice command (e.g.: “(at)
Home”, “(at) Work”, “(on/at) Mo-
bile”). This will shorten the amount of
steps required to make the phone call.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 22

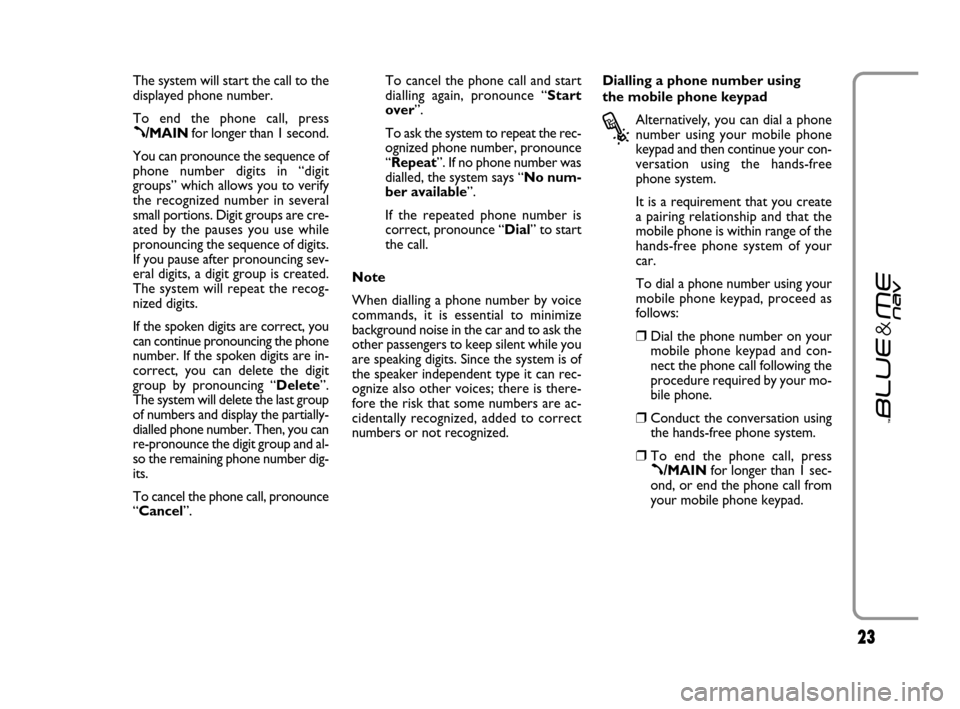

Page 24 of 106
2323
The system will start the call to the
displayed phone number.
To end the phone call, press
ß/MAINfor longer than 1 second.
You can pronounce the sequence of
phone number digits in “digit
groups” which allows you to verify
the recognized number in several
small portions. Digit groups are cre-
ated by the pauses you use while
pronouncing the sequence of digits.
If you pause after pronouncing sev-
eral digits, a digit group is created.
The system will repeat the recog-
nized digits.
If the spoken digits are correct, you
can continue pronouncing the phone
number. If the spoken digits are in-
correct, you can delete the digit
group by pronouncing “Delete”.
The system will delete the last group
of numbers and display the partially-
dialled phone number. Then, you can
re-pronounce the digit group and al-
so the remaining phone number dig-
its.
To cancel the phone call, pronounce
“Cancel”.To cancel the phone call and start
dialling again, pronounce “Start
over”.
To ask the system to repeat the rec-
ognized phone number, pronounce
“Repeat”. If no phone number was
dialled, the system says “No num-
ber available”.
If the repeated phone number is
correct, pronounce “Dial” to start
the call.
Note
When dialling a phone number by voice
commands, it is essential to minimize
background noise in the car and to ask the
other passengers to keep silent while you
are speaking digits. Since the system is of
the speaker independent type it can rec-
ognize also other voices; there is there-
fore the risk that some numbers are ac-
cidentally recognized, added to correct
numbers or not recognized.Dialling a phone number using
the mobile phone keypad?
Alternatively, you can dial a phone
number using your mobile phone
keypad and then continue your con-
versation using the hands-free
phone system.
It is a requirement that you create
a pairing relationship and that the
mobile phone is within range of the
hands-free phone system of your
car.
To dial a phone number using your
mobile phone keypad, proceed as
follows:
❒Dial the phone number on your
mobile phone keypad and con-
nect the phone call following the
procedure required by your mo-
bile phone.
❒Conduct the conversation using
the hands-free phone system.
❒To end the phone call, press
ß/MAINfor longer than 1 sec-
ond, or end the phone call from
your mobile phone keypad.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 23

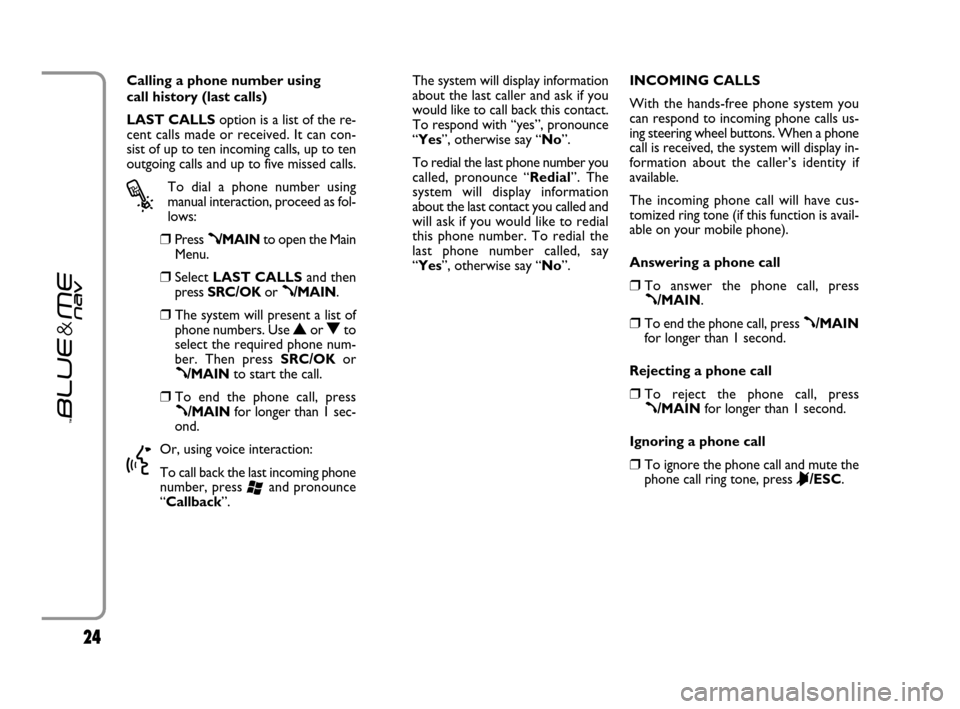

Page 25 of 106
2424
INCOMING CALLS
With the hands-free phone system you
can respond to incoming phone calls us-
ing steering wheel buttons. When a phone
call is received, the system will display in-
formation about the caller’s identity if
available.
The incoming phone call will have cus-
tomized ring tone (if this function is avail-
able on your mobile phone).
Answering a phone call
❒To answer the phone call, press
ß/MAIN.
❒To end the phone call, press ß/MAIN
for longer than 1 second.
Rejecting a phone call
❒To reject the phone call, press
ß/MAINfor longer than 1 second.
Ignoring a phone call
❒To ignore the phone call and mute the
phone call ring tone, press
&/ESC. Calling a phone number using
call history (last calls)
LAST CALLSoption is a list of the re-
cent calls made or received. It can con-
sist of up to ten incoming calls, up to ten
outgoing calls and up to five missed calls.
?
To dial a phone number using
manual interaction, proceed as fol-
lows:
❒Press ß/MAINto open the Main
Menu.
❒Select LAST CALLSand then
press SRC/OKor
ß/MAIN.
❒The system will present a list of
phone numbers. Use
NorOto
select the required phone num-
ber. Then press SRC/OKor
ß/MAINto start the call.
❒To end the phone call, press
ß/MAINfor longer than 1 sec-
ond.
}
Or, using voice interaction:
To call back the last incoming phone
number, press
‘and pronounce
“Callback”.The system will display information
about the last caller and ask if you
would like to call back this contact.
To respond with “yes”, pronounce
“Yes”, otherwise say “No”.
To redial the last phone number you
called, pronounce “Redial”. The
system will display information
about the last contact you called and
will ask if you would like to redial
this phone number. To redial the
last phone number called, say
“Yes”, otherwise say “No”.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 24
Page 26 of 106
2525

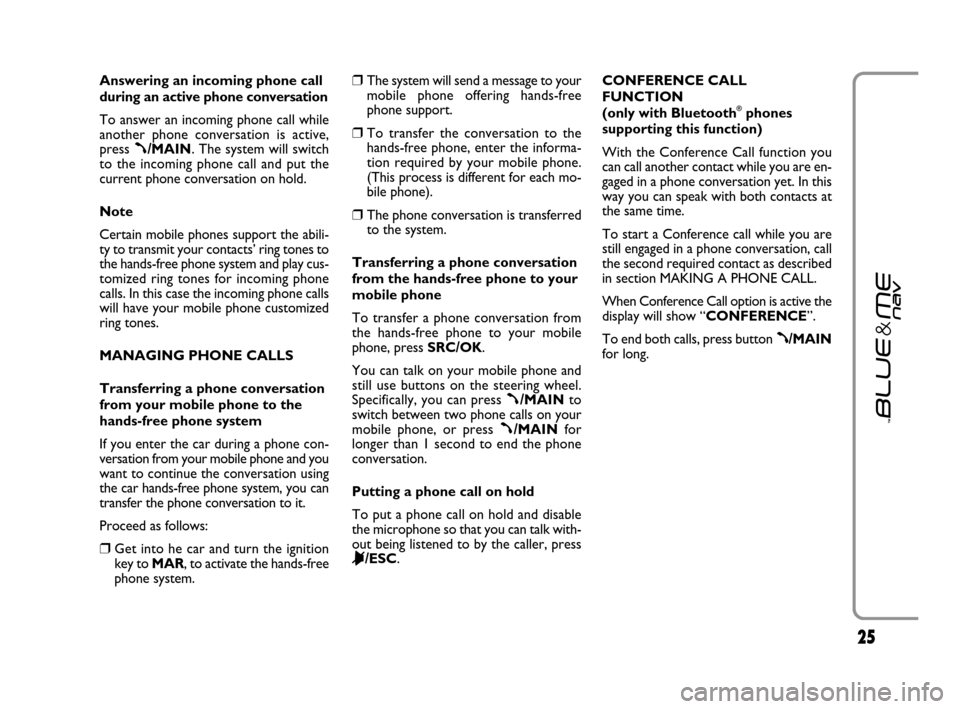

Answering an incoming phone call
during an active phone conversation
To answer an incoming phone call while
another phone conversation is active,
press
ß/MAIN. The system will switch
to the incoming phone call and put the
current phone conversation on hold.
Note
Certain mobile phones support the abili-
ty to transmit your contacts’ ring tones to
the hands-free phone system and play cus-
tomized ring tones for incoming phone
calls. In this case the incoming phone calls
will have your mobile phone customized
ring tones.
MANAGING PHONE CALLS
Transferring a phone conversation
from your mobile phone to the
hands-free phone system
If you enter the car during a phone con-
versation from your mobile phone and you
want to continue the conversation using
the car hands-free phone system, you can
transfer the phone conversation to it.
Proceed as follows:
❒Get into he car and turn the ignition
key to MAR, to activate the hands-free
phone system.
❒The system will send a message to your
mobile phone offering hands-free
phone support.
❒To transfer the conversation to the
hands-free phone, enter the informa-
tion required by your mobile phone.
(This process is different for each mo-
bile phone).
❒The phone conversation is transferred
to the system.
Transferring a phone conversation
from the hands-free phone to your
mobile phone
To transfer a phone conversation from
the hands-free phone to your mobile
phone, press SRC/OK.
You can talk on your mobile phone and
still use buttons on the steering wheel.
Specifically, you can press
ß/MAINto
switch between two phone calls on your
mobile phone, or press
ß/MAINfor
longer than 1 second to end the phone
conversation.
Putting a phone call on hold
To put a phone call on hold and disable
the microphone so that you can talk with-
out being listened to by the caller, press
&/ESC. CONFERENCE CALL
FUNCTION
(only with Bluetooth
®phones
supporting this function)
With the Conference Call function you
can call another contact while you are en-
gaged in a phone conversation yet. In this
way you can speak with both contacts at
the same time.
To start a Conference call while you are
still engaged in a phone conversation, call
the second required contact as described
in section MAKING A PHONE CALL.
When Conference Call option is active the
display will show “CONFERENCE”.
To end both calls, press button
ß/MAIN
for long.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 25
Page 27 of 106
2626
}
Or, using voice interaction:
if you pronounce “Yes”, Blue&Me™
Navwill read the message, taking in-
to account any abbreviation con-
tained in the text, otherwise say
“No”, the system will store the
message so you can read it later (for
further information refer to para-
graph How to read the last SMS
text received). HOW TO READ THE LAST SMS
TEXT RECEIVED
After receiving a message, Blue&Me™
Navwill store it (both read or not read
message) in the inbox (refer to paragraph
Inbox).
?
To read the last message received,
open Blue&Me™ NavMain
menuand select option MESSAGE
READER, then press SRC/OKor
ß/MAIN.
Select the option READ LASTand
press SRC/OKor
ß/MAIN,
Blue&Me™ Navwill read the last
message received.
}
Or, using voice interaction:
Press
‘and pronounce “Read
last one”, Blue&Me™ Navwill
read the text of the last message re-
ceived.
MESSAGE READER
FUNCTIONS
If your mobile phone with Bluetooth®
wireless technology supports the message
reader function, at the arrival of a new
SMS text, Blue&Me™ Navplays a tone
and it will ask if you would like to read it
(according to set signal types.
For information on signal types refer to
paragraph Signal types.
?
Press SRC/OKor ß/MAINand
Blue&Me™ Navwill read the SMS
text received. The message will be
read taking into account any abbre-
viation or emoticon contained in the
text.
Otherwise press
&/ESC,
Blue&Me™ Navwill not read the
message but it will store it so you can
read the message later (for further in-
formation refer to paragraph How
to read the last SMS text re-
ceived).
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 26
Page 28 of 106
2727

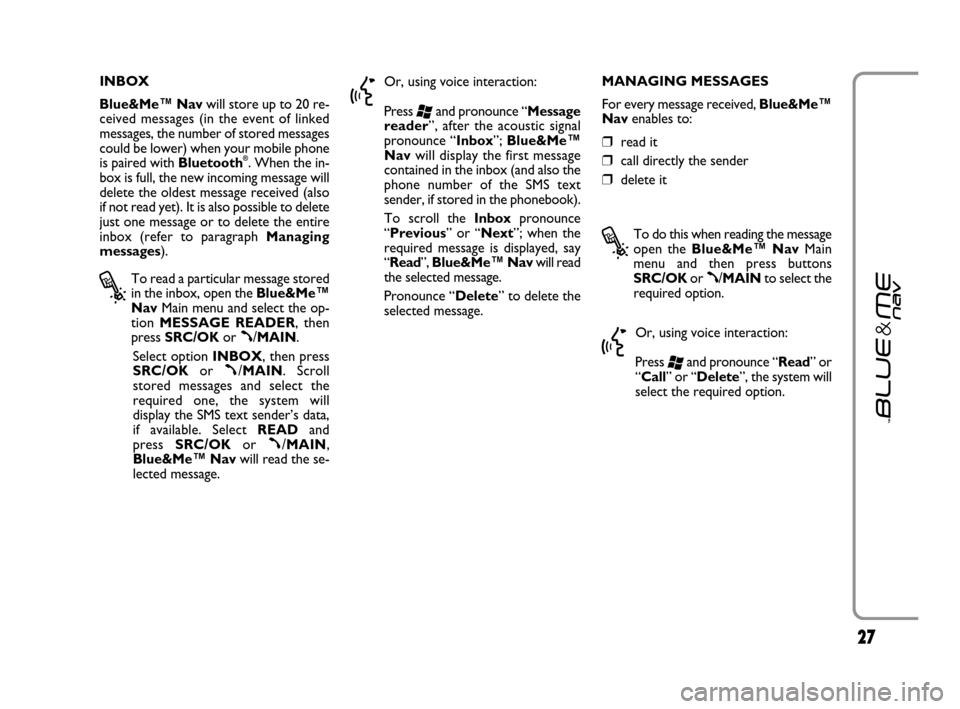

INBOX
Blue&Me™ Navwill store up to 20 re-
ceived messages (in the event of linked
messages, the number of stored messages
could be lower) when your mobile phone
is paired with Bluetooth
®. When the in-
box is full, the new incoming message will
delete the oldest message received (also
if not read yet). It is also possible to delete
just one message or to delete the entire
inbox (refer to paragraph Managing
messages).
?
To read a particular message stored
in the inbox, open the Blue&Me™
Nav Main menu and select the op-
tion MESSAGE READER, then
press SRC/OKor
ß/MAIN.
Select option INBOX, then press
SRC/OKor
ß/MAIN. Scroll
stored messages and select the
required one, the system will
display the SMS text sender’s data,
if available. Select READand
press SRC/OKor
ß/MAIN,
Blue&Me™ Navwill read the se-
lected message.
}
Or, using voice interaction:
Press
‘and pronounce “Message
reader”, after the acoustic signal
pronounce “Inbox”; Blue&Me™
Navwill display the first message
contained in the inbox (and also the
phone number of the SMS text
sender, if stored in the phonebook).
To scroll the Inboxpronounce
“Previous” or “Next”; when the
required message is displayed, say
“Read”, Blue&Me™ Navwill read
the selected message.
Pronounce “Delete” to delete the
selected message.MANAGING MESSAGES
For every message received, Blue&Me™
Navenables to:
❒ read it
❒ call directly the sender
❒ delete it
?
To do this when reading the message
open the Blue&Me™ NavMain
menu and then press buttons
SRC/OKor
ß/MAINto select the
required option.
}
Or, using voice interaction:
Press
‘and pronounce “Read” or
“Call” or “Delete”, the system will
select the required option.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 27
Page 29 of 106
2828

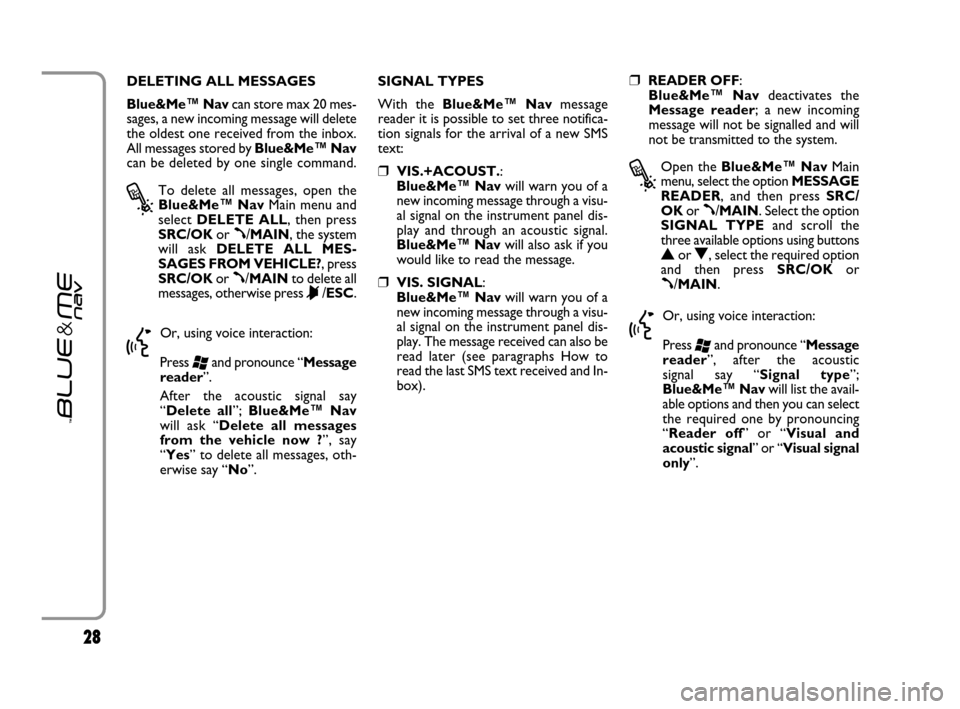

DELETING ALL MESSAGES
Blue&Me™ Navcan store max 20 mes-
sages, a new incoming message will delete
the oldest one received from the inbox.
All messages stored by Blue&Me™ Nav
can be deleted by one single command.
?
To delete all messages, open the
Blue&Me™ NavMain menu and
select DELETE ALL, then press
SRC/OKor
ß/MAIN, the system
will ask DELETE ALL MES-
SAGES FROM VEHICLE?, press
SRC/OKor
ß/MAINto delete all
messages, otherwise press
&/ESC.
}
Or, using voice interaction:
Press
‘and pronounce “Message
reader”.
After the acoustic signal say
“Delete all”; Blue&Me™ Nav
will ask “Delete all messages
from the vehicle now ?”, say
“Yes” to delete all messages, oth-
erwise say “No”.SIGNAL TYPES
With the Blue&Me™ Navmessage
reader it is possible to set three notifica-
tion signals for the arrival of a new SMS
text:
❒ VIS.+ACOUST.:
Blue&Me™ Navwill warn you of a
new incoming message through a visu-
al signal on the instrument panel dis-
play and through an acoustic signal.
Blue&Me™ Navwill also ask if you
would like to read the message.
❒VIS. SIGNAL:
Blue&Me™ Navwill warn you of a
new incoming message through a visu-
al signal on the instrument panel dis-
play. The message received can also be
read later (see paragraphs How to
read the last SMS text received and In-
box).
❒ READER OFF:
Blue&Me™ Navdeactivates the
Message reader; a new incoming
message will not be signalled and will
not be transmitted to the system.
?
Open the Blue&Me™ NavMain
menu, select the option MESSAGE
READER, and then press SRC/
OKor
ß/MAIN. Select the option
SIGNAL TYPEand scroll the
three available options using buttons
NorO, select the required option
and then press SRC/OKor
ß/MAIN.
}
Or, using voice interaction:
Press
‘and pronounce “Message
reader”, after the acoustic
signal say “Signal type”;
Blue&Me™ Navwill list the avail-
able options and then you can select
the required one by pronouncing
“Reader off” or “Visual and
acoustic signal” or “Visual signal
only”.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 28
Page 30 of 106
2929

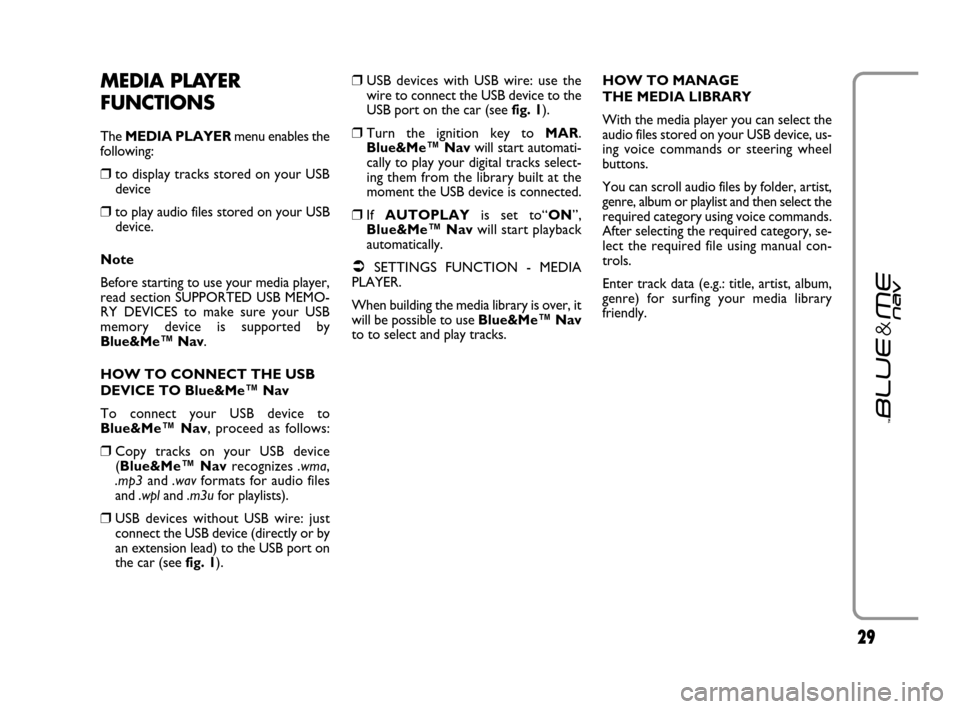

MEDIA PLAYER
FUNCTIONS
The MEDIA PLAYERmenu enables the
following:
❒to display tracks stored on your USB
device
❒to play audio files stored on your USB
device.
Note
Before starting to use your media player,
read section SUPPORTED USB MEMO-
RY DEVICES to make sure your USB
memory device is supported by
Blue&Me™ Nav.
HOW TO CONNECT THE USB
DEVICE TO Blue&Me™ Nav
To connect your USB device to
Blue&Me™ Nav, proceed as follows:
❒Copy tracks on your USB device
(Blue&Me™ Navrecognizes .wma,
.mp3and .wavformats for audio files
and .wpland .m3ufor playlists).
❒USB devices without USB wire: just
connect the USB device (directly or by
an extension lead) to the USB port on
the car (see fig. 1).
❒USB devices with USB wire: use the
wire to connect the USB device to the
USB port on the car (see fig. 1).
❒Turn the ignition key to MAR.
Blue&Me™ Navwill start automati-
cally to play your digital tracks select-
ing them from the library built at the
moment the USB device is connected.
❒If AUTOPLAYis set to“ON”,
Blue&Me™ Navwill start playback
automatically.
SETTINGS FUNCTION - MEDIA
PLAYER.
When building the media library is over, it
will be possible to use Blue&Me™ Nav
to to select and play tracks.HOW TO MANAGE
THE MEDIA LIBRARY
With the media player you can select the
audio files stored on your USB device, us-
ing voice commands or steering wheel
buttons.
You can scroll audio files by folder, artist,
genre, album or playlist and then select the
required category using voice commands.
After selecting the required category, se-
lect the required file using manual con-
trols.
Enter track data (e.g.: title, artist, album,
genre) for surfing your media library
friendly.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 29
