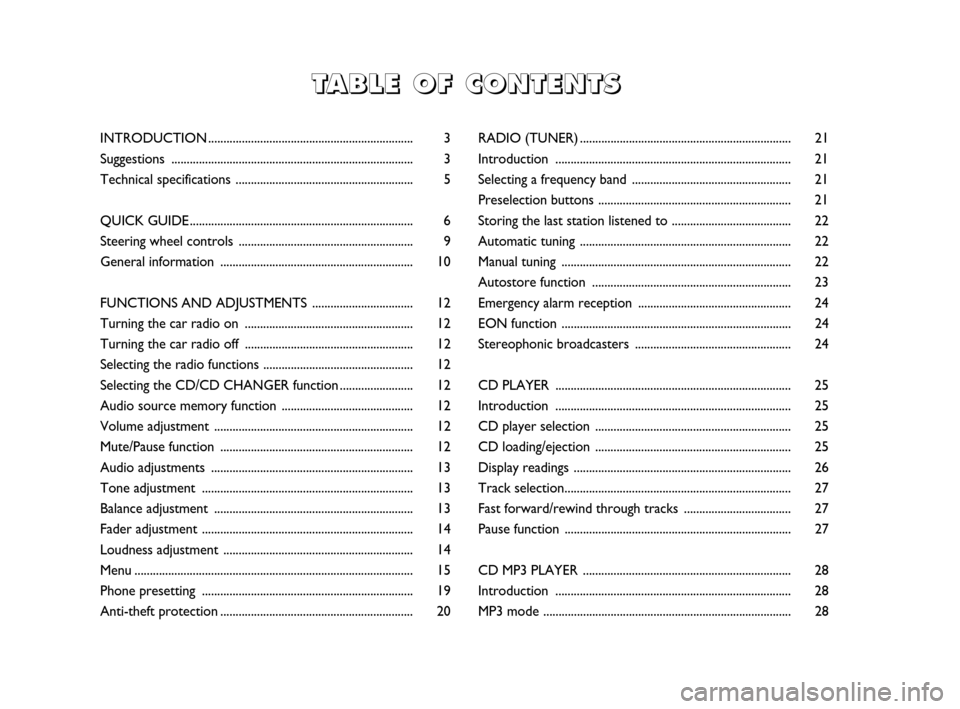

buttons FIAT IDEA 2009 1.G Radio CD MP3 Manual

RADIO (TUNER) .....................................................................21
Introduction ............................................................................. 21
Selecting a frequency band .................................................... 21
Preselection buttons ............................................................... 21
Storing the last station listened to ....................................... 22
Automatic tuning ..................................................................... 22
Manual tuning ........................................................................... 22
Autostore function ................................................................. 23
Emergency alarm reception .................................................. 24
EON function ...........................................................................24
Stereophonic broadcasters ................................................... 24
CD PLAYER ............................................................................. 25
Introduction ............................................................................. 25
CD player selection ................................................................ 25
CD loading/ejection ................................................................ 25
Display readings ....................................................................... 26
Track selection.......................................................................... 27
Fast forward/rewind through tracks ................................... 27
Pause function ..........................................................................27
CD MP3 PLAYER .................................................................... 28
Introduction ............................................................................. 28
MP3 mode .................................................................................28
T T
A A
B B
L L
E E

O O
F F

C C
O O
N N
T T
E E
N N
T T
S S
INTRODUCTION ................................................................... 3
Suggestions ............................................................................... 3
Technical specifications .......................................................... 5
QUICK GUIDE ......................................................................... 6
Steering wheel controls ......................................................... 9
General information ............................................................... 10
FUNCTIONS AND ADJUSTMENTS ................................. 12
Turning the car radio on ....................................................... 12
Turning the car radio off .......................................................12
Selecting the radio functions ................................................. 12
Selecting the CD/CD CHANGER function ........................ 12
Audio source memory function ........................................... 12
Volume adjustment ................................................................. 12
Mute/Pause function ............................................................... 12
Audio adjustments .................................................................. 13
Tone adjustment ..................................................................... 13
Balance adjustment ................................................................. 13
Fader adjustment ..................................................................... 14
Loudness adjustment .............................................................. 14
Menu ........................................................................................... 15
Phone presetting ..................................................................... 19
Anti-theft protection............................................................... 20
603_97_538 Radio IDEA SB_08 EN 3-12-2009 11:11 Pagina 1

7
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER
QUICK
GUIDE

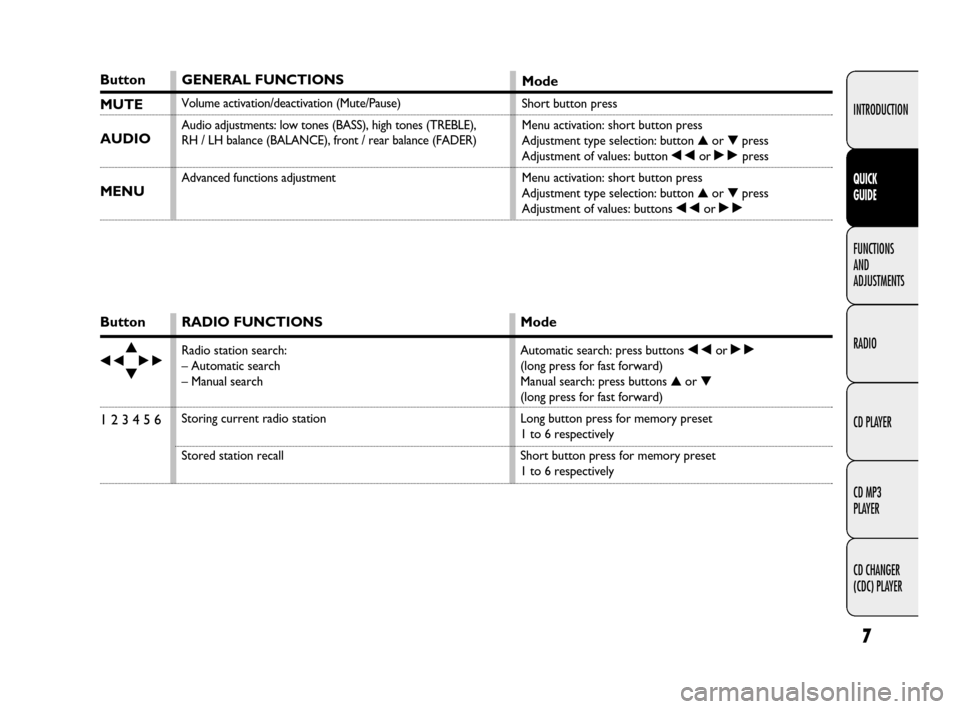

Button
▲
÷˜▼
1 2 3 4 5 6
RADIO FUNCTIONS
Radio station search:
– Automatic search
– Manual search
Storing current radio station
Stored station recall
Button
MUTE
AUDIO
MENU
GENERAL FUNCTIONS
Volume activation/deactivation (Mute/Pause)
Audio adjustments: low tones (BASS), high tones (TREBLE),
RH / LH balance (BALANCE), front / rear balance (FADER)
Advanced functions adjustment
Mode
Short button press
Menu activation: short button press
Adjustment type selection: button ▲or ▼press
Adjustment of values: button ÷or ˜press
Menu activation: short button press
Adjustment type selection: button ▲or ▼press
Adjustment of values: buttons ÷or ˜
Mode
Automatic search: press buttons ÷or ˜
(long press for fast forward)
Manual search: press buttons ▲or ▼
(long press for fast forward)
Long button press for memory preset
1 to 6 respectively
Short button press for memory preset
1 to 6 respectively
603_97_538 Radio IDEA SB_08 EN 3-12-2009 11:11 Pagina 7

13
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER QUICK
GUIDE
❒LOUDNESS (Loudness function activa-
tion/deactivation);
❒EQUALIZER (activation and selection
of factory equalisation adjustments);
❒USER EQUALISER (customised equal-
isation adjustment).
TONE ADJUSTMENT
(bass/treble)
Proceed as follows:
❒Use the button ▲or ▼to set “Bass”
or “Treble” in the AUDIO menu;
❒press the ˜or ÷button to in-
crease/decrease the bass or treble ad-
justments.
By pressing the buttons briefly, the levels
will change progressively. By pressing
them down longer, the levels will change
quickly.BALANCE ADJUSTMENT
Proceed as follows:
❒Use the button ▲or ▼to set “Bal-
ance” in the AUDIO menu;
❒press the button ˜to increase the
sound coming from the right speakers
or the button ÷to increase the
sound coming from the left speakers.
By pressing the buttons briefly, the levels
will change progressively. By pressing
them down longer, the levels will change
quickly.
Select the value “÷0 ˜” to set the
right and left audio outputs at the same

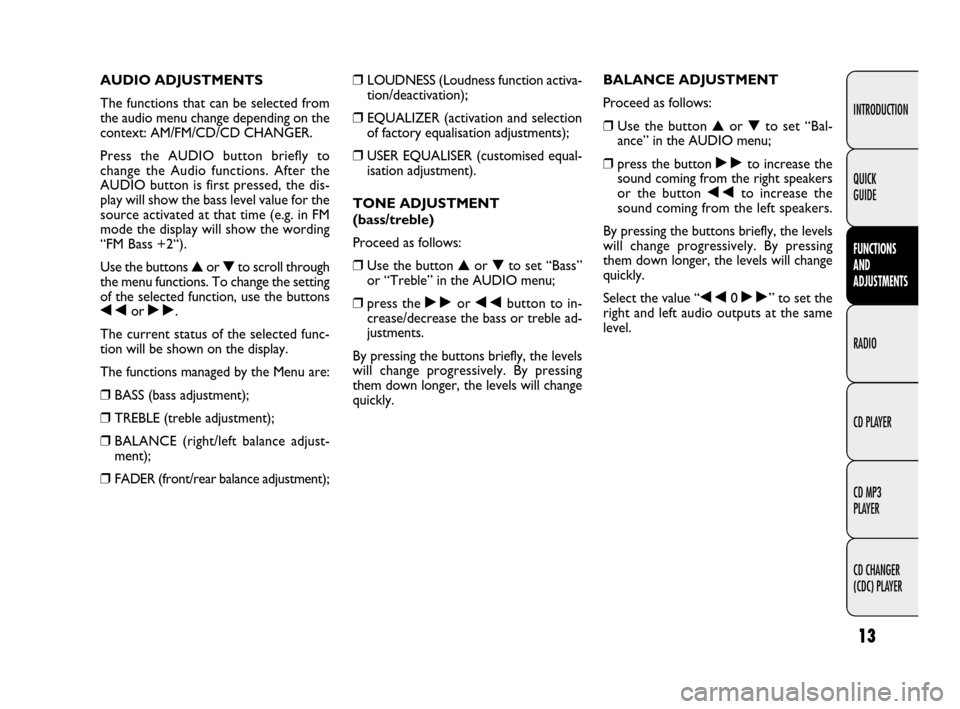

level. AUDIO ADJUSTMENTS
The functions that can be selected from
the audio menu change depending on the
context: AM/FM/CD/CD CHANGER.
Press the AUDIO button briefly to
change the Audio functions. After the
AUDIO button is first pressed, the dis-
play will show the bass level value for the
source activated at that time (e.g. in FM
mode the display will show the wording
“FM Bass +2“).
Use the buttons ▲or ▼ to scroll through
the menu functions. To change the setting
of the selected function, use the buttons
÷or ˜.
The current status of the selected func-
tion will be shown on the display.
The functions managed by the Menu are:
❒BASS (bass adjustment);
❒TREBLE (treble adjustment);
❒BALANCE (right/left balance adjust-
ment);
❒FADER (front/rear balance adjustment);
603_97_538 Radio IDEA SB_08 EN 3-12-2009 11:11 Pagina 13

14
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYERQUICK
GUIDE
LOUDNESS FUNCTION
The Loudness function improves the vol-
ume of the sound whilst listening at low
volumes, increasing the bass and treble.
To activate/deactivate this function, use
the button ÷or ˜to select the
“loudness” setting in the AUDIO menu.
The condition of the function (on or off)
is shown on the display for a few seconds
by the wording “Loudness On” or “Loud-
ness off”. PRESET/USER*/CLASSIC/
ROCK/JAZZ FUNCTIONS
(equaliser activation/deactivation)
The built-in equaliser can be activat-
ed/deactivated. When the equaliser func-
tion is off, the audio settings can only be
changed by adjusting the “Bass” and “Tre-
ble” settings, whereas when the function
is on, the acoustic curves can be adjust-
ed. To deactivate the equaliser, select the
“EQ Preset” function using the buttons
÷or ˜.

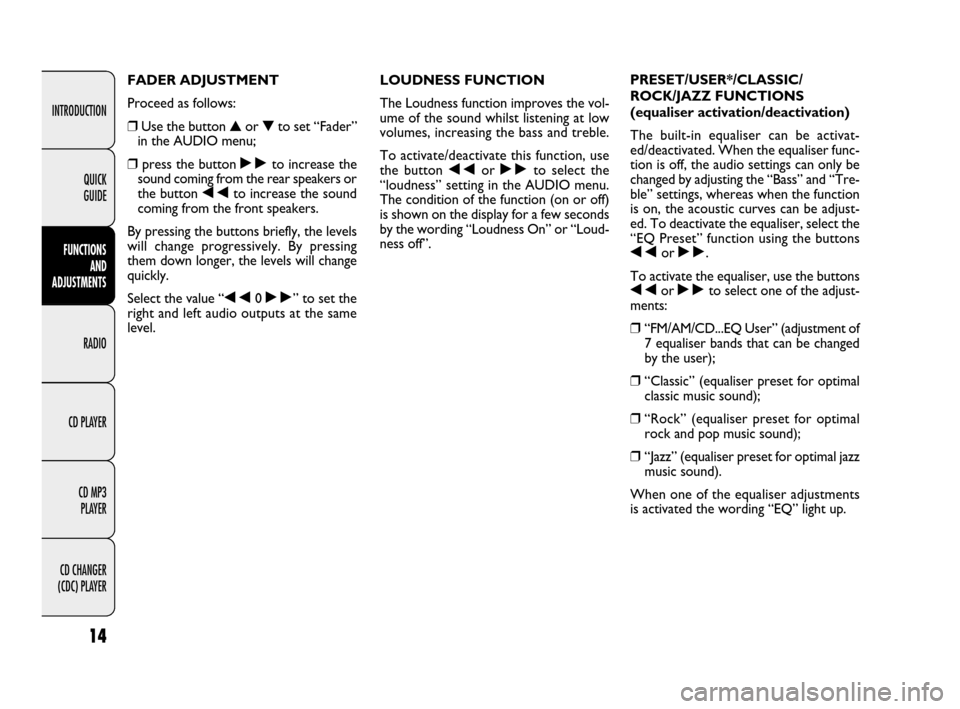

To activate the equaliser, use the buttons
÷or ˜to select one of the adjust-
ments:
❒ “FM/AM/CD...EQ User” (adjustment of
7 equaliser bands that can be changed
by the user);
❒ “Classic” (equaliser preset for optimal
classic music sound);
❒ “Rock” (equaliser preset for optimal
rock and pop music sound);
❒ “Jazz” (equaliser preset for optimal jazz
music sound).
When one of the equaliser adjustments
is activated the wording “EQ” light up. FADER ADJUSTMENT
Proceed as follows:
❒Use the button ▲or ▼to set “Fader”
in the AUDIO menu;
❒press the button ˜to increase the
sound coming from the rear speakers or
the button ÷to increase the sound
coming from the front speakers.
By pressing the buttons briefly, the levels
will change progressively. By pressing
them down longer, the levels will change
quickly.
Select the value “÷0 ˜” to set the
right and left audio outputs at the same
level.
603_97_538 Radio IDEA SB_08 EN 3-12-2009 11:11 Pagina 14

15
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER QUICK
GUIDE

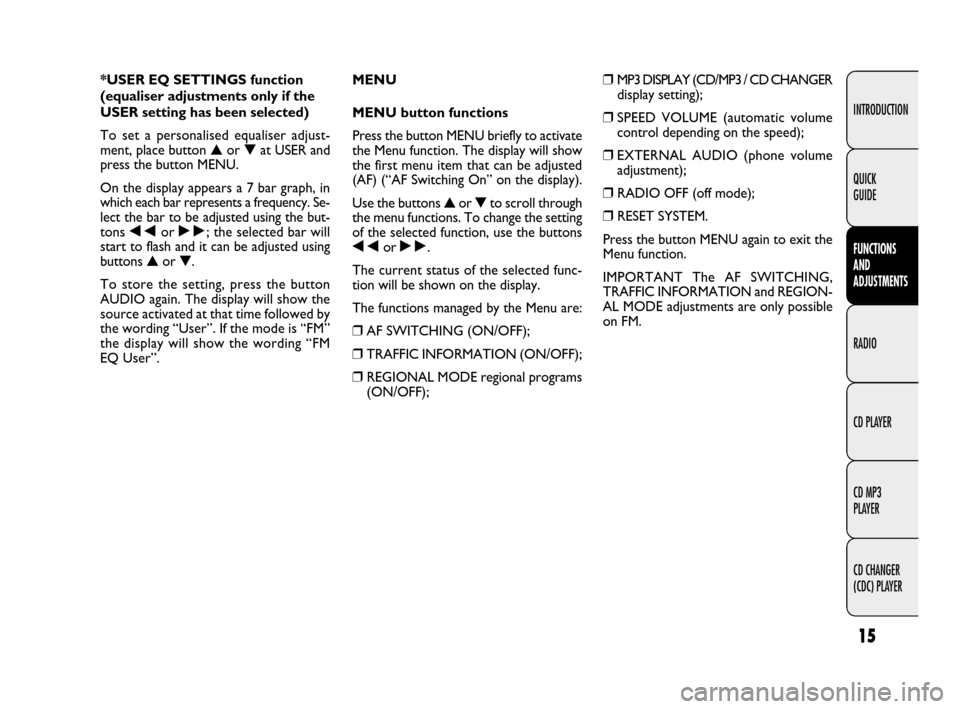

*USER EQ SETTINGS function
(equaliser adjustments only if the
USER setting has been selected)
To set a personalised equaliser adjust-
ment, place button ▲or ▼at USER and
press the button MENU.
On the display appears a 7 bar graph, in
which each bar represents a frequency. Se-
lect the bar to be adjusted using the but-
tons ÷or ˜; the selected bar will
start to flash and it can be adjusted using
buttons ▲or ▼.
To store the setting, press the button
AUDIO again. The display will show the
source activated at that time followed by
the wording “User”. If the mode is “FM”
the display will show the wording “FM
EQ User”.MENU
MENU button functions
Press the button MENU briefly to activate
the Menu function. The display will show
the first menu item that can be adjusted
(AF) (“AF Switching On” on the display).
Use the buttons ▲or ▼to scroll through
the menu functions. To change the setting
of the selected function, use the buttons
÷or ˜.
The current status of the selected func-
tion will be shown on the display.
The functions managed by the Menu are:
❒AF SWITCHING (ON/OFF);
❒TRAFFIC INFORMATION (ON/OFF);
❒REGIONAL MODE regional programs
(ON/OFF);❒MP3 DISPLAY (CD/MP3 / CD CHANGER
display setting);
❒SPEED VOLUME (automatic volume
control depending on the speed);
❒EXTERNAL AUDIO (phone volume
adjustment);
❒RADIO OFF (off mode);
❒RESET SYSTEM.
Press the button MENU again to exit the
Menu function.
IMPORTANT The AF SWITCHING,
TRAFFIC INFORMATION and REGION-
AL MODE adjustments are only possible
on FM.
603_97_538 Radio IDEA SB_08 EN 3-12-2009 11:11 Pagina 15

16
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYERQUICK
GUIDE

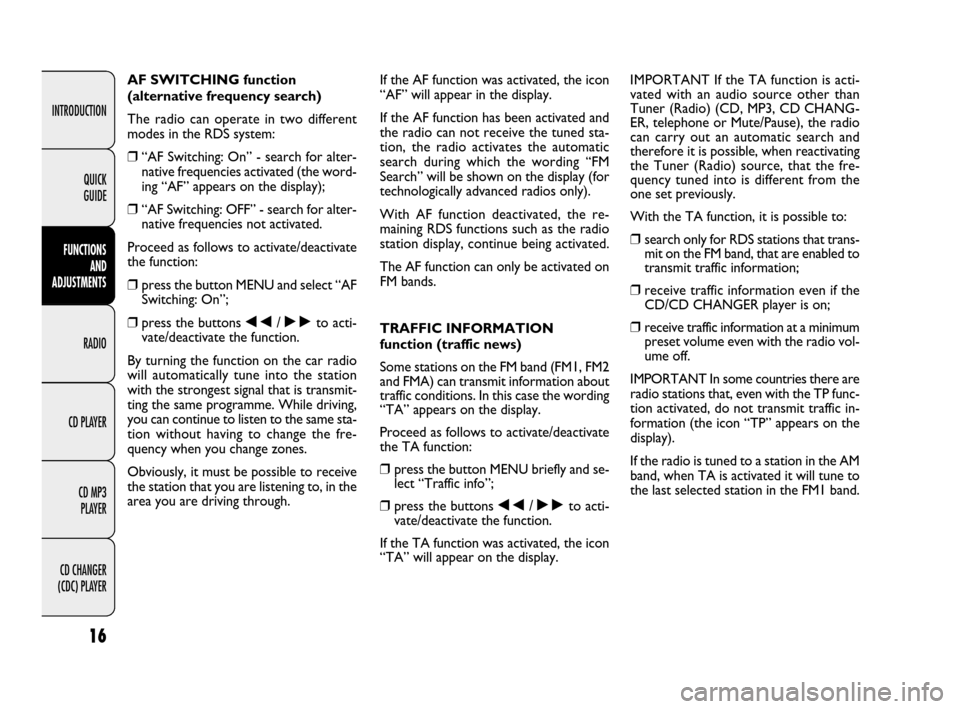

AF SWITCHING function
(alternative frequency search)
The radio can operate in two different
modes in the RDS system:
❒“AF Switching: On” - search for alter-
native frequencies activated (the word-
ing “AF” appears on the display);
❒“AF Switching: OFF” - search for alter-
native frequencies not activated.
Proceed as follows to activate/deactivate
the function:
❒press the button MENU and select “AF
Switching: On”;
❒press the buttons ÷/ ˜to acti-
vate/deactivate the function.
By turning the function on the car radio
will automatically tune into the station
with the strongest signal that is transmit-
ting the same programme. While driving,
you can continue to listen to the same sta-
tion without having to change the fre-
quency when you change zones.
Obviously, it must be possible to receive
the station that you are listening to, in the
area you are driving through.If the AF function was activated, the icon
“AF” will appear in the display.
If the AF function has been activated and
the radio can not receive the tuned sta-
tion, the radio activates the automatic
search during which the wording “FM
Search” will be shown on the display (for
technologically advanced radios only).
With AF function deactivated, the re-
maining RDS functions such as the radio
station display, continue being activated.
The AF function can only be activated on
FM bands.
TRAFFIC INFORMATION
function (traffic news)
Some stations on the FM band (FM1, FM2
and FMA) can transmit information about
traffic conditions. In this case the wording
“TA” appears on the display.
Proceed as follows to activate/deactivate
the TA function:
❒press the button MENU briefly and se-
lect “Traffic info”;
❒press the buttons ÷/ ˜to acti-
vate/deactivate the function.
If the TA function was activated, the icon
“TA” will appear on the display.IMPORTANT If the TA function is acti-
vated with an audio source other than
Tuner (Radio) (CD, MP3, CD CHANG-
ER, telephone or Mute/Pause), the radio
can carry out an automatic search and
therefore it is possible, when reactivating
the Tuner (Radio) source, that the fre-
quency tuned into is different from the
one set previously.
With the TA function, it is possible to:
❒search only for RDS stations that trans-
mit on the FM band, that are enabled to
transmit traffic information;
❒receive traffic information even if the
CD/CD CHANGER player is on;
❒receive traffic information at a minimum
preset volume even with the radio vol-
ume off.
IMPORTANT In some countries there are
radio stations that, even with the TP func-
tion activated, do not transmit traffic in-
formation (the icon “TP” appears on the
display).
If the radio is tuned to a station in the AM
band, when TA is activated it will tune to
the last selected station in the FM1 band.
603_97_538 Radio IDEA SB_08 EN 3-12-2009 11:11 Pagina 16

17
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER QUICK
GUIDE

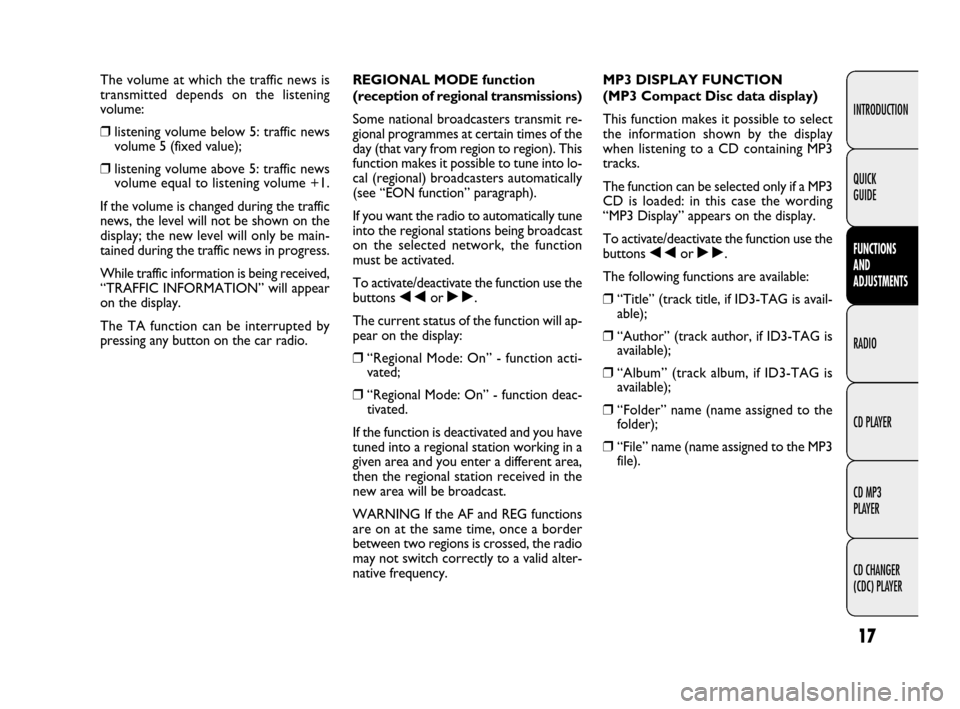

The volume at which the traffic news is
transmitted depends on the listening
volume:
❒listening volume below 5: traffic news
volume 5 (fixed value);
❒listening volume above 5: traffic news
volume equal to listening volume +1.
If the volume is changed during the traffic
news, the level will not be shown on the
display; the new level will only be main-
tained during the traffic news in progress.
While traffic information is being received,
“TRAFFIC INFORMATION” will appear
on the display.
The TA function can be interrupted by
pressing any button on the car radio.REGIONAL MODE function
(reception of regional transmissions)
Some national broadcasters transmit re-
gional programmes at certain times of the
day (that vary from region to region). This
function makes it possible to tune into lo-
cal (regional) broadcasters automatically
(see “EON function” paragraph).
If you want the radio to automatically tune
into the regional stations being broadcast
on the selected network, the function
must be activated.
To activate/deactivate the function use the
buttons ÷or ˜.
The current status of the function will ap-
pear on the display:
❒“Regional Mode: On” - function acti-
vated;
❒“Regional Mode: On” - function deac-
tivated.
If the function is deactivated and you have
tuned into a regional station working in a
given area and you enter a different area,
then the regional station received in the
new area will be broadcast.
WARNING If the AF and REG functions
are on at the same time, once a border
between two regions is crossed, the radio
may not switch correctly to a valid alter-
native frequency.MP3 DISPLAY FUNCTION
(MP3 Compact Disc data display)
This function makes it possible to select
the information shown by the display
when listening to a CD containing MP3
tracks.
The function can be selected only if a MP3
CD is loaded: in this case the wording
“MP3 Display” appears on the display.
To activate/deactivate the function use the
buttons ÷or ˜.
The following functions are available:
❒“Title” (track title, if ID3-TAG is avail-
able);
❒“Author” (track author, if ID3-TAG is
available);
❒“Album” (track album, if ID3-TAG is
available);
❒“Folder” name (name assigned to the
folder);
❒“File” name (name assigned to the MP3
file).
603_97_538 Radio IDEA SB_08 EN 3-12-2009 11:11 Pagina 17

18
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYERQUICK
GUIDE

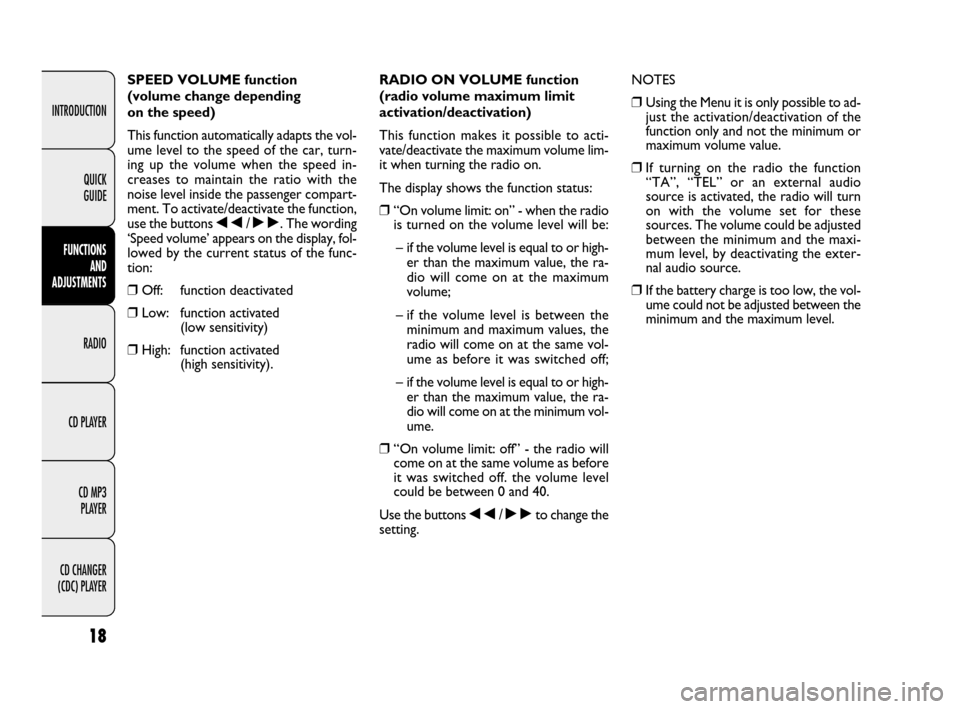

SPEED VOLUME function
(volume change depending
on the speed)
This function automatically adapts the vol-
ume level to the speed of the car, turn-
ing up the volume when the speed in-
creases to maintain the ratio with the
noise level inside the passenger compart-
ment. To activate/deactivate the function,
use the buttons ÷/ ˜. The wording
‘Speed volume’ appears on the display, fol-
lowed by the current status of the func-
tion:
❒Off: function deactivated
❒Low: function activated
(low sensitivity)
❒High: function activated
(high sensitivity).RADIO ON VOLUME function
(radio volume maximum limit
activation/deactivation)
This function makes it possible to acti-
vate/deactivate the maximum volume lim-
it when turning the radio on.
The display shows the function status:
❒“On volume limit: on” - when the radio
is turned on the volume level will be:
– if the volume level is equal to or high-
er than the maximum value, the ra-
dio will come on at the maximum
volume;
– if the volume level is between the
minimum and maximum values, the
radio will come on at the same vol-
ume as before it was switched off;
– if the volume level is equal to or high-
er than the maximum value, the ra-
dio will come on at the minimum vol-
ume.
❒“On volume limit: off” - the radio will
come on at the same volume as before
it was switched off. the volume level
could be between 0 and 40.
Use the buttons ÷/ ˜to change the
setting.NOTES
❒ Using the Menu it is only possible to ad-
just the activation/deactivation of the
function only and not the minimum or
maximum volume value.
❒If turning on the radio the function
“TA”, “TEL” or an external audio
source is activated, the radio will turn
on with the volume set for these
sources. The volume could be adjusted
between the minimum and the maxi-
mum level, by deactivating the exter-
nal audio source.
❒If the battery charge is too low, the vol-
ume could not be adjusted between the
minimum and the maximum level.
603_97_538 Radio IDEA SB_08 EN 3-12-2009 11:11 Pagina 18

19
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER QUICK
GUIDE

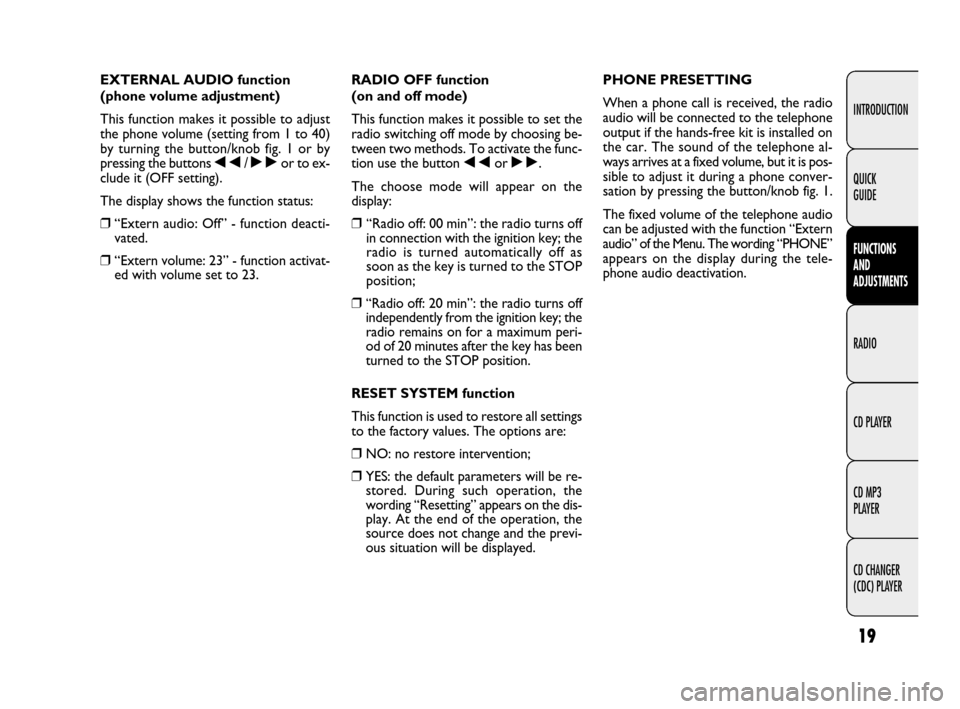

EXTERNAL AUDIO function
(phone volume adjustment)
This function makes it possible to adjust
the phone volume (setting from 1 to 40)
by turning the button/knob fig. 1 or by
pressing the buttons ÷/ ˜or to ex-
clude it (OFF setting).
The display shows the function status:
❒“Extern audio: Off” - function deacti-
vated.
❒“Extern volume: 23” - function activat-
ed with volume set to 23.RADIO OFF function
(on and off mode)
This function makes it possible to set the
radio switching off mode by choosing be-
tween two methods. To activate the func-
tion use the button ÷or ˜.
The choose mode will appear on the
display:
❒“Radio off: 00 min”: the radio turns off
in connection with the ignition key; the
radio is turned automatically off as
soon as the key is turned to the STOP
position;
❒“Radio off: 20 min”: the radio turns off
independently from the ignition key; the
radio remains on for a maximum peri-
od of 20 minutes after the key has been
turned to the STOP position.
RESET SYSTEM function
This function is used to restore all settings
to the factory values. The options are:
❒NO: no restore intervention;
❒YES: the default parameters will be re-
stored. During such operation, the
wording “Resetting” appears on the dis-
play. At the end of the operation, the
source does not change and the previ-
ous situation will be displayed.PHONE PRESETTING
When a phone call is received, the radio
audio will be connected to the telephone
output if the hands-free kit is installed on
the car. The sound of the telephone al-
ways arrives at a fixed volume, but it is pos-
sible to adjust it during a phone conver-
sation by pressing the button/knob fig. 1.
The fixed volume of the telephone audio
can be adjusted with the function “Extern
audio” of the Menu. The wording “PHONE”
appears on the display during the tele-
phone audio deactivation.
603_97_538 Radio IDEA SB_08 EN 3-12-2009 11:11 Pagina 19

21
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER QUICK
GUIDE

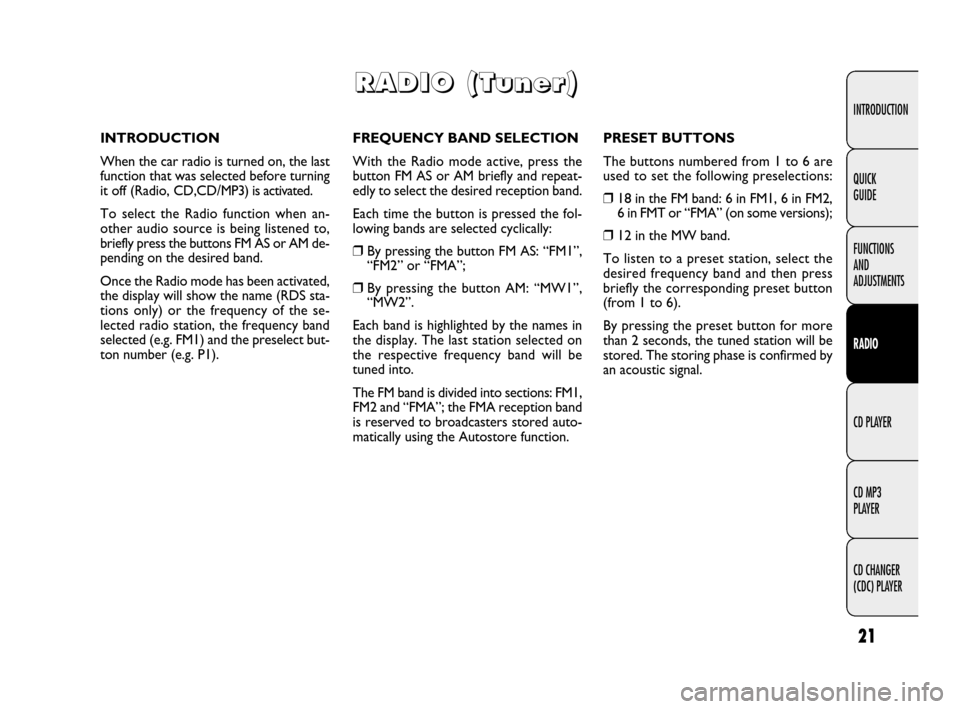

FREQUENCY BAND SELECTION
With the Radio mode active, press the
button FM AS or AM briefly and repeat-
edly to select the desired reception band.
Each time the button is pressed the fol-
lowing bands are selected cyclically:
❒By pressing the button FM AS: “FM1”,
“FM2” or “FMA”;
❒By pressing the button AM: “MW1”,
“MW2”.
Each band is highlighted by the names in
the display. The last station selected on
the respective frequency band will be
tuned into.
The FM band is divided into sections: FM1,
FM2 and “FMA”; the FMA reception band
is reserved to broadcasters stored auto-
matically using the Autostore function.PRESET BUTTONS
The buttons numbered from 1 to 6 are
used to set the following preselections:
❒18 in the FM band: 6 in FM1, 6 in FM2,
6 in FMT or “FMA” (on some versions);
❒12 in the MW band.
To listen to a preset station, select the
desired frequency band and then press
briefly the corresponding preset button
(from 1 to 6).
By pressing the preset button for more
than 2 seconds, the tuned station will be
stored. The storing phase is confirmed by
an acoustic signal. INTRODUCTION
When the car radio is turned on, the last
function that was selected before turning
it off (Radio, CD,CD/MP3) is activated.
To select the Radio function when an-
other audio source is being listened to,
briefly press the buttons FM AS or AM de-
pending on the desired band.
Once the Radio mode has been activated,
the display will show the name (RDS sta-
tions only) or the frequency of the se-
lected radio station, the frequency band
selected (e.g. FM1) and the preselect but-
ton number (e.g. P1).
R R
A A
D D
I I
O O

( (
T T
u u
n n
e e
r r
) )
603_97_538 Radio IDEA SB_08 EN 3-12-2009 11:11 Pagina 21
