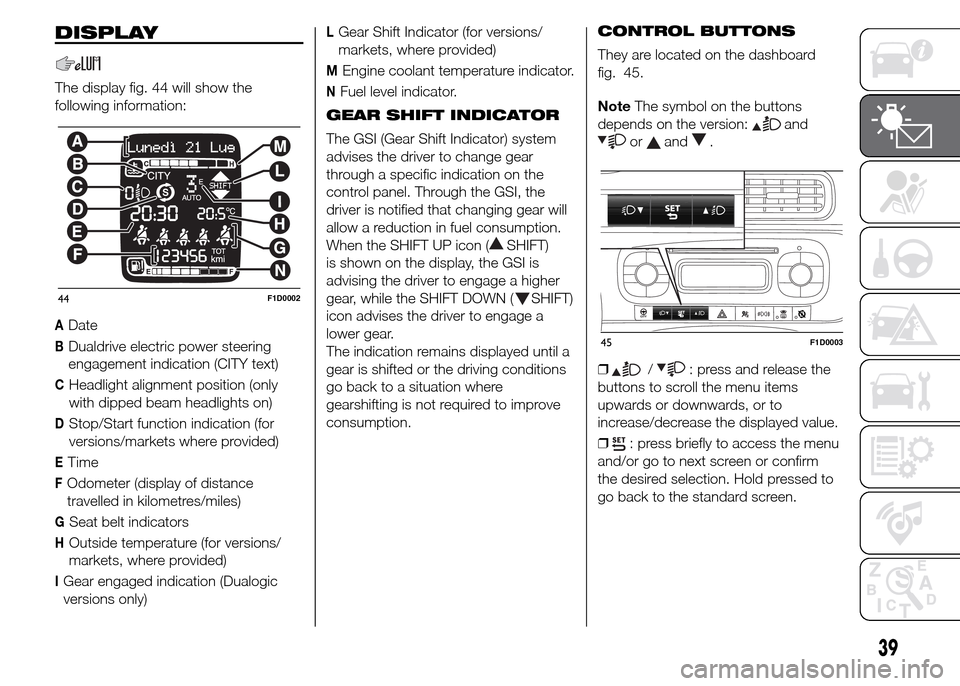

DISPLAY
The display fig. 44 will show the
following information:
ADate
BDualdrive electric power steering
engagement indication (CITY text)
CHeadlight alignment position (only
with dipped beam headlights on)
DStop/Start function indication (for
versions/markets where provided)
ETime
FOdometer (display of distance
travelled in kilometres/miles)
GSeat belt indicators
HOutside temperature (for versions/
markets, where provided)
IGear engaged indication (Dualogic
versions only)
LGear Shift Indicator (for versions/
markets, where provided)
MEngine coolant temperature indicator.
NFuel level indicator.
GEAR SHIFT INDICATOR
The GSI (Gear Shift Indicator) system
advises the driver to change gear
through a specific indication on the
control panel. Through the GSI, the
driver is notified that changing gear will
allow a reduction in fuel consumption.
When the SHIFT UP icon (
SHIFT)
is shown on the display, the GSI is
advising the driver to engage a higher
gear, while the SHIFT DOWN (
SHIFT)
icon advises the driver to engage a
lower gear.
The indication remains displayed until a
gear is shifted or the driving conditions
go back to a situation where
gearshifting is not required to improve
consumption.CONTROL BUTTONS
They are located on the dashboard
NoteThe symbol on the buttons
depends on the version:
and
orand.
❒
/: press and release the
buttons to scroll the menu items
upwards or downwards, or to
increase/decrease the displayed value.
❒
: press briefly to access the menu
and/or go to next screen or confirm
the desired selection. Hold pressed to
go back to the standard screen.
44F1D0002
45F1D0003
39
fig. 45.

❒MEASUREMENT UNIT
❒LANGUAGE
❒WARNING VOLUME
❒SEAT BELT BUZZER (for versions/
markets, where provided)
❒SERVICE
❒AIRBAG/PASSENGER BAG (for
versions/markets, where provided)
❒DAYTIME RUNNING LIGHTS (for
versions/markets, where provided)
❒TYRE RESET
❒CITY BRAKE C./COLLISION
MITIGATION (for versions/markets,
where provided)
❒EXIT MENUDeactivating front passenger airbag
and side bag
This function is used to activate/
deactivate the front passenger's airbag.
Proceed as follows:
❒press the
button and, after the
message "Bag pass: Off" (to deactivate)
or "Bag pass: On" (to activate) is
displayed by pressing buttons
and
, press thebutton again;
❒a confirmation message will appear
on the display;
❒by pressing the
orbuttons
select "Yes" (to confirm activation/
deactivation) or "No" (to cancel);
❒press the
button briefly; a
message confirming the selection is
displayed and you return to the menu
screen. Hold down the button to return
to the standard screen without storing.TRIP COMPUTER
The Trip Computer can be used to
display information on vehicle operation
when the key is turned to MAR. This
function is composed of separate trips,
called “Trip A” and “Trip B” which can
monitor the entire mission (journey) in a
reciprocally independent manner.
“Trip A”allows the following values to
be displayed: "Outside temperature
(for versions/markets, where provided)",
"Range", "Distance travelled", "Average
consumption", "Instantaneous
consumption", "Average speed", "Trip
time (driving time)"
“Trip B”allows the following values to
be displayed: "Distance travelled B",
"Average consumption B", "Average
speed B", "Trip time (driving time)
B". The “Trip B” function may be
excluded.
Both functions can be reset (reset
means start of a new journey).
To reset, hold the TRIP button on the
right steering wheel stalk pressed.
NOTE “Range” and “Instantaneous fuel
consumption" parameters cannot be
reset.
40
KNOWING THE INSTRUMENT PANEL
SETUP MENU
The menu includes the following items:
❒MENU
❒LIGHTING
❒SPEED BUZZER
❒HEADLIGHT SENSOR (for versions/
markets where provided)
❒TRIP B ACTIVATION/DATA
❒SET TIME
❒SET DATE
❒SEE RADIO
❒AUTOCLOSE

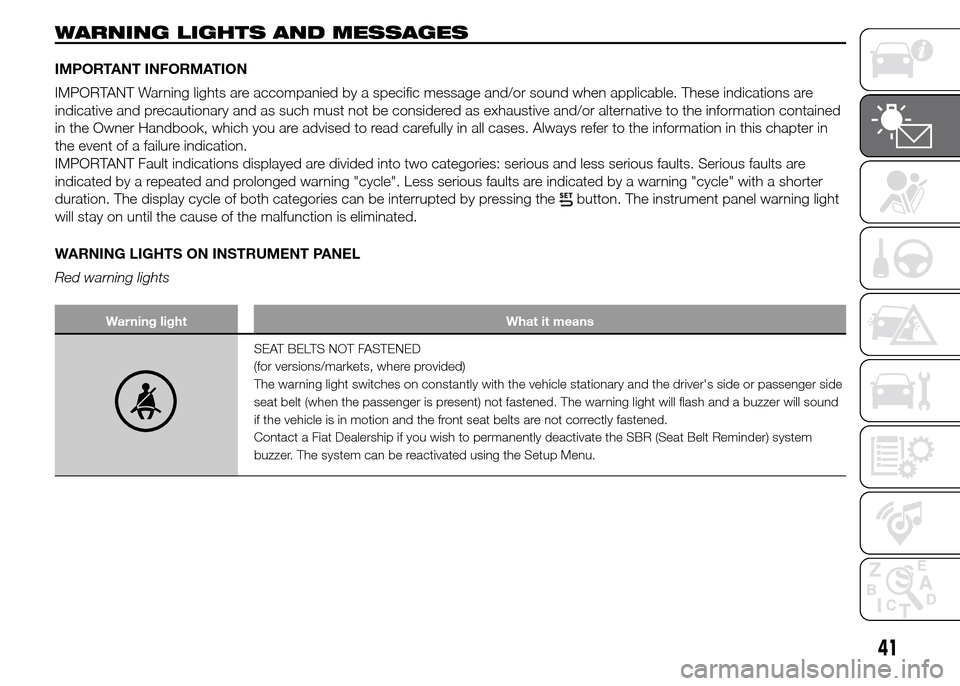

WARNING LIGHTS AND MESSAGES
IMPORTANT INFORMATION
IMPORTANT Warning lights are accompanied by a specific message and/or sound when applicable. These indications are
indicative and precautionary and as such must not be considered as exhaustive and/or alternative to the information contained
in the Owner Handbook, which you are advised to read carefully in all cases. Always refer to the information in this chapter in
the event of a failure indication.
IMPORTANT Fault indications displayed are divided into two categories: serious and less serious faults. Serious faults are
indicated by a repeated and prolonged warning "cycle". Less serious faults are indicated by a warning "cycle" with a shorter
duration. The display cycle of both categories can be interrupted by pressing the
button. The instrument panel warning light
will stay on until the cause of the malfunction is eliminated.
WARNING LIGHTS ON INSTRUMENT PANEL
Red warning lights
Warning light What it means
SEAT BELTS NOT FASTENED
(for versions/markets, where provided)
The warning light switches on constantly with the vehicle stationary and the driver's side or passenger side
seat belt (when the passenger is present) not fastened. The warning light will flash and a buzzer will sound
if the vehicle is in motion and the front seat belts are not correctly fastened.
Contact a Fiat Dealership if you wish to permanently deactivate the SBR (Seat Belt Reminder) system
buzzer. The system can be reactivated using the Setup Menu.
41

Warning light What it means

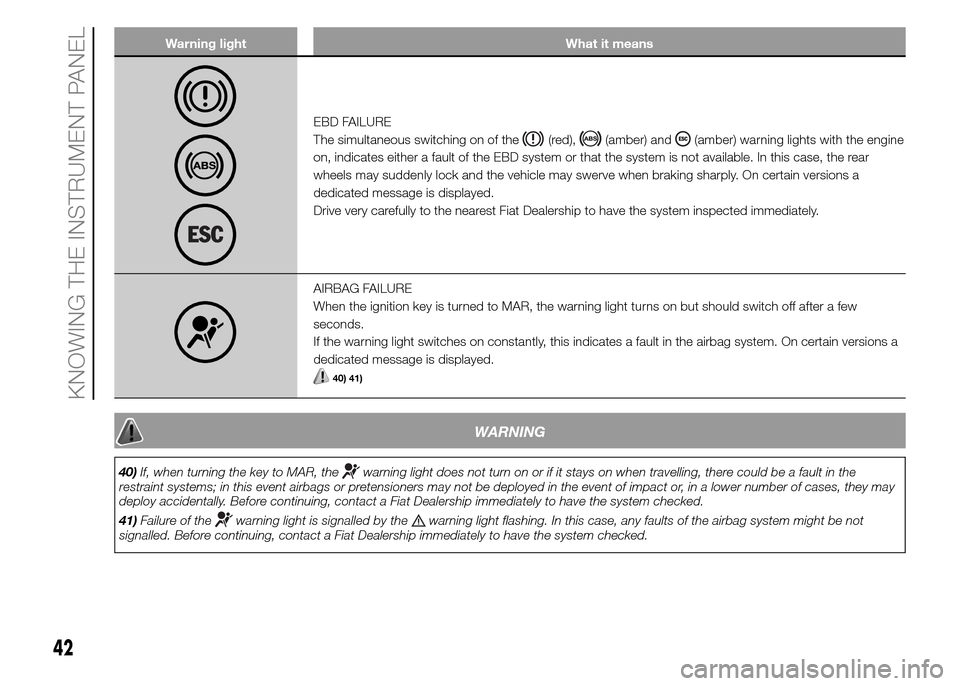

EBD FAILURE
The simultaneous switching on of the
(red),(amber) and(amber) warning lights with the engine
on, indicates either a fault of the EBD system or that the system is not available. In this case, the rear
wheels may suddenly lock and the vehicle may swerve when braking sharply. On certain versions a
dedicated message is displayed.
Drive very carefully to the nearest Fiat Dealership to have the system inspected immediately.
AIRBAG FAILURE
When the ignition key is turned to MAR, the warning light turns on but should switch off after a few
seconds.
If the warning light switches on constantly, this indicates a fault in the airbag system. On certain versions a
dedicated message is displayed.
40) 41)
WARNING
40)If, when turning the key to MAR, thewarning light does not turn on or if it stays on when travelling, there could be a fault in the
restraint systems; in this event airbags or pretensioners may not be deployed in the event of impact or, in a lower number of cases, they may
deploy accidentally. Before continuing, contact a Fiat Dealership immediately to have the system checked.
41)Failure of the
warning light is signalled by thewarning light flashing. In this case, any faults of the airbag system might be not
signalled. Before continuing, contact a Fiat Dealership immediately to have the system checked.
42
KNOWING THE INSTRUMENT PANEL

Warning light What it means

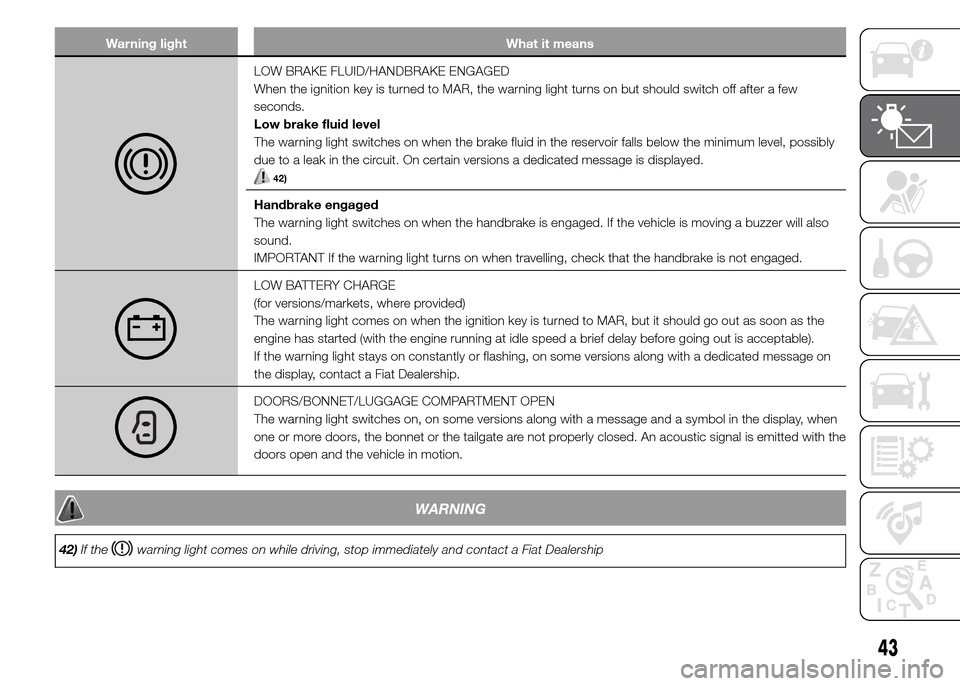

LOW BRAKE FLUID/HANDBRAKE ENGAGED
When the ignition key is turned to MAR, the warning light turns on but should switch off after a few
seconds.
Low brake fluid level
The warning light switches on when the brake fluid in the reservoir falls below the minimum level, possibly
due to a leak in the circuit. On certain versions a dedicated message is displayed.
42)
Handbrake engaged
The warning light switches on when the handbrake is engaged. If the vehicle is moving a buzzer will also
sound.
IMPORTANT If the warning light turns on when travelling, check that the handbrake is not engaged.
LOW BATTERY CHARGE
(for versions/markets, where provided)
The warning light comes on when the ignition key is turned to MAR, but it should go out as soon as the
engine has started (with the engine running at idle speed a brief delay before going out is acceptable).
If the warning light stays on constantly or flashing, on some versions along with a dedicated message on
the display, contact a Fiat Dealership.
DOORS/BONNET/LUGGAGE COMPARTMENT OPEN
The warning light switches on, on some versions along with a message and a symbol in the display, when
one or more doors, the bonnet or the tailgate are not properly closed. An acoustic signal is emitted with the
doors open and the vehicle in motion.
WARNING
42)If thewarning light comes on while driving, stop immediately and contact a Fiat Dealership
43

Warning light What it means

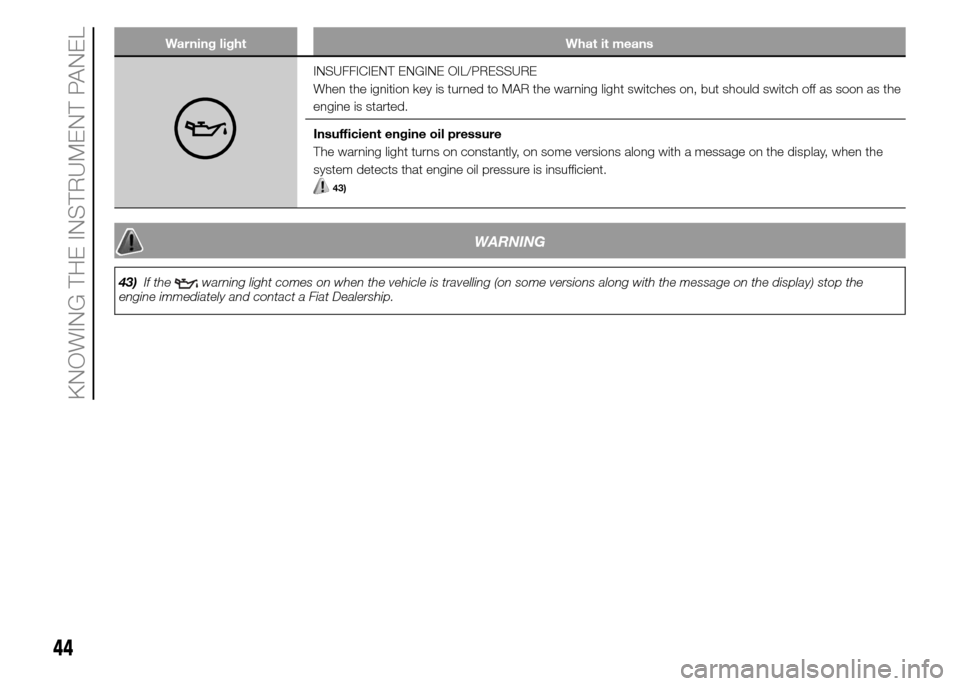

INSUFFICIENT ENGINE OIL/PRESSURE
When the ignition key is turned to MAR the warning light switches on, but should switch off as soon as the
engine is started.
Insufficient engine oil pressure
The warning light turns on constantly, on some versions along with a message on the display, when the
system detects that engine oil pressure is insufficient.
43)
WARNING
43)If thewarning light comes on when the vehicle is travelling (on some versions along with the message on the display) stop the
engine immediately and contact a Fiat Dealership.
44
KNOWING THE INSTRUMENT PANEL

Warning light What it means

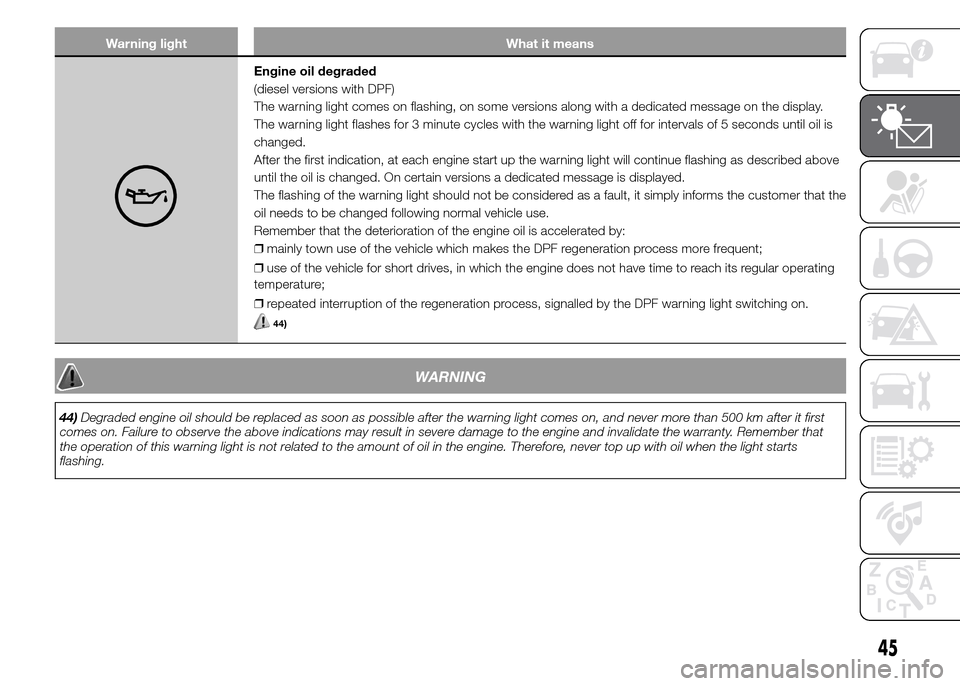

Engine oil degraded
(diesel versions with DPF)
The warning light comes on flashing, on some versions along with a dedicated message on the display.
The warning light flashes for 3 minute cycles with the warning light off for intervals of 5 seconds until oil is
changed.
After the first indication, at each engine start up the warning light will continue flashing as described above
until the oil is changed. On certain versions a dedicated message is displayed.
The flashing of the warning light should not be considered as a fault, it simply informs the customer that the
oil needs to be changed following normal vehicle use.
Remember that the deterioration of the engine oil is accelerated by:
❒mainly town use of the vehicle which makes the DPF regeneration process more frequent;
❒use of the vehicle for short drives, in which the engine does not have time to reach its regular operating
temperature;
❒repeated interruption of the regeneration process, signalled by the DPF warning light switching on.
44)
WARNING
44)Degraded engine oil should be replaced as soon as possible after the warning light comes on, and never more than 500 km after it first
comes on. Failure to observe the above indications may result in severe damage to the engine and invalidate the warranty. Remember that
the operation of this warning light is not related to the amount of oil in the engine. Therefore, never top up with oil when the light starts
flashing.
45

Warning light What it means
ENGINE COOLANT TEMPERATURE TOO HIGH
When the key is turned to MAR, the warning light switches on but it should switch off after a few seconds.
The warning light comes on, on some versions along with a message on the display, when the engine is
overheated.
When driving normally:stop the vehicle, switch off the engine and check that the water level in the
reservoir is not below the MIN mark. If it is, wait for the engine to cool down then slowly and carefully open
the cap, top up with coolant and check that the level is between the MIN and MAX marks on the reservoir.
Also check visually for any fluid leaks. If, when restarting, the warning light switches on again, contact a Fiat
Dealership.
If the vehicle is used under demanding conditions(e.g. towing trailers uphill or fully loaded): slow
down and, if the warning light stays on, stop the vehicle. Wait for 2 or 3 minutes with the engine running
and slightly accelerated to further favour the coolant circulation. Then stop the engine. Check that the
coolant level is correct as described above.
IMPORTANT Over demanding routes, it is advisable to keep the engine on and slightly accelerated for a
few minutes before switching it off.
“DUALDRIVE” ELECTRIC POWER STEERING FAILURE
The warning light switches on when the ignition key is turned to MAR, but it should switch off after a few
seconds.
If the warning light stays on, on some versions along with a dedicated message on the display, you may
not have steering assistance and the effort required to operate the steering wheel could be notably
increased; steering is, however, possible.
In this case, contact a Fiat Dealership.
IMPORTANT In some circumstances, factors independent of the electric power steering could cause the
warning light on the instrument panel to switch on. In this case, stop the vehicle immediately (should it be
in motion), stop the engine for about 20 seconds and then restart the engine. If the warning light, on some
versions along with a dedicated message on the display, remains on, contact a Fiat Dealership.
IMPORTANT After the battery is disconnected, the steering must be initialised. The warning light switches
on to indicate this. To carry out this procedure, simply turn the steering wheel all the way from one end to
the other or drive in a straight line for about a hundred metres.
46
KNOWING THE INSTRUMENT PANEL

Warning light What it means

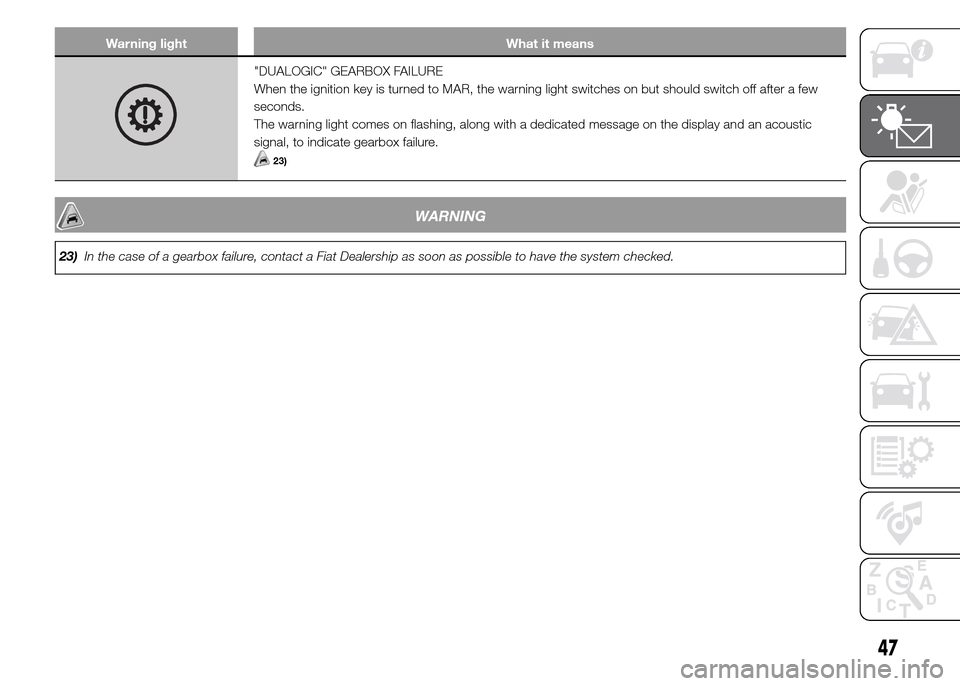

"DUALOGIC" GEARBOX FAILURE
When the ignition key is turned to MAR, the warning light switches on but should switch off after a few
seconds.
The warning light comes on flashing, along with a dedicated message on the display and an acoustic
signal, to indicate gearbox failure.
23)
WARNING
23)In the case of a gearbox failure, contact a Fiat Dealership as soon as possible to have the system checked.
47

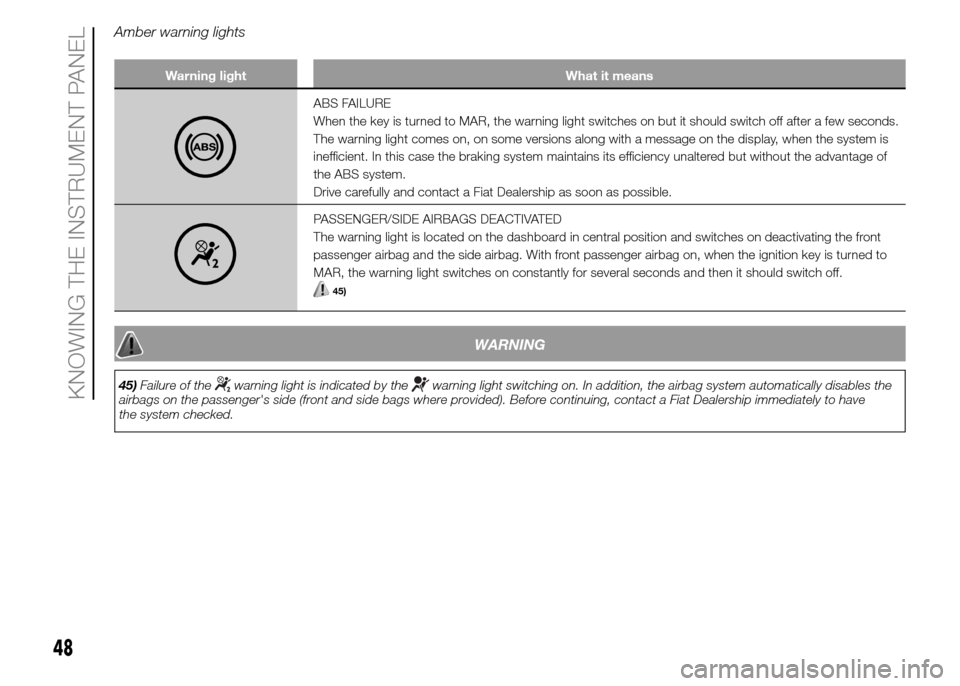

Amber warning lights
Warning light What it means
ABS FAILURE
When the key is turned to MAR, the warning light switches on but it should switch off after a few seconds.
The warning light comes on, on some versions along with a message on the display, when the system is
inefficient. In this case the braking system maintains its efficiency unaltered but without the advantage of
the ABS system.
Drive carefully and contact a Fiat Dealership as soon as possible.
PASSENGER/SIDE AIRBAGS DEACTIVATED
The warning light is located on the dashboard in central position and switches on deactivating the front
passenger airbag and the side airbag. With front passenger airbag on, when the ignition key is turned to
MAR, the warning light switches on constantly for several seconds and then it should switch off.
45)
WARNING
45)Failure of thewarning light is indicated by thewarning light switching on. In addition, the airbag system automatically disables the
airbags on the passenger's side (front and side bags where provided). Before continuing, contact a Fiat Dealership immediately to have
the system checked.
48
KNOWING THE INSTRUMENT PANEL
