navigation system HONDA CR-V 2009 RD1-RD5, RE7 / 3.G Owners Manual

Î
Î
Î If equipped
:
Your Vehicle at a Glance
Your Vehicle at a Glance
3
POWER WINDOW
SWITCHES
FUEL FILL DOOR
RELEASE HANDLE HOOD RELEASE HANDLE PASSENGER’S FRONT
AIRBAG
MIRROR CONTROL INSTRUMENT PANEL
INDICATORS
GAUGES AUDIO SYSTEM
AUTOMATIC
TRANSMISSION
POWER DOOR LOCK
MASTER SWITCHES
U.S. EX-L without navigation system is shown. (P.59)
(P.66)
(P.9,25)
(P.82) (P.9,25)
ACCESSORY POWER
SOCKETSHEATING/COOLING
CONTROLS
CLIMATE CONTROL
SYSTEM
DRIVER’S FRONT
AIRBAG
(P.109) (P.227) (P.229) (P.120)(P.247)
(P.131)
(P.126)
(P.139)
(P.112)
 — —y


y
(, y   y
2009 CR- V

Î
Î
Î
ÎÎ Î
ÎÎ
To use the horn, press the center pad of the steering wheel.
If equipped.
Ref er to the navigation system manual.
1:
2:
3:
Your Vehicle at a Glance
4
INSTRUMENT PANEL
BRIGHTNESS
PASSENGER AIRBAG
OFF INDICATOR
HAZARD WARNING
BUTTON
WINDSHIELD
WIPERS/WASHERS
(P.73)
AUDIO SYSTEM
SHIFT LEVER
REMOTE AUDIO CONTROLS
VEHICLE STABILITY
ASSIST (VSA) SYSTEM
ON/OFF SWITCH
MIRROR CONTROLS
STEERING WHEEL ADJUSTMENTS
(P.78)
PARKING BRAKE PEDAL
(P.78)
VOICE CONTROL SWITCHES (P.76)
AUDIO SYSTEM
CLOCK
(P.32)
HORN CRUISE CONTROL
BUTTONS SEAT HEATER SWITCHES
(P.76)
(P.216)
(P.257) (P.112)
(P.222)(P.108) (P.247)
(P.170)(P.139)
(P.219)
REAR WINDOW
DEFOGGER BUTTON/
HEATED MIRRORS
BUTTON (P.77/112)
2
3 1
22
\f—\f—y
\fy
(,\fy\f\f\fy
2009 CR- V

ÎÎ
Î
Î
ÎIf equipped
:
Control L ocations
58
MIRRORCONTROLS
GAUGES
INSTRUMENT PANEL
INDICATORS MOONROOFSWITCH
EX-L without navigation system is shown ACCESSORY POWER SOCKETS(P.59)
(P.66)
(P.76)
POWER DOOR LOCK
MASTER SWITCH
(P.82)
POWER WINDOW
SWITCHES
FUEL FILL DOOR
RELEASE HANDLE
HOOD RELEASE
HANDLE PASSENGER AIRBAG
OFF INDICATOR
(P.32)
HAZARD WARNING
BUTTON
AUDIO SYSTEM
CLOCK
AUTOMATIC
TRANSMISSION
HEATING/COOLING
CONTROLS
CLIMATE CONTROL
SYSTEM
SEAT HEATER
SWITCHES
PARKING BRAKE PEDAL
(P.78) (P.112)
(P.109)
(P.227)
(P.229) (P.120)(P.108)
(P.131)
(P.126)
(P.247)
(P.219)
(P.139)
(P.110)
\f—\f—y
\f\fy
(,\fy\f\fy
2009 CR- V

Î
Î
Î
Î
Î
Î Î
To use the horn, press the center pad of the steering wheel.
If equipped.
Ref er to the navigation system manual.
1:
2:
3:
Controls Near the Steering Wheel
72
CRUISE CONTROL BUTTON
PARKING BRAKE PEDAL (P.78) HORN HAZARD WARNING
BUTTON
(P.76)
SHIFT LEVER
MIRROR CONTROL
VEHICLE STABILITY
ASSIST (VSA)
SYSTEM ON/OFF
SWITCH
REMOTE AUDIO CONTROLS
STEERING WHEEL
ADJUSTMENTS
(P.78)
HEADLIGHTS/TURN SIGNALS INSTRUMENT PANEL BRIGHTNESS
(P.74)
(P.32)
PASSENGER AIRBAG
OFF INDICATOR
WINDSHIELD WIPERS/
WASHERS
(P.73)
VOICE CONTROLS ACCESSORY POWER SOCKET
(P.257)
(P.112)
(P.216)
(P.120)(P.222)(P.247)
(P.76)
REAR WINDOW DEFOGGER
BUTTON (P.77)
(P.112)
HEATED MIRROR BUTTON1
2
3 2
\f—\f—y

y
(,\fy\f\fy
2009 CR- V

The heating and air conditioning
system in your vehicle provides a
comf ortable driving environment in
all weather conditions.
The standard audio system has
many f eatures. This section
describes those f eatures and how to
use them.
Your vehicle has an anti-theft audio
system that requires a code number
to enable it.
The security system helps to
discourage vandalism and thef t of
your vehicle..............
Vents, Heating, and A/C .126
...............
Climate Control System .131
..........
Dual Temperature Control .136
..............
Climate Control Sensors .138
................................
Audio System .139 ..........
Playing the AM/FM Radio .141
.................................
Playing a Disc .145
........
Disc Player Error Messages.152
...........
Playing the AM/FM Radio.153
................
Playing the XM
Radio .157
..................................
Playing Discs .162
........
Disc Player Error Messages.169
...........
Playing the AM/FM Radio.170
................
Playing the XM
Radio .176
.................................
Playing a Disc .182
.......
Disc Player Error Messages .190
....................................
CD Changer .191
.....
CD Changer Error Messages .197
...........................
Playing a PC card .198
.............
PC card Error Messages .210 ............
AM/FM Radio Reception .211
..................
Protecting Your Discs .213
................
Remote Audio Controls .216
.................
Radio Thef t Protection .218
..........................
Setting the Clock .219
............................
Security System .220
...
Rearview Camera and Monitor .221
...............................
Cruise Control .222
LX model
EX and EX-L models without navigationsystem
EX-L Models with navigation system
Features
Features
125
\f—\f—y
y
(,\fy\f
\fy
2009 CR- V

On vehicles with navigation system
The climate control system can also
be operated by voice control. See the
Navigation section in your quick
start guide f or an overview of this
system, and the navigation system
manual f or complete details.The automatic climate control
system in your vehicle picks the
proper combination of air
conditioning, heating, and ventilation
to maintain the interior temperature
you select. The system also adjusts
the fan speed and airflow levels.
Press the AUTO button.
Set the desired temperature by
turning the driver’s side
temperature control dial. You will
see AUTO and the selected
temperature in the display. You
can also set the passenger’s side
temperature by turning the
passenger’s side dial.
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature to your pref erence. The driver’s side temperature and
the passenger’s side temperature can
be set separately. Turn the dial of
the appropriate temperature control
clockwisetoincreasethe
temperature of airf low. Turn the dial
counterclockwise to decrease it.
Each set temperature is shown in the
display.
When you set the temperature to its
lower limit ( ) or its upper limit
( ), the system runs at f ull
cooling or heating only. It does not
regulate the interior temperature.
When the indicator in the dual
button is on, the driver’s side and
passenger’s side temperature can be
controlled independently (see page
).
1.
2.
136
Climate Control System
Voice Control SystemUsing A utomatic Climate ControlT emperat ure Cont rol
132
\f—\f—y
\f

\fy
(,\fy\f
y
2009 CR- V

An audio system is standard on all
models. Read the appropriate pages
(as shown below) to use your
vehicle’s audio system.
For LX models, see pagesthrough .
For EX and EX-L models without
navigation system, see pages through .
For EX-L model with navigation
system, see pages through . 141152
153169 170210
Audio System
Features
139
U.S. EX-L model without
navigation system U.S. EX and Canadian EX, EX-L models
without navigation system
LX model
\f—\f—y
\f\fy
(,\fy\f
y
2009 CR- V

Audio System
140
U.S. EX-L model with navigation systemCanadian EX-L model with navigation system
\f—\f—y
\f
\fy
(,\fy\f
y
2009 CR- V

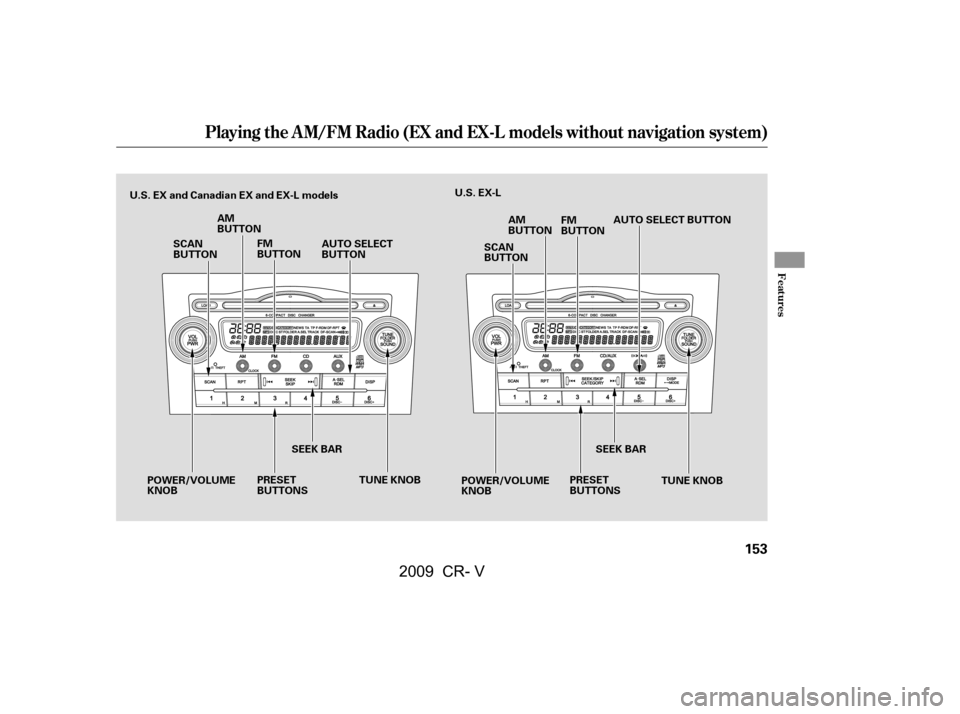

Playing the AM/FM Radio (EX and EX-L models without navigation system)
Features
153
SCAN
BUTTONAUTO SELECT
BUTTON
AM
BUTTON
FM
BUTTON AUTO SELECT BUTTON
PRESET
BUTTONS PRESET
BUTTONS
POWER/VOLUME
KNOB
TUNE KNOB AM
BUTTON
FM
BUTTON
POWER/VOLUME
KNOB
U.S. EX and Canadian EX and EX-L models
U.S. EX-L
TUNE KNOB
SEEK BAR
SEEK BAR SCAN
BUTTON
\f—\f—y
\f\fy
(,\fy\f
y
2009 CR- V

µµ
µ
You can use any of f ive methods to
f ind radio stations on the selected
band: tune, seek, scan, the preset
buttons, and auto select.
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob to the right to tune to
a higher f requency, and turn it to the
lef t to tune to a lower f requency. The scan f unction samples
all stations with strong signals on the
selected band. To activate it, press
the SCAN button, then release it.
You will see SCAN in the display.
The system will scan f or a station
with a strong signal. When it f inds
one, it will stop and play that station
f or about 10 seconds.
If you do nothing, the system will
then scan f or the next strong station
and play it f or 10 seconds. When it
plays a station you want to listen to,
press the SCAN button again.
The seek f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press the or side of the
SEEK bar, then release it.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM or
FM button. On the FM band, ST will
be displayed if the station is broad-
castinginstereo.Stereo
reproduction on AM is not available.
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
power/volume knob or the AM or
FM button. Adjust the volume by
turning the power/volume knob.
To Select a Station
TUNESCAN
To Play the AM/FM Radio
SEEK
Playing the AM/FM Radio (EX and EX-L models without navigation system)
154
\f—\f—y
\fy
(,\fy\f
y
