Page 116 of 380
Windshield Washer OperationTo use the washer, push on the end of the lever
(toward the steering wheel) and hold while
spray is desired. If the lever is pushed while in
the intermittent setting, the wipers will turn on
and operate for several wipe cycles after the
end of the lever is released, and then resume
the intermittent interval previously selected.
If the end of the lever is pushed while the
wipers are in the off position, the wipers will
operate for several wipe cycles, then turn off.WARNING!
Sudden loss of visibility through the wind-
shield could lead to a collision. You might not
see other vehicles or other obstacles. To avoid
sudden icing of the windshield during freezing
weather, warm the windshield with the de-
froster before and during windshield washer
use.
MistUse the Mist feature when weather conditions
make occasional usage of the wipers neces-
sary. Rotate the end of the lever downward to
the Mist position and release for a single wiping
cycle.
NOTE:
The mist feature does not activate the
washer pump; therefore, no washer fluid will
be sprayed on the windshield. The wash
function must be used in order to spray the
windshield with washer fluid.Rain Sensing Wipers — If EquippedThis feature senses moisture on the windshield
and automatically activates the wipers for the
driver. The feature is especially useful for road
splash or overspray from the windshield wash-
ers of the vehicle ahead. Rotate the end of the
multifunction lever to one of four settings to
activate this feature.
The sensitivity of the system can be adjusted
with the multifunction lever. Wiper delay posi-
tion 1 is the least sensitive, and wiper delay
position 4 is the most sensitive. Setting 3 should
be used for normal rain conditions. Settings 1
and 2 can be used if the driver desires less
Windshield Washer Operation
Mist Control
11 2
Page 300 of 380
•Body Lubrication ........................ 305
• Windshield Wiper Blades ................... 306
• Adding Washer Fluid ...................... 307
• Exhaust System ......................... 307
• Cooling System ......................... 308
• Brake System .......................... 311
• Front/Rear Axle Fluid ...................... 312
• Transfer Case .......................... 313
• Automatic Transmission .................... 313
• Appearance Care And Protection From Corrosion ..... 315
• FUSES ................................ 318
• Totally Integrated Power Module ............... 318
• VEHICLE STORAGE ........................ 321
• REPLACEMENT BULBS ...................... 322
• BULB REPLACEMENT ....................... 322
• High Intensity Discharge Headlamps
(HID) – If Equipped ....................... 322
• Halogen Headlamps – If Equipped .............. 323
• Front Turn Signal ........................ 323
• Front Fog Lamps ........................ 323
• Rear Tail, Stop, and Turn Signal Lamps ........... 324
• Rear Liftgate Mounted Tail Lamp ............... 324
296
Page 310 of 380

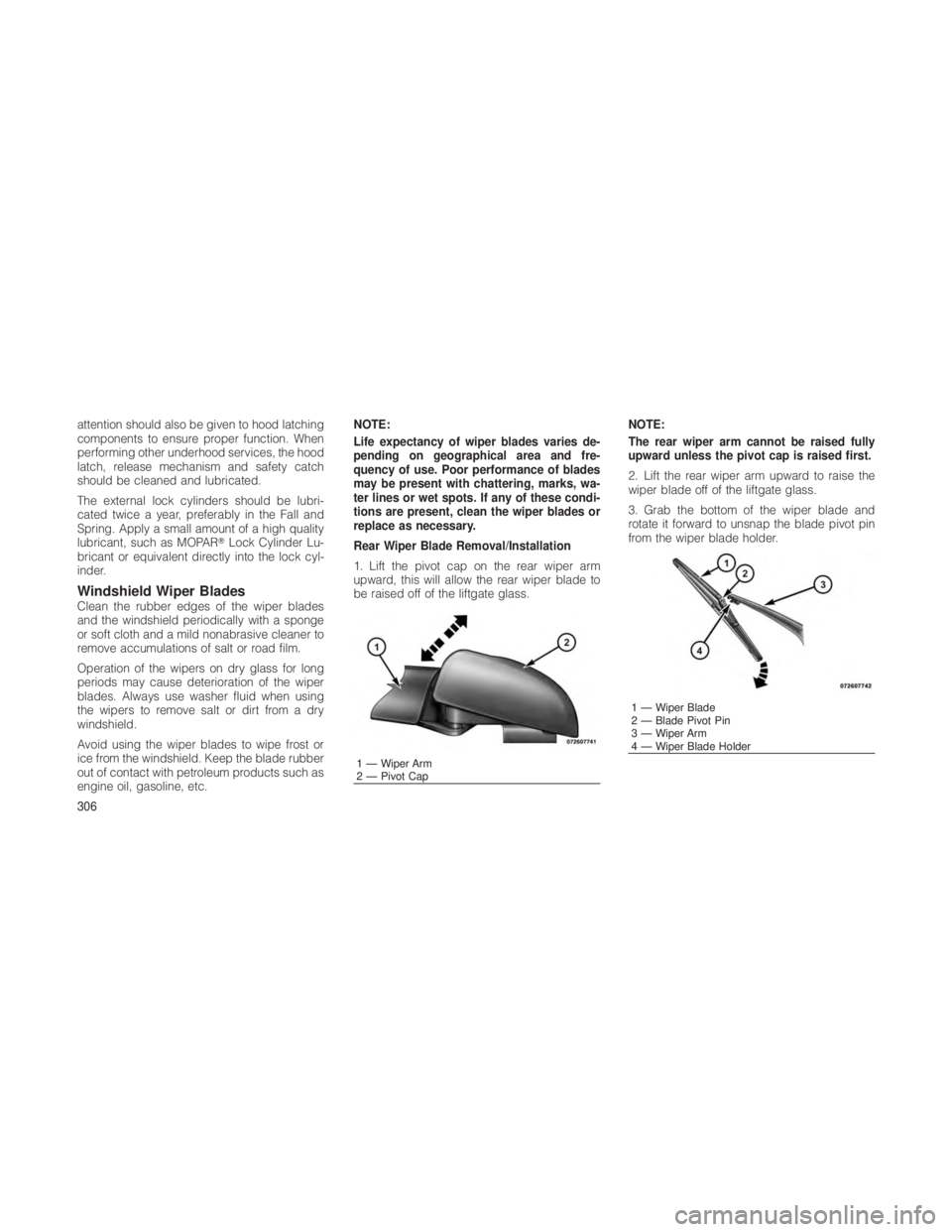

attention should also be given to hood latching
components to ensure proper function. When
performing other underhood services, the hood
latch, release mechanism and safety catch
should be cleaned and lubricated.
The external lock cylinders should be lubri-
cated twice a year, preferably in the Fall and
Spring. Apply a small amount of a high quality
lubricant, such as MOPARLock Cylinder Lu-
bricant or equivalent directly into the lock cyl-
inder.
Windshield Wiper BladesClean the rubber edges of the wiper blades
and the windshield periodically with a sponge
or soft cloth and a mild nonabrasive cleaner to
remove accumulations of salt or road film.
Operation of the wipers on dry glass for long
periods may cause deterioration of the wiper
blades. Always use washer fluid when using
the wipers to remove salt or dirt from a dry
windshield.
Avoid using the wiper blades to wipe frost or
ice from the windshield. Keep the blade rubber
out of contact with petroleum products such as
engine oil, gasoline, etc. NOTE:
Life expectancy of wiper blades varies de-
pending on geographical area and fre-
quency of use. Poor performance of blades
may be present with chattering, marks, wa-
ter lines or wet spots. If any of these condi-
tions are present, clean the wiper blades or
replace as necessary.
Rear Wiper Blade Removal/Installation
1. Lift the pivot cap on the rear wiper arm
upward, this will allow the rear wiper blade to
be raised off of the liftgate glass.
NOTE:
The rear wiper arm cannot be raised fully
upward unless the pivot cap is raised first.
2. Lift the rear wiper arm upward to raise the
wiper blade off of the liftgate glass.
3. Grab the bottom of the wiper blade and
rotate it forward to unsnap the blade pivot pin
from the wiper blade holder.
1 — Wiper Arm
2 — Pivot Cap
1 — Wiper Blade
2 — Blade Pivot Pin
3 — Wiper Arm
4 — Wiper Blade Holder
306
Page 311 of 380
4. Install the wiper blade pivot pin into the
wiper blade holder at the end of the wiper arm,
and firmly press the wiper blade until it snaps
into place.
5. Lower the wiper blade and snap the pivot
cap into place.
Adding Washer FluidThe fluid reservoir for the windshield washers
and the rear window washer is shared. The fluid
reservoir is located in the engine compartment,
be sure to check the fluid level at regular
intervals. Fill the reservoir with windshield
washer solvent only (not radiator antifreeze).
When refilling the washer fluid reservoir, take
some washer fluid and apply it to a cloth or
towel and wipe clean the wiper blades, this will
help blade performance. To prevent freeze-up
of your windshield washer system in cold
weather, select a solution or mixture that meets
or exceeds the temperature range of your cli-
mate. This rating information can be found on
most washer fluid containers.
WARNING!
Commercially available windshield washer
solvents are flammable. They could ignite and
burn you. Care must be exercised when filling
or working around the washer solution.
Exhaust SystemThe best protection against carbon monoxide
entry into the vehicle body is a properly main-
tained engine exhaust system.
If you notice a change in the sound of the
exhaust system; or if the exhaust fumes can be
detected inside the vehicle; or when the under-
side or rear of the vehicle is damaged; have an
authorized technician inspect the complete ex-
haust system and adjacent body areas for
broken, damaged, deteriorated, or misposi-
tioned parts. Open seams or loose connections
could permit exhaust fumes to seep into the
passenger compartment. In addition, inspect
the exhaust system each time the vehicle is
raised for lubrication or oil change. Replace as
required.
WARNING!
Exhaust gases can injure or kill. They contain
carbon monoxide (CO), which is colorless and
odorless. Breathing it can make you uncon-
scious and can eventually poison you. To
avoid breathing CO, refer to “Safety Tips/
Exhaust Gas” in “Things To Do Before Starting
Your Vehicle” for further information.
CAUTION!
The catalytic converter requires the use of
unleaded fuel only. Leaded gasoline will de-
stroy the effectiveness of the catalyst as an
emissions control device and may seriously
reduce engine performance and cause seri-
ous damage to the engine.
Under normal operating conditions, the cata-
lytic converter will not require maintenance.
However, it is important to keep the engine
properly tuned to assure proper catalyst opera-
tion and prevent possible catalyst damage.
307
Page 373 of 380
Gas Cap (Fuel Filler Cap)....265,266,301
Gasoline (Fuel) ...............262
Conserving ................173
Gasoline, Clean Air ............263
Gauges Coolant Temperature ..........164
Fuel ....................163
Speedometer ..............163
Tachometer ...............159
Gear Ranges ............. 222,226
Gear Select Lever Override ........290
General Information ........15,20,262
Glass Cleaning ...............318
Gross Axle Weight Rating .........267
Gross Vehicle Weight Rating .......267
Hands-Free Phone (Uconnect™) .....74
Hazard Warning Flasher .........282
Headlights .................322
Bulb Replacement ...........323
Cleaning .................317
On With Wipers .............106
Replacing ................323
Heated Mirrors ...............68
High Beam Indicator ...........160
Hill Descent Control ............250 Hill Descent Control Indicator
......160
Hill Start Assist ...............249
Holder, Cup ................144
Hood Release ...............104
Ignition ....................13
Key ................... 12,13
Ignition Key Removal ............13
Illuminated Entry ..............17
Immobilizer (Sentry Key) ..........14
Infant Restraint .............. 47,49
Inflation Pressure Tires ..........253
Information Center, Vehicle ........164
Inside Rearview Mirror ...........67
Instrument Cluster .............159
Instrument Panel and Controls ......157
Instrument Panel Lens Cleaning .....318
Integrated Power Module (Fuses) ....318
Interior Appearance Care .........317
Intermittent Wipers (Delay Wipers) ....111
Introduction ..................4
Jack Location ...............283
Jack Operation ............ 283,284
Jacking Instructions ............284
Jump Starting ...............287 Key-In
Reminder
..............14
Key, Programming .............15
Key, Replacement ..............15
Key, Sentry (Immobilizer) ..........14
Keyless Enter-N-Go ........22,176,216
Keyless Entry System ............17
Keyless Go ............... 12,176
Keys .....................12
Lap/Shoulder Belts .............30
LATCH (Lower Anchors and Tether for
CHildren) ...................51
Latches ...................58
Lead Free Gasoline ............262
Leaks, Fluid .................58
Liftgate ....................26
Liftgate Flipper Glass ............27
Liftgate Window Wiper/Washer ......149
Light Bulbs ..................58
Lights .................. 58,105
Airbag ............. 42,45,56,159
Anti-Lock .................163
Automatic Headlights ..........105
Back-Up .................324
Brake Assist Warning ..........251
Brake Warning ..............162
369
Page 378 of 380
Vanity Mirrors................69
Variance, Compass ............177
Vehicle Identification Number (VIN) .....8
Vehicle Modifications/Alterations ......8
Vehicle Storage ............ 209,321
Viscosity, Engine Oil ............303
Voice Recognition System (VR) ......91
Warning Flasher, Hazard .........282Warning, Roll Over
..............4
Warnings and Cautions ...........8
Washers, Windshield .........111,307
Washing Vehicle ..............316
Waxing and Polishing ...........316
Wheel and Wheel Trim ..........317
Wheel and Wheel Trim Care .......317
Wind Buffeting ........... 26,140,142
Window Fogging ..............208
Windows ...................24 Power
...................24
Windshield Defroster ............57
Windshield Washers ............111
Fluid ...................307
Windshield Wiper Blades .........306
Windshield Wipers .............111
Wipers, Intermittent ............111
Wipers, Rain Sensitive ...........112
374
