KIA CEED 2021 Owners Manual

>> OWNER’S MANUAL
QUICK REFERENCE GUIDE

2
Interior Overview
* if equipped
[#] Number in brackets indicates chapter in Owner‘s Manual.
The illustrations in this guide may vary from the actual vehicle.
a Inside door handle [4]
b Outside rearview mirror
control switch [4]
c Outside rearview mirror
folding switch* [4]
d Power window switches [4]
e Power window lock
button [4]
f Driver position memory
button* [3]
g Steering wheel [4]
h Tilt and telescopic steering
column control lever [4]
i Headlight leveling
control* [4]
j Instrument panel
illumination control [4]
k LKA ON/OFF button [6]
l BCW ON/OFF button* [6]
m ESC ON/OFF button [6]
n Bonnet release lever [4]
o Interior fuse box [8]
p Seat [3]
q Power tailgate open/close
button* [4]
h
1
2
3
4
5
68
9ab
c
d
e
f
g
7

3
Instrument Panel Overview
a Instrument cluster [4]
b Horn [4]
c Driver’s front air bag [3]
d Turn signal/Headlamp
control lever [4]
e Wiper and washer control
lever [4]
f Ignition switch or ENGINE
START/STOP button* [6]
g Cruise control/Smart cruise
control buttons* [6]
h AVN (Audio/Video/
Navigation*) [5]
i Hazard warning light [7]
j Central door lock switch [4]
k Climate control system [4]
l Air ventilation seat* [4]
m Seat warmer button* [4]
n Heated steering wheel
button* [4]
o Shift lever [6]
p SPORT button* [6]
q Idle Stop and Go (ISG) OFF
button* [6]
r Parking distance warning
ON/OFF button* [4]
s Parking assist system ON/
OFF button* [4]
t Electronic parking brake
switch* [6]
u Auto Hold button* [6]
v Center console storage
box [4]
w Glove box [4]
x Passenger’s front air bag [3]
1
2
3
45
6
67
8
9a
b
ccdde
f
g
h
j
k
l
m
n
o
p

4
Instrument Cluster / Engine Compartment
a Tachometer
b Speedometer
c Engine coolant temperature
gauge
d Fuel gauge
e Warning and indicator lights
f LCD information screen
a Engine coolant reservoir [8]
b Engine oil filler cap [8]
c Brake/clutch* fluid
reservoir [8]
d Air cleaner [8]
e Engine room fuse box [8]
f Negative battery
terminal [8]
g Positive battery terminal [8]
h Engine oil dipstick [8]
i Radiator cap [8]
j Windscreen washer fluid
reservoir [8]
Engine compartment (Gamma 1.6L MPI Engine) [2] Instrument cluster [4]
12
34
5
5
6
1
2
3
4
567
89
a

5
Climate Control System / Windows
a Driver’s temperature
control
b AUTO (automatic control)
c Front windscreen defroster
d Rear window defroster
e Air conditioning
f Air intake control
g Blower OFF
h Fan speed control
i Mode selection
j Passenger’s temperature
control
k SYNC
a Driver’s door power window
switch
b Front passenger’s door
power window switch
c Rear door (left) power
window switch
d Rear door (right) power
window switch
e Window opening and closing
f Automatic power window
up*/down*
g Power window lock button*
Note: In cold and wet climates,
power windows may not
work properly due to freezing
conditions.
Windows [4] Automatic climate control system* [4]
1
2
345
6788
999a
b
122
3
3
4
4
55
55
6
6
7
Front
Rear

6
Door Locks / Tailgate / Bonnet
Central door lock switch [4] Child-protector rear door
lock [4]
Opening the tailgate
(Shooting

Brake)

[4] Closing the tailgate
[4]Emergency tailgate safety
release
[4]
a Push the mechanical key to
the right
Operating door locks
manually

[4]
a Press the lever
b Push out the cover
Closing the bonnet
> Befor

e closing the bonnet,
check if all filler caps are
correctly installed and any
other combustible material
must be removed from the
engine compartment.
> Lower the bonnet until it is about 30 cm abov

e the closed
position and let it drop to
securely lock in place.
Opening the bonnet
[4]
Pull the release lever to unlatch
the bonnet.
a Lift the bonnet slightly
b Push the secondary latch
inside and lift the bonnet
1
2
1
2
5IF
TNBSU
UBJ\
MHBUF
PQFSBUFT\


XJUI
B
XFMDPNF
BMFSU
JG
\
UIF

TNBSU
LFZ
JT
\
EFUFDUFE
XJUI\
JO

_
DN5IF
IB[BSE
XB\
SOJOH
MJHIUT
X\
JMM

CMJOL
BOE
DIJ\
NF
XJMM
TPVOE
\


UJNFT
BOE
UIF\
O
UIF
UBJMHBUF\

XJMM

TMPXMZ
PQFO
Smart tailgate*

[4]
Activate the smart tailgate
function in the user setting
menu.

7
Fuel Filler Lid / Selective Catalytic Reduction / Wipers and Washers
Opening the fuel filler lid [4]
With car un-locked pr ess the 3
o’clock position edge of the fuel
filler lid.a Fully open the lid
b Turn cap counterclockwise
to open Closing the fuel filler
> T

urn the cap clockwise until it
“clicks” to ensure it is securely
closed.
> Close the lid and pr
ess the
edge until it is securely
locked.
Urea solution level gauge* [8]
Adding the urea solution*

[8]
Wipers and Washers [4] A:

Front wiper speed c
ontrol
2 High wiper speed
1 Low wiper speed
--- Intermittent wipe
AUTO* Automatic control wipe
O Off
Single wipe
B:

Intermittent wipe time adjustment
C:


W
ash with brief wipes (front)*
D:

Rear wiper/washer c
ontrol
2 Continuous wipe
1 Intermittent wipe*
O Off
E:

W
ash with brief wipes (rear)
Note: 1.6 CRDi derivatives of the CEED require an urea solution (also known as DEF (Diesel Exhaust
Fluid)) for emission control that is added to a separate tank. The filler for the urea tank is located
behind the fuel flap next to the diesel fuel filler.
If the Urea level is not regularly checked and topped up this may cause the vehicle not to start.
Low urea solution warning
message*
[8]
When “Refill Urea tank or
vehicle will not start” message
is displayed with SCR warning
lamp ( ), the vehicle can’t be
restarted once the engine is
turned off. For the above cases,
full replenishment is always
recommended.
1
2

8
Seat / Air Bag / Child Restraint System
Seats [3]Front seat
a Driver position memory
system*
b Forward and backward
c Seatback angle
d Seat cushion height
e Lumbar support*
f Headrest
Front passenger’s seat
g Forward and backward
h Seatback angle
i Seat cushion height
j Lumbar support*
k Headrest
Rear seat
l Armrest*
m Headrest
Passenger’s front air bag ON/
OFF switch*

[3] Rearward-facing child restraint
system

[3] Securing with “Tether
Anchorage” system
[3]
Securing with “ISOFIX” system
and “Tether Anchorage”
system

[3]
a ISOFIX (i-Size) Anchor
Position Indicator
b ISOFIX (i-Size) Anchor Installing a child restraint
system by lap/shoulder belt
[3]
1
23
3
44
4
5
5
6
7
8
9a
b
c
ddd
12

9

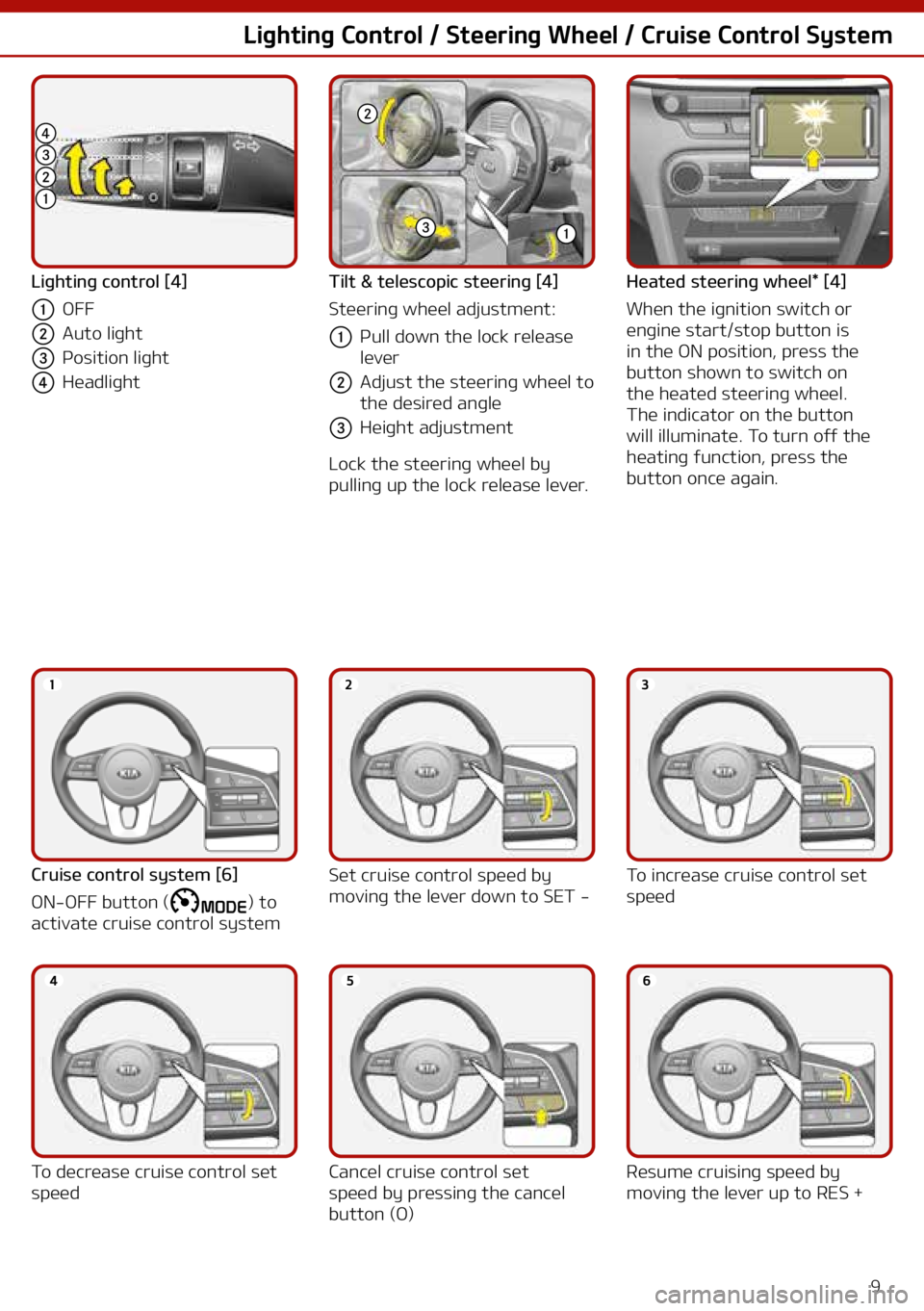

Lighting Control / Steering Wheel / Cruise Control System
Lighting control [4]
a OFF
b Auto light
c Position light
d HeadlightTilt & telescopic steering [4]
Steering wheel adjustment:
a Pull down the lock release
lever
b Adjust the steering wheel to
the desired angle
c Height adjustment
Lock the steering wheel by
pulling up the lock release lever. Heated steering wheel*
[4]
When the ignition switch or
engine start/stop button is
in the ON position, press the
button shown to switch on
the heated steering wheel.
The indicator on the button
will illuminate. To turn off the
heating function, press the
button once again.
Cruise control system

[6]
ON-OFF button ( ) to
activate cruise control system Set cruise control speed by
moving the lever down to SET -
To increase cruise control set
speed
To decrease cruise control set
speed Cancel cruise control set
speed by pressing the cancel
button
(O) Resume cruising speed by
moving the lever up to RES
+
1234
1
2
3
23
56
1
4

10
Towing / Spare Tyre, Jack And Tools / Tyre Mobility Kit
Spare tyre, jack and tools* [7]
The shown tools ar e stored in
the luggage compartment.
Pull up the luggage box cover to
reach this equipment.
a Jack handle
b Jack
c Wheel brace Tyre Mobility Kit [7]
Please read the instructions
before using the Tyre Mobility
Kit.
a Compressor
b Sealant bottle With the Tyre Mobility Kit
you stay mobile even after
experiencing a tyre puncture.
After you ensure that the tyre
is properly sealed you can drive
cautiously on the tyre (up to
200
km (120 miles)) at a max.
speed of 80
km/h (50 mph)
in order to reach a vehicle or
tyre dealer to have the tyre
replaced.
Towing [7]
When towing the vehicle in
an emergency without wheel
dollies, tow with the front
wheels off the ground and:
1.

Set the ignition switch in the
ACC position

.
2.

Place the transaxle shift
le

ver in N (Neutral).
3.

Release the parking brake.
Emer

gency towing
If towing is necessary, it is
recommended to have it done
by an authorised Kia dealer or a
commercial tow truck service. Removable towing hook [7]
1.
Open the tailgate and
r

emove the towing hook
from the tool case.
2.
Remov
e the hole cover by
pressing the lower part of
the cover on the bumper.
3.
Install the towing hook by
turning it clockwise until it is
fully secur

ed.
4.
Remov
e the towing hook and
install the cover after use.
a Wheel dollies
CAUTION
Failure to place the transaxle
shift lever in N (Neutral) may
cause internal damage to the
transaxle.
1
12312
