SECTION 3 – 2
147
STARTING AND DRIVING
Driving tips
Break−in period148 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation in foreign countries148 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tips for driving in various conditions148 . . . . . . . . . . . . . . . . . . . . . . . .
Winter driving tips 149. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trailer towing150 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to save fuel and make your vehicle last longer 156. . . . . . . . . . .
Page 2 of 11
DRIVING TIPS
148
BREAK−IN PERIOD
Drive gently and avoid high speeds.
You need not follow a break−in schedule with your new Lexus.
But following a few simple tips for the first 1600 km (1000 miles)
can add to the future economy and long life of your vehicle:
Do not drive over 88 km / h (55 mph).
Avoid overrevving. Maintain engine speed between 2000
and 4000 rpm.
Avoid fuel−throttle starts.
Try to avoid hard stops during the first 300 km (200 miles).
Do not drive for a long time at any single speed, either fast
or slow.
Do not tow a trailer during the first 800 km (500 miles).
OPERATION IN FOREIGN
COUNTRIES
If you plan to drive your Lexus in another country ...
First, comply with the vehicle registration laws.
Second, confirm the availability of the correct fuel (unleaded
and minimum octane number).
TIPS FOR DRIVING IN VARIOUS
CONDITIONS
Always slow down in gusty crosswinds. This will allow you
much better control.
Drive slowly onto curbs and, if possible, at a right angle.
Avoid driving onto high, sharp−edged objects and other
road hazards. Failure to do so can lead to severe tire
damage resulting in tire bursts.
When parking on a hill, turn the front wheels until they touch
the curb so that the vehicle will not roll. Apply the parking
brake, and place the transmission in “P”. If necessary, block
the wheels.
Washing your vehicle or driving through deep water may get
the brakes wet. To see whether they are wet, check that
there is no traffic near you and then press the pedal lightly.
If you do not feel a normal braking force, the brakes are
probably wet. To dry them, drive the vehicle cautiously while
lightly pressing the brake pedal with the parking brake
applied. If they still do not work safely, pull to the side of the
road and call a Lexus dealer for assistance.
CAUTION
Before driving off, make sure the parking brake is
fully released and that the parking brake reminder
light is off.
Page 3 of 11
DRIVING TIPS
149
Do not rest your foot on the brake pedal while driving.
It can cause dangerous overheating, needless wear,
and poor fuel economy.
To drive down a long or steep hill, reduce your speed
and downshift. Remember, if you ride the brakes
excessively, they may overheat and not work
properly. See page 134.
Be careful when accelerating, upshifting,
downshifting or braking on a slippery surface. The
abrupt change in engine speed, such as sudden
acceleration or engine braking, could cause the
vehicle to spin or skid.
Do not drive in excess of the speed limit, Even if the
legal speed limit permits it, do not drive over 140
km / h (85 mph) unless your vehicle has high−speed
capability tires. Driving over 140 km / h (85 mph) may
result in tire failure, loss of control and possible
injury. Be sure to consult a tire dealer to determine
whether the tires on your vehicle are high−speed
capability tires or not before driving at such speeds.
Do not continue normal driving when the brakes are
wet. If they are wet, your vehicle will require a longer
stopping distance, and it may pull to one side when
the brakes are applied. Also, the parking brake will
not hold the vehicle securely.WINTER DRIVING TIPS
Make sure you have ethylene−glycol antifreeze in the
radiator.
NOTICE
Do not use alcohol type antifreeze.
Check the condition of the battery and cables.
Cold temperatures reduce the capacity of any battery, so it
must be in top shape to provide enough power for winter
starting. Page 224 tells you how to visually inspect the battery.
Your Lexus dealer and most service stations will be pleased to
check the battery charge level.
Make sure the engine oil viscosity is suitable for the cold
weather.
See page 204 for recommended viscosity. Leaving a heavy
summer oil in your vehicle during winter months may cause
harder starting. If you are not sure about which oil to use, call
your Lexus dealer − they will be pleased to help.
Check the electronic ignition system / distributor ignition
system for loose connections or obvious damage.
Keep the door locks from freezing.
Squirt lock de−icer or glycerine into the locks to keep them from
freezing. To open a frozen lock, try heating the key before
inserting it.
Page 4 of 11
DRIVING TIPS
150Use a washer fluid containing an antifreeze solution.
This product is available at your Lexus dealer and most auto
parts stores. Follow the manufacturer’s directions for how
much to mix with water.
NOTICE
Do not use engine antifreeze or any other substitute
because it may damage your vehicle’s paint.
Do not use your parking brake when there is a possibility
it could freeze.
When parking, put the transmission into “P” and block the front
wheels. Do riot use the parking brake, or snow or water
accumulated in and around the parking brake mechanism may
freeze the parking brake, making it hard to release.
Keep ice and snow from accumulating under the fenders.
Ice and snow built up under your fenders can make steering
difficult. During bad winter driving, stop and check under the
fenders occasionally.
Depending on where you are driving, we recommend you
carry some emergency equipment.
Some of the things you might put in the vehicle are tire chains,
window scraper, bag of sand or salt, flares, small shovel,
jumper cables, etc.
TRAILER TOWING
Your vehicle is designed primarily as a passenger−carrying
vehicle. Towing a trailer will have an effect on handling,
performance, braking, durability and driving economy (fuel
consumption, etc.). Your safety and satisfaction depend on the
proper use of correct equipment and cautious driving habits.
For your safety and the safety of others, you must not overload
your vehicle or trailer, Lexus warranties do not apply to
damage or malfunction caused by towing a trailer for
commercial purposes. Ask your local Lexus dealer for further
details before towing.
NOTICE
When towing a trailer, be sure to consult your Lexus
dealer for further information on additional
requirements.
Weight limits
Before towing, make sure the total trailer weight, gross
vehicle weight, gross axle weight and trailer tongue load
are all within the limits.
The total trailer weight and tongue load can be measured with
platform scales found at a highway weighing station, building
supply company, trucking company, junk yard, etc.
Page 5 of 11
DRIVING TIPS
151

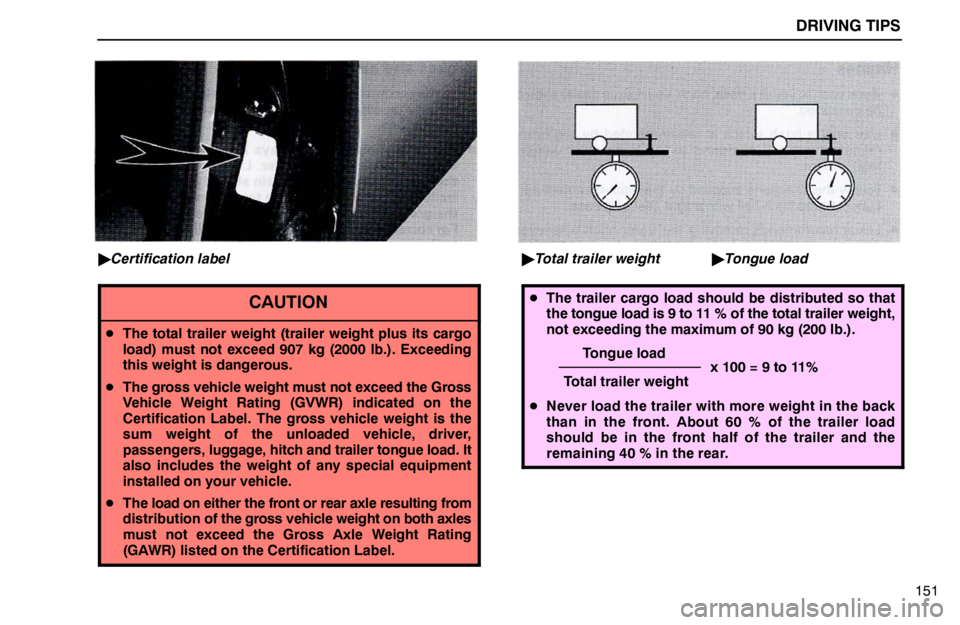

Certification label
CAUTION
The total trailer weight (trailer weight plus its cargo
load) must not exceed 907 kg (2000 lb.). Exceeding
this weight is dangerous.
The gross vehicle weight must not exceed the Gross
Vehicle Weight Rating (GVWR) indicated on the
Certification Label. The gross vehicle weight is the
sum weight of the unloaded vehicle, driver,
passengers, luggage, hitch and trailer tongue load. It
also includes the weight of any special equipment
installed on your vehicle.
The load on either the front or rear axle resulting from
distribution of the gross vehicle weight on both axles
must not exceed the Gross Axle Weight Rating
(GAWR) listed on the Certification Label.
Total trailer weight Tongue load
The trailer cargo load should be distributed so that
the tongue load is 9 to 11 % of the total trailer weight,
not exceeding the maximum of 90 kg (200 lb.).
Never load the trailer with more weight in the back
than in the front. About 60 % of the trailer load
should be in the front half of the trailer and the
remaining 40 % in the rear.
Tongue load
Total trailer weightx 100 = 9 to 11%
Page 6 of 11
DRIVING TIPS
152
Hitches
If you wish to install a trailer hitch, your Lexus dealer should
be consulted.
Use only a hitch which is recommended by the hitch
manufacturer and conforms to the total trailer weight
requirement
Follow the directions supplied by the hitch manufacturer.
Lubricate the hitch ball with a light coat of grease.
Lexus recommends removing the trailer hitch whenever
you are not towing a trailer to reduce the possibility of
additional damage caused by the hitch if your vehicle is
struck from behind. After removing the hitch, seal any
mounting holes in the vehicle body to prevent entry of
pollutants such as exhaust fumes, dirt, water, etc.
NOTICE
Install the trailer hitch using only the position
recommended by your Lexus dealer. Do not install
the trailer hitch on the bumper; this may cause body
damage.
Do not use axle−mounted hitches as they can cause
damage to the axle housing, wheel bearings, wheels
or tires.
Brakes and safety chains
Lexus recommends trailers with brakes that conform to
any applicable federal and state / provincial
regulations.
A safety chain must always be used between the towing
vehicle and the trailer. Leave sufficient slack in the
chain for turns. The chain should cross under the trailer
tongue to prevent the tongue from dropping to the
ground in case it becomes damaged or separated. For
correct safety chain procedures, follow the hitch or
trailer manufacturer’s recommendations.
CAUTION
If the total trailer weight exceeds 450 kg (1000 lb.),
trailer brakes are required.
Never tap into your vehicle’s hydraulic system as it
will lower its braking effectiveness.
Page 7 of 11
DRIVING TIPS
153
Never tow a trailer without using a safety chain
securely attached to both the trailer and the vehicle.
If damage occurs to the coupling unit or hitch ball,
there is possible danger of the trailer wandering over
into another lane.
Tires
Ensure that your vehicle’s tires are properly inflated. Adjust
the tire pressure to the recommended cold tire pressure
indicated below:
Tire pressure, kPa (kgf / cm
2 or bar, psi)
Front 220 (2.2, 32)
Rear 220 (2.2, 32)
The trailer tires should be inflated to the pressure
recommended by the trailer manufacturer in respect to the
total trailer weight.
Trailer lights
Trailer lights must comply with federal, state / provincial and
local regulations. See your local recreational vehicle dealer
or rental agency for the correct type of wiring and relays for
your trailer. Check for correct operation of the turn signals
and stop lights each time you hitch up. Direct splicing may
damage your vehicle’s electrical system and cause a
malfunction of your lights.
Break−in schedule
Lexus recommends that you do not tow a trailer with anew
vehicle or a vehicle with any new power train component
(engine, transmission, differential, wheel bearing, etc.) for
the first 800 km (500 miles) of driving.
Maintenance
If you tow a trailer, your vehicle will require more frequent
maintenance due to the additional load. Refer to the
maintenance schedule under severe driving conditions
(Schedule A) in Section 5 for specific information.
Pre−towing safety check
Check that your vehicle remains level when a loaded or
unloaded trailer is hitched. Do not drive if the vehicle has an
abnormal nose−up or nose−down condition, and check for
improper tongue load, overload, worn suspension or other
possible causes.
Make sure the trailer cargo is securely loaded so that it
cannot shift.
Check that your rear view mirrors conform to any federal,
state / provincial or local regulation. If they do not, install
required rear view mirrors appropriate for towing purposes.
Page 8 of 11
DRIVING TIPS
154
Trailer towing tips
When towing a trailer, your vehicle will handle differently
than when not towing. The three main causes of
vehicle−trailer accidents are driver error, excessive speed
and improper trailer loading. Keep these in mind when
towing:
Before starting out, check the operation of the lights and all
vehicle−trailer connections. After driving a short distance,
stop and recheck the lights and connections. Practice
turning, stopping and backing with a trailer in an area away
from traffic until you learn the feel.
Backing your trailer 1
Left turn 2
Right turnBacking with a trailer is difficult and requires practice. Grip
the bottom of the steering wheel and move your hand to the
left to move the trailer to the left. Move your hand to the right
to move the trailer to the right. (This procedure is generally
opposite to that when backing without a trailer.) Also, just
turn the steering wheel a little at a time, avoiding sharp or
prolonged turning. Have someone guide you when backing
to reduce the risk of an accident.
Because stopping distance may be increased,
vehicle−to−vehicle distance should be increased when
towing a trailer. For each 16 km / h (10 mph) of speed, allow
at least one vehicle and trailer length between you and the
vehicle ahead. Avoid sudden braking as you may skid,
resulting in jackknifing and loss of control. This is especially
true on wet or slippery surfaces.
Avoid jerky starts or sudden acceleration.
Avoid jerky steering and sharp turns. The trailer could hit
your vehicle in a tight turn. Slow down before making a turn
to avoid the need of sudden braking.
Remember that when making a turn, the trailer wheels will
be closer than the vehicle wheels to the inside of the turn.
Therefore, compensate for this by making a larger than
normal turning radius with your vehicle.
Page 9 of 11
DRIVING TIPS
155 Crosswinds and rough roads will adversely affect handling
of your vehicle and trailer, causing sway. Pay attention to the
rear from time to time to prepare yourself for being passed
by large trucks or buses, which may cause your vehicle and
trailer to sway. If swaying happens, firmly grip the steering
wheel and reduce speed immediately but gradually. Never
increase speed. If it is necessary to reduce speed, brake
slowly. Steer straight ahead. If you make no extreme
correction with the steering or brakes, your vehicle and
trailer will stabilize.
Be careful when passing other vehicles. Passing requires
considerable distance. After passing a vehicle, do not forget
the length of your trailer and be sure you have plenty of room
before changing lanes.
In order to maintain efficient engine braking and electrical
charging performance, do not use overdrive. Transmission
must be in the “3” position.
Because of the added load of the trailer, your vehicle’s
engine may overheat on hot days (at temperatures over
30C [85F]) when going up a long or steep grade with a
trailer. If the engine coolant temperature gauge indicates
overheating, immediately turn off the air conditioning (if in
use), pull your vehicle off the road and stop in a safe spot.
See “If your vehicle overheats” on page 163 of this manual.
Always place wheel blocks under both the vehicle and trailer
wheels when parking. Apply the parking brake firmly. Put
the transmission in “P”. Avoid parking on a slope with a
trailer, but if it cannot be avoided, do so only after performing
the following:1. Apply the brakes and keep them applied.
2. Have someone place wheel blocks under both the vehicle
and trailer wheels.
3. When the wheel blocks are in place, release your brakes
slowly until the blocks absorb the load.
4. Apply the parking brake firmly.
5. Shift into “P” and turn off the engine.
When restarting out after parking on a slope:
1. With the transmission in “P” position, start the engine. Be
sure to keep the brake pedal depressed.
2. Shift into the “2”, “L” or “R” position.
3. Release the parking brake and brake pedal and slowly pull
or back away from the wheel blocks. Stop and apply your
brakes.
4. Have someone retrieve the blocks.
CAUTION
Do not exceed 72 km / h (45 mph) or the posted towing
speed limit, whichever is lower. Because instability
(swaying) of a towing vehicle−trailer combination
usually increases as the speed increases, exceeding
72 km / h (45 mph) may cause loss of control.
Page 10 of 11
DRIVING TIPS
156
Slow down and downshift before descending steep
or long downhill grades. Do not make sudden
downshifts.
Avoid holding the brake pedal down too long or too
frequently. This could cause the brakes to overheat
and result in reduced braking efficiency.HOW TO SAVE FUEL AND MAKE
YOUR VEHICLE LAST LONGER
Getting more kilometer / mileage from a liter / gallon of fuel is
easy − just take it easy. It will help make your vehicle last
longer, too. Here are some specific tips on how to save money
on both fuel and repairs:
Keep your tires inflated at the correct pressure. Check
the pressure every two weeks, or at least once a month.
Underinflation causes tire wear and wastes fuel.
Do not carry unneeded weight in your vehicle. Excess
weight puts a heavier load on the engine, causing greater
fuel consumption.
Avoid lengthy warm−up idling. Once the engine is
running smoothly, begin driving − but gently. Remember,
however, that on cold winter days this may take a little
longer.
Accelerate slowly and smoothly. Avoid jackrabbit starts.
Avoid long engine idling. If you have a long wait and you
are not in traffic, it is better to turn off the engine and start
again later.
Avoid engine overrevving. Use a gear position suitable for
the road on which you are traveling.
Avoid continuous speeding up and slowing down.
Stop−and−go driving wastes fuel.
