MERCEDES-BENZ SPRINTER 2015 MY15 Operator’s Manual
Manufacturer: MERCEDES-BENZ, Model Year: 2015, Model line: SPRINTER, Model: MERCEDES-BENZ SPRINTER 2015Pages: 334, PDF Size: 5.94 MB
Page 1 of 334
Sprinter
Operating Instructions
Order no. 6462 7539 13 Part no. 906 584 92 05 Edition MY 2015 MBÉ9065849205{ËÍ
9065849205Sprinter
Page 2 of 334
Publication details
Internet
Further information on Mercedes-Benz vehi-
cles can be obtained on the Internet at
http://www.mercedes-benz.com
http://www.mbusa.com (USA only)
http://www.mercedes-benz.ca (Canada
only) Editorial office
You are welcome to forward any queries or
suggestions you may have regarding this
Operator's Manual to the technical documen-
tation team at the address on the inside of the front cover.© Mercedes-Benz USA, LLC
© Mercedes-Benz Canada, Inc.
Mercedes-Benz USA, LLC and Mercedes-
Benz Canada Inc. are Daimler companies.
Not to be reprinted, translated, or otherwise
reproduced, in whole or in part, without writ-
ten permission. Vehicle manufacturer
Daimler AG
Mercedesstraße 137
70327 Stuttgart, Germany
Germany
Symbols G
WARNING
Warning notes make you aware of dangers
which could pose a threat to your health or
life, or to the health and life of others. H
Environmental note
Environmental notes provide you with infor-
mation on environmentally aware actions or
disposal.
! Notes on material damage alert you to
dangers that could lead to damage to your
vehicle.
i These symbols indicate useful instruc-
tions or further information that could be
helpful to you.
X This symbol designates an instruc-
tion you must follow.
X Several consecutive symbols indi-
cate an instruction with several
steps.
(Y page) This symbol tells you where you
can find further information on a
topic.
YY This symbol indicates a warning or
an instruction that is continued on the next page.
Display Display This text indicates a message on
the display and the rear view cam-
era monitor. Registered trademarks
ESP ®
is a registered trademark of Daimler AG. Vehicle distributor
In the USA:
Mercedes-Benz USA, LLC
One Mercedes Drive
Montvale, NJ 07645-0350
www.mbusa.com
www.mbsprinterusa.com
Customer Assistance Center:
1-877-762-8267
In Canada:
Mercedes-Benz Canada, Inc.
98 Vanderhoof Avenue
Toronto, ON M4G 4C9
www.mercedes-benz.ca
Customer Relations Department:
1-800-387-0100
Mercedes-Benz USA, LLC and Mercedes-
Benz Canada Inc. are Daimler companies.
Canada only:
"Authorized Sprinter Dealer" is defined as an
authorized Mercedes-Benz Sprinter Dealer.
As at 03.03.2014
Page 3 of 334

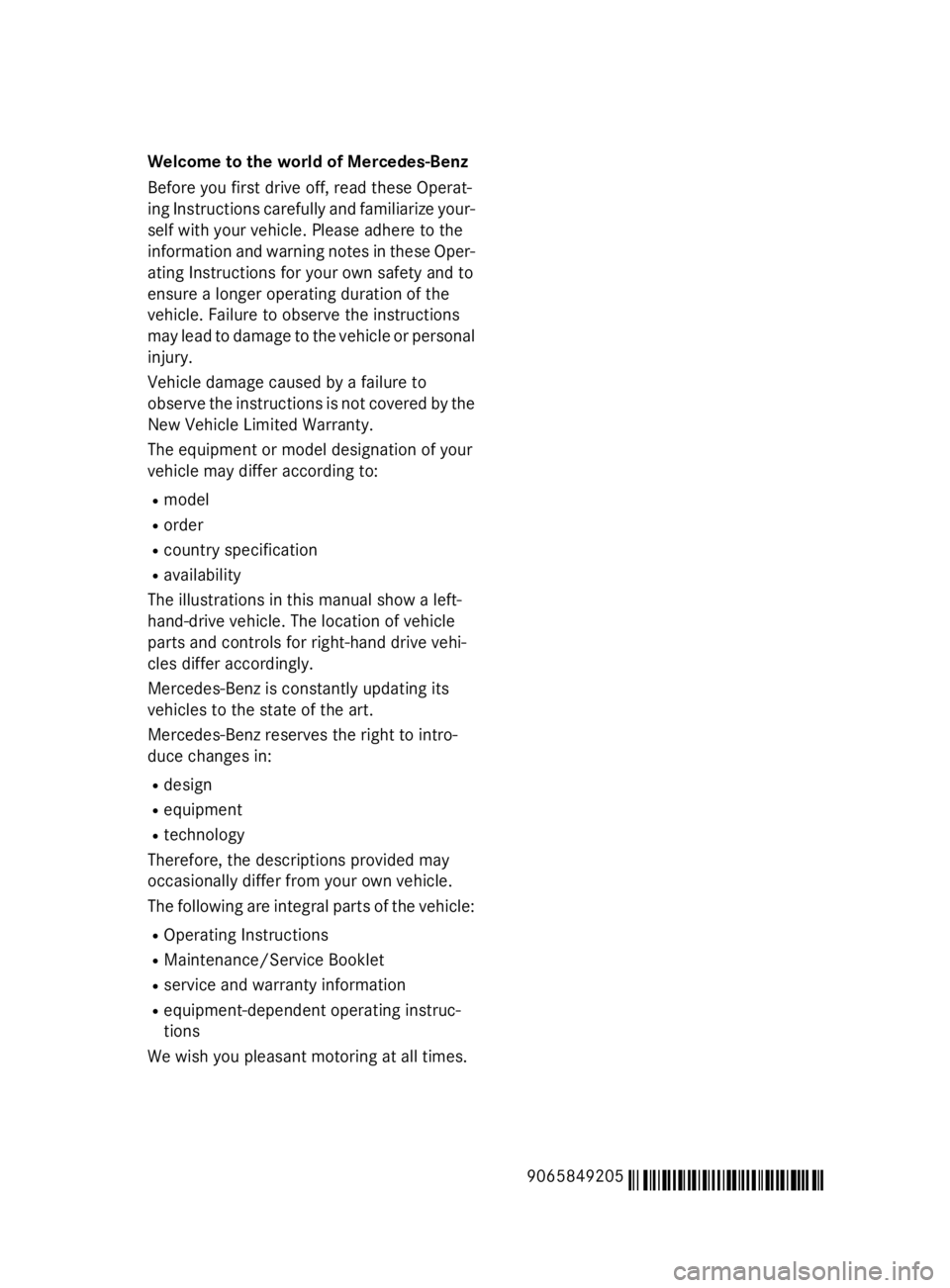

Welcome to the world of Mercedes-Benz
Before you first drive off, read these Operat-
ing Instructions carefully and familiarize your-
self with your vehicle. Please adhere to the
information and warning notes in these Oper-
ating Instructions for your own safety and to
ensure a longer operating duration of the
vehicle. Failure to observe the instructions
may lead to damage to the vehicle or personal
injury.
Vehicle damage caused by a failure to
observe the instructions is not covered by the New Vehicle Limited Warranty.
The equipment or model designation of your
vehicle may differ according to:
R model
R order
R country specification
R availability
The illustrations in this manual show a left-
hand-drive vehicle. The location of vehicle
parts and controls for right-hand drive vehi-
cles differ accordingly.
Mercedes-Benz is constantly updating its
vehicles to the state of the art.
Mercedes-Benz reserves the right to intro-
duce changes in:
R design
R equipment
R technology
Therefore, the descriptions provided may
occasionally differ from your own vehicle.
The following are integral parts of the vehicle:
R Operating Instructions
R Maintenance/Service Booklet
R service and warranty information
R equipment-dependent operating instruc-
tions
We wish you pleasant motoring at all times.
9065849205É9065849205{ËÍ
Page 4 of 334
Page 5 of 334
Index
....................................................... 4Introduction
......................................... 22 At a glance
........................................... 31 Safety
................................................... 41 Opening and closing
...........................65 Seats, steering wheel and mirrors
....81 Lights and windshield wipers
............91 Climate control
................................. 111 Driving and parking
..........................135 On-board computer and displays
....179 Stowing and features
.......................229 Transporting loads
............................239 Maintenance and care
......................247 Roadside Assistance
........................273 Wheels and tires
............................... 283 Technical data
................................... 315 Contents
