PREPARATION
EM-7
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 November2007 350Z
Commercial Service ToolsNBS0000A
WS39930000
(—)
Tube presserPressing the tube of liquid gasket
KV10112100
(BT8653-A)
Angle wrenchTightening bolts for bearing cap, cylinder
head, etc. in angle
KV10117100
(J3647-A)
Heated oxygen sensor wrenchLoosening or tightening heated oxygen
sensor 2
For 22 mm (0.87 in) width hexagon nut
KV10114400
(J38365)
Heated oxygen sensor wrenchLoosening or tightening air fuel ratio sensor 1
a: 22 mm (0.87 in)
KV10118600
(J-48641)
Ring gear stopperRemoving and installing crankshaft pulley
—
(J-45488)
Quick connector releaseRemoving fuel tube quick connectors in
engine room Tool number
(Kent-Moore No.)
Tool nameDescription
NT052
NT014
NT379
NT636
PBIC5052E
PBIC0198E

PREPARATION
EM-9
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 November2007 350Z
(—)

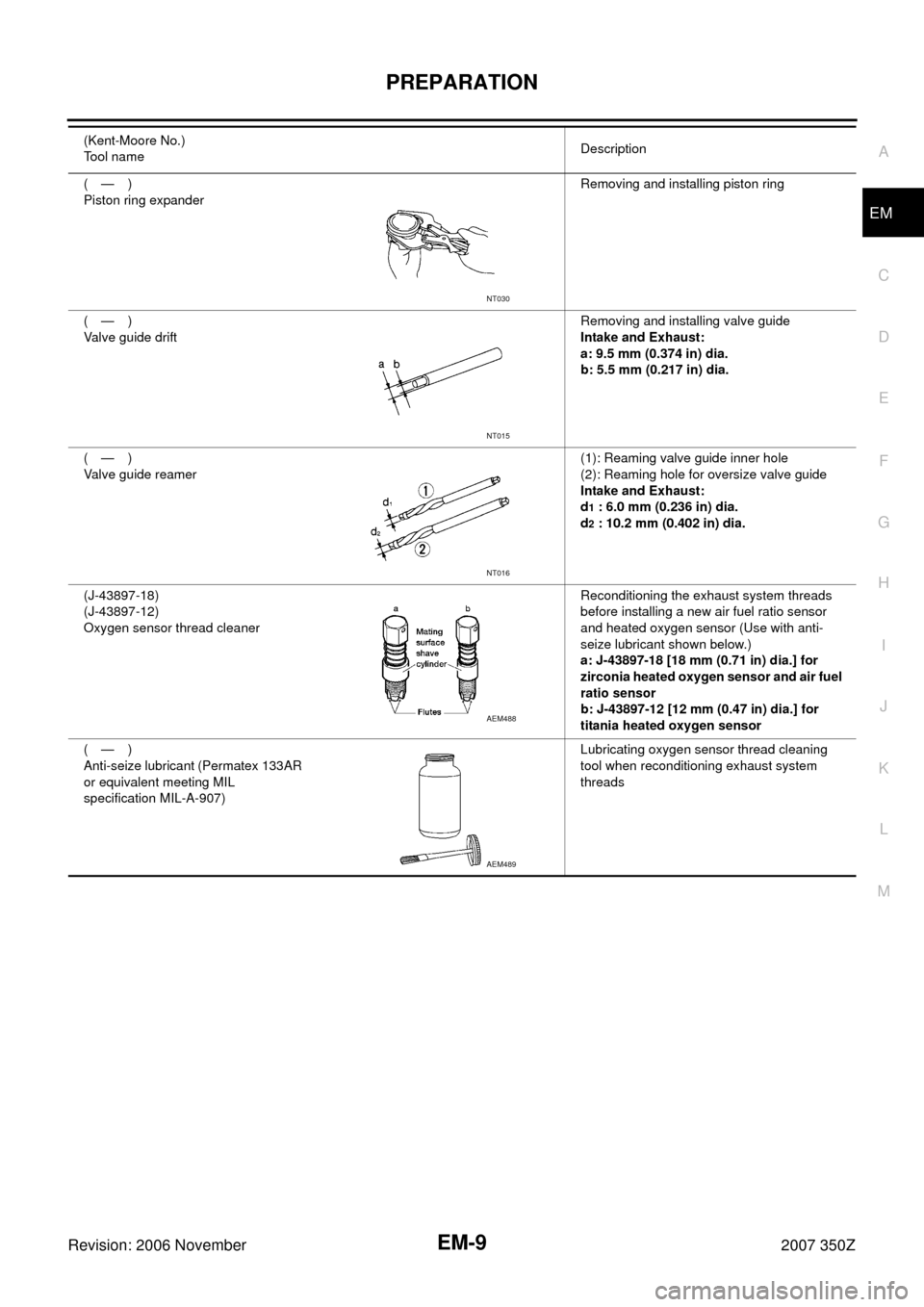

Piston ring expanderRemoving and installing piston ring
(—)
Valve guide driftRemoving and installing valve guide
Intake and Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.
(—)
Valve guide reamer(1): Reaming valve guide inner hole
(2): Reaming hole for oversize valve guide
Intake and Exhaust:
d
1 : 6.0 mm (0.236 in) dia.
d
2 : 10.2 mm (0.402 in) dia.
(J-43897-18)
(J-43897-12)
Oxygen sensor thread cleanerReconditioning the exhaust system threads
before installing a new air fuel ratio sensor
and heated oxygen sensor (Use with anti-
seize lubricant shown below.)
a: J-43897-18 [18 mm (0.71 in) dia.] for
zirconia heated oxygen sensor and air fuel
ratio sensor
b: J-43897-12 [12 mm (0.47 in) dia.] for
titania heated oxygen sensor
(—)
Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL
specification MIL-A-907)Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads (Kent-Moore No.)
Tool nameDescription
NT030
NT015
NT016
AEM488
AEM489

AIR CLEANER AND AIR DUCT
EM-15
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 November2007 350Z
AIR CLEANER AND AIR DUCTPFP:16500
Removal and InstallationNBS0000G

Refer to GI-11, "Components" for symbol marks in the figure.
REMOVAL
1. Remove clips, and slide air duct (inlet) frontward, disengage
clips and air cleaner case.
NOTE:
When removing air duct (inlet), remove front bumper and
bumper fascia stay radiator core support center. Refer to EI-14,
"FRONT BUMPER" and BL-19, "RADIATOR CORE SUPPORT"
.
2. Disconnect harness connector from mass air flow sensor.
1. Mass air flow sensor (RH) 2. Air cleaner filter 3. Holder
4. Bracket 5. Air duct (inlet) 6. Grommet
7. Air cleaner case (RH) 8. Clamp 9. Air duct (RH)
10. Air hose 11. Clamp 12. PCV hose
13. Air duct (LH) 14. Mass air flow sensor (LH) 15. Bracket
16. Air cleaner case (LH) 17. Air duct (inlet)
A. To electric throttle control actuator B. To rocker cover (left bank)
PBIC4986E
KBIA1734E

EM-16
AIR CLEANER AND AIR DUCT
Revision: 2006 November2007 350Z
3. Disconnect PCV hose.
4. Remove air cleaner case/mass air flow sensor assembly and air duct assembly disconnecting their joints.

Add marks as necessary for easier installation.
5. Remove mass air flow sensor from air cleaner case.
CAUTION:
Handle mass air flow sensor with care.

Do not shock it.

Do not disassemble it.

Do not touch its sensor.
INSPECTION AFTER REMOVAL
Inspect air duct for crack or tear.

If anything found, replace air duct.
INSTALLATION
Note the following, and install in the reverse order of removal.

Align marks. Attach each joint. Screw clamps firmly.
CAUTION:
Keep the clearance more than 5 mm between tower bar and air duct.
Changing Air Cleaner FilterNBS0000H
REMOVAL
1. Unhook clips, and lift holder.
2. Remove air cleaner filter.
INSTALLATION
Installation is the reverse order of removal.
PBIC1118E

EM-22
EXHAUST MANIFOLD AND THREE WAY CATALYST
Revision: 2006 November2007 350Z
EXHAUST MANIFOLD AND THREE WAY CATALYSTPFP:14004
Removal and InstallationNBS0000K

Refer to GI-11, "Components" for symbol marks in the figure.
REMOVAL
WARNING:
Perform the work when the exhaust and cooling system have completely cooled down.
NOTE:
When removing right bank side parts only, step 3, 10 and 11 are unnecessary.
1. Remove tower bar. Refer to FSU-20, "
TOWER BAR" .
2. Remove engine cover with power tool. Refer to EM-17, "
INTAKE MANIFOLD COLLECTOR" .
3. Drain engine coolant. Refer to CO-10, "
Changing Engine Coolant" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belts.
4. Remove air cleaner case and air duct. Refer to EM-15, "
AIR CLEANER AND AIR DUCT" .
1. Heated oxygen sensor (bank 1) 2. Air fuel ratio sensor (bank 1) 3.Exhaust manifold cover
(upper)
4. Exhaust manifold (right bank) 5. Exhaust manifold cover (lower) 6. Gasket
7. Ring gasket 8. Three way catalyst (right bank) 9. Gasket
10. Heated oxygen sensor (bank 2) 11. Gasket 12. Three way catalyst (left bank)
13. Ring gasket 14. Exhaust manifold (left bank) 15. Exhaust manifold cover (lower)
16. Gasket 17. Air fuel ratio sensor (bank 2) 18.Exhaust manifold cover
(upper)
PBIC4952E

EXHAUST MANIFOLD AND THREE WAY CATALYST
EM-23
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 November2007 350Z
5. Remove undercover with power tool.
6. Disconnect heated oxygen sensor harness connectors.
CAUTION:

Be careful not to damage heated oxygen sensor 2.

Discard any heated oxygen sensor 2 which has been dropped onto a hard surface such as a
concrete floor. Replace with a new sensor.
7. Remove exhaust mounting bracket between three way catalysts (right and left bank) and transmission.
Refer to EX-3, "
EXHAUST SYSTEM" .
8. Remove exhaust front tube and three way catalysts (right and left bank).
9. Disconnect harness connector and remove air fuel ratio sensor
1 on both banks using heated oxygen sensor wrench (SST).

Put marks to identify installation positions of each air fuel ratio
sensor 1.
CAUTION:

Be careful not to damage air fuel ratio sensor 1.

Discard any air fuel ratio sensor 1 which has been
dropped onto a hard surface such as a concrete floor.
Replace with a new sensor.
10. Disconnect steering lower joint at power steering gear assembly side, and release steering lower shaft.
Refer to PS-17, "
POWER STEERING GEAR AND LINKAGE"
11. Remove water bypass pipe and heater pipe. Refer to CO-28, "WATER OUTLET AND WATER PIPING" .
12. Remove exhaust manifold cover.
13. Loosen mounting nuts in reverse order as shown in the figure to
remove exhaust manifold.
NOTE:
Disregard the numerical order No. 7 and 8 in removal.
14. Remove gaskets.
CAUTION:
Cover engine openings to avoid entry of foreign materials.
PBIC2299E
A : Right bank
B : Left bank
: Engine front
PBIC4953E

EM-24
EXHAUST MANIFOLD AND THREE WAY CATALYST
Revision: 2006 November2007 350Z
INSPECTION AFTER REMOVAL
Surface Distortion

Check the surface distortion of the exhaust manifold mating sur-
face with straightedge and feeler gauge.

If it exceeds the limit, replace exhaust manifold.
INSTALLATION
Note the following, and install in the reverse order of removal.
Exhaust Manifold Gasket

Install exhaust manifold gasket in direction shown in the figure.
Exhaust Manifold

If stud bolts were removed, install them and tighten to the specified torque below.

Install mounting exhaust manifold in numerical order as shown
in the figure.
NOTE:
Tighten nuts No. 1 and 2 in two steps. The numerical order No. 7
and 8 shown second step.
Air Fuel Ratio Sensor 1 and Heated Oxygen Sensor 2

Install air fuel ratio sensor 1 and heated oxygen sensor 2 in the original position.Limit : 0.7 mm (0.028 in)
PBIC1096E
A : Right bank
B : Triangle press
C : Left bank
: Engine front
PBIC4954E
: 14.7 N·m (1.5 kg-m, 11 ft-lb)
A : Right bank
B : Left bank
: Engine front
PBIC4953E

EXHAUST MANIFOLD AND THREE WAY CATALYST
EM-25
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 November2007 350Z

Install referring to the following if the installation positions cannot
be identified.
*: Air fuel ratio sensor 1 is the same for both bank 1 and
bank 2.
CAUTION:

Before installing a new air fuel ratio sensor 1 and heated
oxygen sensor 2, clean exhaust system threads using oxygen sensor thread cleaner (commercial
service tool: J-43897-18 or J43897-12) and apply anti-seize lubricant (commercial service tool).

Do not over torque air fuel ratio sensor 1 and heated oxygen sensor 2. Doing so may cause dam-
age to air fuel ratio sensor 1 and heated oxygen sensor 2, resulting in the “MIL” coming on.Glass tube color
Air fuel ratio sensor 1* : Black
Heated oxygen sensor 2 (bank 1) : White
Heated oxygen sensor 2 (bank 2) : White
PBIC2652E

EM-26
OIL PAN AND OIL STRAINER
Revision: 2006 November2007 350Z
OIL PAN AND OIL STRAINERP F P : 1111 0
Removal and InstallationNBS0000L

Refer to GI-11, "Components" for symbol marks in the figure.
REMOVAL
WARNING:
To avoid the danger of being scalded, do not drain engine oil when engine is hot.
CAUTION:
To remove oil pan (upper), remove engine assembly first.
NOTE:
When removing oil pan (lower) only, remove engine assembly is not necessary. Perform step 1, 2 and 10.

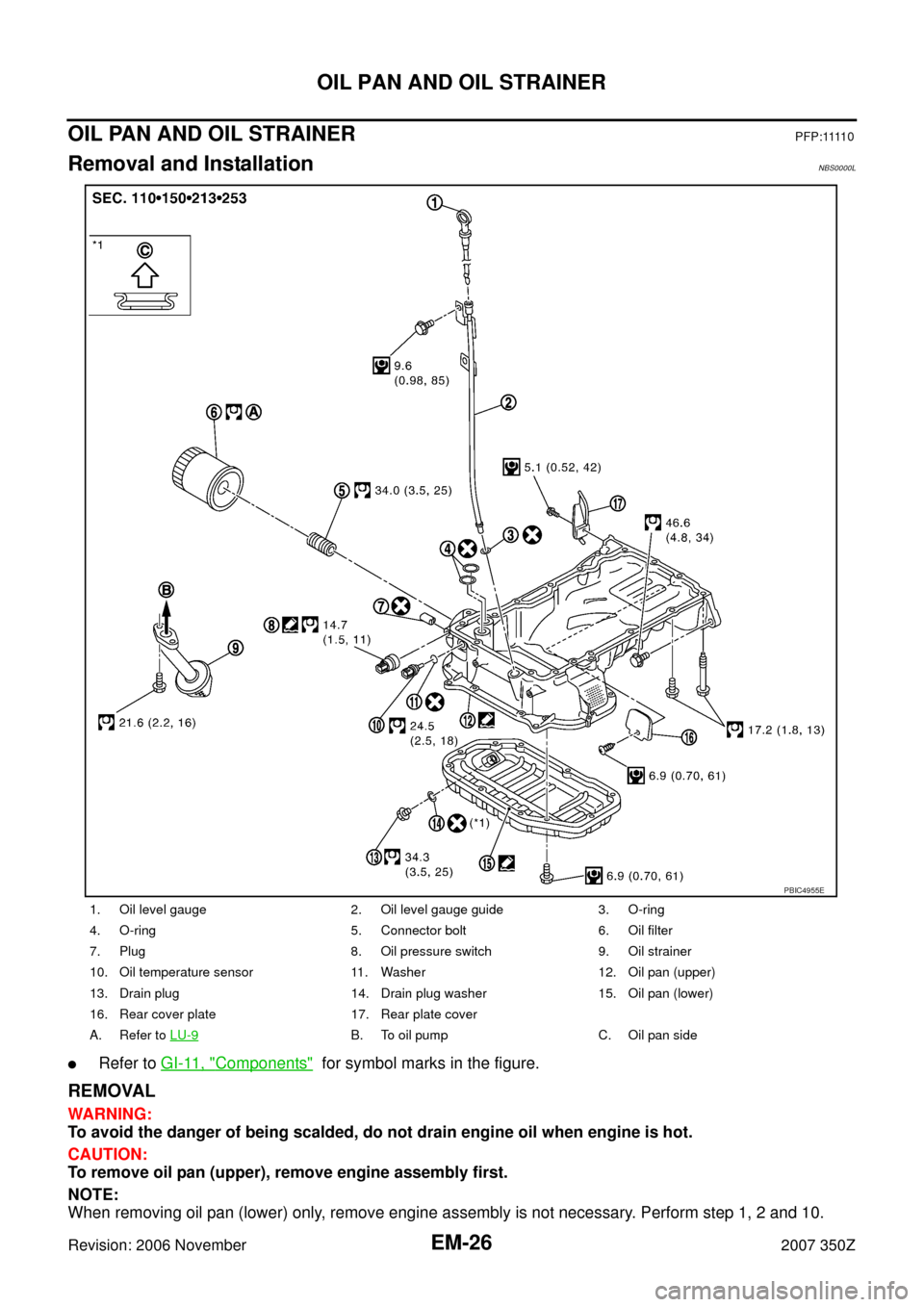

1. Oil level gauge 2. Oil level gauge guide 3. O-ring
4. O-ring 5. Connector bolt 6. Oil filter
7. Plug 8. Oil pressure switch 9. Oil strainer
10. Oil temperature sensor 11. Washer 12. Oil pan (upper)
13. Drain plug 14. Drain plug washer 15. Oil pan (lower)
16. Rear cover plate 17. Rear plate cover
A. Refer to LU-9
B. To oil pump C. Oil pan side
PBIC4955E

OIL PAN AND OIL STRAINER
EM-27
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 November2007 350Z
1. Drain engine oil. Refer to LU-7, "Changing Engine Oil" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine oil on drive belts.
2. Remove undercover with power tool.
3. Remove engine assembly from the vehicle, and separate front suspension member and transmission
from engine. Refer to EM-101, "
ENGINE ASSEMBLY" .
4. Lift the engine with hoist, and mount it onto widely use engine stand. Refer to EM-108, "
DISASSEMBLY" .
5. Remove alternator. Refer to SC-20, "
CHARGING SYSTEM" .
6. Remove starter motor. Refer to SC-8, "
STARTING SYSTEM" .
7. Remove idler pulley and bracket assembly. Refer to EM-53, "
TIMING CHAIN" .
8. Remove oil filter, as necessary. Refer to LU-9, "
OIL FILTER" .
9. Remove oil temperature sensor, as necessary.
10. Remove oil pan (lower) as follows:
a. Loosen mounting bolts with power tool in reverse order as
shown in the figure to remove.
b. Insert seal cutter (SST) between oil pan (upper) and oil pan
(lower).
CAUTION:

Be careful not to damage the mating surfaces.

Do not insert screwdriver, this will damage the mating
surface.
11. Remove oil strainer.
12. Remove rear cover plate.
13. Loosen mounting bolts with power tool in reverse order as
shown in the figure to remove oil pan (upper).

I n s e r t s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ( J 3 7 2 2 8 ) ] b e t w e e n o i l
pan (upper) and cylinder block. Slide seal cutter by tapping on
the side of tool with hammer. Remove oil pan (upper).
CAUTION:

Be careful not to damage mating surfaces.

Do not insert screwdriver, this will damage the mating
surface.
: Engine front
PBIC4956E
SEM365E
: Engine frontPBIC4957E
