In Brief
Page
1Light switch .......................... 36, 384
2Side air vents ................................ 393
3Turn signals, headlamp flash,
dipped beam, main beam .. 36, 384
4Horn ...............................................313
5 Steering wheel remote control 3 .390
6Instruments ................................... 366
7 Windscreen wipers,
windscreen washer system,
rear window washer system 3 .....382
8Centre air vents .............................393
9Display 3 for time, date,
outside temperature,
infotainment system 3 ................ 377Page
10Hazard warning lamps ................. 37
LED for anti-theft alarm system 3332
11 Infotainment system 3 ................ 390
12 Front passenger airbag 3 ........... 356
13Glove compartment ..................... 363
14Heating and ventilation system . 392
15 Air conditioning system 3 ........... 396
Heated rear window 3 .......314, 337
Air recirculation system 3............ 397
16
Ashtray 3...................................... 362
17Accessory socket or
cigarette lighter ........................... 361
18 Seat heating 3 ............................. 340
Fuel selection switch
(natural gas/petrol) 3................ 3113
19Accelerator pedal .......... 3106, 3108Page
20Brake pedal .................... 3106, 3118
21Ignition switch with
steering wheel lock ...................... 316
22 Steering wheel adjustment 3 ....... 36
23 Clutch pedal 3 ........................... 3106
24Bonnet release lever ................... 3128
25 Headlamp range adjustment 3.. 387
Fog tail lamp ................................ 386
Fog lamps 3 ................................. 386
Instrument illumination ............... 387

11
In Brief
Page
1Side air vents ................................ 393
2 Front passenger airbag 3 ........... 356
3 Infotainment system 3 ................ 390
4Hazard warning lamps .................. 37
LED for anti-theft
alarm system 3 .............................332
5Display 3 for time, date,
outside temperature,
infotainment system 3 ................ 377
6Centre air vents .............................393
7Turn signals, headlamp flash,
dipped beam, main beam .. 36, 384
8Horn ...............................................313
9 Steering wheel remote control 3 .390
10Instruments ................................... 366Page
11 Windscreen wipers,
windscreen washer system,
rear window washer system 3 .....382
12Light switch ...........................36, 384
13 Headlamp range adjustment 3.. 387
Fog tail lamp ................................ 386
Fog lamps 3 ................................. 386
Instrument illumination ............... 387
14Bonnet release lever ................... 3128
15Ignition switch with
steering wheel lock ...................... 316
16 Steering wheel adjustment 3 ........ 36
17Accelerator pedal .......... 3106, 3108
18Brake pedal .................... 3106, 3118
19 Clutch pedal 3 ........................... 3106Page
20 Seat heating 3 ............................. 340
Fuel selection switch
(natural gas/petrol) 3................ 3113
21Accessory socket or
cigarette lighter ........................... 361
22 Ashtray 3...................................... 362
23 Air conditioning system 3 ........... 396
Heated rear window 3 .......314, 337
Air recirculation system 3............ 397
24Heating and ventilation system . 392
25Glove compartment .................... 363

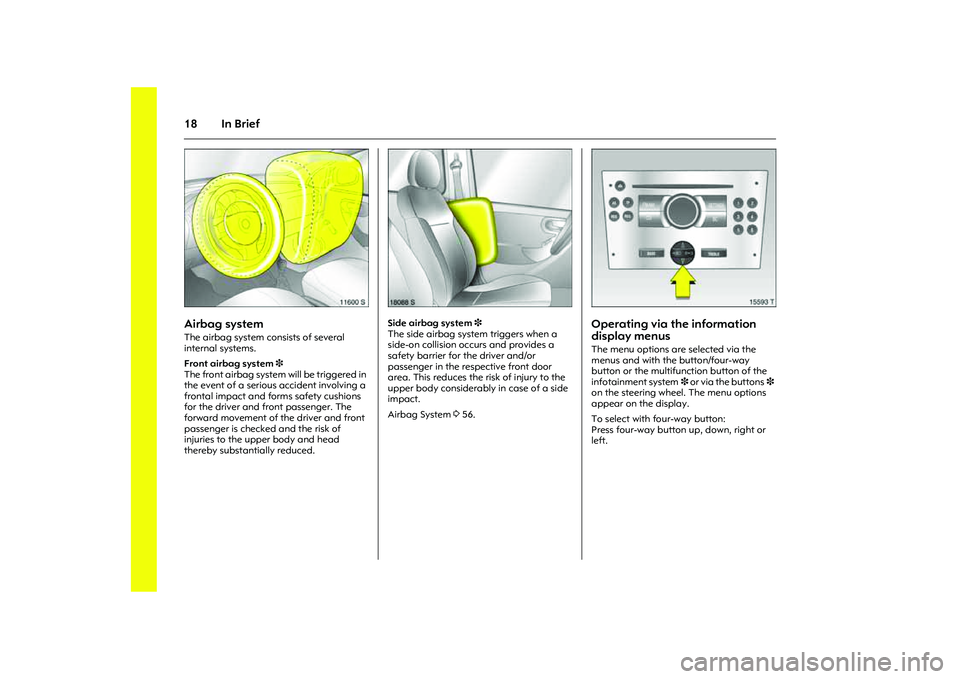

18 In Brief
Picture no: 11600s.tif
Airbag system The airbag system consists of several
internal systems.
Front airbag system 3
The front airbag system will be triggered in
the event of a serious accident involving a
frontal impact and forms safety cushions
for the driver and front passenger. The
forward movement of the driver and front
passenger is checked and the risk of
injuries to the upper body and head
thereby substantially reduced.
Picture no: 18088s.tif
Side airbag system 3
The side airbag system triggers when a
side-on collision occurs and provides a
safety barrier for the driver and/or
passenger in the respective front door
area. This reduces the risk of injury to the
upper body considerably in case of a side
impact.
Airbag System 356.
Picture no: 15593t.tif
Operating via the information
display menus The menu options are selected via the
menus and with the button/four-way
button or the multifunction button of the
infotainment system3 or via the buttons3
on the steering wheel. The menu options
appear on the display.
To select with four-way button:
Press four-way button up, down, right or
left.

19
In Brief

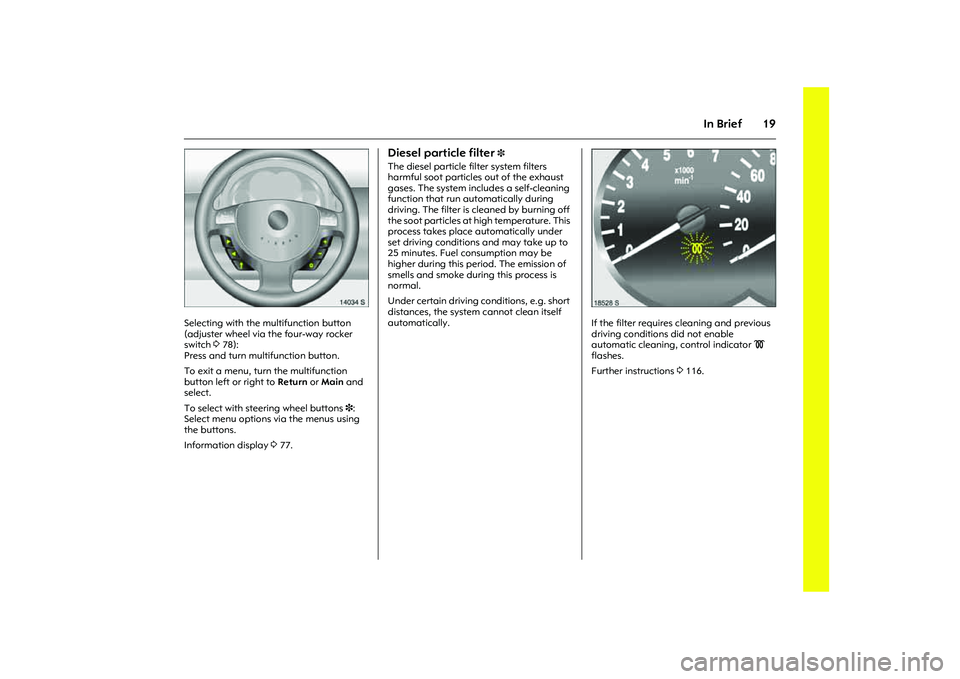

Picture no: 14034s.tif
Selecting with the multifunction button
(adjuster wheel via the four-way rocker
switch 378):
Press and turn multifunction button.
To exit a menu, turn the multifunction
button left or right to Return or Main and
select.
To select with steering wheel buttons 3:
Select menu options via the menus using
the buttons.
Information display 377.
Diesel particle filter
3
The diesel particle filter system filters
harmful soot particles out of the exhaust
gases. The system includes a self-cleaning
function that run automatically during
driving. The filter is cleaned by burning off
the soot particles at high temperature. This
process takes place automatically under
set driving conditions and may take up to
25 minutes. Fuel consumption may be
higher during this period. The emission of
smells and smoke during this process is
normal.
Under certain driving conditions, e.g. short
distances, the system cannot clean itself
automatically.
Picture no: 18528s.tif
If the filter requires cleaning and previous
driving conditions did not enable
automatic cleaning, control indicator
!
flashes.
Further instructions 3116.

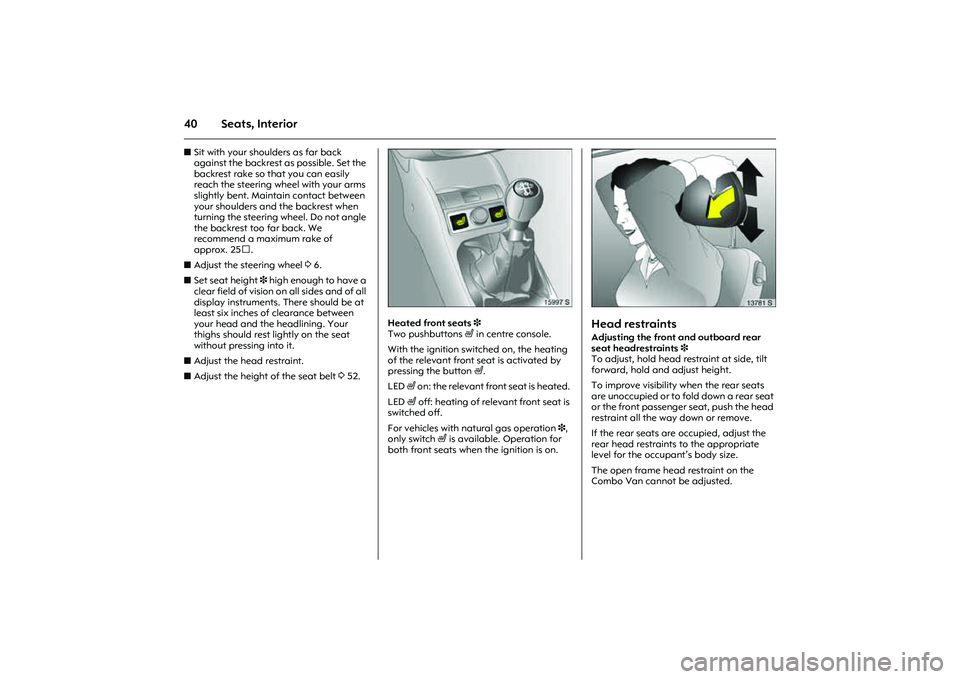

40 Seats, InteriorzSit with your shoulders as far back
against the backrest as possible. Set the
backrest rake so that you can easily
reach the steering wheel with your arms
slightly bent. Maintain contact between
your shoulders and the backrest when
turning the steering wheel. Do not angle
the backrest too far back. We
recommend a maximum rake of
approx. 25.
zAdjust the steering wheel 36.
zSet seat height 3 high enough to have a
clear field of vision on all sides and of all
display instruments. There should be at
least six inches of clearance between
your head and the headlining. Your
thighs should rest lightly on the seat
without pressing into it.
zAdjust the head restraint.
zAdjust the height of the seat belt 352.
Picture no: 15997s.tif
Heated front seats 3
Two pushbuttons ß in centre console.
With the ignition switched on, the heating
of the relevant front seat is activated by
pressing the button ß.
LED ß on: the relevant front seat is heated.
LED ß off: heating of relevant front seat is
switched off.
For vehicles with natural gas operation 3,
only switch ß is available. Operation for
both front seats when the ignition is on.
Picture no: 13781s.tif
Head restraints Adjusting the front and outboard rear
seat headrestraints 3
To adjust, hold head restraint at side, tilt
forward, hold and adjust height.
To improve visibility when the rear seats
are unoccupied or to fold down a rear seat
or the front passenger seat, push the head
restraint all the way down or remove.
If the rear seats are occupied, adjust the
rear head restraints to the appropriate
level for the occupant’s body size.
The open frame head restraint on the
Combo Van cannot be adjusted.

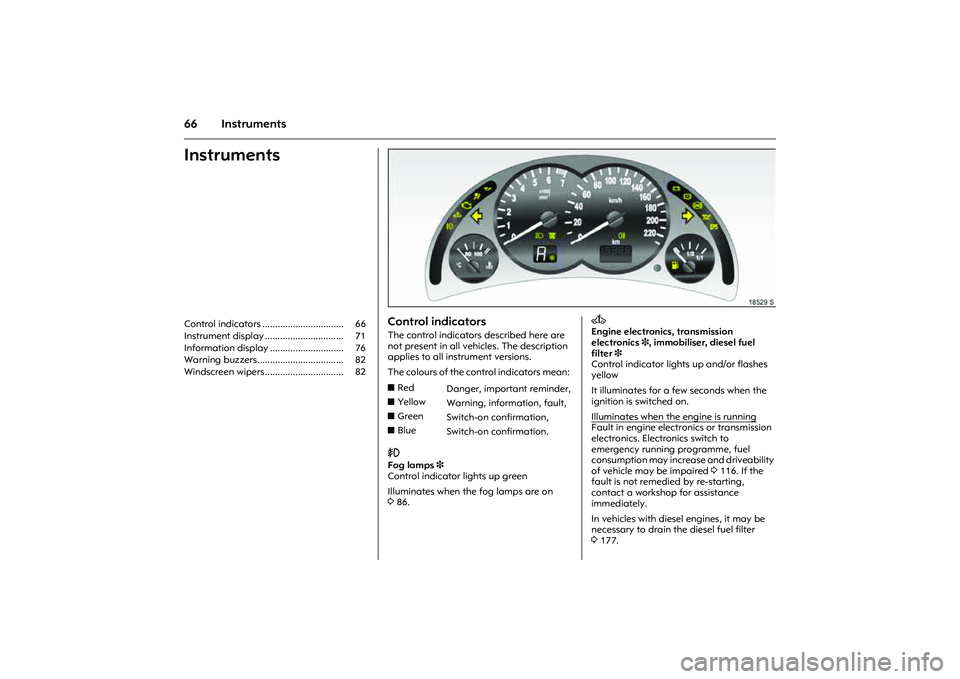

66 InstrumentsInstrumentsControl indicators ................................ 66
Instrument display ............................... 71
Information display ............................. 76
Warning buzzers.................................. 82
Windscreen wipers ............................... 82
Picture no: 18529s.tif
Control indicators The control indicators described here are
not present in all vehicles. The description
applies to all instrument versions.
The colours of the control indicators mean: >

Fog lamps 3
Control indicator lights up green
Illuminates when the fog lamps are on
386.
Picture no:
A

Engine electronics, transmission
electronics 3, immobiliser, diesel fuel
filter3
Control indicator lights up and/or flashes
yellow
It illuminates for a few seconds when the
ignition is switched on.
Illuminates when the engine is running
Fault in engine electronics or transmission
electronics. Electronics switch to
emergency running programme, fuel
consumption may increase and driveability
of vehicle may be impaired 3116. If the
fault is not remedied by re-starting,
contact a workshop for assistance
immediately.
In vehicles with diesel engines, it may be
necessary to drain the diesel fuel filter
3177. zRed
Danger, important reminder,
zYellow
Warning, information, fault,
zGreen
Switch-on confirmation,
zBlue
Switch-on confirmation.

68 InstrumentsO

Turn signal lamps
Control indicator flashes green.
The control indicator flashes if a turn signal
or the hazard warning flashers are
activated.
Rapid flashing: lamp or associated fuse
has failed.
Replacing bulbs 3151. Fuses 3145.
C

Main beam
Control indicator lights up blue.
It is illuminated when main beam is on and
during headlamp flash 385.
Picture no: 18529s.tif
!

Preheating3, diesel particle filter 3
Control indicator lights up and/or flashes
yellow
Illuminated
Preheating activated. Only activates when
outside temperatures are low.
Flashes

(in vehicles with diesel particle filter)
Control indicator ! flashes if the filter
requires cleaning and previous driving
conditions did not permit automatic
cleaning. Continue driving and if possible
do not allow engine speed to drop below
2000 rpm.
Picture no:
The control indicator ! goes off as soon
as the self-cleaning operation is complete.
Diesel particle filter 3116.T
Winter programme of the manual
transmission automated3
Symbol is lit in the transmission display if
the Winter programme is activated 3103.

71
Instruments
Picture no: 12098s.tif.
Instrument displayTachometer
Displays the engine rpm.
Drive in a low engine speed range for each
gear as much as possible.
Speedometer
Speed display.
Picture no:
Kilometre display
With the ignition switched off, briefly press
the reset knob to display the number of
kilometres driven for approx. 15 seconds.
Top line:
Trip odometerDisplays the number of kilometres since the
gauge was reset.
To reset, press button with ignition
switched on and trip odometer activated
and hold down for approximately one
second. Caution
If the pointer is in the warning zone, the
maximum permitted engine speed is
exceeded. Engine at risk.
Vehicles with clock in odometerTo reset, press button with ignition
switched on and trip odometer activated
and hold down for approximately
2seconds.
To switch between trip odometer and clock
display 3 give reset knob a brief press – see
next page.
Bottom line:
OdometerRecords the number of kilometres
Service interval display 3173.

72 Instruments
Picture no: 12099s.tif.
Time display in odometer 3
To switch between trip odometer and time
display 3 give reset knob a short press.
When the vehicle lights are on, the
brightness of the display can be adjusted
using the right-hand adjuster wheel k
below the light switch 387. Setting the time
On the clock display, press the setting knob
on the instrument for approx. 2 seconds.
The flashing value is set by pressing briefly.
Press for about 2 seconds again to switch
to the next setting and at the end to exit
setting mode.

73
Instruments
Picture no: 11688s.tif

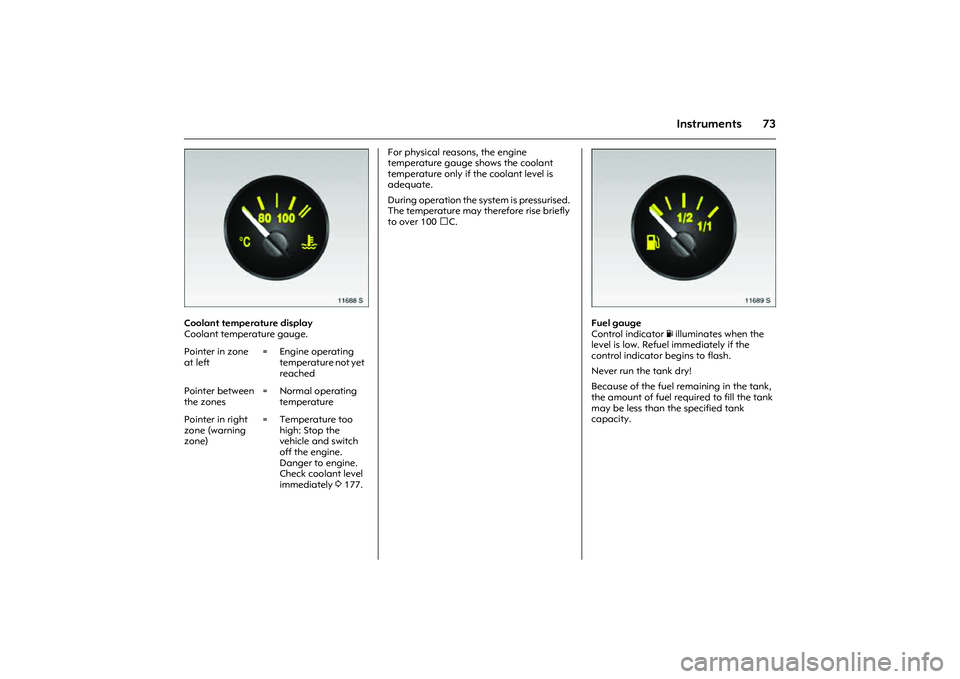

Coolant temperature display
Coolant temperature gauge. For physical reasons, the engine
temperature gauge shows the coolant
temperature only if the coolant level is
adequate.
During operation the system is pressurised.
The temperature may therefore rise briefly
to over 100 C.
Picture no: 11689s.tif
Fuel gauge

Control indicator Y illuminates when the
level is low. Refuel immediately if the
control indicator begins to flash.
Never run the tank dry!
Because of the fuel remaining in the tank,
the amount of fuel required to fill the tank
may be less than the specified tank
capacity. Pointer in zone
at left= Engine operating
temperature not yet
reached
Pointer between
the zones= Normal operating
temperature
Pointer in right
zone (warning
zone)= Temperature too
high: Stop the
vehicle and switch
off the engine.
Danger to engine.
Check coolant level
immediately 3177.
