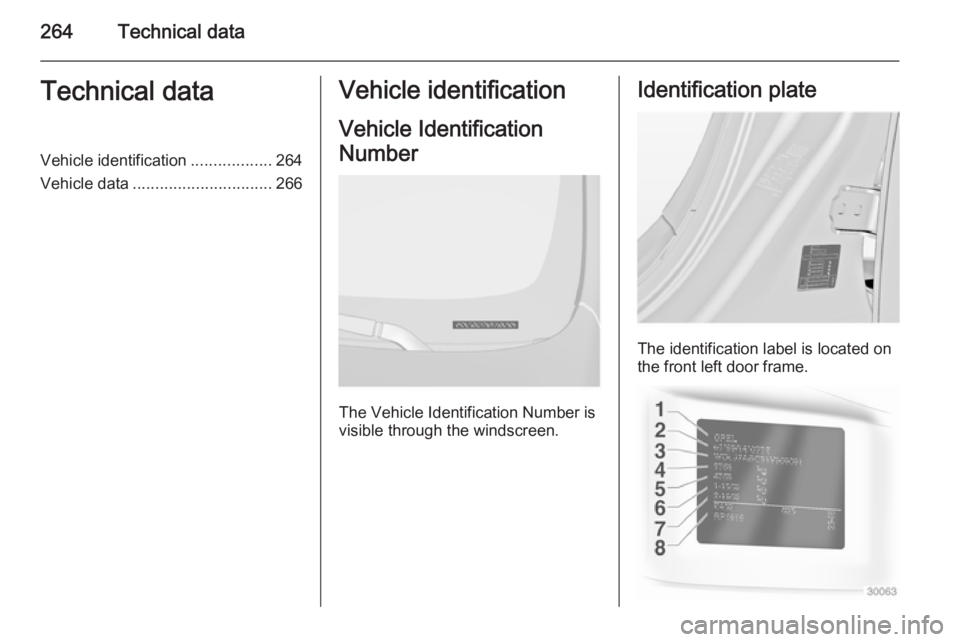

264Technical dataTechnical dataVehicle identification..................264
Vehicle data ............................... 266Vehicle identification
Vehicle Identification
Number
The Vehicle Identification Number is
visible through the windscreen.
Identification plate
The identification label is located on
the front left door frame.

Technical data265

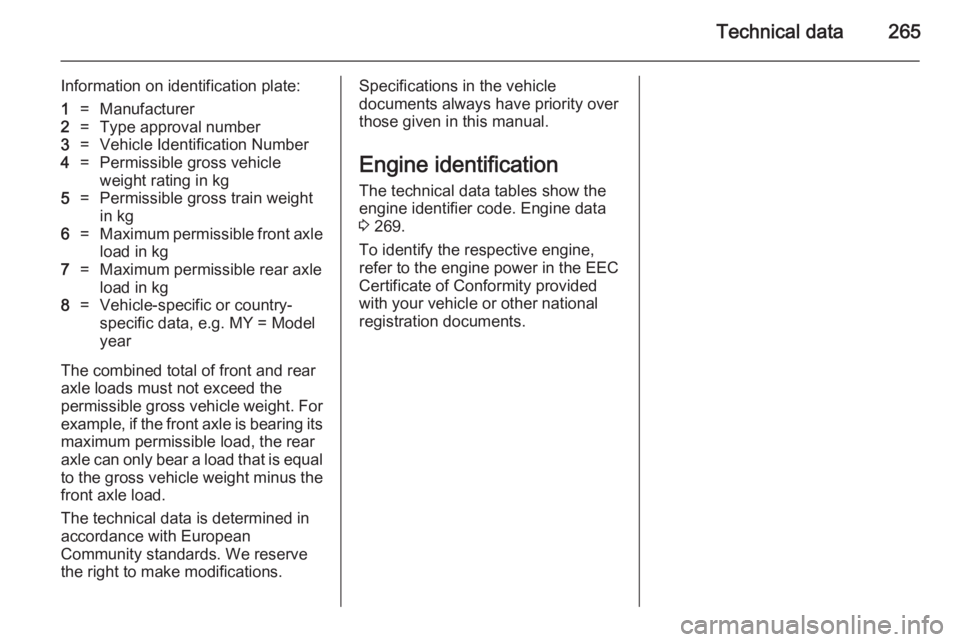

Information on identification plate:1=Manufacturer2=Type approval number3=Vehicle Identification Number4=Permissible gross vehicle
weight rating in kg5=Permissible gross train weight
in kg6=Maximum permissible front axle load in kg7=Maximum permissible rear axle
load in kg8=Vehicle-specific or country-
specific data, e.g. MY = Model
year
The combined total of front and rear
axle loads must not exceed the
permissible gross vehicle weight. For
example, if the front axle is bearing its
maximum permissible load, the rear
axle can only bear a load that is equal
to the gross vehicle weight minus the front axle load.
The technical data is determined in
accordance with European
Community standards. We reserve
the right to make modifications.
Specifications in the vehicle
documents always have priority over
those given in this manual.
Engine identification
The technical data tables show the
engine identifier code. Engine data
3 269.
To identify the respective engine,
refer to the engine power in the EEC
Certificate of Conformity provided
with your vehicle or other national
registration documents.

266Technical dataVehicle dataRecommended fluids and lubricantsEuropean service schedule

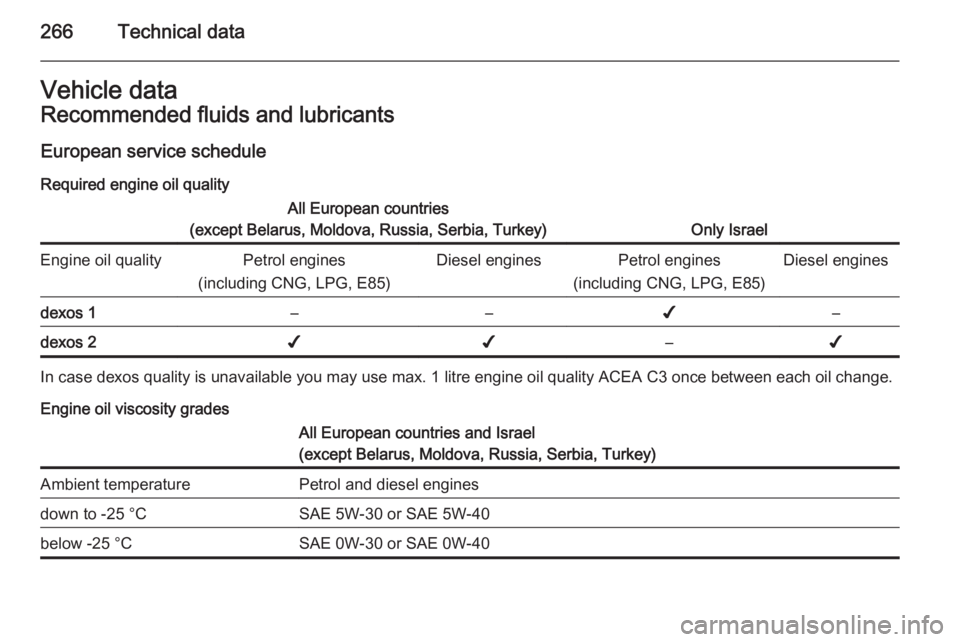

Required engine oil qualityAll European countries
(except Belarus, Moldova, Russia, Serbia, Turkey)
Only Israel
Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesPetrol engines
(including CNG, LPG, E85)Diesel enginesdexos 1––✔–dexos 2✔✔–✔
In case dexos quality is unavailable you may use max. 1 litre engine oil quality ACEA C3 once between each oil change.
Engine oil viscosity grades
All European countries and Israel (except Belarus, Moldova, Russia, Serbia, Turkey)Ambient temperaturePetrol and diesel enginesdown to -25 °CSAE 5W-30 or SAE 5W-40below -25 °CSAE 0W-30 or SAE 0W-40

Technical data267

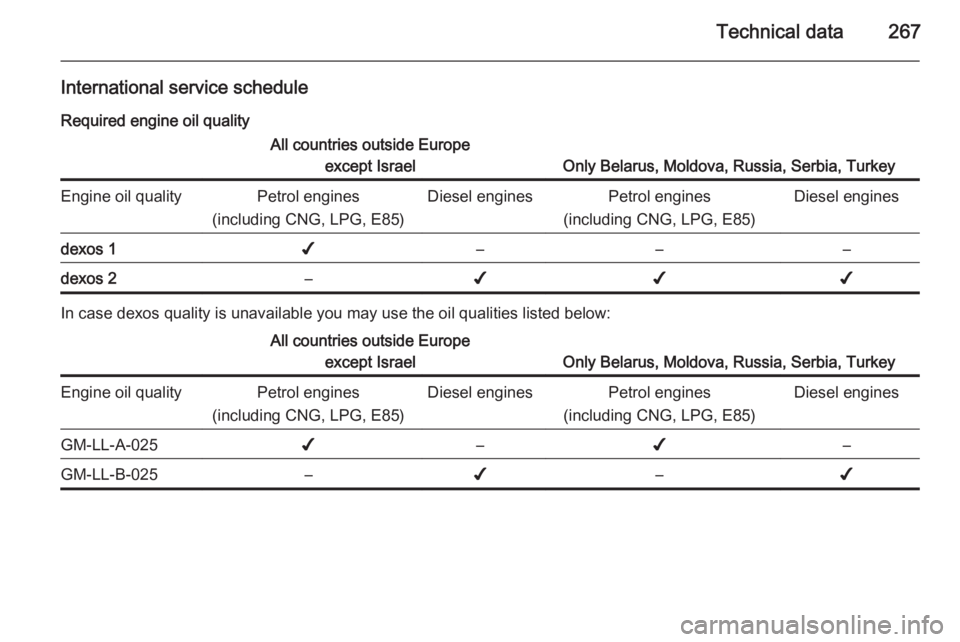

International service scheduleRequired engine oil qualityAll countries outside Europe except Israel
Only Belarus, Moldova, Russia, Serbia, Turkey
Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesPetrol engines
(including CNG, LPG, E85)Diesel enginesdexos 1✔–––dexos 2–✔✔✔
In case dexos quality is unavailable you may use the oil qualities listed below:
All countries outside Europe except Israel
Only Belarus, Moldova, Russia, Serbia, Turkey
Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesPetrol engines
(including CNG, LPG, E85)Diesel enginesGM-LL-A-025✔–✔–GM-LL-B-025–✔–✔

268Technical data
All countries outside Europeexcept Israel
Only Belarus, Moldova, Russia, Serbia, Turkey
Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesPetrol engines
(including CNG, LPG, E85)Diesel enginesACEA A3/B3✔–✔–ACEA A3/B4✔✔✔✔ACEA C3✔✔✔✔API SM✔–✔–API SN resource
conserving✔–✔–
Engine oil viscosity grades
All countries outside Europe (except Israel),
including Belarus, Moldova, Russia, Serbia, TurkeyAmbient temperaturePetrol and diesel enginesdown to -25 °CSAE 5W-30 or SAE 5W-40below -25 °CSAE 0W-30 or SAE 0W-40down to -20 °CSAE 10W-30 1)
or SAE 10W-40 1)1)
Permitted, but usage of SAE 5W-30 or SAE 5W-40 with dexos quality is recommended.

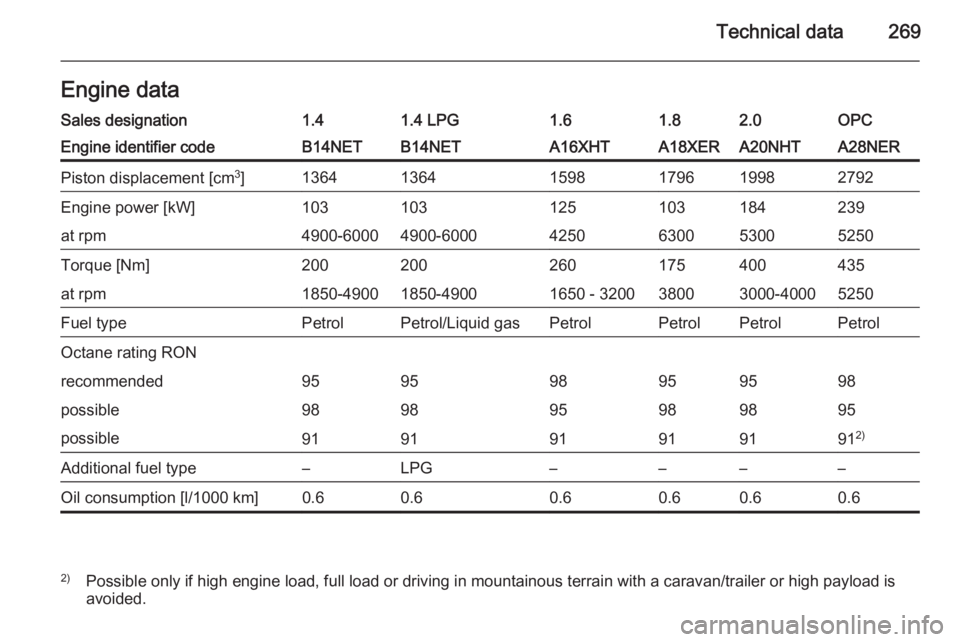

Technical data269Engine dataSales designation1.41.4 LPG1.61.82.0OPCEngine identifier codeB14NETB14NETA16XHTA18XERA20NHTA28NERPiston displacement [cm3
]136413641598179619982792Engine power [kW]103103125103184239at rpm4900-60004900-60004250630053005250Torque [Nm]200200260175400435at rpm1850-49001850-49001650 - 320038003000-40005250Fuel typePetrolPetrol/Liquid gasPetrolPetrolPetrolPetrolOctane rating RONrecommended959598959598possible989895989895possible919191919191 2)Additional fuel type–LPG––––Oil consumption [l/1000 km]0.60.60.60.60.60.62)
Possible only if high engine load, full load or driving in mountainous terrain with a caravan/trailer or high payload is
avoided.

270Technical data

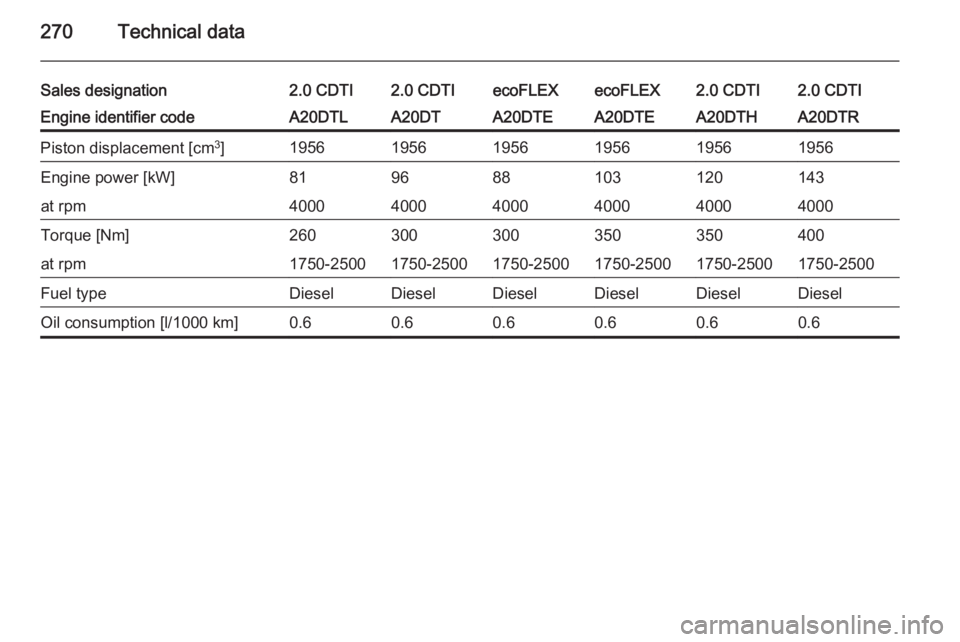

Sales designation2.0 CDTI2.0 CDTIecoFLEXecoFLEX2.0 CDTI2.0 CDTIEngine identifier codeA20DTLA20DTA20DTEA20DTEA20DTHA20DTRPiston displacement [cm3
]195619561956195619561956Engine power [kW]819688103120143at rpm400040004000400040004000Torque [Nm]260300300350350400at rpm1750-25001750-25001750-25001750-25001750-25001750-2500Fuel typeDieselDieselDieselDieselDieselDieselOil consumption [l/1000 km]0.60.60.60.60.60.6

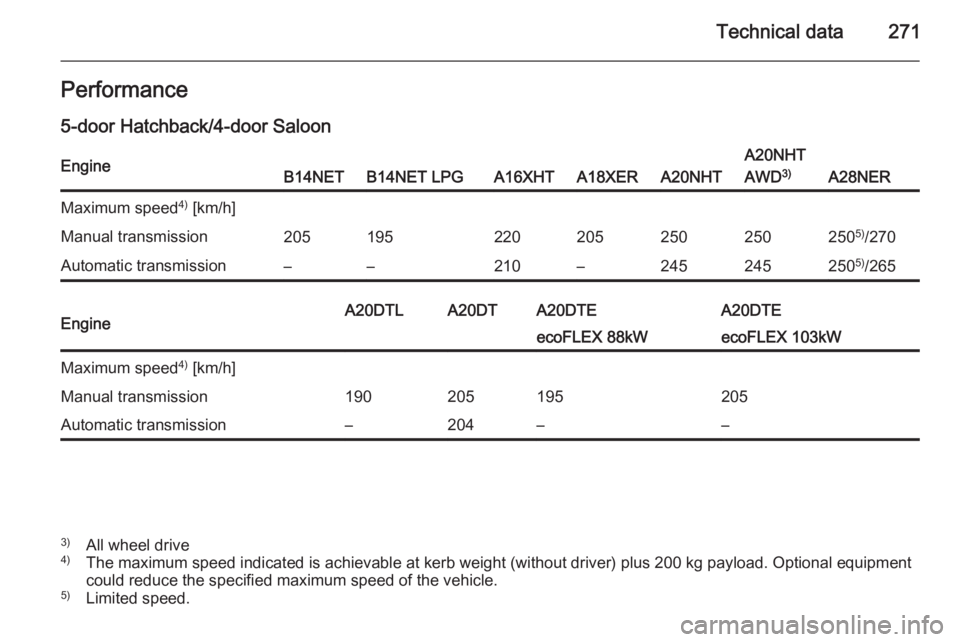

Technical data271Performance5-door Hatchback/4-door SaloonEngineB14NETB14NET LPGA16XHTA18XERA20NHT
A20NHT
AWD 3)
A28NER
Maximum speed 4)
[km/h]Manual transmission205195220205250250250 5)
/270Automatic transmission––210–245245250 5)
/265EngineA20DTLA20DTA20DTEA20DTEecoFLEX 88kWecoFLEX 103kWMaximum speed 4)
[km/h]Manual transmission190205195205Automatic transmission–204––3) All wheel drive
4) The maximum speed indicated is achievable at kerb weight (without driver) plus 200 kg payload. Optional equipment
could reduce the specified maximum speed of the vehicle.
5) Limited speed.
