VOLKSWAGEN ARTEON 2021 Owners Manual

2021 Arteon

1
3
5
The information within this guide must be used in conjunction with the information in the Volkswagen Owner’s Manual. You should refer to your vehicle’s Owner’s Manual and Infotainment supplement for all information, warnings, and feature limitations. Always pay careful attention to the road and do not drive while distracted. Some Infotainment features can only be accessed and operated when the vehicle is standing still.
6
7
2
4

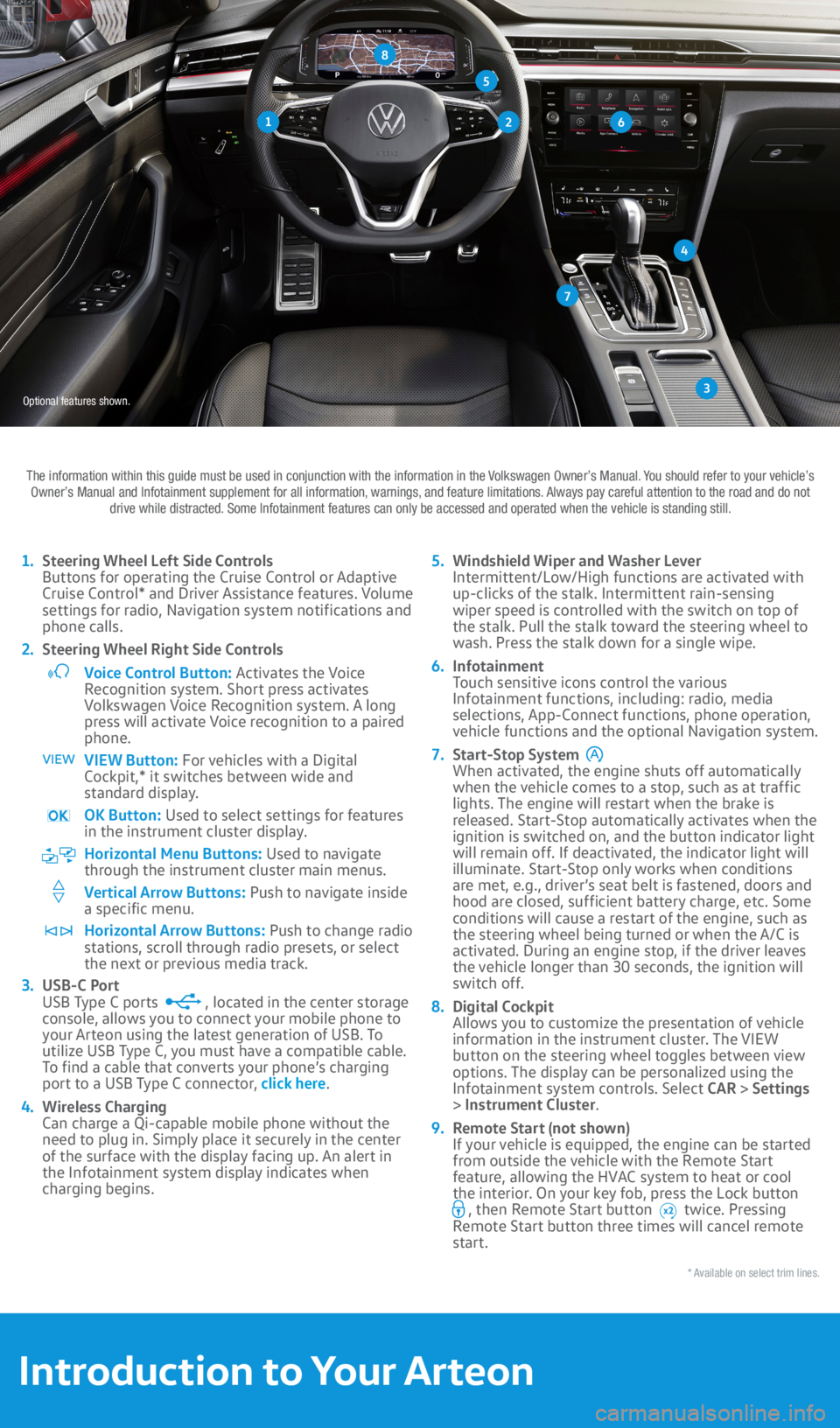

Introduction to Your Arteon
Steering Wheel Left Side ControlsButtons for operating the Cruise Control or Adaptive Cruise Control* and Driver Assistance features. Volume settings for radio, Navigation system notifications and phone calls.
Steering Wheel Right Side ControlsActivates the Voice Recognition system. Short press activates Volkswagen Voice Recognition system. A long press will activate Voice recognition to a paired phone. For vehicles with a Digital Cockpit,* it switches between wide and standard display. Used to select settings for features in the instrument cluster display. Used to navigate through the instrument cluster main menus. Push to navigate inside a specific menu. Push to change radio stations, scroll through radio presets, or select the next or previous media track.USB-C Port , located in the center storage console, allows you to connect your mobile phone to your Arteon using the latest generation of USB. To utilize USB Type C, you must have a compatible cable. To find a cable that converts your phone’s charging port to a USB Type C connector, click here.
Wireless Charging
need to plug in. Simply place it securely in the center of the surface with the display facing up. An alert in the Infotainment system display indicates when charging begins.
* Available on select trim lines.
Windshield Wiper and Washer Lever
up-clicks of the stalk. Intermittent rain-sensing wiper speed is controlled with the switch on top of the stalk. Pull the stalk toward the steering wheel to wash. Press the stalk down for a single wipe.
Infotainment
Infotainment functions, including: radio, media selections, App-Connect functions, phone operation, vehicle functions and the optional Navigation system.
Start-Stop System When activated, the engine shuts off automatically when the vehicle comes to a stop, such as at traffic lights. The engine will restart when the brake is released. Start-Stop automatically activates when the ignition is switched on, and the button indicator light will remain off. If deactivated, the indicator light will illuminate. Start-Stop only works when conditions are met, e.g., driver’s seat belt is fastened, doors and hood are closed, sufficient battery charge, etc. Some conditions will cause a restart of the engine, such as the steering wheel being turned or when the A/C is activated. During an engine stop, if the driver leaves the vehicle longer than 30 seconds, the ignition will switch off.
Digital Cockpit
information in the instrument cluster. The VIEW button on the steering wheel toggles between view options. The display can be personalized using the Infotainment system controls. Select
Remote Start (not shown) If your vehicle is equipped, the engine can be started from outside the vehicle with the Remote Start feature, allowing the HVAC system to heat or cool the interior. On your key fob, press the Lock button , then Remote Start button twice. Pressing Remote Start button three times will cancel remote start.
8

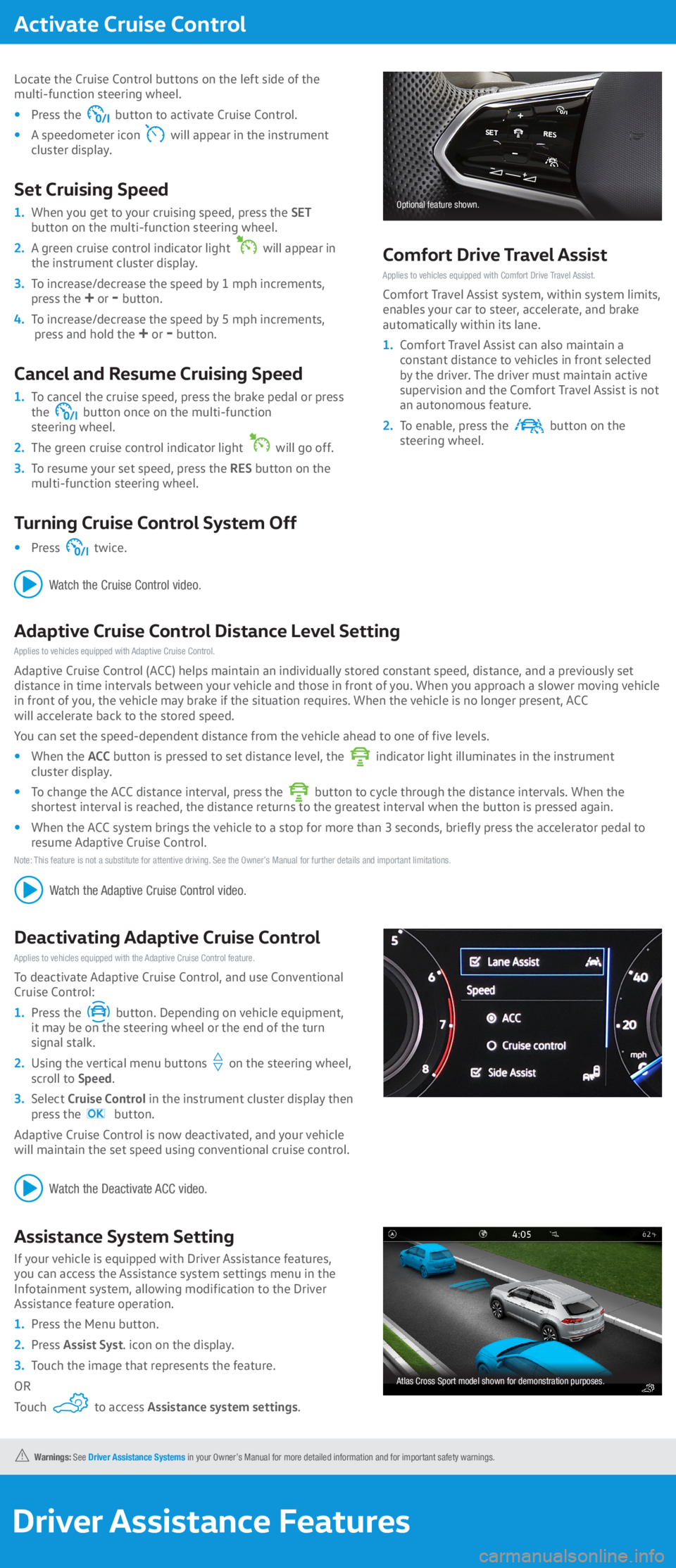

Activate Cruise Control
Locate the Cruise Control buttons on the left side of the multi-function steering wheel.

Navigation
in your Owner’s Manual for more detailed information and for important safety warnings. Navigation is an optional feature.

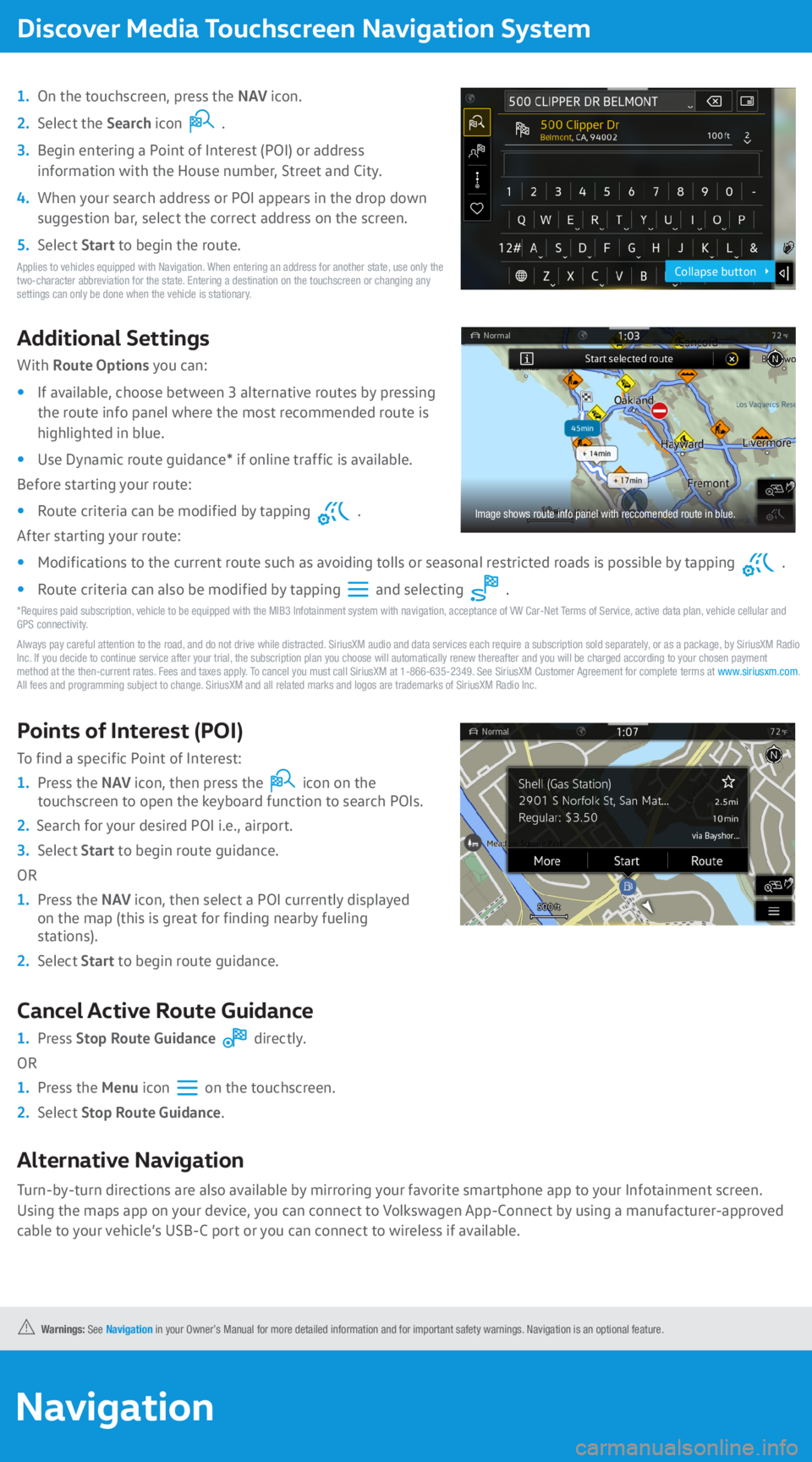

Discover Media Touchscreen Navigation System
On the touchscreen, press the
Select the .
Begin entering a Point of Interest (POI) or address information with the House number, Street and City.
When your search address or POI appears in the drop down suggestion bar, select the correct address on the screen.
Select Applies to vehicles equipped with Navigation. When entering an address for another state, use only the two-character abbreviation for the state. Entering a destination on the touchscreen or changing any settings can only be done when the vehicle is stationary.
Additional Settings
With

Climatronic System
1
32
Heating and Air Conditioning

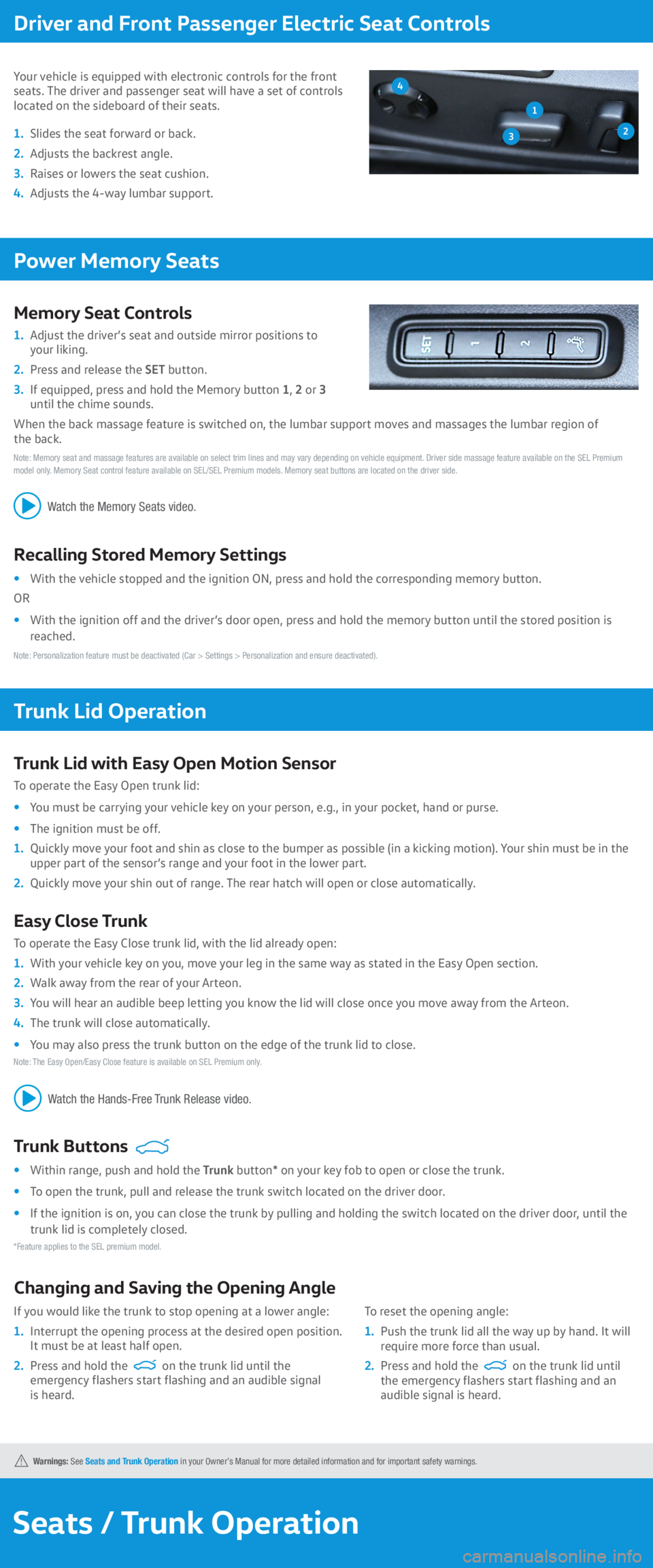

Seats / Trunk Operation
in your Owner’s Manual for more detailed information and for important safety warnings.
Trunk Lid Operation
Trunk Lid with Easy Open Motion Sensor
To operate the Easy Open trunk lid:

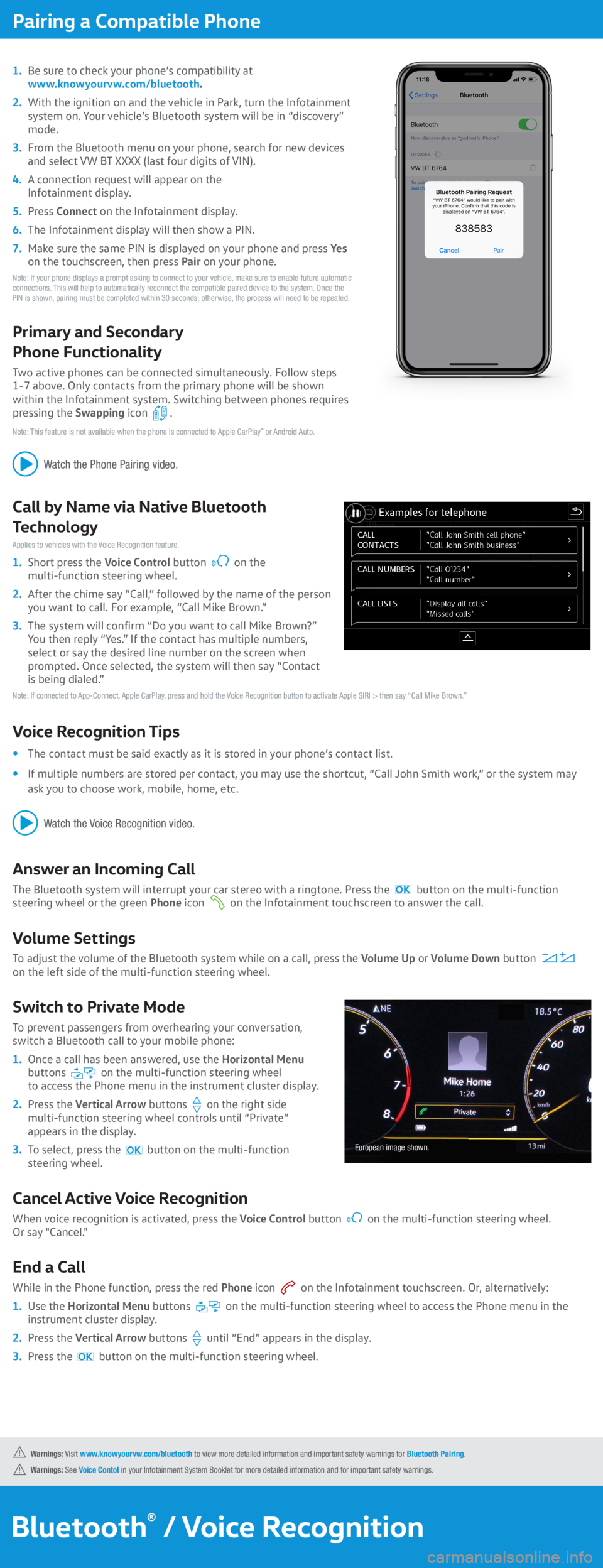

Voice Recognition Tips

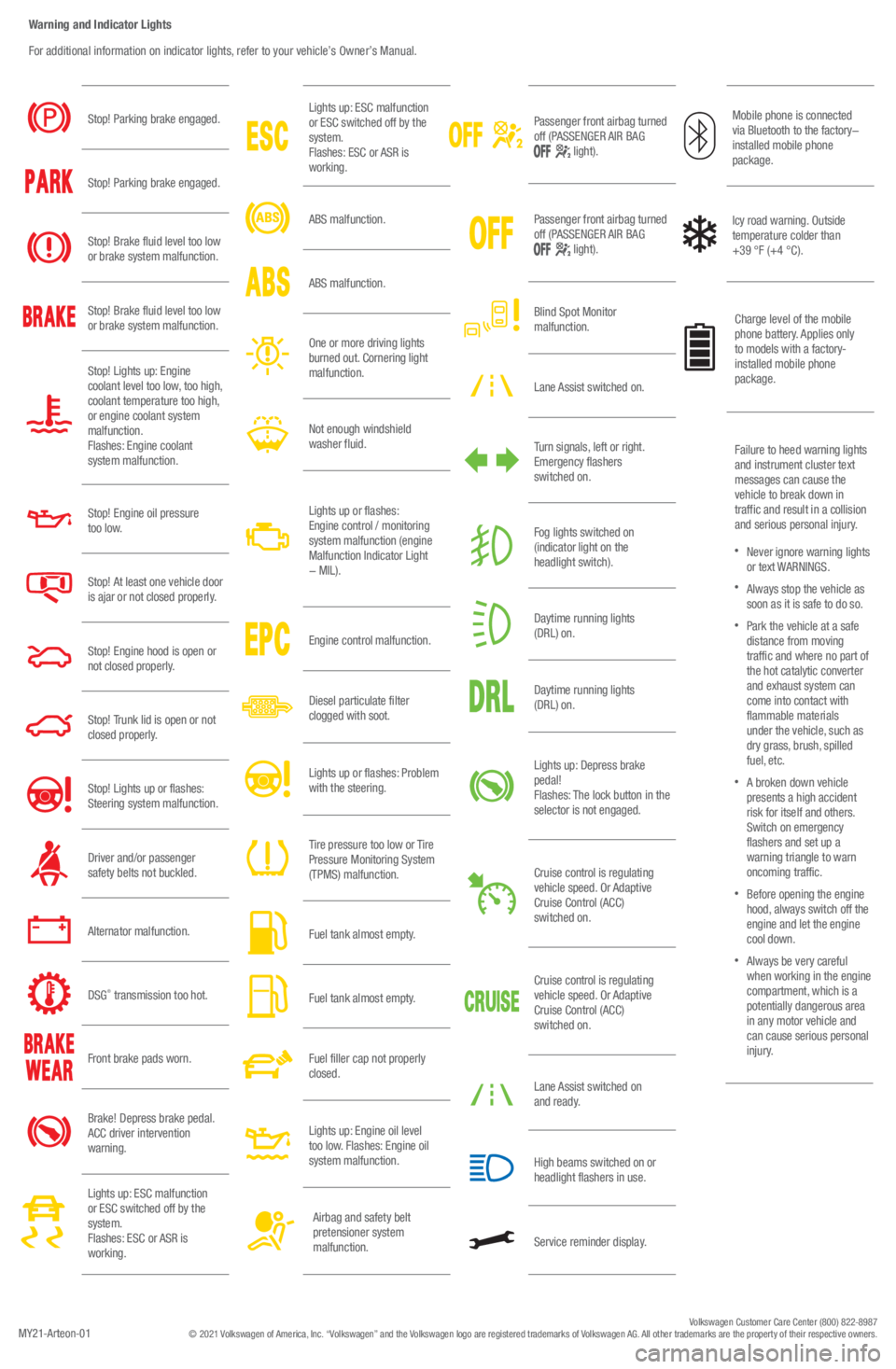

Warning and Indicator Lights
MY21Volkswagen Customer Care Center (800) 822
