height Abarth 500 2011 Owner handbook (in English)

23
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
Seat height adjustment
fig. 18
Operating lever Cit is possible to lift or
lower the rear area of the cushion to
achieve the most comfortable driving po-
sition.Backrest tilting fig. 19
To tilt the backrest, operate the lever D
(movement a) and push the backrest for-
ward until it locks (movement b); release
the lever Dand, pushing the backrest,
slide the seat forward (movement c).
SEATS
FRONT SEATS
fig. 16F0S0013m
fig. 17F0S0014m
Fore/aft adjustment fig. 16
Lift lever Aand push the seat forwards and
backwards: your arms should rest on the
steering wheel rim while you are driving.
All adjustments must be
made with the car station-
ary.
WARNING
After releasing the lever, al-
ways check that the seat is
locked on the guides by trying to
move it backwards and forth. If it is
not locked, the seat may move unex-
pectedly and make you lose control
of the car.
WARNING
fig. 18F0S0015m
fig. 19
2
34
6
5
1
DD
F0S0154m
Back rest angle adjustment fig. 17
Turn knob B.

68
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
SAFETY
DEVICES
All restraint devices must bear the certi-
fication data, together with the control
mark, on a solidly fixed label which must
absolutely never be removed.
Over 1.50 m in height, from the point of
view of restraint systems, children are
considered as adults and wear the seat
belts normally. Lineaccessori Abarth in-
cludes child restraint systems for each
weight group.
These devices are recommended having
been specifically designed for Abarth cars.
GROUP 0 and 0+
Babies up to 13 kg must be carried facing
backwards on a cradle seat, which, sup-
porting the head, does not induce stress
on the neck in the event of sharp decel-
eration.
The cradle is restrained by the car seat
belts, as shown in fig. 5and in turn it must
restrain the child with its own belts.
fig. 5F0S064Ab
GROUP 1
Starting from 9 kg to 18 kg in weight, chil-
dren may be carried facing forwards, with
seat fitted with front cushion, through
which the car seat belt restrains both child
and seat fig. 6.
fig. 6F0S065Ab
The figures are indicative for assembly purposes only. Refer to the
instructions supplied with the child restraint.
Some child restraint systems for weight group 0 and 1 have a rear attachment to
the car seat belts and its own seat belts for securing the child. Due to their weight,
they may be dangerous if incorrectly mounted (e.g. if fastened to the car seat belts
with a cushion in between). Follow the assembly instructions carefully.
WARNING

107
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
WHEN NEEDING
TO CHANGE A BULB
GENERAL INSTRUCTIONS
❒Before changing a bulb check the con-
tacts for oxidation;
❒Burnt bulbs must be replaced by oth-
ers of the same type and power;
Modifications or repairs to
the electrical system that are
not carried out properly or do not
take the system’s technical specifica-
tions into account can cause mal-
functions leading to the risk of fire.
WARNING❒Always check the height of the head-
light beam after changing a bulb;
❒When a bulb is not working, check that
the corresponding fuse is intact before
replacing it: refer to the “If a fuse
blows” paragraph in this chapter for
fuse location.

137
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE

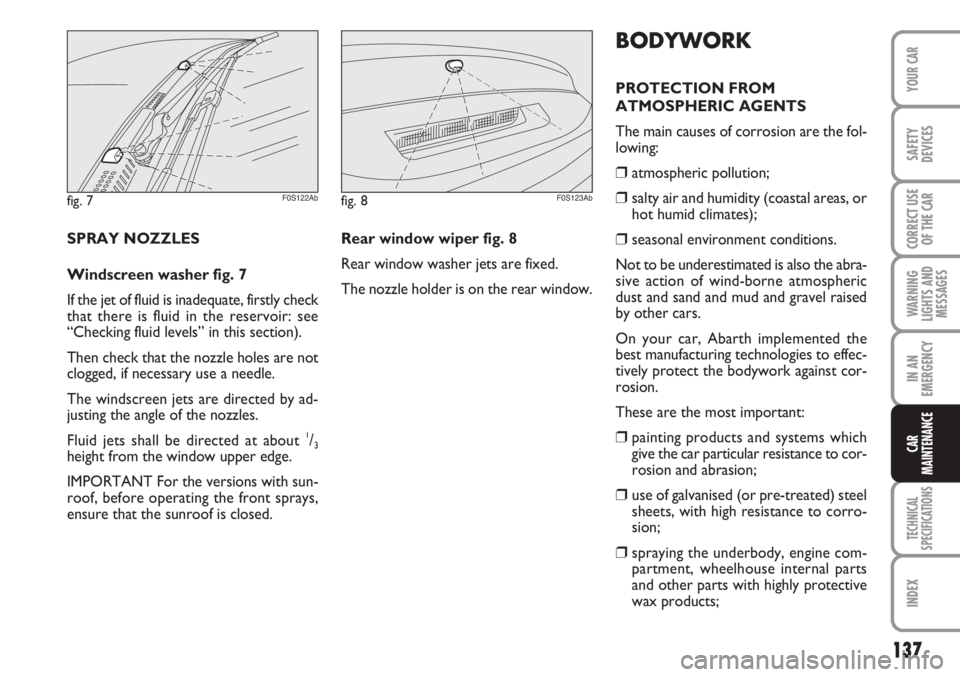

BODYWORK
PROTECTION FROM
ATMOSPHERIC AGENTS
The main causes of corrosion are the fol-
lowing:
❒atmospheric pollution;
❒salty air and humidity (coastal areas, or
hot humid climates);
❒seasonal environment conditions.
Not to be underestimated is also the abra-
sive action of wind-borne atmospheric
dust and sand and mud and gravel raised
by other cars.
On your car, Abarth implemented the
best manufacturing technologies to effec-
tively protect the bodywork against cor-
rosion.
These are the most important:
❒painting products and systems which
give the car particular resistance to cor-
rosion and abrasion;
❒use of galvanised (or pre-treated) steel
sheets, with high resistance to corro-
sion;
❒spraying the underbody, engine com-
partment, wheelhouse internal parts
and other parts with highly protective
wax products; SPRAY NOZZLES
Windscreen washer fig. 7
If the jet of fluid is inadequate, firstly check
that there is fluid in the reservoir: see
“Checking fluid levels” in this section).
Then check that the nozzle holes are not
clogged, if necessary use a needle.
The windscreen jets are directed by ad-
justing the angle of the nozzles.
Fluid jets shall be directed at about
1/3height from the window upper edge.
IMPORTANT For the versions with sun-
roof, before operating the front sprays,
ensure that the sunroof is closed.Rear window wiper fig. 8
Rear window washer jets are fixed.
The nozzle holder is on the rear window.
fig. 7F0S122Abfig. 8F0S123Ab

148
WARNING
LIGHTS AND
MESSAGES
INDEX
YOUR CAR
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
READING TYRE
MARKINGS fig. 4
Example: 175/65 R 14 82H
175 = Nominal width (S, distance in mm
between sidewalls).
65 = Height/width ratio (H/S) in per-
centage.
R = Radial tyre.
14 = Rim diameter in inches (Ø).
82 = Load rate (capacity).
H = Maximum speed rating.
WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless ra-
dial carcass tyres. All approved tyres are
listed in the Log Book.
IMPORTANT In the event of discrepan-
cies between the information provided on
this “Owner handbook” and the “Log
book”, consider the specifications shown
in the log book only.
Respect the prescribed size to ensure
safety of the car in movement. Fit tyres
of the same make and type on all wheels.
IMPORTANT Do not use inner tubes
with Tubeless tyres.
fig. 4F0S127Ab
WHEEL GEOMETRY
Toe-in measured between rims:
0,5 ± 1 mm
The values refer to the car in running or-
der.

151
WARNING
LIGHTS AND
MESSAGES
INDEX
YOU CAR
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
DIMENSIONS
Dimensions are expressed in mm and re-
fer to the vehicle fitted with standard
tyres.
The height refers to the vehicle unladen.
Boot volume
Unladen boot volume
(V.D.A. standards) .................... 185 litres
F0S128Abfig. 6
Versions A B C D E F G I
1.4 TB BZ ABARTH3657 776 2300 581 1480/1485(▲) 1415/1409(▲) 16271408/1402(▲)
(
▲) With 205/40 R17 tyres
