WARNING
151)Never use flammable products, such
as petrol ether or rectified petrol to clean
the inside of the car. The electrostatic
charges which are generated by rubbing
during the cleaning operation may cause a
fire.
152)Do not keep aerosol cans in the
vehicle: they might explode. Aerosol cans
must not be exposed to a temperature
exceeding 50°C. When the vehicle is
exposed to sunlight, the internal
temperature can greatly exceed this value.
WARNING
49)Do not use "hard" synthetic brushes as
they could damage the fabric beyond
repair. Do not perform partial, localised
restorations that could cause "aesthetic"
differences between treated and untreated
areas. Do not use alcohol or ketone-based
solvents.
129

TECHNICAL DATA
Everything you may find useful for
understanding how your vehicle
is made and works is contained in this
chapter and illustrated with data, tables
and graphics. For the enthusiasts and
the technician, but also just for those
who want to know every detail of their
vehicle.IDENTIFICATION DATA....................131
ENGINE ..........................................132
WHEELS .........................................134
DIMENSIONS ..................................135
WEIGHTS........................................136
REFUELLING ..................................139
FLUIDS AND LUBRICANTS ............140
PERFORMANCE .............................142
FUEL CONSUMPTION ....................143
CO
2EMISSIONS ...........................144
PRESCRIPTIONS FOR HANDLING
THE VEHICLE AT THE END OF ITS
LIFE ................................................145
130
TECHNICAL DATA

IDENTIFICATION
DATA
The following identification codes are
printed and shown on the plates:
VIN plate.
Chassis marking.
Bodywork paint identification plate.
Engine marking.
VEHICLE IDENTIFICATION
NUMBER (VIN) PLATE
The data plate is located on the left side
of the rear part of the luggage
compartment floor and it bears the
following identification data fig. 113:
AName of Manufacturer
BType-approval number.
CVehicle type identification code.
DChassis serial number.
EMaximum authorised weight of fully
laden vehicle.
FMaximum authorised weight of fully
laden vehicle plus trailer.
GMaximum permitted weight on first
axle (front).
HMaximum permitted weight on
second axle (rear).
IEngine type.
LBodywork version code.
MSpare part number.
CHASSIS MARKING
The plate is located on the right side of
the luggage compartment floor and it
bears the following data fig. 114:
vehicle type;
chassis serial number.BODYWORK PAINT
IDENTIFICATION PLATE
The plate is applied on the external
tailgate post (left side) and it bears the
following data fig. 115:
APaint manufacturer.
BColour name.
CColour code.
DRespray and touch up code.
ENGINE MARKING
It is stamped on the cylinder block and
includes the type and the engine serial
number.
113AB0A0346C
114AB0A0345C
115AB0A0344C
131

ENGINE
(For markets where provided)
GENERAL INFORMATION1.4 TB PETROL ABARTH
135 HP1.4 TB PETROL ABARTH
145 HP1.4 TB PETROL ABARTH
160 HP(*)
Engine code 312A1000 312B4000 312B4000
Cycle Otto Otto Otto
Number and position of cylinders 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 72 × 84 72 × 84 72 × 84
Total displacement (cm
3) 1368 1368 1368
Compression ratio 9.8 : 1 9.8 : 1 9.8 : 1
Maximum power (EEC) (kW) 99 107 118
Maximum power (EEC) (HP) 135 145 160
corresponding engine speed
(rpm)5500 5500 5500
Maximum torque (EEC) (Nm)
180
(**)/ 206(***)180(**)/ 210(***)210(**)/ 230(***)
corresponding engine speed
(rpm)2000
2000(**)/ 3000(***)2000(**)/ 3000(***)
Spark plugs NGK IKR9F8 NGK IKR9F8 NGK IKR9F8
FuelUnleaded petrol 95 RON (EN 228
specification)Unleaded petrol 95 RON or 98
RON (Specification EN 228)Unleaded petrol 95 RON or 98
RON (Specification EN 228)
(*) Kit
(**) NORMAL
(***) SPORT
132
TECHNICAL DATA

GENERAL
INFORMATION1.4 TB PETROL
ABARTH 163 HP1.4 TB PETROL
ABARTH 165 HP1.4 TB PETROL
ABARTH 180 HP(*)1.4 TB PETROL
ABARTH 180 HP
Engine code 312B6000 312B3000 312B3000 312A3000
Cycle Otto Otto Otto Otto
Number and position of
cylinders4 in line 4 in line 4 in line 4 in line
Piston bore and stroke
(mm)72×84 72×84 72×84 72×84
Total displacement (cm
3) 1368 1368 1368 1368
Compression ratio 9.0 : 1 9.0 : 1 9.0 : 1 9.0 : 1
Maximum power (EEC)
(kW)120
(****)121(****)132(****)132(****)
Maximum power (EEC)
(HP)163(****)165(****)180(****)180(****)
corresponding engine
speed (rpm)5500 5500 5500 5500
Maximum torque (EEC)
(Nm)210
(**)/ 230(***)210(**)/ 230(***)230(**)/ 250(***)230(**)/ 250(***)
corresponding engine
speed (rpm)2000(**)/ 3000(***)2000(**)/ 3000(***)2000(**)/ 3000(***)2000(**)/ 3000(***)
Spark plugs NGK IKR9F8 NGK IKR9F8 NGK IKR9F8 NGK IKR9F8
FuelUnleaded petrol 95 RON
or 98 RON (Specification
EN 228)Unleaded petrol 95 RON
or 98 RON (Specification
EN 228)Unleaded petrol 95 RON
or 98 RON (Specification
EN 228)Unleaded petrol 95 RON
or 98 RON (Specification
EN 228)
(*) Kit
(****) Result obtained using 98 RON unleaded petrol
(**) NORMAL
(***) SPORT
133

WHEELS
RIMS AND TYRES PROVIDED
Alloy or pressed steel rims. Tubeless radial carcass tyres.
All approved tyres are listed in the Registration Document.
IMPORTANT NOTE If there are any discrepancies between the Owner Handbook and the Registration Document, take the
information only from the latter. For safe driving, the car must be fitted with tyres of the same make and type on all wheels.
IMPORTANT Do not use inner tubes with tubeless tyres.
Version Wheels Tyres fitted Snow tyres
1.4 TB PETROL ABARTH61/2 J x 16H2-ET35
195/45 R16 84 V XL
(*)
(**)
7 J x 16H2-ET35
195/45 R16 84 V XL(*)
7 J x 17H2-ET35
205/40 R17 84 W XL(***)
7 J x 17H2-ET38
205/40 R17 84 W XL(***)
(*) 7-mm chains can be fitted.
(**) Winter tyres (Pirelli Snow Sport 195/45 R16) are also available for use if the car is mainly driven on snow-covered roads.
(***) Snow chains suitable for 205/40 R17 tyres are available at the Abarth Dealership. These may be used at a maximum speed of 50 km/h. Contact the Abarth
Dealership for more information about the use of snow chains.
COLD TYRE INFLATION PRESSURE (bar)
When the tires are warm, the inflation pressure should be + 0.3 bar in relation to the recommended figure.
However, recheck that the value is correct with the tyre cold.
TyresMedium load(*)Full load
Front Rear Front Rear
195/45 R16 84 V XL 2.3 2.1 2.6 2.4
205/40 R17 84 W XL 2.3 2.1 2.6 2.4
(*) For speeds above 160 km/h, use the inflation pressures for maximum load conditions.
134
TECHNICAL DATA

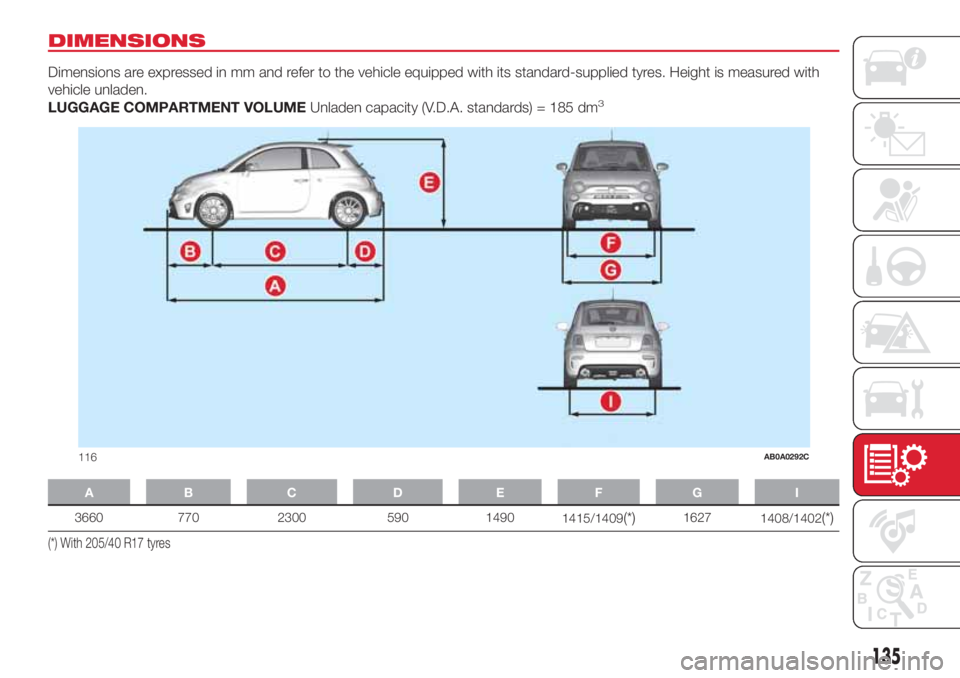

DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
vehicle unladen.
LUGGAGE COMPARTMENT VOLUMEUnladen capacity (V.D.A. standards) = 185 dm
3
AB C D EFG I
3660 770 2300 590 1490
1415/1409(*)1627
1408/1402(*)
(*) With 205/40 R17 tyres
116AB0A0292C
135

WEIGHTS
(For markets where provided)
Weights (kg)
595 – 135 HP 595C – 135 HP 595 – 145 HP 595C – 145 HP
Unladen weight (with all fluids, fuel tank filled to 90% and
without optional equipment)1035 10751035(*)
/1045(**)1075(*)
/1085(**)
Payload including the driver 390 355
390(*) /380(**)355(*) /345(**)
Maximum permitted loads(***)
– front axle 830 830 830 830
– rear axle 640 640 640 640
– total 1425 1430 1425 1430
Towable loads
– braked trailer––––
– trailer without brakes––––
Maximum load on roof 50 – 50 –
Maximum load on tow hitch (trailer with brakes)––––
(*) Version with manual transmission
(**) Version with robotised sequential transmission
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
136
TECHNICAL DATA

Weights (kg)
595 – 160 HP 595C – 160 HP595/695 –
163 HP595C/695C –
163 HP
Unladen weight (with all fluids, fuel tank filled to 90% and
without optional equipment)1035(*)
/1045(**)1075(*)
/1085(**)1035(*)
/1045(**)1075(*)
/1085(**)
Payload including the driver
390(*) /380(**)355(*) /345(**)390
365(*) /355(**)
Maximum permitted loads(***)
– front axle 830 830 830 830
– rear axle 640 640 640 640
– total 1425 14301425
(*)
/1435(**)1440
Towable loads
– braked trailer––––
– trailer without brakes––––
Maximum load on roof 50 – 50 –
Maximum load on tow hitch (trailer with brakes)––––
(*) Version with manual transmission
(**) Version with robotised sequential transmission
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
137

Weights (kg)
595/695 –
165 HP595C/695C –
165 HP595/695 –
180 HP595C/695C –
180 HP
Unladen weight (with all fluids, fuel tank filled to 90% and
without optional equipment)1035(*)
/1045(**)1075(*)
/1085(**)1045(*)
/1055(**)1090
Payload including the driver 390
365
(*) /355(**)380 350
Maximum permitted loads
(***)
– front axle 830 830 830 830
– rear axle 640 640 640 640
– total1425
(*)
/1435(**)14401425(*)
/1435(**)1440
Towable loads
– braked trailer––––
– trailer without brakes––––
Maximum load on roof 50 – 50 –
Maximum load on tow hitch (trailer with brakes)––––
(*) Version with manual transmission
(**) Version with robotised sequential transmission
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
138
