run flat Abarth Punto 2016 Owner handbook (in English)

135
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Press the clutch pedal fully to change
gears correctly. For this reason, there
must be no obstacles on the floor under the
pedals: ensure that rubber mats (if any) are
lying flat and do not interfere with the pedals.
WARNING
Do not drive with your hand resting on
the shifting lever, because this pressure,
even if light, over time can wear out the
gearbox internal components.
MPORTANT Use of the clutch pedal must be limited
solely to gear changes. Do not drive with your foot
resting on the clutch pedal, however slightly. For
versions/markets where provided, the electronic clutch
control can intervene if it interprets incorrect driving
style as a fault.CONTAINING RUNNING COSTS
Here are some suggestions which may help you to keep
the running costs of your vehicle down and lower the
amount of toxic emissions released into the
atmosphere.
GENERAL CONSIDERATIONS
Car maintenance
Have checks and adjustments carried out in accordance
with the “Scheduled Servicing Plan”.
Tyres
Check the pressure of the tyres routinely at an interval
of no more than 4 weeks: if the pressure is too low,
consumption levels increase as resistance to rolling is
higher.
Unnecessary loads
Do not travel with an overloaded boot. The weight of
the car (especially when driving in town) and the way in
which it is laden greatly affect fuel consumption and
stability.
131-140 PUNTO Abarth GB 1ed 17-07-2012 13:20 Pagina 135

153
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
❒a compressor D-fig. 127 complete with pressure
gauge and connectors, located in the compartment;
❒a pair of protective gloves located in the
compressor’s side compartment;
❒adapters for inflating different elements.
You can also find the screwdriver and tow hitch in the
quick repair kit container (stored in the boot under the
carpet).
F0U129Abfig. 128
Hand the leaflet over to the staff who
have to manage the tyre treated using
the tyre repair kit.
WARNING
In the case of a puncture, caused by a
foreign body, tyres that have suffered
damage up to a maximum diameter of 4
mm on the tread or the shoulder can be repaired.
The kit cannot be used to repair damage
to the tyre sidewall. Do not use the quick
repair kit if the tyre is damaged from running on
a flat tyre.
WARNING
If the wheel rim is damaged (distortion
of the groove causing air leakage) it
cannot be repaired. Do not remove the foreign
body (screw or nail) from the tyre.
WARNING
151-182 PUNTO Abarth GB 1ed 17-07-2012 13:24 Pagina 153

195
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
IMPORTANT If the charge level remains under 50% for
a long time, the battery is damaged by sulphation,
reducing its capacity and efficiency at start-up.
The battery will also be more at risk of freezing
(e.g. already at -10°C). Refer to the paragraph
“Car inactivity” in “Starting and driving” if the car is left
parked for a long time.
If after buying the car, you want to install electrical
accessories which require permanent electrical supply
(alarm, etc.) or accessories influencing the electrical
supply requirements, contact an Abarth Dealership
whose qualified personnel, in addition to suggesting the
most suitable devices available in Lineaccessori Abarth,
will evaluate the overall electric absorption, checking
whether the car’s electric system is capable of
withstanding the load required, or whether it should be
integrated with a more powerful battery.
Since these devices continue absorbing energy even with
the engine off, they gradually run down the battery.WHEELS AND TYRES
Check the pressure of each tyre, including the space-saver,
every two weeks and before long journeys. The pressure
should be checked with the tyre rested and cold.
While driving the car, the pressure increases under
standard conditions: for the correct tyre inflation
pressure, see “Wheels” in the “Technical specifications”
chapter.
Incorrect pressure causes abnormal tyre wear fig. 171:
A normal pressure: tread evenly worn;
B low pressure: tread particularly worn at the edges;
C high pressure: tread particularly worn in the centre.
The tyres must be replaced when the tread is less than
1.6 mm thick. In all cases, follow the laws in force in the
country where you are driving.
183-204 PUNTO Abarth GB 1ed 17-07-2012 15:17 Pagina 195

213
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

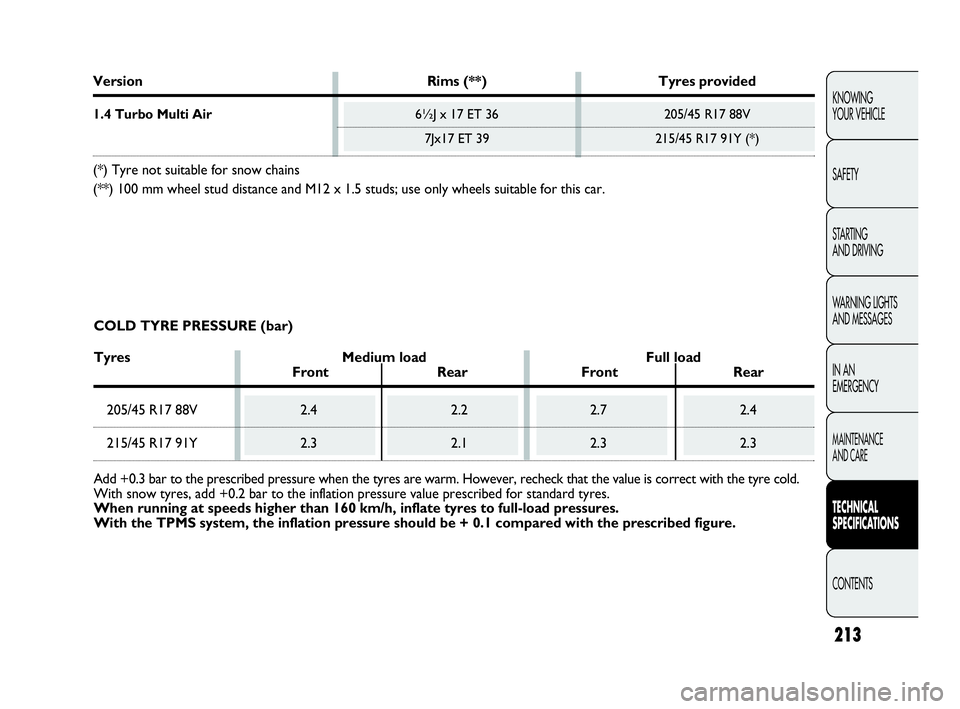

Version Rims (**) Tyres provided
1.4 Turbo Multi Air6½J x 17 ET 36 205/45 R17 88V
7Jx17 ET 39 215/45 R17 91Y (*)
(*) Tyre not suitable for snow chains
(**) 100 mm wheel stud distance and M12 x 1.5 studs; use only wheels suitable for this car.
COLD TYRE PRESSURE (bar)
Tyres Medium load Full load
Front Rear Front Rear
205/45 R17 88V 2.4 2.2 2.7 2.4
215/45 R17 91Y 2.3 2.1 2.3 2.3
Add +0.3 bar to the prescribed pressure when the tyres are warm. However, recheck that the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
When running at speeds higher than 160 km/h, inflate tyres to full-load pressures.
With the TPMS system, the inflation pressure should be + 0.1 compared with the prescribed figure.
205-220 PUNTO Abarth GB 1ed 17-07-2012 13:26 Pagina 213
