KNOWING YOUR VEHICLE
DASHBOARD
The presence and position of the controls, instruments and gauges may vary depending on the version.
F0U001Abfig. 1
1.Adjustable side air vents – 2.Fixed side air vents – 3.Left steering column stalk: external lights – 4.Instrument
panel –
5.Right steering column stalk: windscreen wiper controls, rear window wiper, trip computer – 6.Panel
controls – 7. Portable navigation system setup (for versions/markets, where provided) –
8.Adjustable central air
vents –
9.Fixed upper air vent – 10.Front airbag – passenger side – 11.Glove compartment – 12.Light guide –
13.Radio (for versions/markets where provided) – 14.HVAC controls – 15.Ignition device – 16.Front airbag
– driver’s side –
17. Steering wheel adjustment lever – 18.Control panel: headlamp alignment adjustment/
reconfigurable multifunction display.
CONTENTS TECHNICAL
SPECIFICATIONS
MAINTENANCE
AND CARE
IN AN
EMERGENCY WARNING LIGHTS
AND MESSAGES STARTING
AND DRIVING SAFETY
KNOWING
YOUR VEHICLE
3
001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina 3

31
F0U019Abfig. 20
Lengthwise direction adjustment fig. 20
Lift lever A and push the seat forwards or backwards: in
the driving position your arms should rest on the rim of
the steering wheel.
Any adjustments should be carried out
only when the vehicle is stationary.
WARNING
Once you have released the adjustment
lever, always check that the seat is
locked on the guides by trying to move it back
and forth. Failure to lock the seat in place could
result in the seat moving suddenly and the
driver losing control of the car.
WARNING
The fabric covers on your vehicle have
been designed to resist normal wear and
tear for a long time. Some precautions
are however needed. Avoid prolonged rubbing
against clothing accessories, such as metal
buckles, Velcro strips and the like, which by
applying a high pressure on the fabric in a small
area could cause the breakage of some threads
and damage the upholstery.
FRONT SEATSHeight adjustment fig. 20
(for versions/markets where provided)
Move lever B upwards or downwards to achieve the
required height.
IMPORTANT Adjustment must only be carried out
when seated in the relevant seat.
Backrest angle adjustment fig. 20
Turn knob C.
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
For maximum safety, keep the backrest
upright, lean back into it and make sure
that the seat belt fits closely across your chest
and hips.
WARNING
029-068 PUNTO Abarth GB 1ed 17-07-2012 12:05 Pagina 31

Any adjustment of the steering wheel
position must be carried out only with
the car stationary and the engine turned off.
WARNING
34
STEERING WHEEL
The driver can adjust the height and axial position of the
steering wheel.
To carry out the adjustment, proceed as follows:
❒release lever A-fig. 24 by pushing it forwards
(position 1);
❒adjust the steering wheel;
❒lock lever A by pulling it towards the steering wheel
(position 2).
fig. 24F0U024Ab
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
It is absolutely forbidden to carry out
any after-market operation involving
steering system or steering column
modifications (e.g.: installation of anti-theft
device) which could adversely affect
performance and safety, invalidate warranty
and also result in non-compliance of the car
with type-approval requirements.
WARNING
029-068 PUNTO Abarth GB 1ed 17-07-2012 12:06 Pagina 34

Automatic tuning ............................................................ 245
Manual tuning .................................................................. 245
Autostore function ........................................................ 246
Emergency alarm reception ......................................... 247
EON function ................................................................. 247
Stereophonic broadcasters .......................................... 247
CD PLAYER .................................................................... 248
Introduction .................................................................... 248
CD player selection ....................................................... 248
CD loading/ejection ....................................................... 249
Display readings .............................................................. 250
Track selection ................................................................ 250
Fast forward/rewind through tracks .......................... 250
Pause function ................................................................. 250
CD MP3 PLAYER ........................................................... 251
Introduction .................................................................... 251
MP3 mode ....................................................................... 251
Selection of MP3 sessions with hybrid discs ............ 251
Display readings .............................................................. 252
Selection of next/previous folder ............................... 252
Folder structure ............................................................. 252
AUX (only with Blue&Me™)..................................... 253
Introduction .................................................................... 253
AUX mode ...................................................................... 253
TROUBLESHOOTING ............................................... 254
RADIO
INTRODUCTION ........................................................ 222
Suggestions ...................................................................... 222
Technical specifications ................................................. 224
QUICK GUIDE .............................................................. 225
Steering wheel controls ................................................ 228
General information ...................................................... 229
FUNCTIONS AND ADJUSTMENTS ........................ 231
Turning the car radio on .............................................. 231
Turning the car radio off .............................................. 231
Selecting the radio functions ....................................... 231
Selecting CD function ................................................... 231
Audio source memory function .................................. 231
Volume adjustment ........................................................ 232
Mute/Pause function ...................................................... 232
Audio adjustments ......................................................... 233
Preset/User/Classic/Rock/Jazz functions ................... 235
User Eq Settings function ............................................. 235
Menu ................................................................................. 236
Phone function................................................................. 241
Phone set-up ................................................................... 242
Anti-theft protection ..................................................... 243
RADIO (Tuner) .............................................................. 244
Introduction .................................................................... 244
Selecting a frequency band ........................................... 244
Preselection buttons ..................................................... 245
Storing the last station listened to ............................. 245
RADIO
221
221-258 PUNTO Abarth GB 1ed 17-07-2012 13:27 Pagina 221

253
RADIO
AUX (only with Blue&Me™)
INTRODUCTION
This chapter describes the variants regarding the operation
of the AUX source: as far as the operation of the radio is
concerned, refer to the description in the "Functions and
Adjustments" chapter.AUX MODE
To activate the AUX source, press the MEDIA button or
the SRC steering wheel control several times till the
corresponding source is displayed.
IMPORTANT NOTES
The functions of the device connected with the AUX socket
are directly managed by the device itself; it is not possible
to change track/folder/playlist with radio or steering wheel
controls.
Do not leave the cable of your portable player connected
with the AUX socket after the disconnection, to avoid
possible hisses from the speakers.
NOTE The AUX socket is not incorporated in the radio.
For its position, refer to the Blue&Me™Supplement and
its Quick Guide.
221-258 PUNTO Abarth GB 1ed 17-07-2012 13:28 Pagina 253

257
RIGHT HAND DRIVE VERSION
RIGHT HAND DRIVE VERSION
DASHBOARD
The presence and position of the controls, instruments and gauges may vary depending on the version.
F0U197Abfig. 1
1.Adjustable side air vents – 2.Fixed side air vents – 3.Right steering column stalk: windscreen wiper controls, rear
window wiper, trip computer –
4.Instrument panel – 5.Left steering column stalk: external lights –6.Panel controls –
7. Portable navigation system setup (for versions/markets, where provided) –
8.Adjustable central air vents – 9.Fixed
upper air vent –
10.Front airbag – passenger side – 11.Glove compartment – 12.Light guide – 13.Radio (for versions/
markets where provided) –
14.HVAC controls – 15. Steering wheel adjustment lever – 16.Front airbag – driver’s side –
17.Ignition device – 18.Control panel: headlamp alignment adjustment/ reconfigurable multifunction display.
221-258 PUNTO Abarth GB 1ed 17-07-2012 13:28 Pagina 257

265
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

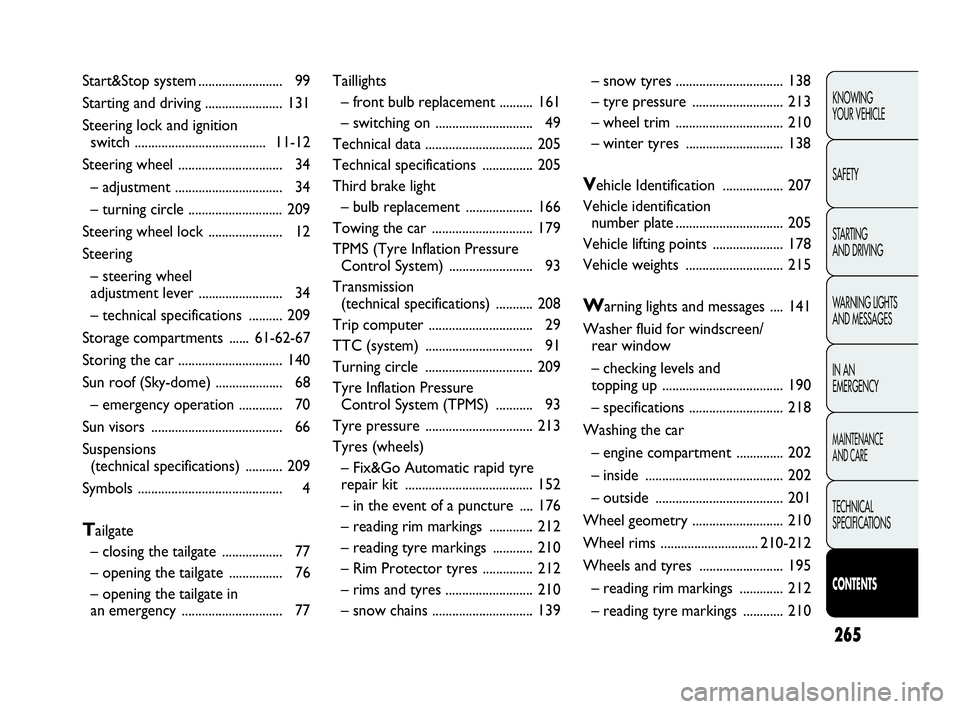

Start&Stop system......................... 99
Starting and driving ....................... 131
Steering lock and ignition
switch .......................................11-12
Steering wheel ............................... 34
– adjustment ................................ 34
– turning circle ............................ 209
Steering wheel lock ...................... 12
Steering
– steering wheel
adjustment lever ......................... 34
– technical specifications .......... 209
Storage compartments ...... 61-62-67
Storing the car ............................... 140
Sun roof (Sky-dome) .................... 68
– emergency operation ............. 70
Sun visors ....................................... 66
Suspensions
(technical specifications) ........... 209
Symbols ........................................... 4
Tailgate
– closing the tailgate .................. 77
– opening the tailgate ................ 76
– opening the tailgate in
an emergency .............................. 77Taillights
– front bulb replacement .......... 161
– switching on ............................. 49
Technical data ................................ 205
Technical specifications ............... 205
Third brake light
– bulb replacement .................... 166
Towing the car .............................. 179
TPMS (Tyre Inflation Pressure
Control System) ......................... 93
Transmission
(technical specifications) ........... 208
Trip computer ............................... 29
TTC (system) ................................ 91
Turning circle ................................ 209
Tyre Inflation Pressure
Control System (TPMS) ........... 93
Tyre pressure ................................ 213
Tyres (wheels)
– Fix&Go Automatic rapid tyre
repair kit ...................................... 152
– in the event of a puncture .... 176
– reading rim markings ............. 212
– reading tyre markings ............ 210
– Rim Protector tyres ............... 212
– rims and tyres .......................... 210
– snow chains .............................. 139– snow tyres ................................ 138
– tyre pressure ........................... 213
– wheel trim ................................ 210
– winter tyres ............................. 138
Vehicle Identification .................. 207
Vehicle identification
number plate................................ 205
Vehicle lifting points ..................... 178
Vehicle weights ............................. 215
Warning lights and messages .... 141
Washer fluid for windscreen/
rear window
– checking levels and
topping up .................................... 190
– specifications ............................ 218
Washing the car
– engine compartment .............. 202
– inside ......................................... 202
– outside ...................................... 201
Wheel geometry ........................... 210
Wheel rims .............................210-212
Wheels and tyres ......................... 195
– reading rim markings ............. 212
– reading tyre markings ............ 210
259-266 PUNTO Abarth GB 1ed 17-07-2012 13:47 Pagina 265
