ECU Abarth Punto 2020 Owner handbook (in English)

79
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

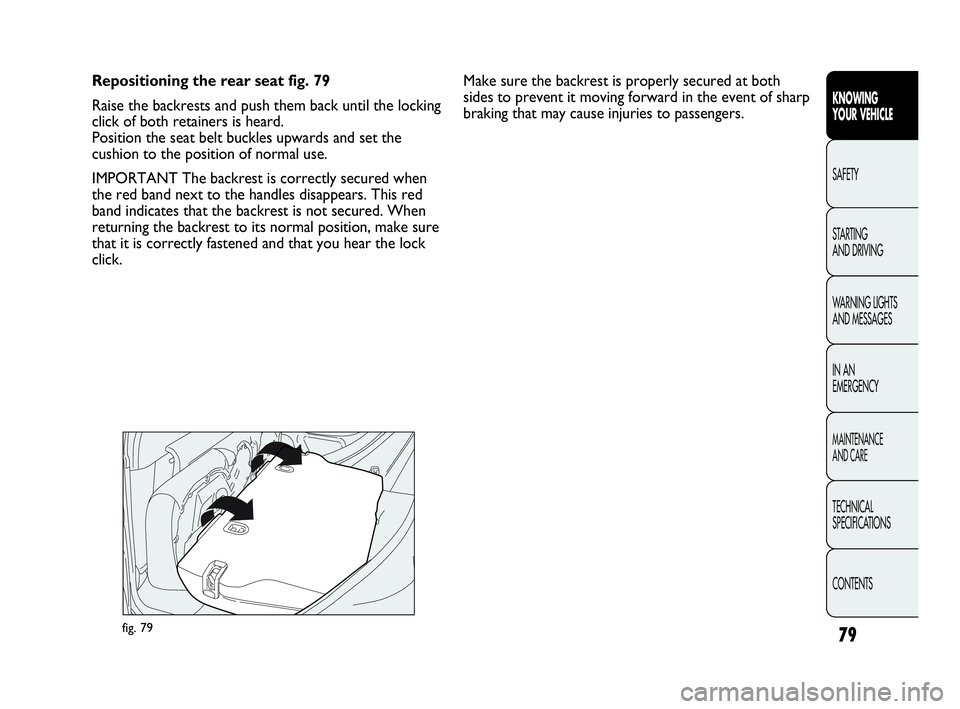

Repositioning the rear seat fig. 79
Raise the backrests and push them back until the locking
click of both retainers is heard.
Position the seat belt buckles upwards and set the
cushion to the position of normal use.
IMPORTANT The backrest is correctly secured when
the red band next to the handles disappears. This red
band indicates that the backrest is not secured. When
returning the backrest to its normal position, make sure
that it is correctly fastened and that you hear the lock
click.
fig. 79
Make sure the backrest is properly secured at both
sides to prevent it moving forward in the event of sharp
braking that may cause injuries to passengers.
069-108 PUNTO Abarth GB 1ed 17-07-2012 12:07 Pagina 79

110
F0U108Abfig. 108
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Remember that, in the event of a violent
collision, back seat passengers not
wearing seat belts represent a serious danger
not only to themselves but also to the front seat
passengers.
WARNING
Ensure that the backrest is properly
secured on both sides so that it does not
fly forwards in the event of sharp braking and
injure passengers.
WARNING
IMPORTANT After putting the seats back to their
travelling position, restore the seat belt position to
make them ready for use.
Never press button C-fig. 106 when
travelling.
WARNING
The rear seat belts must be used as shown in the
diagram in fig. 107.
IMPORTANT When the red band next to the backrest
folding levers fig. 108 disappears, it means the backrest
is properly secured.
If you can still see the red band, the backrest is not
securely fastened. When returning the backrest to its
normal position, make sure that it is correctly fastened
and you hear the lock click.
109-130 PUNTO Abarth GB 1ed 17-07-2012 12:10 Pagina 110

F0U113Abfig. 113
GROUP 1
From 9 kg to 18 kg, children may be carried facing
forwards fig. 113.
116
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Do not place a cradle seat facing
backwards on the front seat if the
passenger side airbag is on. Deployment of the
airbag in an accident could cause fatal injuries
to the baby regardless of the severity of the
collision. It is advisable to always carry children
in dedicated child seats on the rear seat, which
is the most protected position in the event of an
accident.
WARNING
WARNING Should it be absolutely
necessary to carry a child on the front
seat in a backwards-facing child seat, the
passenger’s front and side airbags should
be deactivated through the setup menu.
Deactivation can be verified by checking the “
warning light on the instrument panel. Move the
passenger’s seat as far back as possible to avoid
contact between the child seat and the dashboard.
WARNING
The figures are only examples for fitting
purposes. Fit the child seat according to
the instructions mandatorily supplied with the
seat.
WARNING
There are seats with Isofix attachments
which enable secure fastening to the
seat without using the vehicle’s seat belts.
WARNING
109-130 PUNTO Abarth GB 1ed 17-07-2012 12:10 Pagina 116

120
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
“UNIVERSAL ISOFIX” CHILD
RESTRAINT ASSEMBLY SETUP
The car can be fitted with a Universal Isofix child
restraint, a new European standardised system for
carrying children safely.
An example of a child seat is shown in fig. 116.
The Universal Isofix child seat covers weight group 1.
Due to its different attachment system, the Universal
Isofix child seat must be anchored to the special lower
metal rings A-fig. 117, located between the backrest and
rear cushion. The upper belt (provided with the child
seat) must then be secured to ring B-fig. 118 located on
the back of the backrest at child seat level.
It is possible to have a mixed assembly of traditional
child seats and Universal Isofix seats.
F0U116Abfig. 116
Remember that in the case of Universal Isofix child’s
seat, you can use all seats approved with the marking
ECE R44/03 “Universal Isofix”.
109-130 PUNTO Abarth GB 1ed 17-07-2012 12:10 Pagina 120

Replace the bottle containing out of date
sealant fluid. Dispose of the bottle and
the sealant liquid properly. Dispose of
according to the national and local regulations in
force.
154
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
The cylinder contains ethylene glycol.
Contains latex: may cause an allergic
reaction. Harmful if swallowed. Irritant for the
eye. May cause irritation if inhaled or on
contact. Avoid contact with eyes, skin and
clothes. In the event of contact, wash
immediately with plenty of water. Do not
induce vomiting if swallowed. Rinse your mouth
and drink plenty of water. Call a doctor
immediately. Keep away from children. The
product must not be used by asthmatics. Do not
breathe in the vapours during insertion and
suction. Call a doctor immediately if allergic
reactions are noted. Store the bottle in the
specific compartment, away from sources of
heat. The sealant fluid has a limited life.
WARNINGIMPORTANT INFORMATION:
The sealing fluid of the quick tyre repair kit is effective at
external temperatures of between -20 °C and +50 °C.
The sealing fluid will expire.
Do not operate the compressor for
longer than 20 consecutive minutes. Risk
of overheating. The quick repair kit is not
suitable for definitive repairs. Tyres may only be
repaired temporarily.
WARNING
151-182 PUNTO Abarth GB 1ed 17-07-2012 13:24 Pagina 154

180
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
The power brakes and power steering
will not operate while the vehicle is
being towed. More effort on the brake pedal
and steering wheel will therefore be required.
Do not use flexible cables when towing and
avoid jerky movements. While towing, make
sure not to damage parts in contact with the
car. When towing the vehicle, be sure to respect
the specific rules of the highway code in
relation to the towing device and the behaviour
to maintain on the road.
WARNING
Clean the threaded housing throughly
before fastening the tow ring. Make sure
that the ring is securely fastened before towing
the car.
WARNING
During towing, do not start the engine.
WARNING
151-182 PUNTO Abarth GB 1ed 17-07-2012 13:24 Pagina 180
