clock Acura CL 2001 User Guide

Remove the bulb by turning it
approximately one-quarter turn
counterclockwise.
Insert the new bulb into the hole
and turn it one-quarter turn clock-
wise to lock it in place.Push the electrical connector back
onto the bulb. Make sure it is on
all the way.
Turn on the headlights to test the
new bulb.
(Driver’s side)
Reinstall the radiator reserve tank.
3.
4. 5.
6.
7.
Lights
Maint enance253
B BU
UL LBB
T
T A
A B
B

Use a f lat-tipped screwdriver to
remove the three holding clips
f rom the splash shield. Pull the
splash shield down.
Remove the socket by turning it
one-quarter turn counterclockwise.Pull the bulb straight out of its
socket.
Push the new bulb straight into
the socket until it bottoms.Put the splash shield in place.
Reinstall the three holding clips.
Lock each clip in place by pushing
on the center.
Insert the socket and turn it one-
quarter turn clockwise to lock it in
place. Turn on the headlights to test the
new bulb.
3.
4. 5.
6.
1.
2.
Lights
Maint enance
Replacing a Road Lamp Bulb
254
H H O
OL LDD I
INNG G C
CLLIIPP S
S

If you are changing the bulb on
the driver’s side, start the engine,
turn the steering wheel all the way
to the right, and turn off the
engine. If you are changing the
bulb on the passenger’s side, turn
the steering wheel to the left.Use a f lat-tipped screwdriver to
remove the two holding clips f rom
the inner f ender.
Pull the inner f ender cover away
f rom the f ender and bumper.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.To remove the f ront turn signal/
parking light bulb, push it in
slightly and turn it
counterclockwise. To remove the
side marker bulb, pull it straight
out of its socket.
Install the new bulb into the
socket.
Pull the bulb straight out of its
socket.
Push the new bulb straight into
the socket until it bottoms.
Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Testthelightstomakesurethe
new bulb is working.
Put the inner f ender in place.
Install the two holding clips. Lock
each clip in place by pushing on
the center.
1.
2.
3.
4.5.
6.
7.
8.
9.
Lights
Maint enance
Replacing Front Turn Signal/
Parking and Side Marker Light
Bulbs
255
H H
O
OL LDD I
INNG G
C
CL LIIPP S
S

Open the trunk.Pull the bulb straight out of its
socket.
Push the new bulb straight into
the socket until it bottoms.
Reinstall the socket into the light
assembly by turning it clockwise
until it locks.
Testthelightstomakesurethe
new bulb is working.
Reinstall the trunk lining. Make
sure it is installed under the edge
of the trunk seal.

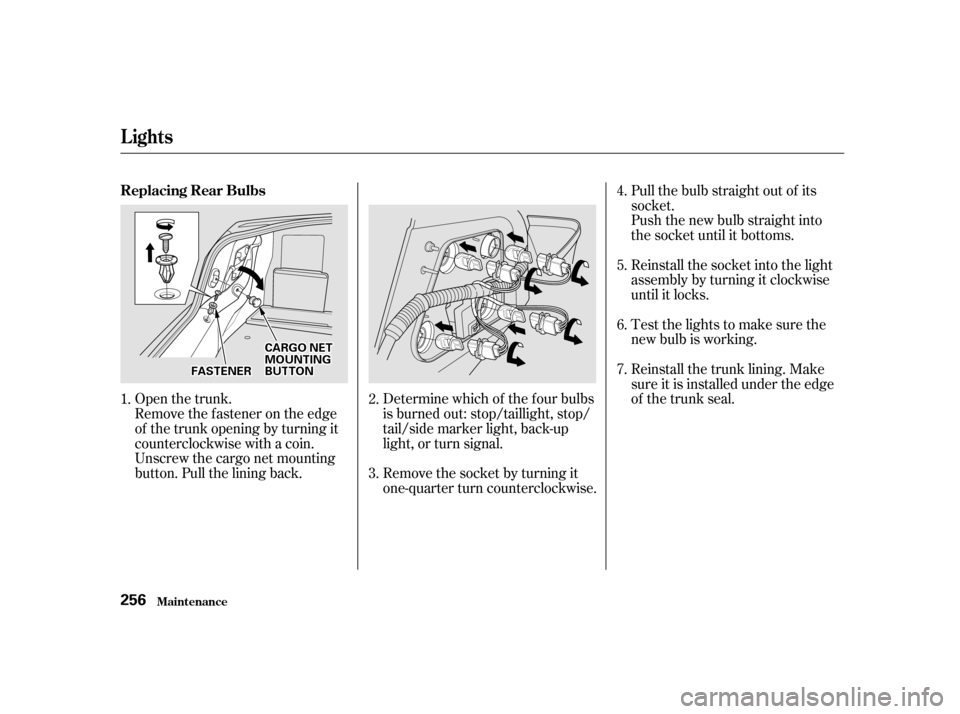

Remove the f astener on the edge
of the trunk opening by turning it
counterclockwise with a coin.
Unscrew the cargo net mounting
button. Pull the lining back. Determine which of the f our bulbs
is burned out: stop/taillight, stop/
tail/side marker light, back-up
light, or turn signal.
Remove the socket by turning it
one-quarter turn counterclockwise.
1.
3. 2.4.
5.
6.
7.
Replacing Rear Bulbs
Lights
Maint enance256
F FA
A S
STTE
EN
NE ER
R C
CA
A R
RGGO O N
NEET
T
M
M O
OUUNNTTI
INNG G
B
BU UT TT
TO
ON N

Open the trunk and remove the
socket f rom the light assembly by
turning it one-quarter turn counter-
clockwise.Reinstall the socket. Turn it
clockwise until it locks.
Testthelightstomakesurethe
new bulb is working.
Put the f astener in the hole on the
side of the trunk lining and push
on the center until it locks (the
center is f lush with the head).
Screw the cargo net mounting
button back into the hole.
Remove the burned-out bulb by
pulling it straight out of the socket.
Install the new bulb in the socket.
1.
2.
8.
9.
3.
4.
Replacing a High-mount Brake
Light Bulb
Lights
Maint enance257

Loosen the f ive wheel nuts 1/2
turn with the wheel wrench.
Turn the jack’s end bracket
counterclockwise to loosen it, then
remove the jack.
The jack is behind a cover in the
right f ender. Remove the cover by
turning the handle counterclock-
wise, then pulling on the cover.
6.
7.8.
T aking Care of t he Unexpect ed
Changing a Flat T ire
274
W WHHE
EE
EL
L W
WR REEN
NC CHH
J
JA
A C
CKK

Ú
CONT INUED
Remove the wheel nuts and f lat
tire. Temporarily place the f lat tire
on the ground with the outside
surf ace of the wheel f acing up.
You could scratch the wheel if you
putitfacedown.
Use the extension and wheel
wrench as shown to raise the
vehicle until the f lat tire is of f the
ground.
Locate the jacking point nearest
thetireyouneedtochange.Itis
pointed to by a mark molded
into the underside of the body.
Place the jack under the jacking
point. Turn the end bracket
clockwise until the top of the jack
contacts the jacking point. Make
sure the jacking point tab is
restinginthejacknotch.
9.
10.
11.
Changing a Flat T ire
T aking Care of t he Unexpect ed275
E EX
X T
TE
EN
NS SIIOON N
J
JA A C
CKKIINNG G P
PO
OI INNT T W
WH
HE
EE
EL
L
W
WR REEN
NC CHH

If the temperature gauge stays at
the red mark, turn of f the engine.
Wait until you see no more signs
of steam or spray, then open the
hood.
If you don’t f ind an obvious leak,
check the coolant level in the
radiator reserve tank (see page). If the level is below the
MIN mark, add coolant to halfway
between the MIN and MAX marks. Look f or any obvious coolant leaks,
such as a split radiator hose.
Everything is still extremely hot,
so use caution. If you f ind a leak, it
must be repaired bef ore you
continue driving (see on page ).
If there was no coolant in the
reserve tank, you may also have to
add coolant to the radiator. Let the
engine cool down until the pointer reaches the middle of the tempera-
ture gauge, or lower, bef ore check-
ing the radiator.
Using gloves or a large heavy
cloth, turn the radiator cap
counterclockwise, without pushing
down, to the f irst stop. This
releases any remaining pressure in
the cooling system. After the
pressure releases, push down on
the cap and turn it until it comes
off.
Start the engine and set the
temperature control dial to
maximum (climate control to
FULL AUTO at 90°F/32°C). Add
coolant to the radiator up to the
base of the f iller neck. If you do
not have the proper coolant
mixture available, you can add
plain water. Remember to have
the cooling system drained and
ref illed with the proper mixture as
soon as you can.
If the temperature stays normal,
check the coolant level in the
radiator reserve tank. If it has
gone down, add coolant to the
MAX mark. Put the cap back on
tightly. Put the radiator cap back on
tightly. Run the engine and watch
the temperature gauge. If it goes
back to the red mark, the engine
needs repair. (See
on page .)
4.
5.
6.
7.
8.
9.10.
12.
11.
295
165 295
Emergency
Towing
Emergency
Towing
If Your Engine Overheats
T aking Care of t he Unexpect ed283
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.

ÎÎ
µ
µ
á áà
à
Î
Î
CONT INUED
Circuits Protected
Amps.
No. Circuits Protected
No. Amps.
Fuel Pump
Main SRS
Heater Control, A/C Clutch
Relay, Cooling Fan Relay
Mirror, Heated Seat, Heated
Mirror
Daytime Running Lights
ECU(PCM),CruiseControl,
VSA
Side SRS
ACC Relay, Navigation
Instrument Panel, Back-up
Lights, Memory Seat
Turn Signals
IG Coil
Wiper, Washer
Starter Signal
On Canadian models 15 A
10 A
7.5 A
7.5 A
7.5 A 15 A
7.5 A
7.5 A
7.5 A
7.5 A 15 A
30 A
7.5 A
1
2
3
4
5
6
7
8
9
10
11
12
13 Moonroof Motor
Driver’s Power Seat
Reclining, Memory Seat
Heated Seat
Driver’s Power Seat Sliding,
Memory Seat
Not Used
Right Power Window
Radio, Power Outlet
Navigation System, Daytime
Running Lights
Interior Light, Seat Memory,
HomeLink
Power Door Locks
Clock, Back Up, Small Light
ABS Motor Check
Driver’s Power Window
Not Used
On Canadian models
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16 30 A
20 A
20 A
20 A
20 A
20 A
20 A
20 A
10 A
7.5 A 20 A
15 A
7.5 A 20 A
:
:
Passenger’s Power Seat Sliding
Passenger’s Power Seat Reclining
Fuses
T aking Care of t he Unexpect ed293
F Frroo n
nt
t F
Frroo n
nt
t
