Check the f luid level with the engine
at normal operating temperature.Remove the dipstick (yellow loop)
f rom the transmission and wipe it
with a clean cloth. Park the car on level ground. Shut
of f the engine. Insert the dipstick all the way into
the transmission securely as
shown in the illustration.
Remove the dipstick and check
the f luid level. It should be
between the upper and lower
marks.If the level is below the lower
mark, remove the f ill plug and add
f luid to bring it to the upper mark.
Always use Honda Premium
Formula Automatic Transmission
Fluid (ATF). If it is not available,
you may use a DEXRON
III
automatic transmission fluid as a
temporary replacement. However,
continued use can af f ect shif t
quality. Have the transmission
drained and ref illed with Honda
ATF as soon as it is convenient.
Insert the dipstick all the way back
into the transmission securely as
shown in the illustration.
The transmission should be drained
and ref illed with new f luid according
to the time and distance recommen-
dations in the maintenance schedule.
If youarenotsurehowtoaddfluid,
contact your Acura dealer.
1.
2.
3.
4.5.
6.
Automatic Transmission Fluid
Maint enance228
U UP
PP
PE
ER
R M
M A
AR
RKK
L
LO OW WE ER
R M
M A
AR
RKK
D
D
I
IPP S
ST TI
ICCK K

A low power steering f luid level can
indicate a leak in the system. Check
the f luid level f requently and have
the system inspected as soon as
possible.
Always use Honda Power Steering
Fluid. If it is not available, you may
use another power steering f luid as
an emergency replacement.
However, continued use can cause
increased wear and poor steering in
cold weather. Have the power
steering system f lushed and ref illed
with Honda PSF as soon as possible.
You should check the f luid level in
the power steering reservoir
monthly. Check the level when the
engine is cold. Look at the side of
the reservoir. The f luid should be
between the UPPER LEVEL and
LOWER LEVEL. If it is below the
LOWER LEVEL, add power steering
f luid to the UPPER LEVEL.
Power Steering
Maint enance230
U UP
PP
PE
ER
R L
LEE V
V E
EL
L
L
LO OW WE ER
R L
LEE V
V E
EL
L
T urning the steering wheel to f ull lef t
or right lock and holding it there can
damage the power steering pump.

CONT INUED
Clean the hood latch assembly with a
mild cleaner, then lubricate it with a
multipurpose grease. Lubricate all
the moving parts (as shown),
including the pivot. Follow the time
and distance recommendations in
the Maintenance Schedule. If you
are not sure how to clean and grease
the latch, contact your Acura dealer.The air cleaner element should be
cleaned or replaced according to the
time and distance recommendations
in the maintenance schedule.
Follow the replacement procedure
for removal and reinstallation.
The air cleaner element is inside the
air cleaner housing on the driver’s
side of the engine compartment.
To replace it:
Removethecruisecontrolcable
f rom its clip. Loosen the f our bolts by using a
Phillips-head screwdriver and
remove the air cleaner housing
cover.
Clean the air cleaner element by
blowing compressed air through it in
the opposite direction to normal air
f low. If you do not have access to
compressed air (such as a service
station), ask your Acura dealer to do
this service.
1. 2.
On Premium model
Premium model
Hood L atch
A ir Cleaner Element
Cleaning (Severe Condit ions)
Replacement
Hood L atch, A ir Cleaner Element
Maint enance231
L LAA T
TC
CH H A
AS
SSSEEM
M B
BLLYY B
BO
OL LTT S
S

´
µ´
µ
Install the ignition coil. Reinstall
the hexagon socket head cap bolt.
Push the wire connector onto the
ignition coil. Make sure it locks in
place.
Repeat this procedure f or the
other f ive spark plugs.
Reinstall the cover on the front
cylinder bank while putting its
mounting clip in the hole on the
passenger’s side. Secure the cover
by turning the heads of the two
holding clips one-quarter turn
clockwise with a f lat-tipped
screwdriver.
Spark Plug Gap:
Spark Plug Gap:
8.
9.
10.
11. NGK:
DENSO:
NGK:
DENSO:
Spark Plugs
Maint enance
Specif ications:
Premium model
Type S
235
0.04 in (1.1 mm)
0.04 in (1.1 mm) PZFR5F-11
PKJ16CR-L11
PZFR6F-11
PKJ20CR-L11
0
0.1 mm0
0.1 mm
Tighten the spark plugs caref ully. A
spark plug that is too loose can
overheat and damage the engine.
Overtightening can cause damage to
the threads in the cylinder head.

Run the air conditioning at least once
a week during the cold weather
months. Run it f or at least ten
minutes while you are driving at a
steady speed with the engine at
normal operating temperature. This
circulates the lubricating oil con-
tained in the ref rigerant.If the air conditioning does not get as
cold as before, have your dealer
check the system. Recharge the
system with Ref rigerant HFC-134a
(R-134a). (See Specif ications on page
.)
Periodically check the engine’s
radiator and air conditioning
condenser f or leaves, insects, and
dirt stuck to the f ront surf ace. These
block the air f low and reduce cooling
ef f iciency. Use a light spray f rom a
hose or a sof t brush to remove them. Your car’s air conditioning is a sealed
system. Any major maintenance,
such as recharging, should be done
by a qualif ied mechanic. You can do
a couple of things to make sure the
air conditioning works ef f iciently. 300
A ir Condit ioning Syst em
Maint enance241
A AI
IRR C
COON NDDI
ITT I
IOON NIINNG G C
COON NDDE
EN
NS SEER
R
Whenever you have the air conditioning
system serviced, make sure the service
f acility uses a ref rigerant recycling
system. This system captures the
ref rigerant f or reuse. Releasing
ref rigerant into the atmosphere can
damage the environment.
The condenser and radiator f ins bend
easily. Only use a low-pressure spray
or sof t-bristle brush to clean them.

If you are changing the bulb on
the driver’s side, start the engine,
turn the steering wheel all the way
to the right, and turn off the
engine. If you are changing the
bulb on the passenger’s side, turn

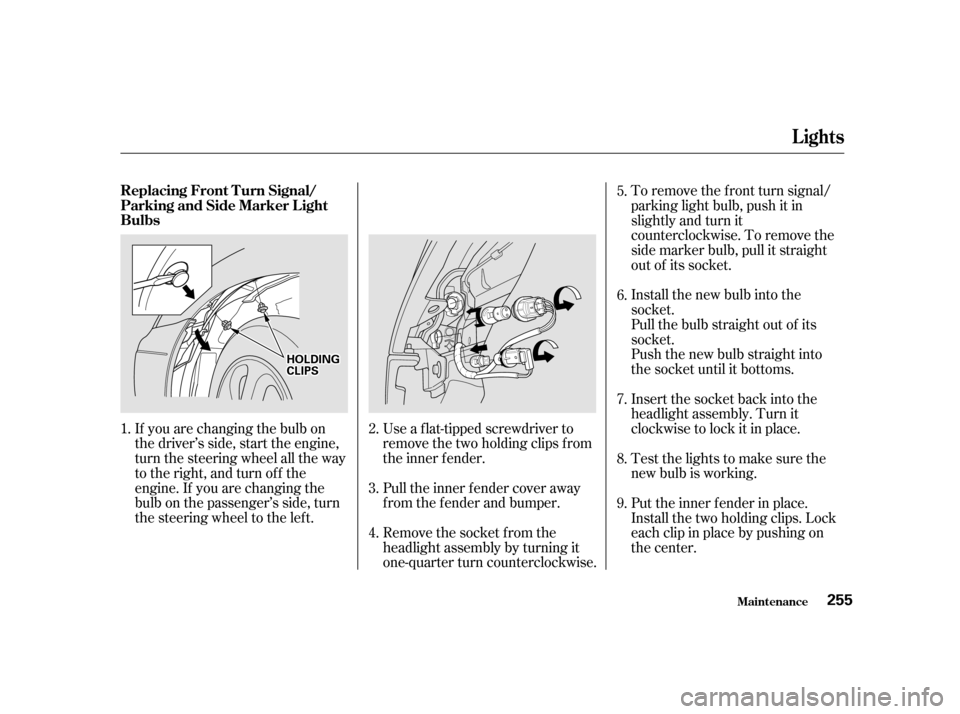

the steering wheel to the left.Use a f lat-tipped screwdriver to
remove the two holding clips f rom
the inner f ender.
Pull the inner f ender cover away
f rom the f ender and bumper.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.To remove the f ront turn signal/
parking light bulb, push it in
slightly and turn it
counterclockwise. To remove the
side marker bulb, pull it straight
out of its socket.
Install the new bulb into the
socket.
Pull the bulb straight out of its
socket.
Push the new bulb straight into
the socket until it bottoms.
Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Testthelightstomakesurethe
new bulb is working.
Put the inner f ender in place.
Install the two holding clips. Lock
each clip in place by pushing on
the center.
1.
2.
3.
4.5.
6.
7.
8.
9.
Lights
Maint enance
Replacing Front Turn Signal/
Parking and Side Marker Light
Bulbs
255
H H
O
OL LDD I
INNG G
C
CL LIIPP S
S

Block the rear wheels.
Fill the f uel tank.
Change the engine oil and f ilter
(see page ).
Wash and dry the exterior
completely.
Cleantheinterior.Makesurethe
carpeting, floor mats, etc. are
completely dry.
Leave the parking brake off. Put
the transmission in Park.
If you need to park your car f or an
extended period (more than one
month), there are several things you
should do to prepare it f or storage.
Proper preparation helps prevent
deterioration and makes it easier to
get your car back on the road. If
possible, store your car indoors.
If the car is to be stored for a
longer period, it should be
supported on jackstands so the
tires are of f the ground.
Leave one window open slightly (if
the car is being stored indoors).Coverthecarwitha‘‘breathable’’
cover, one made f rom a porous
material such as cotton.
Nonporous materials, such as
plastic sheeting, trap moisture,
which can damage the paint.
Disconnect the battery.
Support the f ront wiper blade
arms with a f olded towel or rag so
they do not touch the windshield.
To minimize sticking, apply a
silicone spray lubricant to all door
and trunk seals. Also, apply a
vehiclebodywaxtothepainted
surfaces that mate with the door
and trunk seals. If possible, run the engine f or a
while periodically (pref erably once
amonth).
If you store your car f or 12 months
or longer, have your Acura dealer
perf orm the inspections called f or in
the 24 months/30,000 miles (48,000
km) maintenance schedule (Normal
Conditions) as soon as you take it
out of storage (see page ). The
replacements called f or in the
maintenance schedule are not
needed unless the car has actually
reached that time or mileage.
219
208
Maint enance
St oring Your Car
261

This section covers the more-
common problems that motorists
experience with their vehicles. It
gives you inf ormation about how to
safely evaluate the problem and what
to do to correct it. If the problem has
stranded you on the side of the road,
you may be able to get going again.
If not, you will also f ind instructions
on getting your car towed.......................
Compact Spare Tire . 272
....................
Changing a Flat Tire . 273
..........
If Your Engine Won’t Start . 278
Nothing Happens or theStarter Motor Operates ........................
Very Slowly . 278
The Starter Operates ................................
Normally . 279
................................
Jump Starting . 280
............
If Your Engine Overheats . 282
.........
Low Oil Pressure Indicator . 284
..........
Charging System Indicator . 285
.......
Malf unction Indicator Lamp . 286
...............
Brake System Indicator . 287
..................
Closing the Moonroof . 288
..............................................
Fuses . 289
..........
Checking and Replacing . 290
......................
Emergency Towing . 295
Taking Care of the Unexpected
T aking Care of t he Unexpect ed271

Diagnosing why your engine won’t
start f alls into two areas, depending
on what you hear when you turn the
key to START (III):You hear nothing, or almost
nothing. The engine’s starter
motor does not operate at all, or
operates very slowly.
You can hear the starter motor
operating normally, or the starter
motor sounds like it is spinning
f aster than normal, but the engine
does not start up and run. When you turn the ignition switch to
START (III), you do not hear the
normal noise of the engine trying to
start. You may hear a clicking sound
or series of clicks, or nothing at all.
Check these things:
Check the transmission interlock.
The transmission must be in Park
orNeutralorthestarterwillnot
operate. Your car has the Immobilizer
System. You should use a
properly-coded master or valet key
to start the engine (see page ).
A key that is not properly coded
will cause the immobilizer system
indicator in the dash panel to blink
rapidly.
Store the jack in its holder. Turn
the jack’s end bracket to lock it in
place. Replace the cover. Store the
tools.
Store the center cap in the trunk.
Make sure it does not get scratch-
ed or damaged.
Unhook the handle f rom the trunk
opening and lower the f loor lid.
Close the trunk lid.
78
20.
21.
22.
23.
Changing a Flat Tire, If Your Engine Won’t Start
T aking Care of t he Unexpect ed
If Your Engine Won’t Start Nothing Happens or the Starter Motor Operates Very Slowly
278
Loose items can fly around the
interior in a crash and could
seriously injure the occupants.
Store the wheel, jack and tools
securely before driving.

Turn the ignition switch to ON (II).
Turn on the headlights and check
their brightness. If the headlights
are very dim or don’t light at all,
the battery is discharged. Seeon page .
Turn the ignition switch to START
(III). If the headlights do not dim,
check the condition of the f uses. If
thefusesareOK,thereisproba-
bly something wrong with the
electrical circuit for the ignition
switch or starter motor. You will
need a qualif ied technician to
determine the problem. (See on page .) Do you have f uel? Turn the
ignition switch to ON (II) for a
minute and watch the f uel gauge.
The low f uel level warning light
may not be working, so you were
not reminded to f ill the tank.
There may be an electrical
problem, such as no power to the
f uel pump. Check all the f uses
(see page ).
If youfindnothingwrong,youwill
need a qualif ied technician to f ind
the problem. See on page .
If the headlights dim noticeably or
go out when you try to start the
engine, either the battery is dis-
charged or the connections are
corroded. Check the condition of
the battery and terminal connec-
tions (see page ). You can
then try jump starting the car from
a booster battery (see page ).
In this case, the starter motor’s
speed sounds normal, or even f aster
than normal, when you turn the
ignition switch to START (III), but
the engine does not run. Are you using the proper starting
procedure? Ref er to on page .
280
295 236
280
175 289
295
If Your Engine Won’t Start
T aking Care of t he Unexpect ed
Jump Starting
Emergency T owing Emergency
Towing
T he Starter Operates Normally
Starting the
Engine
279
