Acura CL 2002 Owner's Manual

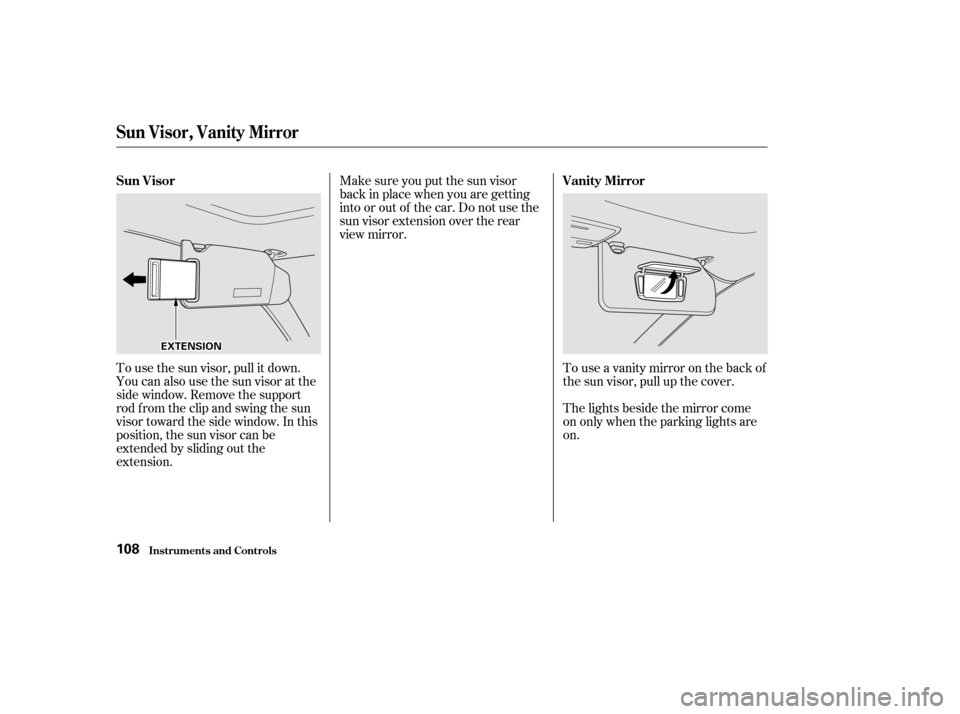

To use the sun visor, pull it down.
You can also use the sun visor at the
side window. Remove the support
rod f rom the clip and swing the sun
visor toward the side window. In this
position, the sun visor can be
extended by sliding out the
extension.Touseavanitymirroronthebackof
the sun visor, pull up the cover.
Make sure you put the sun visor
back in place when you are getting
into or out of the car. Do not use the
sun visor extension over the rear
view mirror.
The lights beside the mirror come
on only when the parking lights are
on.
Sun Visor
Vanity Mirror
Sun Visor, Vanit y Mirror
Inst rument s and Cont rols108
E EX
X T
TE
EN
NS SIIOON N

Your car has two accessory power
sockets. One is located on the f ront
panel next to the coin box, and the
other is in the console compartment.
To use an accessory power socket,
the ignition switch must be in
ACCESSORY (I) or ON (II).
To open the socket on the f ront
panel, pull the cover down.Tousethesocketintheconsole
compartment, pull the cover up.These sockets are intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps).
They will not power an automotive
type cigarette lighter element.
A ccessory Power Socket s
Inst rument s and Cont rols109
A A
C
CCCEES
SS SOOR RYY P
PO
OW WE ER
R S
SOOC CKKEET
T A
A
C
CCCEES
SS SOOR RYY P
PO
OW WE ER
R S
SOOC CKKEET
T
C
CO
OV VE
ER
R

The ceiling light (with the switch in
the center position) comes on when
you remove the key f rom the ignition
switch. If you do not open a door, the
light stays on, then f ades out in
about 10 seconds.
The ceiling light (with the switch in
the center position) also comes on
when you unlock the door with the
remote transmitter (see page ). If
you relock the door, the light turns
of f immediately. Otherwise, it
remains on, then f ades out in about
10 seconds.
The ceiling light has a three-position
switch. In the OFF position, the light
does not come on. In the center
position, the ceiling light comes on
when you open either door. The light
f ades out af ter both doors are closed.
In the ON position, the ceiling light
stays on continuously. Turn on the spotlights by pushing
the button next to each light. Push
the button again to turn it off. You
can use the spotlights at all times.
78
Inst rument s and Cont rols
Interior Lights
Ceiling L ight
Spotlights
110
D DO
OO ORR A
AC
CTTI
IVV A
AT
TE
ED
D
O
ON
N O
OF
FFF

The courtesy light in each door
comes on when the door is opened,
and goes out when the door is closed.
Your car also has a courtesy light in
the ignition switch. This light comes
on when you open the driver’s door.
It remains on f or several seconds
af ter the door is closed.
Interior Lights
Inst rument s and Cont rols
Courtesy Lights
111

112

The standard audio system has
many f eatures. This section de-
scribes those f eatures and how to
use them. The climate control system in your
Acura provides a comf ortable driving
environment in all weather condi-
tions.
Your Acura has an anti-theft audio
system that requires a code number
to enable it.
The security system helps to dis-
courage vandalism and thef t of your
Acura................
Climate Control System . 114
.......
Fully-automatic Operation . 116
.......
Semi-automatic Operation . 117
.......
Fully-automatic Operation . 121
.......
Semi-automatic Operation . 122
Sunlight Sensor/ ............
Temperature Sensor . 126................................
Audio System .127
.................
Operating the Radio . 128
.................
Adjusting the Sound . 131
............
Audio System Lighting . 132
....................
Radio Frequencies . 132
........................
Radio Reception .132
Operating the Cassette .....................................
Player .134
............
Tape Search Functions . 135
Caring f or the Cassette .....................................
Player .138
.....
Operating the CD Changer . 139
..
Loading CDs in the Changer . 140
...................................
Operation .142
Removing CDs from the .................................
Changer .144
.......
Protecting Compact Discs . 146
CD Changer Error .............................
Indications .147
...........
Remote Audio Controls . 148
.......................
Thef t Protection .149
............................
Security System .150
...............................
Cruise Control .151
HomeLink Universal ................................
Transceiver .155
3.2 CL without Navigation System
3.2 CL with Navigation System
Comf ort and Convenience Features
Comf ort and Convenience Feat ures113

The automatic climate control
system in your Acura picks the
proper combination of air condi-
tioning, heating, and ventilation to
maintain the interior temperature
you select. The system also adjusts
the fan speed and air flow levels.
The direction of air f low f rom the
vents in the center and each side of
the dashboard is adjustable. Move
the tab in the center of each vent up-
and-down and side-to-side.The climate control system draws air
through the exterior vents at the
bottom of the windshield. Keep
these vents clear of leaves and other
debris.For the climate control system to
provide heating and cooling, the
engine must be running.
Thesideventscanbeopenedand
closed with the dials underneath
them.
Comf ort and Convenience Feat ures
Climat e Cont rol Syst em
114
O Op
pe
enn
C
Cl loo s
see
C
CE
EN
NT TE
ER
R V
VE
EN
NT T D
DR
RIIVV E
ER
R’ ’SS- -S
SI IDD E
E V
VE
EN
NT T

Climat e Cont rol Syst em
Comf ort and Convenience Feat ures115
P
PA
A S
SSSEEN
NG GEER
R’ ’SS- -S
SI IDD E
E V
VE
EN
NT T
O
Op pe
enn C
Cl
loo s
see

Pressing the OFF button shuts the
climate control system completely
of f . Keep the system completely of f
only f or short periods. To keep stale
air and mustiness f rom collecting,
you should have the f an running at
all times.

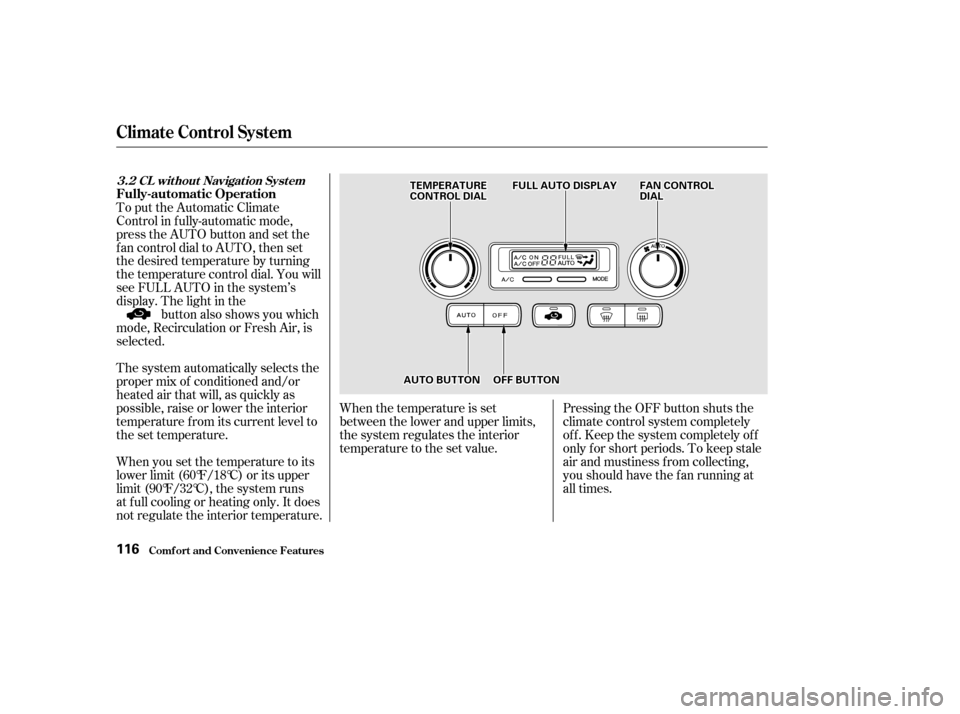

To put the Automatic Climate
Control in f ully-automatic mode,
press the AUTO button and set the
f an control dial to AUTO, then set
the desired temperature by turning
the temperature control dial. You will
see FULL AUTO in the system’s
display. The light in the
buttonalsoshowsyouwhich
mode, Recirculation or Fresh Air, is
selected.
When you set the temperature to its
lower limit (60°F/18°C) or its upper
limit (90°F/32°C), the system runs
at f ull cooling or heating only. It does
not regulate the interior temperature. When the temperature is set
between the lower and upper limits,
the system regulates the interior
temperature to the set value.
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature f rom its current level to
the set temperature.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Fully-automatic Operation
3.2 CL wit hout Navigat ion Syst em
116
T T
E
EM
M P
PE
ER
RA A T
TU
UR REE
C
CO ON NTTR
RO OL L D
DI
IAA L
L
O
OFFFF B
BUUT TT
TO
ON N
A
A U
UT TO
O B
BUUT TT
TO
ON N F
FU
UL LLL A
AU
UT TO
O D
DI
ISSP PL
LAA Y
Y F
FAA N
N C
COON NTTR
RO OL L
D
D I
IAA L
L

CONT INUED
You can manually select various
f unctions of the Climate Control
system when it is in FULL AUTO.
All other f eatures remain auto-
matically controlled. Making any
manual selection causes the word
FULL to go out.
Press the A/C button to turn the air
conditioningonandoff.Youwillsee
A/C ON or A/C OFF in the display.
When you turn the A/C of f , the sys-
tem cannot regulate the inside tem-
perature if you set the dial below the
outside temperature. With the A/C
on, use the temperature control dial
to adjust the temperature of the air
flow to a comfortable setting.This button controls the source of
the air going into the system. When
the indicator in this button is lit, air
from the car’s interior is sent
through the system again
(Recirculation mode). When the
indicator is of f , air is brought in f rom
outside the car (Fresh Air mode).You can, f or example, manually put
the system in recirculation mode
when driving through an area of
smoke or f umes.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Semi-automatic Operation
A ir Condit ioning (A /C) But t on
Recirculat ion But t on
117
R REEC
CI IRRC CUUL LAA T
TI
IOON N B
BUUT TT
TO
ON N
A
A
I
IRR C
COON NDDI
ITT I
IOON NIINNG G B
BUUT TT
TO
ON N
T
T E
EM
M P
PE
ER
RA A T
TU
UR REE
C
CO ON NTTR
RO OL L D
DI
IAA L
L
