This position mechani-
cally locks the transmission. Use
Park whenever you are turning of f or
starting the engine. To shif t out of
Park, you must press on the brake
pedal and have your f oot of f the
accelerator pedal. Move the shif t
lever to the right to shif t out of the
Park position.
To avoid transmission damage, come
to a complete stop bef ore shif ting
into Park. The shif t lever must be in
Park bef ore you can remove the key
from the ignition switch. To shif t to Reverse
f rom Park, see the explanation under
Park. To shif t to Reverse f rom
Neutral, come to a complete stop and
then shift.
If you have done all of the above and
still cannot move the lever out of
Park, see Shif t Lock Release on page . Your car has a reverse lockout so
you cannot accidentally shif t to
Reverse from Neutral or any other
driving position when the vehicle
speed exceeds 7 9 mph (12 14
km/h).
If you cannot shif t to Reverse when
the car is stopped, press the brake
pedal and slowly shif t to Neutral, and
then to Reverse.
If there is a problem in the reverse
lockout system, or your car’s battery
is disconnected or goes dead, you
cannot shif t to Reverse. (Ref er to
Shif t Lock Release on page ).
185
185
Automatic Transmission
Driving
Park (P)Reverse (R)
180

If you have the skills and tools to per-
f orm more complex maintenance
tasks on your Acura, you may want
to purchase the Service Manual. See
page f or inf ormation on how to
obtain a copy, or see your Acura
dealer. This section also includes
Maintenance Schedules f or normal
driving and severe driving conditions,
a Maintenance Record, and instruc-
tions f or simple maintenance tasks
you may want to take care of
yourself . This section explains why it is
important to keep your car well
maintained and to f ollow basic
maintenance saf ety precautions.......................
Maintenance Saf ety .206
.
Important Safety Precautions . 207
.................
Maintenance Schedule . 208
...
Required Maintenance Record . 215
.......
Owner Maintenance Checks . 217
..............................
Fluid Locations .218
......................................
Engine Oil .219
..................................
Adding Oil .219
....................
Recommended Oil .219
..............................
Synthetic Oil .220
....................................
Additives .220
.....
Changing the Oil and Filter . 221
.............................
Cooling System .223
............
Adding Engine Coolant . 223
.......
Replacing Engine Coolant . 225
....................
Windshield Washers .229
....
Automatic Transmission Fluid . 230
....................................
Brake Fluid .231
............................
Brake System .231
..............................
Power Steering .232
....................................
Hood Latch .233
.....................
Air Cleaner Element .233
....................................
Spark Plugs .235
..............................
Replacement .235
............................
Specif ications .237
...........................................
Battery .238 .................................
Wiper Blades .241
..............
Air Conditioning System . 243
..................
Dust and Pollen Filter . 244
.....................................
Drive Belts .244
....................................
Timing Belt .245
...............................................
Tires .245
......................................
Inf lation .245
..................................
Inspection .247
..............................
Maintenance .248
.............................
Tire Rotation .248
...
Replacing Tires and Wheels . 249
......................
Wheels and Tires .250
..........................
Winter Driving .250
.............................
Snow Tires .251
............................
Tire Chains .251
.............................................
Lights .252
.....................
Headlight Aiming .254
........................
Replacing Bulbs .254
...........................
Storing Your Car .263
321
Maintenance
Maint enance205

Be sure
there is adequate ventilation
whenever you operate the engine.
Let the
engine and exhaust system cool
bef ore touching any parts.
Do
not run the engine unless in-
structed to do so. Read the instructions before you
begin, and make sure you have the
tools and skills required.
To reduce the possibility of f ire or
explosion, be caref ul when working
around gasoline or batteries. Use a
commercially available degreaser or
parts cleaner, not gasoline, to clean
parts. Keep cigarettes, sparks, and
flames away from the battery and all
f uel-related parts.
Bef ore you begin any maintenance,
make sure your car is parked on
level ground and that the parking
brake is set. Also, be sure the engine
is of f . This will help to eliminate
several potential hazards:
You should wear eye protection and
protective clothing when working
near the battery or when using
compressed air.
Maintenance Saf ety
Maint enance
Important Saf ety Precautions
Carbon monoxide poisoning
f rom engine exhaust.
Burns f rom hot parts.
Injury f rom moving parts.
207

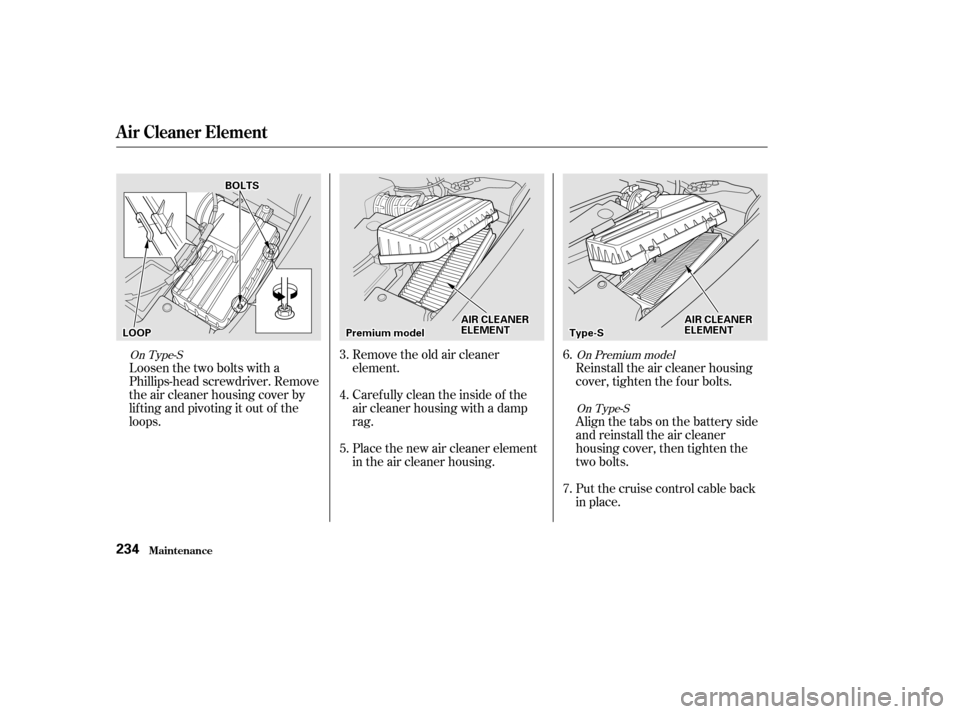

Loosen the two bolts with a
Phillips-head screwdriver. Remove
the air cleaner housing cover by
lif ting and pivoting it out of the
loops.Remove the old air cleaner
element.
Caref ully clean the inside of the
air cleaner housing with a damp
rag.
Place the new air cleaner element
in the air cleaner housing.Reinstall the air cleaner housing
cover, tighten the f our bolts.
Align the tabs on the battery side
and reinstall the air cleaner
housing cover, then tighten the
two bolts.
Put the cruise control cable back
in place.
3.
4.
5.
6.
7.
On Premium model
On Type-S
On Type-S
A ir Cleaner Element
Maint enance234
A AI
IRR C
CLLEE A
A N
NE ER
R
E
E L
LEE M
M E
EN
NT T
L
LO OO OPP P
Pr
reem m i
iuu m
m m
mo
od
de
ell A
A
I
IRR C
CLLEE A
A N
NE ER
R
E
E L
LEE M
M E
EN
NT T
B
BO
OL LTT S
S
T
Ty
ypp e
e--S
S

Check the battery condition by
looking at the test indicator window
on the battery.
The label on the battery explains the
test indicator’s colors.
Check the condition of your car’s
battery monthly. You should check
the color of the test indicator window,
and f or corrosion on the terminals.
To remove the battery cover, pull up
on the right side of the cover to
remove it from the bolt, then pull the
cover out.
To reinstall the cover, insert the pins
ontheleftsideof thecoverintothe
holes and put the cover over the
battery, then push the right side of
the cover over the bolt.
Maint enance
Battery
238
T TE
ES
ST T I
INND DI
ICCA A T
TO
OR R W
WI INND DO
OW W
T
T
E
ES
ST T I
INND DI
ICCA A T
TO
OR R W
WI INND DO
OW W B
BA
A T
TT
TE
ER
RY Y
C
CO OV VE
ER
R

µ
Check the battery terminals for
corrosion (a white or yellowish
powder). To remove it, cover the
terminals with a solution of baking
soda and water. It will bubble up and
turn brown. When this stops, wash it
of f with plain water. Dry of f the
battery with a cloth or paper towel.
Coat the terminals with grease to
help prevent f uture corrosion.
If the terminals are severely cor-
roded, clean them with baking soda
and water. Then use a wrench to
loosen and remove the cables f rom
the terminals. Always disconnect the
negative ( ) cable f irst and recon-
nect it last. Clean the battery termi-
nals with a terminal cleaning tool or
wire brush. Reconnect and tighten
the cables, then coat the terminals
with grease.If you need to connect the battery to
a charger, disconnect both cables to
prevent damage to the car’s
electrical system.
Battery posts,
terminals and related accessories
contain lead and lead compounds.
CONT INUED
Battery
Maint enance
WARNING:
Wash hands af ter handling.
239
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or have a skilled
mechanic do the battery
maintenance.

If your car’s battery is disconnected
or goes dead, the audio system will
disableitself.Thenexttimeyouturn
on the radio you will see ‘‘COdE’’ in
the f requency display. Use the
Preset buttons to enter the five-digit
code (see page ).If your car’s battery is disconnected
or goes dead, all stored driving
positions will be lost. To store the
driving positions again, see the
storingprocedureonpage .
The Navigation System will also
disableitself.Thenexttimeyouturn
on the ignition switch, the system
will require you to enter a PIN
bef ore it can be used. Ref er to the
Navigation System Owner’s Manual.
149
95
3.2 CL with Navigation System
Battery
Maint enance240
Charging the battery with the cables
connected can seriously damage your
car’s electronic controls. Detach the
battery cables bef ore connecting the
battery to a charger.

Block the rear wheels.
Fill the f uel tank.
Change the engine oil and f ilter
(see page ).
Wash and dry the exterior
completely.
Cleantheinterior.Makesurethe
carpeting, floor mats, etc. are
completely dry.
Leave the parking brake off. Put
the transmission in Park.
If you need to park your car f or an
extended period (more than one
month), there are several things you
should do to prepare it f or storage.
Proper preparation helps prevent
deterioration and makes it easier to
get your car back on the road. If
possible, store your car indoors.
If the car is to be stored for a
longer period, it should be
supported on jackstands so the
tires are of f the ground.
Leave one window open slightly (if
the car is being stored indoors).Coverthecarwitha‘‘breathable’’
cover, one made f rom a porous
material such as cotton.
Nonporous materials, such as
plastic sheeting, trap moisture,
which can damage the paint.
Disconnect the battery.
Support the f ront wiper blade
arms with a f olded towel or rag so
they do not touch the windshield.
To minimize sticking, apply a
silicone spray lubricant to all door
and trunk seals. Also, apply a
vehiclebodywaxtothepainted
surfaces that mate with the door
and trunk seals. If possible, run the engine f or a
while periodically (pref erably once
amonth).
If you store your car f or 12 months
or longer, have your Acura dealer
perf orm the inspections called f or in
the 24 months/30,000 miles (48,000
km) maintenance schedule (Normal
Conditions) as soon as you take it
out of storage (see page ). The
replacements called f or in the
maintenance schedule are not
needed unless the car has actually
reached that time or mileage.
221
210
Maint enance
St oring Your Car
263

When you turn the ignition switch to
START (III), you do not hear the
normal noise of the engine trying to
start. You may hear a clicking sound
or series of clicks, or nothing at all.
Check these things:Check the transmission interlock.
The transmission must be in Park
orNeutralorthestarterwillnot
operate.
Turn the ignition switch to ON (II).
Turn on the headlights and check
their brightness. If the headlights
are very dim or don’t light at all,
the battery is discharged. See on page . Turn the ignition switch to START
(III). If the headlights do not dim,
check the condition of the f uses. If
thefusesareOK,thereisproba-
bly something wrong with the
electrical circuit for the ignition
switch or starter motor. You will
need a qualif ied technician to
determine the problem. (See
on page .)If the headlights dim noticeably or
go out when you try to start the
engine, either the battery is dis-
charged or the connections are
corroded. Check the condition of
the battery and terminal connec-
tions (see page ). You can
then try jump starting the car from
a booster battery (see page ).
283
238
300
283
If Your Engine Won’t Start
T aking Care of t he Unexpect ed
Nothing Happens or the Starter
Motor Operates Very Slowly
Jump Starting Emergency T owing
281

If your car’s battery has run down,
you may be able to start the engine
by using a booster battery. Although
this seems like a simple procedure,
you should take several precautions.Turn of f all the electrical acces-
sories: climate control, stereo
system, lights, etc.
Put the transmission in Neutral or
Park, and set the parking brake.
Remove the battery cover (see
page ).
To jump start your car, f ollow these
directions closely:
Open the hood and check the
physical condition of the battery
(see page ). In very cold
weather, check the condition of
the electrolyte. If it seems slushy
or like ice, do not try jump starting
until it thaws.
You cannot start your Acura by
pushing or pulling it.
1.
2.
3.
238
238
CONT INUED
Jump Starting
T aking Care of t he Unexpect ed283
A battery can explode if you do
not follow the correct procedure,
seriously injuring anyone
nearby.
Keep all sparks, open flames,
and smoking materials away
from the battery. If a battery sits in extreme cold, the
electrolyte inside can f reeze.
Attempting to jump start with a f rozen
battery can cause it to rupture.
