uuGauges and Multi-Information DisplayuMulti-Information Display
80Instrument Panel
Shows the total number of miles or kilometers that your vehicle has accumulated.
Shows the total number of miles or kilometers driven since the last reset. Meters A
and B can be used to measure two separate trips.■Resetting a trip meter
To reset a trip meter, display it, then press and hold the SEL/RESET button. The trip
meter is reset to 0.0.■Odometer■Trip Meter
Odometer
Outside temperatureTrip A Trip B SEL/RESET
Button
SEL/RESET Button
SEL/RESET
Button
1Trip Meter
Switch between trip meter A and trip meter B by
pressing the SEL/RESET button.

Continued
81
uuGauges and Multi-Information DisplayuMulti-Information Display
Instrument Panel
Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada).■Adjusting the outside temperature display
Adjust the temperature reading up to ± 5°F or ± 3°C if the temperature reading
seems incorrect.
Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your trips in the past.
Shows the time elapsed since the last time Trip A or Trip B was reset.■Outside Temperature■Average Fuel Economy■Instant Fuel Economy■Range■Elapsed Time
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Use the multi-information display's customized
features to correct the temperature.
2Customized Features P. 831Average Fuel Economy
You can change the way the average fuel economy is
reset.
2Customized Features P. 83

82
uuGauges and Multi-Information DisplayuMulti-Information Display
Instrument Panel
Shows the average speed in mph or km/h since the last time Trip A or Trip B was
reset.
Shows the remaining oil life and Maintenance Minder
TM.
2Maintenance Minder
TM P. 251
■Average Speed■Engine Oil Life

Continued
83
uuGauges and Multi-Information DisplayuMulti-Information Display
Instrument Panel
Use the multi-information display to customize certain features.■How to customize
Press the button to select CUSTOMIZE SETTINGS while the power mode
is in ON.■Customized Features
1Customized Features
To customize other features, press the
button.
2List of customizable options P. 85
When you customize settings:
Shift to
(P
Set the parking brakeAutomatic transmission modelsManual transmission models
Multi-Information
Display:
Goes to customize
settings.
SEL/RESET Button:
Enters the selected item Button:
Changes the customize
menus and items

84
uuGauges and Multi-Information DisplayuMulti-Information Display
Instrument Panel

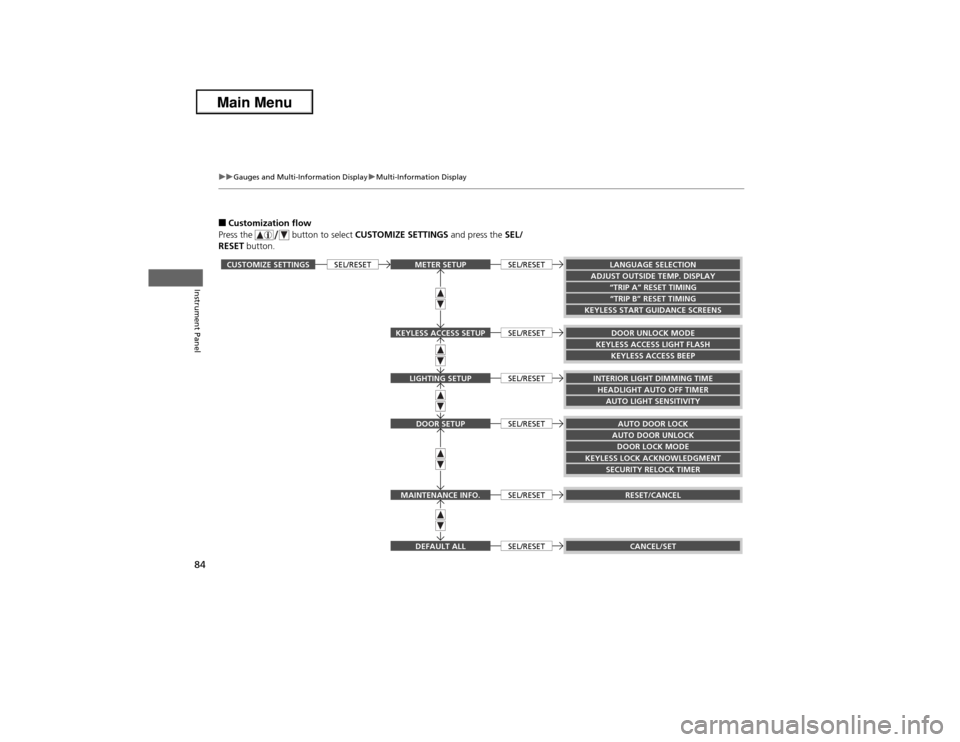

■Customization flow
Press the button to select CUSTOMIZE SETTINGS and press the SEL/
RESET button.CUSTOMIZE SETTINGS
LANGUAGE SELECTION
ADJUST OUTSIDE TEMP. DISPLAY
“TRIP B” RESET TIMING
KEYLESS START GUIDANCE SCREENS
KEYLESS ACCESS BEEP
INTERIOR LIGHT DIMMING TIMEHEADLIGHT AUTO OFF TIMER
AUTO DOOR LOCKAUTO DOOR UNLOCK
KEYLESS LOCK ACKNOWLEDGMENT
DOOR LOCK MODESECURITY RELOCK TIMER“TRIP A” RESET TIMINGDOOR UNLOCK MODE
KEYLESS ACCESS LIGHT FLASHAUTO LIGHT SENSITIVITY
RESET/CANCELCANCEL/SET
SEL/RESET
METER SETUPDOOR SETUPDEFAULT ALLLIGHTING SETUP
KEYLESS ACCESS SETUPMAINTENANCE INFO.
SEL/RESETSEL/RESETSEL/RESETSEL/RESETSEL/RESETSEL/RESET

85
uuGauges and Multi-Information DisplayuMulti-Information Display
Continued
Instrument Panel

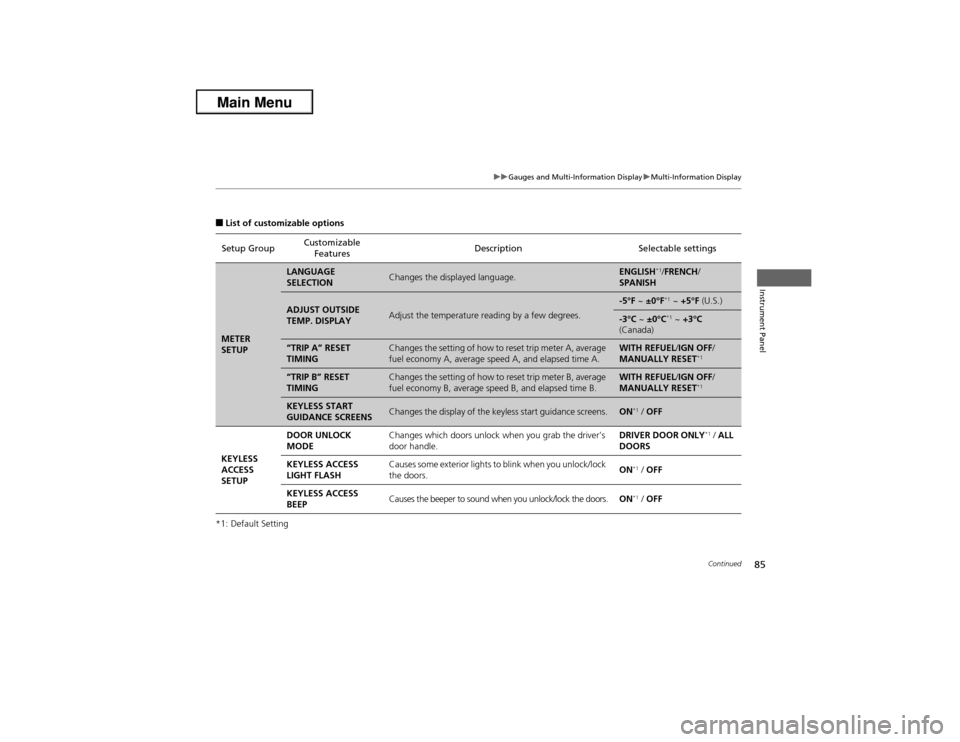

■List of customizable options
*1: Default SettingSetup GroupCustomizable
FeaturesDescription Selectable settingsMETER
SETUP
LANGUAGE
SELECTION
Changes the displayed language.
ENGLISH
*1/FRENCH/
SPANISH
ADJUST OUTSIDE
TEMP. DISPLAY
Adjust the temperature reading by a few degrees.
-5°F ~ ±0°F
*1 ~ +5°F (U.S.)
-3°C ~ ±0°C
*1 ~ +3°C
(Canada)
“TRIP A” RESET
TIMING
Changes the setting of how to reset trip meter A, average
fuel economy A, average speed A, and elapsed time A.
WITH REFUEL/IGN OFF/
MANUALLY RESET
*1
“TRIP B” RESET
TIMING
Changes the setting of how to reset trip meter B, average
fuel economy B, average speed B, and elapsed time B.
WITH REFUEL/IGN OFF/
MANUALLY RESET
*1
KEYLESS START
GUIDANCE SCREENS
Changes the display of the keyless start guidance screens.
ON
*1 / OFF
KEYLESS
ACCESS
SETUPDOOR UNLOCK
MODEChanges which doors unlock when you grab the driver’s
door handle.DRIVER DOOR ONLY
*1 / ALL
DOORS
KEYLESS ACCESS
LIGHT FLASHCauses some exterior lights to blink when you unlock/lock
the doors.ON
*1 / OFF
KEYLESS ACCESS
BEEPCauses the beeper to sound when you unlock/lock the doors.ON*1 / OFF

86
uuGauges and Multi-Information DisplayuMulti-Information Display
Instrument Panel
*1:Default Setting
*2:Default Setting for automatic transmission
*3:Default Setting for manual transmissionSetup

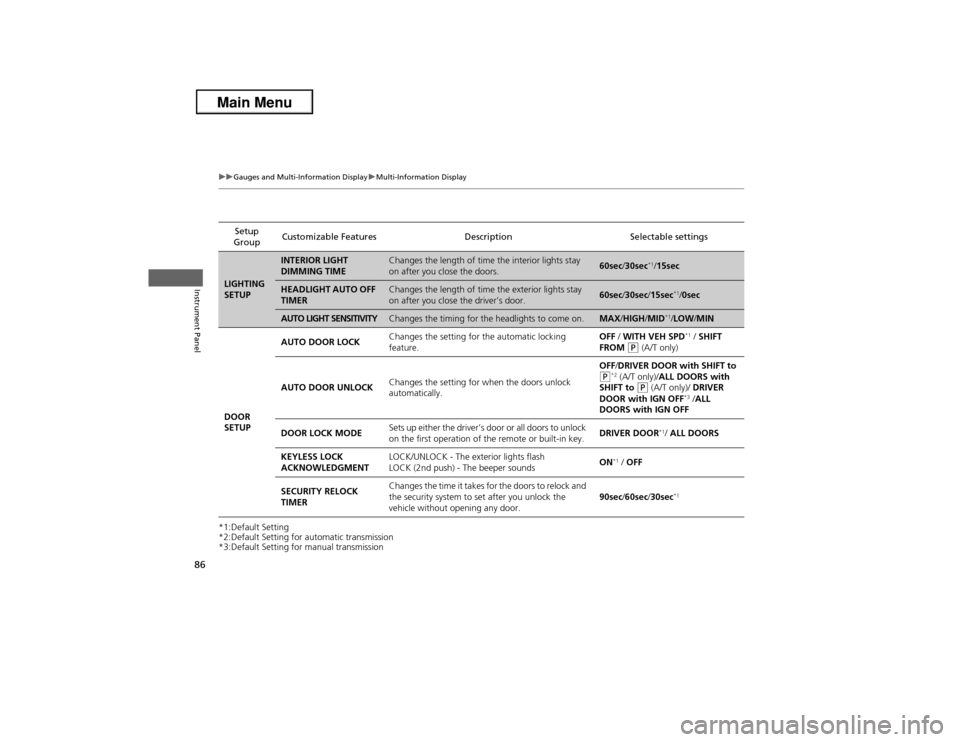

GroupCustomizable Features Description Selectable settingsLIGHTING
SETUP
INTERIOR LIGHT
DIMMING TIME
Changes the length of time the interior lights stay
on after you close the doors.
60sec/30sec
*1/15sec
HEADLIGHT AUTO OFF
TIMER
Changes the length of time the exterior lights stay
on after you close the driver’s door.
60sec/30sec/15sec
*1/0sec
AUTO LIGHT SENSITIVITY
Changes the timing for the headlights to come on.
MAX/HIGH/MID
*1/LOW/MIN
DOOR
SETUPAUTO DOOR LOCKChanges the setting for the automatic locking
feature.OFF / WITH VEH SPD
*1 / SHIFT
FROM
(P (A/T only)
AUTO DOOR UNLOCKChanges the setting for when the doors unlock
automatically.OFF/DRIVER DOOR with SHIFT to
(P*2 (A/T only)/ALL DOORS with
SHIFT to
(P (A/T only)/ DRIVER
DOOR with IGN OFF
*3 /ALL
DOORS with IGN OFF
DOOR LOCK MODESets up either the driver’s door or all doors to unlock
on the first operation of the remote or built-in key.DRIVER DOOR
*1/ ALL DOORS
KEYLESS LOCK
ACKNOWLEDGMENTLOCK/UNLOCK - The exterior lights flash
LOCK (2nd push) - The beeper soundsON
*1 / OFF
SECURITY RELOCK
TIMERChanges the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening any door.90sec/60sec/30sec
*1

87
uuGauges and Multi-Information DisplayuMulti-Information Display
Continued
Instrument Panel
Setup Group Customizable Features Description Selectable settings
MAINTENANCE INFO.
Reset the Maintenance Minder
TM.
RESET/CANCEL
DEFAULT ALLSets/Cancels all the customized settings as default.CANCEL/SET

88
uuGauges and Multi-Information DisplayuMulti-Information Display
Instrument Panel

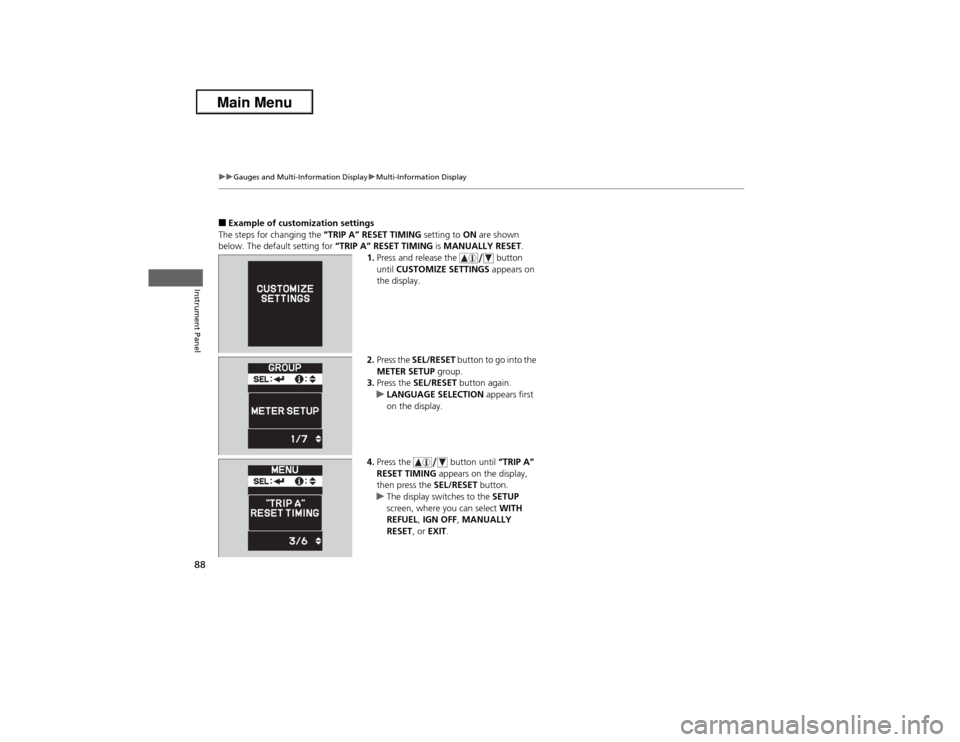

■Example of customization settings
The steps for changing the “TRIP A” RESET TIMING setting to ON are shown
below. The default setting for “TRIP A” RESET TIMING is MANUALLY RESET.
1.Press and release the button
until CUSTOMIZE SETTINGS appears on
the display.
2.Press the SEL/RESET button to go into the
METER SETUP group.
3.Press the SEL/RESET button again.
uLANGUAGE SELECTION appears first
on the display.
4.Press the button until “TRIP A”
RESET TIMING appears on the display,
then press the SEL/RESET button.
uThe display switches to the SETUP
screen, where you can select WITH
REFUEL, IGN OFF, MANUALLY
RESET, or EXIT.

89
uuGauges and Multi-Information DisplayuMulti-Information Display
Instrument Panel

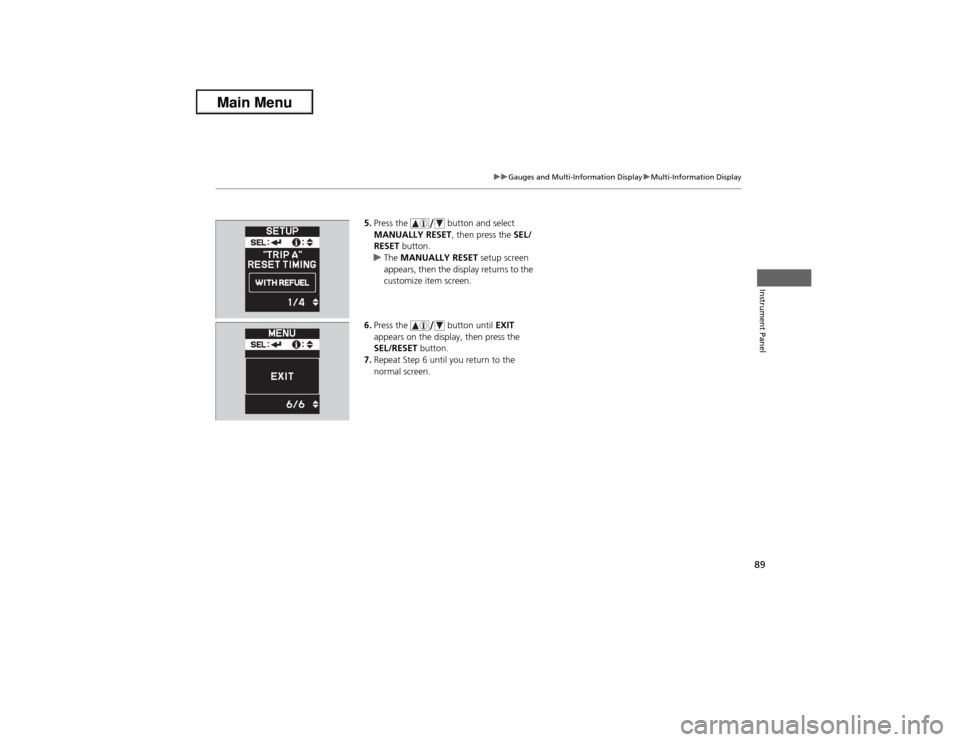

5.Press the button and select
MANUALLY RESET, then press the SEL/
RESET button.
uThe MANUALLY RESET setup screen
appears, then the display returns to the
customize item screen.
6.Press the button until EXIT
appears on the display, then press the
SEL/RESET button.
7.Repeat Step 6 until you return to the
normal screen.
