2Safe Driving P. 21For Safe Driving P. 22 Seat Belts P. 26 Airbags P. 332Instrument Panel P. 63Indicators P. 64 Gauges and Multi-Information Display P. 782Controls P. 91Setting the Clock P. 92 Locking and Unlocking the Doors P. 93
Opening and Closing the Moonroof P. 111
Adjusting the Seats P. 1232Features P. 141Audio System P. 142 Audio System Basic Operation P. 145
HomeLink® Universal Transceiver
* P. 177
2Driving P. 209Before Driving P. 210 Towing a Trailer P. 215
Multi-View Rear Camera
* P. 242 Refueling P. 243
2Maintenance P. 247Before Performing Maintenance P. 248 Maintenance Minder
TM P. 251
Checking and Maintaining Wiper Blades P. 284
Climate Control System Maintenance P. 297
2Handling the Unexpected P. 303Tools P. 304 If a Tire Goes Flat P. 305
Overheating P. 318 Indicator, Coming On/Blinking P. 3202Information P. 329Specifications P. 330 Identification Numbers P. 334
Emissions Testing P. 337 Warranty Coverages P. 339

2Quick Reference Guide
Quick Reference GuideVisual Index
❙Audio System
(P 142)
❙Rear Window Defogger/
Heated Mirror Button
(P 120)
❙Steering Wheel Adjustments
(P 120)
❙
(Vehicle Stability Assist (VSA®) System OFF) Button
(P 233)
❙Climate Control System
(P 136)
❙System Indicators
(P 64)
❙Gauges
(P 78)
❙Multi-Information Display
(P 79)
❙Hazard Warning Button❙ENGINE START/STOP Button
(P 112)
❙Navigation System
*
() See Navigation System Manual❙Audio/Information Screen
* (P 146)

8Quick Reference Guide
Instrument Panel
(P 63)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake System
(ABS) Indicator
Vehicle Stability Assist
(VSA®) System
Indicator
VSA® OFF IndicatorElectric Power Steering
(EPS) System Indicator
Lights Reminders
Lights On Indicator
High Beam Indicator
Fog Light Indicator
*
Immobilizer System
IndicatorSeat Belt Reminder
Indicator
System Indicators
CRUISE CONTROL
Indicator
System Message
Indicator Parking Brake and
Brake System
IndicatorSupplemental
Restraint System
Indicator
Side Airbag Off
Indicator Door and Trunk Open
Indicator
CRUISE MAIN
Indicator Low Fuel Indicator
Gauges
(P 78)
/Multi-Information Display
(P 79)
/System Indicators
(P 64)
Low Tire Pressure/
TPMS IndicatorTurn Signal and
Hazard Warning
Indicators Keyless Access System
Indicator
Temperature Gauge
Security System Alarm Indicator
Fuel Gauge
Tachometer
Multi-Information Display
Speedometer
Shift Lever Position Indicator
*
Gear Position Indicator
*

11Quick Reference Guide
Climate Control System
(P 136)
●Press the AUTO button to activate the climate control system.
●Press the button to turn the system on or off.
●Press the button to defrost the windshield.
The climate control system is voice operable. See Navigation System Manual for complete
details.
On models with navigation systemDriver's Side
Temperature
Control Dial
A/C (Air Conditioning) Button
Air flows from floor and
windshield defroster vents. Air flows from floor vents. Air flows from floor and
dashboard vents. Air flows from dashboard vents.AUTO Button
(Recirculation) Button
Passenger's Side
Temperature
Control Dial
MODE Control Button
(ON/OFF) Button
SYNC (Synchronized) Button (Windshield Defroster) Button
/ (Fan Control) Buttons
(Rear Window Defogger/
Heated Mirror) Button
Clock
(P 92)
a
Press the CLOCK (AUX) button until the
displayed time begins flashing.
b
Press Preset
(4 (Hour) or
(5 (Minute)
to set the time. Press Preset (6 (Reset)
to set the time to the nearest hour.
c
Press the CLOCK button again to set
the time.
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
Models without navigation systemModels with navigation system
* Not available on all models

12Quick Reference Guide
Features
(P 141)
Audio system
(P 142)
For navigation system operation

() See Navigation System Manual
Audio/
Information Screen
Selector KnobVOL / (Volume/Power) Knob
CD Button CD Slot
(CD Eject) ButtonPreset Buttons
SETUP Button PHONE ButtonDISPLAY Button A.SEL(Auto Select)
ButtonSKIP Bar AUX Button
BACK Button SCAN Button CATEGORY Bar
*
FM/AM Button
*
(XM®) Button
*
FM Button
*
AM Button
*
FOLDER Bar
*
●Audio Remote Controls (P 149)
●VOL (Volume) Button
Press / to adjust the volume up/
down.
●MODE Button
Press and release to change the audio
mode: FM1/FM2/AM/XM1
*/XM2
*/CD/AUX.
●CH (Channel) Button
Radio: Press and release to change the
preset station.
Press and hold to select the next or
previous strong station.
CD/USB device:
Press and release to skip to the
beginning of the next song or
return to the beginning of the
current song.
Press and hold to change a folder.
CH ButtonMODE Button VOL Button

44
uuAirbagsuAirbag System Indicators
Safe Driving
Airbag System IndicatorsIf a problem occurs in the airbag system, the SRS indicator will come on and a
message appears on the multi-information display.
■When the power mode is set to ON
The indicator comes on for a few seconds,
then goes off. This tells you the system is
working properly.
If the indicator comes on at any other time, or does not come on at all, have the
system checked by a dealer as soon as possible. If you don't, your airbags and seat
belt tensioners may not work properly when they are needed.
■SRS (Supplemental Restraint System) Indicator
1SRS (Supplemental Restraint System) Indicator
3
WARNING
Ignoring the SRS indicator can result in
serious injury or death if the airbag systems
or tensioners do not work properly.
Have your vehicle checked by a dealer as
soon as possible if the SRS indicator alerts
you to a possible problem.
* Not available on all models

63
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 64
Multi-Information Display Warning and
Information Messages ...................... 73
Gauges and Multi-Information Display
Gauges .............................................. 78
Multi-Information Display .................. 79

70
uuIndicatorsu
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message
System Message
Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.●Comes on along with a beep when a
problem is detected. A system
message on the multi-information
display appears at the same time.
●While the indicator is on, press the
(information) button to see the message
again.●Refer to the Indicators information in this
chapter when a system message appears on
the multi-information display. Take the
appropriate action for the message.●The multi-information display does not return
to the normal screen unless the warning is
canceled, or the button is pressed.
—
Turn Signal
Indicators
●The turn signal indicators blink when
you operate the turn signal lever.●If you press the hazard warning
button, both indicators and all turn
signals blink at the same time.
●Does not blink or blinks rapidly - A turn
signal light bulb has blown. Change the
bulb immediately.
2Replacing Light Bulbs P. 278, 280
—
High-Beam
Indicator
●Comes on when the high beam
headlights are on.
—
—
Lights On
Indicator
●Comes on whenever the light switch
is on, or in AUTO when the exterior
lights are on.
●If you set the power mode to ACCESSORY
or VEHICLE OFF (LOCK) while the exterior
lights are on, a chime sounds when the
driver's door is opened.
—
Fog Light
Indicator
*
●Comes on when the fog lights are
on.
—
—
* Not available on all models

73
uuIndicatorsuMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
Multi-Information Display Warning and Information MessagesThe following messages appear only on the multi-information display. Press the (information) button to see the message again
with the system message indicator on.
Message
Condition
Explanation
●Appears when the fuel fill cap is loose or is not installed.
2Check/Tighten Fuel Cap Message P. 321
●Appears when the washer fluid is low.
●Refill washer fluid.
2Refilling Window Washer Fluid P. 273
●Appears when the scheduled maintenance is due soon.●Consequently, SERVICE DUE NOW and SERVICE PAST
DUE follow.
2Maintenance Minder Messages on the Multi-
Information Display P. 253
Canadian models

74
uuIndicatorsuMulti-Information Display Warning and Information Messages
Instrument Panel
Message
Condition
Explanation

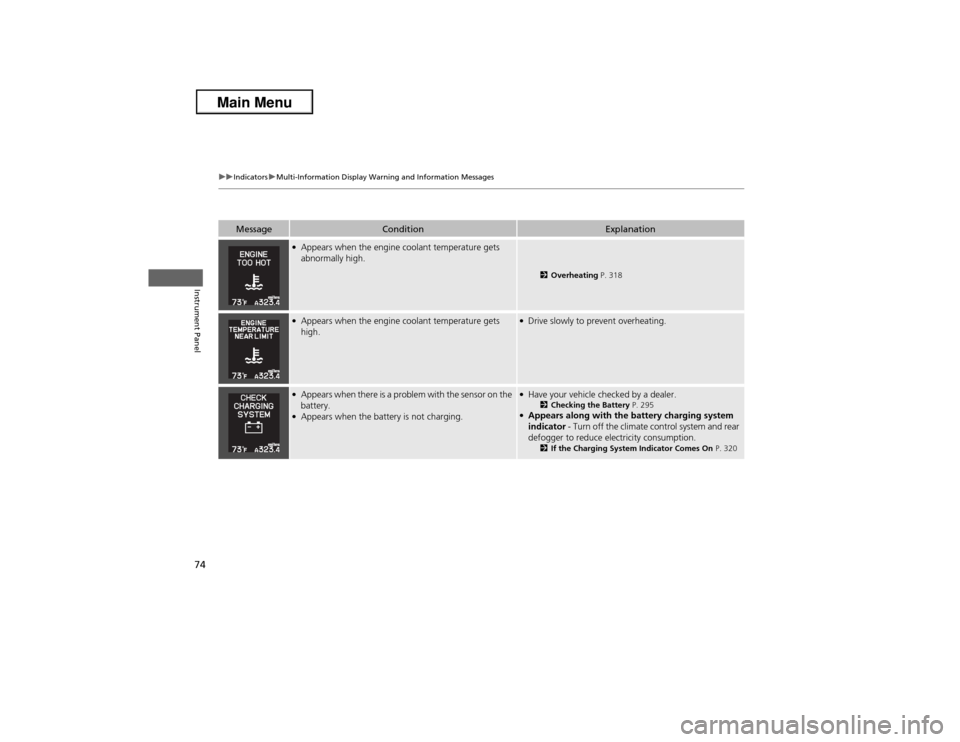

●Appears when the engine coolant temperature gets
abnormally high.
2Overheating P. 318
●Appears when the engine coolant temperature gets
high.
●Drive slowly to prevent overheating.
●Appears when there is a problem with the sensor on the
battery.●Appears when the battery is not charging.
●Have your vehicle checked by a dealer.
2Checking the Battery P. 295
●Appears along with the battery charging system
indicator - Turn off the climate control system and rear
defogger to reduce electricity consumption.
2If the Charging System Indicator Comes On P. 320
