Engine Acura ILX 2015 Owner's Manual

331
uuSpecifications u
Continued
Information

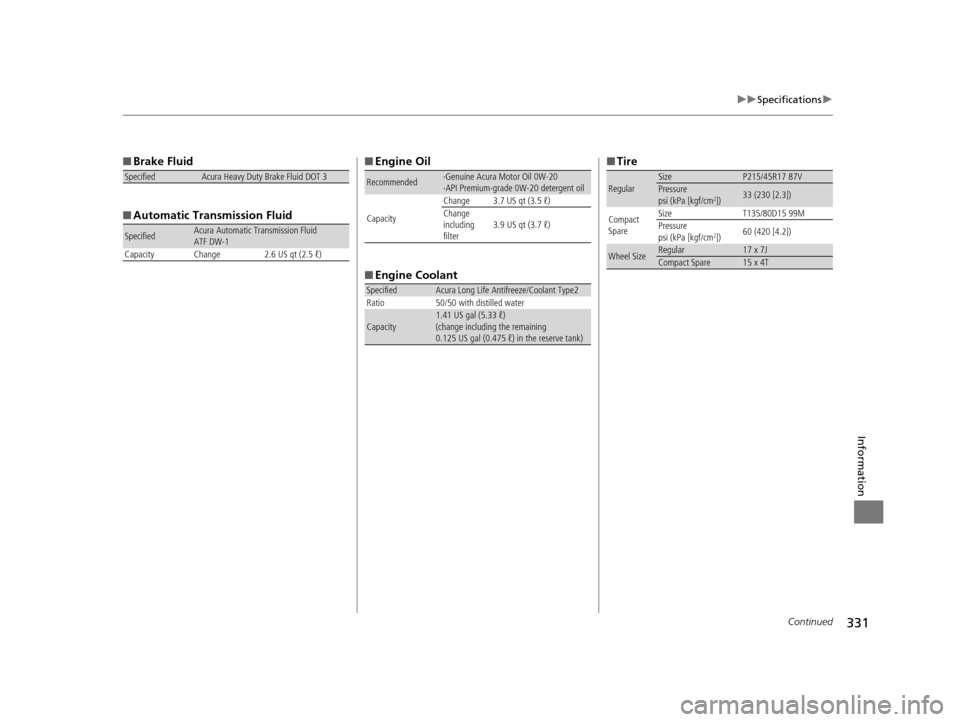

■Brake Fluid
■ Automatic Transmission Fluid
SpecifiedAcura Heavy Duty Brake Fluid DOT 3
SpecifiedAcura Automatic Transmission Fluid
ATF DW-1
Capacity Change 2.6 US qt (2.5 ℓ)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.7 US qt (3.5 ℓ)
Change
including
filter
3.9 US qt (3.7 ℓ)
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.41 US gal (5.33 ℓ)
(change including the remaining
0.125 US gal (0.475 ℓ) in the reserve tank)
■ Tire
RegularSizeP215/45R17 87VPressure
psi (kPa [kgf/cm2])33 (230 [2.3])
Compact
Spare Size
T135/80D15 99M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular17 x 7JCompact Spare15 x 4T
15 ACURA ILX-31TX66200.book 331 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

332
uuSpecifications u
Information
■Vehicle Specifications
ModelAcura ILX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating 3,968 lbs (1,800 kg)
Gross Axle Weight
Rating (Front)2,138 lbs (970 kg)
Gross Axle Weight
Rating (Rear)1,918 lbs (870 kg)
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant Type SP-10
2.4 ℓ engine models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement144 cu-in (2,354 cm3)
Spark Plugs NGK ILZKR7B-11S
DENSO SXU22HCR11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 91 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.12 US qt (4.85 ℓ)
■ Light Bulbs
Headlights (Low Beam)35W (D2S)
Headlights (High Beam) 60W (HB3)
Fog Lights55W (H11)
Front Turn Signal Lights 21W
Parking/Side Marker Lights5W
Brake/Rear Side Marker/Taillight 21/5W
Back-Up Lights16W
Rear Turn Signal Lights 21W
High-Mount Brake LightLED
Rear License Plate Light 5W
Trunk Light5W
Interior Lights Map Lights LED
Ceiling Light 8W
Foot light1.4W
Glove Box light LED
Vanity Mirror light2W
15 ACURA ILX-31TX66200.book 332 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

333
uuSpecifications u
Information

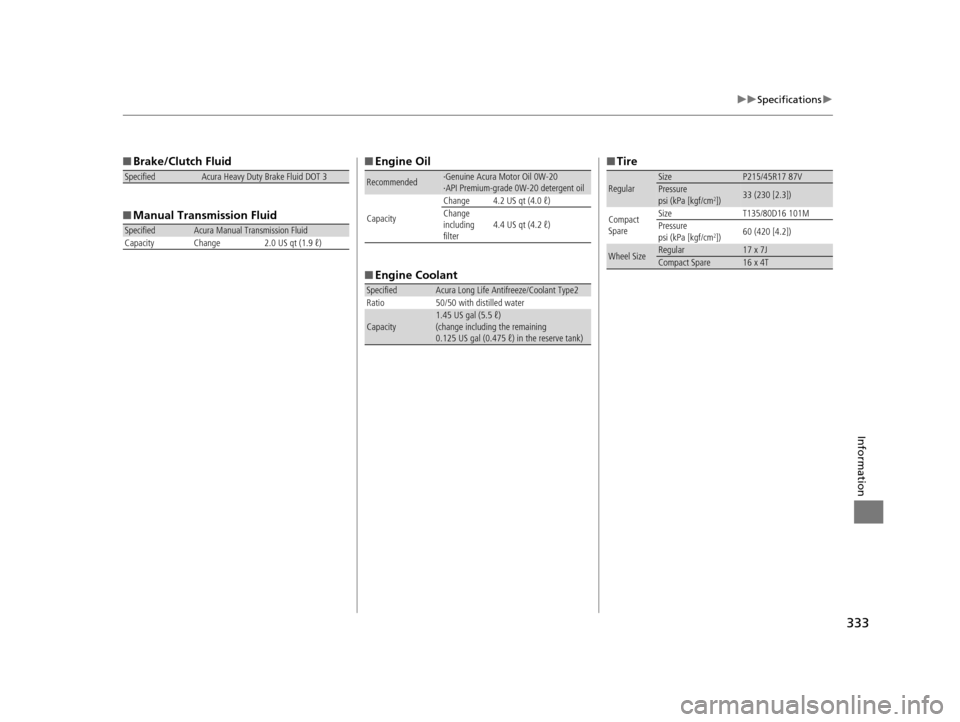

■Brake/Clutch Fluid
■ Manual Transmission Fluid
SpecifiedAcura Heavy Duty Brake Fluid DOT 3
SpecifiedAcura Manual Transmission Fluid
Capacity Change 2.0 US qt (1.9 ℓ)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.4 US qt (4.2 ℓ)
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.45 US gal (5.5 ℓ)
(change including the remaining
0.125 US gal (0.475 ℓ) in the reserve tank)
■ Tire
RegularSizeP215/45R17 87VPressure
psi (kPa [kgf/cm2])33 (230 [2.3])
Compact
Spare Size
T135/80D16 101M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular17 x 7JCompact Spare16 x 4T
15 ACURA ILX-31TX66200.book 333 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

334
Information

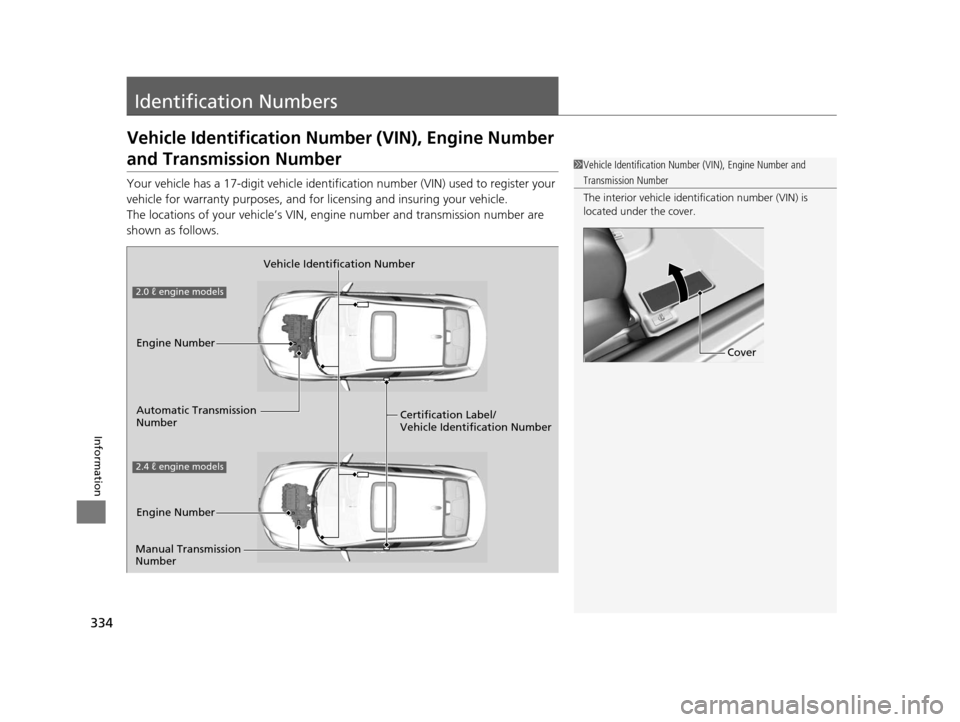

Identification Numbers
Vehicle Identification Number (VIN), Engine Number
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number and transmission number are
shown as follows.
1 Vehicle Identification Number (VIN), Engine Number and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Automatic Transmission
Number
Engine Number
2.0 ℓ engine models
2.4 ℓ engine models
Certification Label/
Vehicle Identification Number
Manual Transmission
Number
15 ACURA ILX-31TX66200.book 334 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

337Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has “Readiness Codes,” as part of the onboard self diagnostic system.
Some States use these codes as a test to see if your vehicle’s emissions components
are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P (automatic transmission) or (N (manual transmission).
Increase the engine speed to 2,000 rpm, and hold it there until the temperature
gauge rises to at least 1/4 of the scale (about 3 minutes).
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
15 ACURA ILX-31TX66200.book 337 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

338
uuEmissions Testing uTesting of Readiness Codes
Information

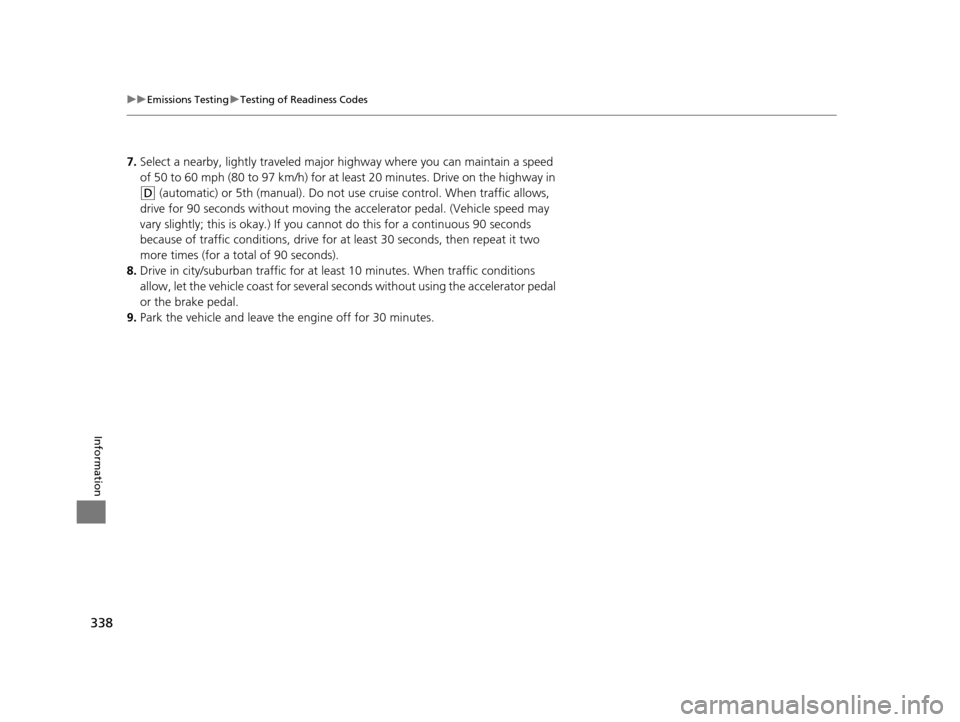

7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D (automatic) or 5th (manual). Do not us e cruise control. When traffic allows,
drive for 90 seconds without moving the accelerator pedal. (Vehicle speed may
vary slightly; this is okay.) If you cannot do this for a continuous 90 seconds
because of traffic conditions, drive for at least 30 seconds, then repeat it two
more times (for a total of 90 seconds).
8. Drive in city/suburban traffic for at l east 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
15 ACURA ILX-31TX66200.book 338 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

342
Information

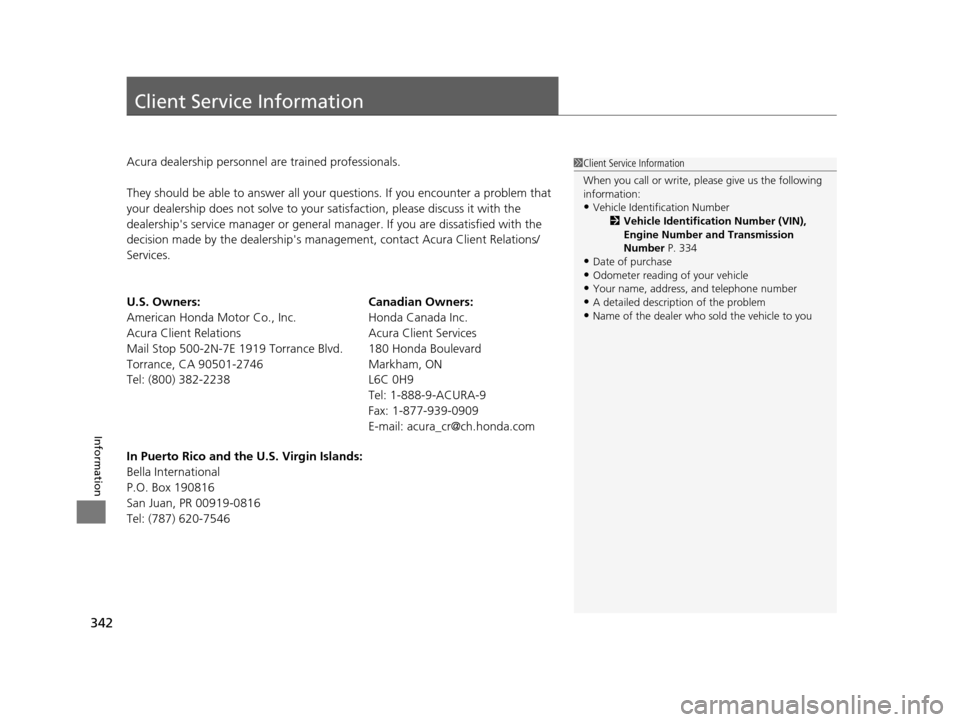

Client Service Information
Acura dealership personnel are trained professionals.
They should be able to answer all your questions. If you encounter a problem that
your dealership does not solve to your satisfaction, please discuss it with the
dealership's service manager or general manager. If you are dissatisfied with the
decision made by the dealership's management, contact Acura Client Relations/
Services.
U.S. Owners:
American Honda Motor Co., Inc.
Acura Client Relations
Mail Stop 500-2N-7E 1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: (800) 382-2238 Canadian Owners:
Honda Canada Inc.
Acura Client Services
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-ACURA-9
Fax: 1-877-939-0909
E-mail: acura_c
[email protected]
In Puerto Rico and the U.S. Virgin Islands:
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: (787) 620-75461 Client Service Information
When you call or write, pl ease give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number and Transmission
Number P. 334
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
15 ACURA ILX-31TX66200.book 342 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

Index
343
Index
Index
A
ABS (Anti-lock Brake System).................. 239
Accessories and Modifications ................ 246
Accessory Power Sockets ......................... 134
Additives
Coolant .................................................. 268
Engine Oil ............................................... 261
Washer ................................................... 273
Additives, Engine Oil ............................... 261
Adjusting Armrest .................................................. 130
Front Seats.............................................. 123
Head Restraints ....................................... 126
Mirrors.................................................... 121
Rear Seat ................................................ 129
Steering Wheel ....................................... 120
Temperature ............................................. 81
Air Conditioning System (Climate Control System) .................................................... 136
Changing the Mode................................ 136
Defrosting the Windshield and Windows .............................................. 137
Dust and Pollen Filter .............................. 297
Recirculation/Fresh Air Mode................... 136
Sensors ................................................... 139
Synchronized Mode ................................ 138
Using Automatic Climate Control............ 136
Air Pressure .............................. 287, 331, 333
Airbags ....................................................... 33
Advanced Airbags ..................................... 39
After a Collision ........................................ 36 Airbag Care ............................................... 47
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 36
Indicator ........................................ 44, 67, 71
Passenger Airbag Off Indicator .................. 45
Sensors ...................................................... 33
Side Airbag Cutoff System ......................... 42
Side Airbag Off Indicator ........................... 46
Side Airbags .............................................. 40
Side Curtain Airbags .................................. 43
AM/FM Radio ............................................ 151
Anti-lock Brake System (ABS) .................. 239
Indicator .................................................... 67
Armrest ..................................................... 130
Audio Remote Controls ............................ 149
Audio System ............................................ 142
Adjusting the Sound ................................ 150
Auxiliary Input Jack .................................. 143
Error Messages ........................................ 170
General Information ................................ 173
iPhone ..................................................... 176
iPod ......................................................... 158
MP3/WMA/AAC ...................................... 163
Pandora ®................................................. 161
Reactivating ............................................. 144
Recommended CDs ................................. 174
Recommended Devices ............................ 176
Security Code .......................................... 144
Theft Protection ....................................... 144
USB Adapter Cable .................................. 143
USB Flash Drives ...................................... 176 Audio/Information Screen
....................... 146
Authorized Manuals ................................ 341
Auto Door Locking/Unlocking ................. 101
Customize ................................................. 86
Automatic Lighting .................................. 115
Automatic Transmission ........................... 221
Creeping ................................................. 221
Fluid ........................................................ 270
Kickdown ................................................ 221
Operating the Shift Lever................... 15, 223
Shift Lever Does Not Move ...................... 317
Shifting ................................................... 222
Auxiliary Input Jack .................................. 143
Average Fuel Economy .............................. 81
Average Speed ........................................... 82
B
Battery...................................................... 295
Charging System Indicator................. 65, 320
Jump Starting .......................................... 314
Maintenance (Checki ng the Battery) ........ 295
Maintenance (Replacing) ......................... 296
Belts (Seat) .................................................. 26
Beverage Holders ..................................... 133
Bluetooth ® Audio ..................................... 166
Bluetooth ® HandsFreeLink ®..................... 179
Booster Seats (For Children) ...................... 59
15 ACURA ILX-31TX66200.book 343 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

344
Index
Brake System............................................. 237
Anti-lock Brake System (ABS) ................... 239
Brake Assist System ................................. 240
Fluid ........................................................ 272
Foot Brake ............................................... 238
Indicator ............................................ 64, 322
Parking Brake .......................................... 237
Brightness Control (Instrument Panel) .... 119
Bulb Replacement ..................................... 274
Back-Up Light Bulbs ................................. 282
Brake Light, Taillight, Rear Turn Signal
Light and Rear Side Ma rker Light Bulbs .. 280
Fog Lights ................................................ 276
Front Turn Signal Light Bulbs ................... 278
Headlights ............................................... 274
High-Mount Brake Light .......................... 283
Parking/Side Marker Light Bulbs ............... 279
Rear License Plate Light............................ 283
Bulb Specifications ............................ 330, 332
C
Carbon Monoxide Gas ................................ 60
Carrying Cargo .................................. 211, 213
CD Player ........................................... 153, 155
Certification Label .................................... 334
Changing Bulbs ......................................... 274
Charging System Indicator ................. 65, 320
Child Safety ................................................. 48
Childproof Door Locks ............................. 100 Child Seat
.................................................... 48
Booster Seats ............................................ 59
Child Seat for Infants................................. 50
Child Seat for Small Children ..................... 51
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 55
Larger Children ......................................... 58
Rear-facing Child Seat ............................... 50
Selecting a Child Seat ................................ 52
Using a Tether ........................................... 57
Childproof Door Locks ............................. 100
Cleaning the Exterior ............................... 300
Cleaning the Interior ................................ 298
Client Service Information ....................... 342
Climate Control System ............................ 136
Changing the Mode ................................ 136
Defrosting the Windshield and
Windows ............................................... 137
Dust and Pollen Filter............................... 297
Recirculation/Fresh Air Mode ................... 136
Sensors ................................................... 139
Synchronized Mode................................. 138
Using Automatic Climate Control ............ 136
Clock ............................................................ 92
Clutch Fluid ............................................... 272
Coat Hook ................................................. 134
Compact Spare Tire .................. 305, 331, 333
Console Compartment ............................. 132
Controls ....................................................... 91
Coolant (Engine) ...................................... 268
Adding to the Radiator ............................ 269 Adding to the Reserve Tank .................... 268
Overheating ............................................ 318
Creeping (Automatic Transmission) ........ 221
Cruise Control .......................................... 229
Indicator ................................................... 72
Cup Holders .............................................. 133
Customized Features ................................. 83
D
Daytime Running Lights .......................... 117
Dead Battery ............................................ 314
Defrosting the Windshield and
Windows ................................................. 137
Devices that Emit Radio Waves ............... 335
Dimming
Headlights .............................................. 114
Rearview Mirror ...................................... 121
Dipstick (Engine Oil) ................................ 262
Directional Signals (Turn Signal) ............. 114
Door Mirrors ............................................. 122
Doors .......................................................... 93
Auto Door Locking.................................. 101
Auto Door Unlocking .............................. 101
Door Open Indicator ........................... 25, 69
Keys.......................................................... 93
Locking/Unlocking the Doors from the
Inside ...................................................... 99
Locking/Unlocking the Doors from the Outside ................................................... 95
Lockout Prevention System ....................... 98
15 ACURA ILX-31TX66200.book 344 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

345
Index
DOT Tire Quality Grading........................ 289
Driving ...................................................... 209
Automatic Transmission .......................... 221
Braking ................................................... 237
Cruise Control ........................................ 229
Shifting Gear .................................. 222, 226
Starting the Engine ................................. 216
Dust and Pollen Filter .............................. 297
E
Elapsed Time.............................................. 81
Electric Power Steering System (EPS)
Indicator ........................................... 68, 322
Electronic Stability Control (ESC) ............ 232
Emergency ................................................ 327
Emissions Testing (Readiness Codes) ...... 337
Engine ....................................................... 334
Coolant .................................................. 268
Jump Starting ......................................... 314
Oil .......................................................... 261
Starting................................................... 216
Switch Buzzer ......................................... 112
Engine Compartment Cover .................... 259
Engine Coolant ........................................ 268
Adding to the Radiator ........................... 269
Adding to the Reserve Tank .................... 268
Overheating ............................................ 318
Temperature Gauge .................................. 78
Engine Oil ................................................. 261
Adding ................................................... 264 Checking ................................................. 262
Displaying Oil Life .................................... 252
Low Oil Pressure Indicator .................. 64, 320
Recommended Engine Oil ........................ 261
ENGINE START/STOP Button .................... 112
EPS (Electric Power Steering) System ............................................... 68, 322
Exhaust Gas Hazard (Carbon Monoxide) .. 60
Expanded View Driver’s Mirror ............... 122
Exterior Care (Cleaning) ........................... 300
Exterior Mirrors ........................................ 122
F
Features..................................................... 141
Filters
Dust and Pollen ....................................... 297
Oil ........................................................... 265
Flat Tire ..................................................... 305
Floor Mats ................................................. 299
Fluids
Automatic Transmission ........................... 270
Brake/Clutch ............................................ 272
Engine Coolant ........................................ 268
Manual Transmission ............................... 271
Windshield Washer .................................. 273
Fog Light Indicator ..................................... 70
Folding Down the Rear Seat .................... 129
Foot Brake ................................................. 238
Front Airbags (SRS) ..................................... 36 Front Seats
................................................ 123
Adjusting ................................................ 123
Fuel ...................................................... 16, 243
Economy ................................................. 245
Gauge ....................................................... 78
Instant Fuel Economy ................................ 81
Low Fuel Indicator ..................................... 67
Range ....................................................... 81
Recommendation .................................... 243
Refueling................................................. 243
Fuel Economy ........................................... 245
Fuel Fill Cap ........................................ 16, 244
Message.................................................. 321
Fuel Fill Door ...................................... 16, 244
Fuses .......................................................... 324
Inspecting and Changing......................... 326
Locations......................................... 324, 325
G
Gasoline (Fuel)
Economy ................................................. 245
Gauge ....................................................... 78
Information ............................................. 243
Instant Fuel Economy ................................ 81
Low Fuel Indicator ..................................... 67
Refueling................................................. 243
Gauges ........................................................ 78
Gear Shift Lever Positions Automatic Transmission .......................... 222
Manual Transmission ............................... 227
15 ACURA ILX-31TX66200.book 345 ページ ２０１４年３月２７日　木曜日　午前１０時３４分
