sensor Acura ILX 2015 Owner's Guide

212

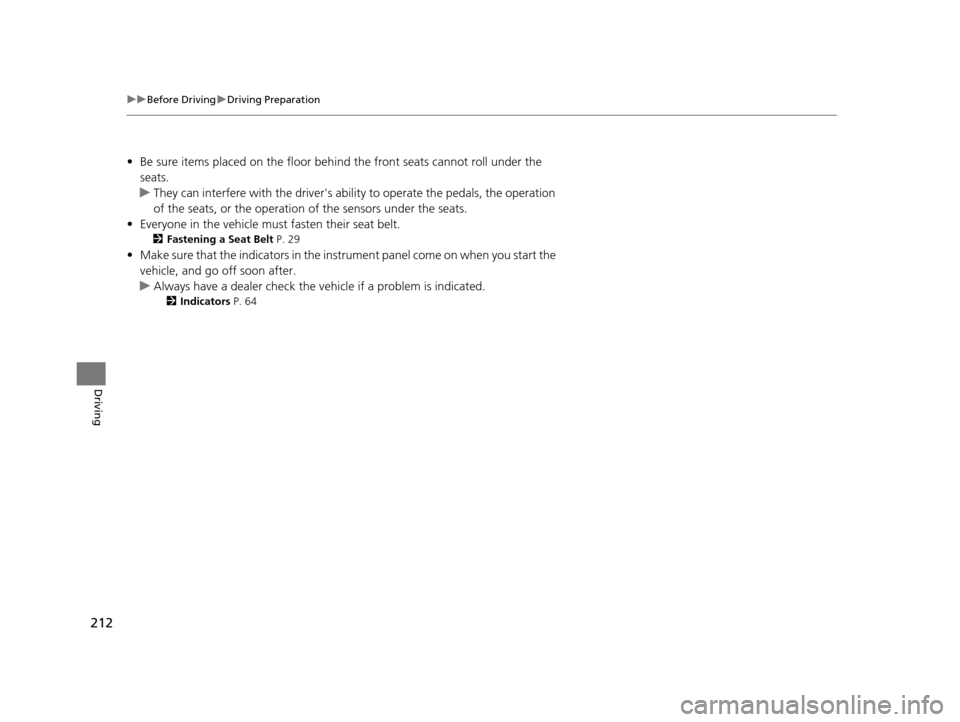

uuBefore Driving uDriving Preparation
Driving
• Be sure items placed on the floor behind the front seats cannot roll under the
seats.
u They can interfere with the driver's ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2Fastening a Seat Belt P. 29
•Make sure that the indicators in the ins trument panel come on when you start the
vehicle, and go off soon after.
u Always have a dealer check the vehicle if a problem is indicated.
2 Indicators P. 64
15 ACURA ILX-31TX66200.book 212 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

295
Maintenance
Battery
Checking the Battery
The battery condition is being monitored by the sensor on the negative terminal. If
there is a problem with the sensor, the warning message on multi-information
display will let you know. Have your vehicle checked by a dealer.
If your vehicle's battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 144
•The clock resets.
2 Setting the Clock P. 92
•The navigation system* is disabled.
2 Refer to the navigation system manual
Charging the Battery
Disconnect both battery cables to prevent damaging your vehicle's electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Rinse the terminals with water. Cloth/towel dry the
battery. Coat the terminals with grease to help
prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Please consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
* Not available on all models
15 ACURA ILX-31TX66200.book 295 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

305Continued
Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full size tire repaired or
replaced.
1. Park the vehicle on firm, level, and no n-slippery and apply the parking brake.
2. Move the shift lever in
(P.
2. Move the shift lever in
(R.
3. Set the parking brake.
4. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
1 Changing a Flat Tire
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use a puncture-repairi ng agent on a flat tire,
as it can damage the tire pressure sensor.
U.S. models only
Automatic transmission models
Manual transmission models
All models
15 ACURA ILX-31TX66200.book 305 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

uuIf a Tire Goes Flat uChanging a Flat Tire
310
Handling the Unexpected
1. Remove the center cap.
2. Place the flat tire face down in the spare tire
well.
3. Remove the spacer cone from the wing
bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.
4. Securely put the jack and wheel nut wrench
back in the tool case. Store the case in the
trunk.
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. CHECK TPMS
SYSTEM appears on the multi-information display, but this is normal.
If you replace the tire with a specified regular tire, the warning message on the
multi-information display and the low tire pressure/TPMS indicator will go off after
a few miles (kilometers).
■Storing the Flat Tire1 Storing the Flat Tire
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.Spacer
Cone Wing
Bolt
For compact spare tireFor
normal
tire
■TPMS and the Spare Tire
U.S. models
1
TPMS and the Spare Tire
The system cannot monitor th e pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use the TPMS specific whee ls. Each is equipped with
a tire pressure sensor mount ed inside the tire behind
the valve stem.
15 ACURA ILX-31TX66200.book 310 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

Index
343
Index
Index
A
ABS (Anti-lock Brake System).................. 239
Accessories and Modifications ................ 246
Accessory Power Sockets ......................... 134
Additives
Coolant .................................................. 268
Engine Oil ............................................... 261
Washer ................................................... 273
Additives, Engine Oil ............................... 261
Adjusting Armrest .................................................. 130
Front Seats.............................................. 123
Head Restraints ....................................... 126
Mirrors.................................................... 121
Rear Seat ................................................ 129
Steering Wheel ....................................... 120
Temperature ............................................. 81
Air Conditioning System (Climate Control System) .................................................... 136
Changing the Mode................................ 136
Defrosting the Windshield and Windows .............................................. 137
Dust and Pollen Filter .............................. 297
Recirculation/Fresh Air Mode................... 136
Sensors ................................................... 139
Synchronized Mode ................................ 138
Using Automatic Climate Control............ 136
Air Pressure .............................. 287, 331, 333
Airbags ....................................................... 33
Advanced Airbags ..................................... 39
After a Collision ........................................ 36 Airbag Care ............................................... 47
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 36
Indicator ........................................ 44, 67, 71
Passenger Airbag Off Indicator .................. 45
Sensors ...................................................... 33
Side Airbag Cutoff System ......................... 42
Side Airbag Off Indicator ........................... 46
Side Airbags .............................................. 40
Side Curtain Airbags .................................. 43
AM/FM Radio ............................................ 151
Anti-lock Brake System (ABS) .................. 239
Indicator .................................................... 67
Armrest ..................................................... 130
Audio Remote Controls ............................ 149
Audio System ............................................ 142
Adjusting the Sound ................................ 150
Auxiliary Input Jack .................................. 143
Error Messages ........................................ 170
General Information ................................ 173
iPhone ..................................................... 176
iPod ......................................................... 158
MP3/WMA/AAC ...................................... 163
Pandora ®................................................. 161
Reactivating ............................................. 144
Recommended CDs ................................. 174
Recommended Devices ............................ 176
Security Code .......................................... 144
Theft Protection ....................................... 144
USB Adapter Cable .................................. 143
USB Flash Drives ...................................... 176 Audio/Information Screen
....................... 146
Authorized Manuals ................................ 341
Auto Door Locking/Unlocking ................. 101
Customize ................................................. 86
Automatic Lighting .................................. 115
Automatic Transmission ........................... 221
Creeping ................................................. 221
Fluid ........................................................ 270
Kickdown ................................................ 221
Operating the Shift Lever................... 15, 223
Shift Lever Does Not Move ...................... 317
Shifting ................................................... 222
Auxiliary Input Jack .................................. 143
Average Fuel Economy .............................. 81
Average Speed ........................................... 82
B
Battery...................................................... 295
Charging System Indicator................. 65, 320
Jump Starting .......................................... 314
Maintenance (Checki ng the Battery) ........ 295
Maintenance (Replacing) ......................... 296
Belts (Seat) .................................................. 26
Beverage Holders ..................................... 133
Bluetooth ® Audio ..................................... 166
Bluetooth ® HandsFreeLink ®..................... 179
Booster Seats (For Children) ...................... 59
15 ACURA ILX-31TX66200.book 343 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

344
Index
Brake System............................................. 237
Anti-lock Brake System (ABS) ................... 239
Brake Assist System ................................. 240
Fluid ........................................................ 272
Foot Brake ............................................... 238
Indicator ............................................ 64, 322
Parking Brake .......................................... 237
Brightness Control (Instrument Panel) .... 119
Bulb Replacement ..................................... 274
Back-Up Light Bulbs ................................. 282
Brake Light, Taillight, Rear Turn Signal
Light and Rear Side Ma rker Light Bulbs .. 280
Fog Lights ................................................ 276
Front Turn Signal Light Bulbs ................... 278
Headlights ............................................... 274
High-Mount Brake Light .......................... 283
Parking/Side Marker Light Bulbs ............... 279
Rear License Plate Light............................ 283
Bulb Specifications ............................ 330, 332
C
Carbon Monoxide Gas ................................ 60
Carrying Cargo .................................. 211, 213
CD Player ........................................... 153, 155
Certification Label .................................... 334
Changing Bulbs ......................................... 274
Charging System Indicator ................. 65, 320
Child Safety ................................................. 48
Childproof Door Locks ............................. 100 Child Seat
.................................................... 48
Booster Seats ............................................ 59
Child Seat for Infants................................. 50
Child Seat for Small Children ..................... 51
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 55
Larger Children ......................................... 58
Rear-facing Child Seat ............................... 50
Selecting a Child Seat ................................ 52
Using a Tether ........................................... 57
Childproof Door Locks ............................. 100
Cleaning the Exterior ............................... 300
Cleaning the Interior ................................ 298
Client Service Information ....................... 342
Climate Control System ............................ 136
Changing the Mode ................................ 136
Defrosting the Windshield and
Windows ............................................... 137
Dust and Pollen Filter............................... 297
Recirculation/Fresh Air Mode ................... 136
Sensors ................................................... 139
Synchronized Mode................................. 138
Using Automatic Climate Control ............ 136
Clock ............................................................ 92
Clutch Fluid ............................................... 272
Coat Hook ................................................. 134
Compact Spare Tire .................. 305, 331, 333
Console Compartment ............................. 132
Controls ....................................................... 91
Coolant (Engine) ...................................... 268
Adding to the Radiator ............................ 269 Adding to the Reserve Tank .................... 268
Overheating ............................................ 318
Creeping (Automatic Transmission) ........ 221
Cruise Control .......................................... 229
Indicator ................................................... 72
Cup Holders .............................................. 133
Customized Features ................................. 83
D
Daytime Running Lights .......................... 117
Dead Battery ............................................ 314
Defrosting the Windshield and
Windows ................................................. 137
Devices that Emit Radio Waves ............... 335
Dimming
Headlights .............................................. 114
Rearview Mirror ...................................... 121
Dipstick (Engine Oil) ................................ 262
Directional Signals (Turn Signal) ............. 114
Door Mirrors ............................................. 122
Doors .......................................................... 93
Auto Door Locking.................................. 101
Auto Door Unlocking .............................. 101
Door Open Indicator ........................... 25, 69
Keys.......................................................... 93
Locking/Unlocking the Doors from the
Inside ...................................................... 99
Locking/Unlocking the Doors from the Outside ................................................... 95
Lockout Prevention System ....................... 98
15 ACURA ILX-31TX66200.book 344 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

349
Index
Shifting (Transmission).................... 222, 226
Shoulder Anchor ........................................ 30
Side Airbags ............................................... 40
Cutoff System ........................................... 42
Off Indicator ............................................. 42
Side Curtain Airbags .................................. 43
SMS Text Message ............................ 191, 203
Snow Tires ................................................ 294
Spare Tire ................................. 305, 331, 333
Spark Plugs ....................................... 330, 332
Specifications ........................................... 330
Specified Fuel ........................... 243, 330, 332
SRS Airbags (Airbags) ................................ 36
Starting the Engine .................................. 216
Does Not Start ........................................ 311
Engine Switch Buzzer .............................. 112
Jump Starting ......................................... 314
Steering Wheel ........................................ 120
Adjusting ................................................ 120
Stopping ................................................... 241
Summer Tires ............................................ 294
Supplemental Restraint System (SRS) ....... 36
Switches (Around the Steering Wheel) .. 4, 5
System Message Indicator ......................... 70
T
Temperature
Outside Temperature ................................ 81
Temperature Sensor ................................ 139
Text Message .................................... 191, 203 Time (Setting)
............................................. 92
Tire Pressure Monitoring System
(TPMS) ..................................................... 234
Indicator ............................................ 69, 323
Tires ........................................................... 286
Air Pressure ............................. 287, 331, 333
Checking and Maintaining ....................... 286
Inspection ................................................ 286
Labeling .................................................. 287
Puncture (Flat Tire) ................................... 305
Regulations ............................................. 289
Rotation .................................................. 293
Spare Tire ................................ 305, 331, 333
Summer .................................................. 294
Tire Chains .............................................. 294
Wear Indicators ....................................... 291
Winter ..................................................... 294
Tools .......................................................... 304
Towing a Trailer ....................................... 215
Towing Your Vehicle ................................ 215
Emergency .............................................. 327
TPMS (Tire Pressure Monitoring
System) .................................................... 234
Transmission ..................................... 222, 226
Automatic ............................................... 222
Fluid ................................................ 270, 271
Manual .................................................... 226
Number ................................................... 334
Sequential Shift Mode ............................. 224
Shift Lever Position Indicator .............. 65, 223
Trip Meter ................................................... 80 Troubleshooting
....................................... 303
Blown Fuse...................................... 324, 325
Brake Pedal Vibrates .................................. 19
Buzzer Sounds When Opening Door.......... 20
Emergency Towing .................................. 327
Engine Won’t Start .................................. 311
Noise When Braking .................................. 20
Overheating ............................................ 318
Premium Gasoline ................... 243, 330, 332
Puncture/Flat Tire .................................... 305
Rear Door Won’t Open...................... 19, 100
Select Lever Won’t Move ......................... 317
Warning Indicators .................................... 64
Trunk ......................................................... 102
Lid........................................................... 102
Light Bulb........................................ 330, 332
Turn Signals .............................................. 114
Indicators (Instrument Panel) ..................... 70
U
Unlocking the Doors .................................. 95
Unlocking the Fron t Doors from the
Inside ................................................... 12, 99
USB Adapter Cable ........................... 142, 143
USB Flash Drives ....................................... 176
Using the Keyless Access System ............... 96
V
Vanity Mirrors............................................... 7
15 ACURA ILX-31TX66200.book 349 ページ ２０１４年３月２７日　木曜日　午前１０時３４分
