steering wheel Acura ILX 2015 Owner's Manual

Contents
Child Safety P. 48Exhaust Gas Hazard P. 60Safety Labels P. 61
Opening and Closing the Trunk P. 102 Security System P. 106 Opening and Closing the Windows P. 108
Operating the Switches Around the Steering Wheel P. 112 Adjusting the Mirrors P. 121
Interior Lights/Interior Convenience It ems P. 131 Climate Control System P. 136
Audio Error Messages* P. 170General Information on the Audio System P. 173
Bluetooth ® HandsFreeLink ® P. 179
When Driving P. 216 Braking P. 237Parking Your Vehicle P. 241
Fuel Economy P. 245 Accessories and Modifications P. 246
Maintenance Under the Hood P. 256 Replacing Light Bulbs P. 274
Checking and Maintaining Tires P. 286 Battery P. 295 Remote Transmitter Care P. 296
Cleaning P. 298
Engine Does Not Start P. 311Jump Starting P. 314 Shift Lever Does Not Move P. 317
Fuses P. 324 Emergency Towing P. 327
Devices that Emit Radio Waves P. 335 Reporting Safety Defects P. 336
Authorized Manuals P. 341 Client Service Information P. 342
Quick Reference GuideP. 4
Safe DrivingP. 21
Instrument PanelP. 63
ControlsP. 91
FeaturesP. 141
DrivingP. 209
MaintenanceP. 247
Handling the UnexpectedP. 303
InformationP. 329
IndexP. 343
15 ACURA ILX-31TX66200.book 3 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙Audio System (P 142)
❙Rear Window Defogger/
Heated Mirror Button
(P 120)
❙Steering Wheel Adjustments (P 120)
❙ (Vehicle Stability Assist (VSA®) System OFF) Button (P 233)
❙Climate Control System (P 136)
❙System Indicators (P 64)
❙Gauges (P 78)
❙Multi-Information Display (P 79)
❙Hazard Warning Button
❙ENGINE START/STOP Button (P 112)
❙Navigation System*
() See the Navigation System Manual
❙Audio/Information Screen* (P 146)
15 ACURA ILX-31TX66200.book 4 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

9
Quick Reference Guide
Safe Driving (P 21)
Airbags (P 33)
● Your vehicle is fitted with ai rbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P 48)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restra ined in a forward-facing child seat.
● Infants must be properly restraine d in a rear-facing child seat.
Exhaust Gas Hazard (P 60)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 25)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P 26)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
* Not available on all models
15 ACURA ILX-31TX66200.book 9 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

12
Quick Reference Guide
Steering Wheel (P 120)
● To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P 99)
●Pull either front door inner handle to
unlock and open it in one motion.
Trunk (P 102)
● To unlock and open the trunk:
•Pull the trunk release.
• Press the trunk release button on the
keyless access remote.
• Press the trunk release button on the
trunk lid.
Power Door Mirrors
(P 122)
● With the power mode in ON, move the
selector switch to L or R.
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
Trunk Release
Selector Switch
Adjustment Switch
Power Windows (P 108)
● With the power mode in ON, open and
close the power windows.
● If the power window lock button is in the
off position, each passenger's window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator is on), each
passenger's window switch is disabled.
Power Window Lock Button
Window SwitchIndicator
15 ACURA ILX-31TX66200.book 12 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

19
Quick Reference Guide
What to Do If
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?●The steering wheel may be locked.
●Move the steering wheel left and right after
pressing the ENGINE START/STOP button.
The power mode does not
change from ON to
VEHICLE OFF (LOCK). Why?The shift lever should be moved to (P.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates, and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in the
LOCK position. If so, open the rear
door with the outside door handle.
To cancel this function, push the lever
to the UNLOCK position.
15 ACURA ILX-31TX66200.book 19 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

34
uuAirbags uAirbag System Components
Safe Driving
The front, front side, and side curtain
airbags are deployed according to the
direction and severity of impact. The airbag
system includes:
aTwo SRS (Supplemental Restraint System)
front airbags. The driver's airbag is stored
in the center of the steering wheel; the
front passenger's airbag is stored in the
dashboard. Both are marked SRS
AIRBAG.
bTwo side airbags, one for the driver and
one for a front passenger. The airbags are
stored in the outer edges of the seat-
backs. Both are marked SIDE AIRBAG .
cTwo side curtain airbags, one for each
side of the vehicle. The airbags are stored
in the ceiling, above the side windows.
The front and rear pillars are marked
SIDE CURTAIN AIRBAG.
dAn electronic control unit that continually
monitors and can re cord information
about the sensors, the airbag activators,
the seat belt tensioners, and driver and
front passenger seat belt use when the
power mode is in ON.
eAutomatic front seat belt tensioners. The
driver's and front passenger's seat belts
incorporate sensors that detect whether
or not they are fastened.
fA driver's seat position sensor. If the seat
is too far forward, the airbag will inflate
with less force.
gWeight sensors in the front passenger's
seat. The front passenger's airbag will be
turned off if the weight on the seat is 65
lbs (29 kg) or less (the weight of an infant
or small child).
hImpact sensors that can detect a
moderate to severe front or side impact.
iAn indicator on the dashboard that alerts
you that the front passenger's front
airbag has been turned off.
jSensors that can detect if a child or small
statured adult is in the deployment path
of the front passenger's side airbag.
kAn indicator on the instrument panel that
alerts you to a possible problem with your
airbag system or seat belt tensioners.
lAn indicator on the instrument panel that
alerts you that the fr ont passenger's side
airbag has been turned off.
15 ACURA ILX-31TX66200.book 34 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

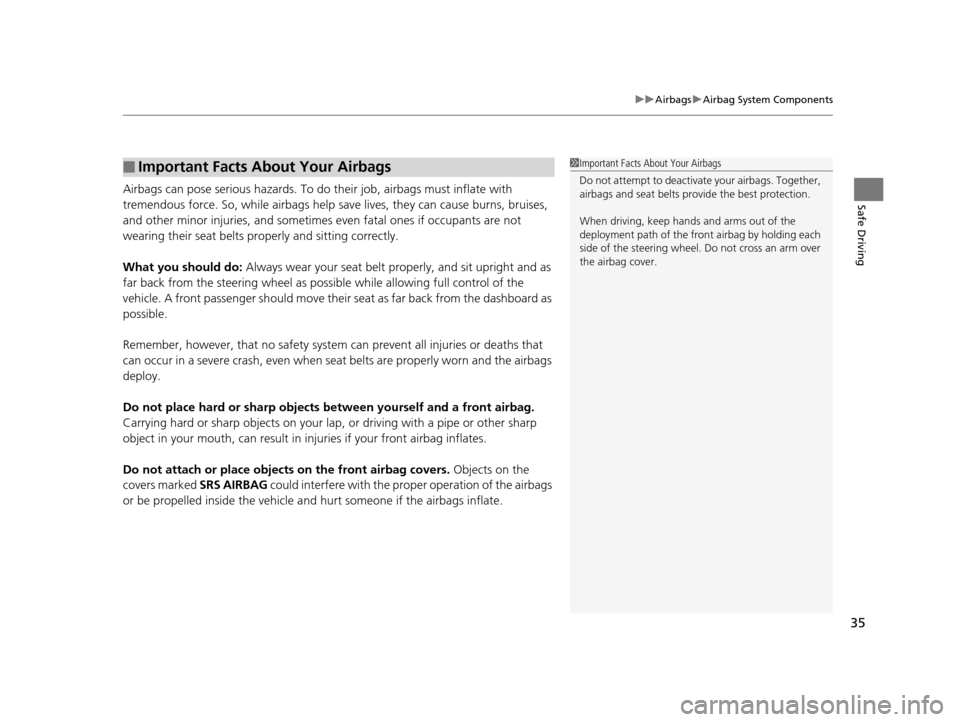

35
uuAirbags uAirbag System Components
Safe DrivingAirbags can pose serious hazards. To do their job, airbags must inflate with
tremendous force. So, while airbags help sa ve lives, they can cause burns, bruises,
and other minor injuries, and sometimes even fatal ones if occupants are not
wearing their seat belts properly and sitting correctly.
What you should do: Always wear your seat belt properly, and sit upright and as
far back from the steering wheel as possi ble while allowing full control of the
vehicle. A front passenger should move their seat as far back from the dashboard as
possible.
Remember, however, that no safety system ca n prevent all injuries or deaths that
can occur in a severe crash, even when s eat belts are properly worn and the airbags
deploy.
Do not place hard or sharp objects between yourself and a front airbag.
Carrying hard or sharp objects on your lap, or driving with a pipe or other sharp
object in your mouth, can result in in juries if your front airbag inflates.
Do not attach or place objects on the front airbag covers. Objects on the
covers marked SRS AIRBAG could interfere with the prop er operation of the airbags
or be propelled inside the vehicle an d hurt someone if the airbags inflate.
■Important Facts About Your Airbags1Important Facts About Your Airbags
Do not attempt to deactivate your airbags. Together,
airbags and seat belts pr ovide the best protection.
When driving, keep hands and arms out of the
deployment path of the fro nt airbag by holding each
side of the steering wheel. Do not cross an arm over
the airbag cover.
15 ACURA ILX-31TX66200.book 35 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

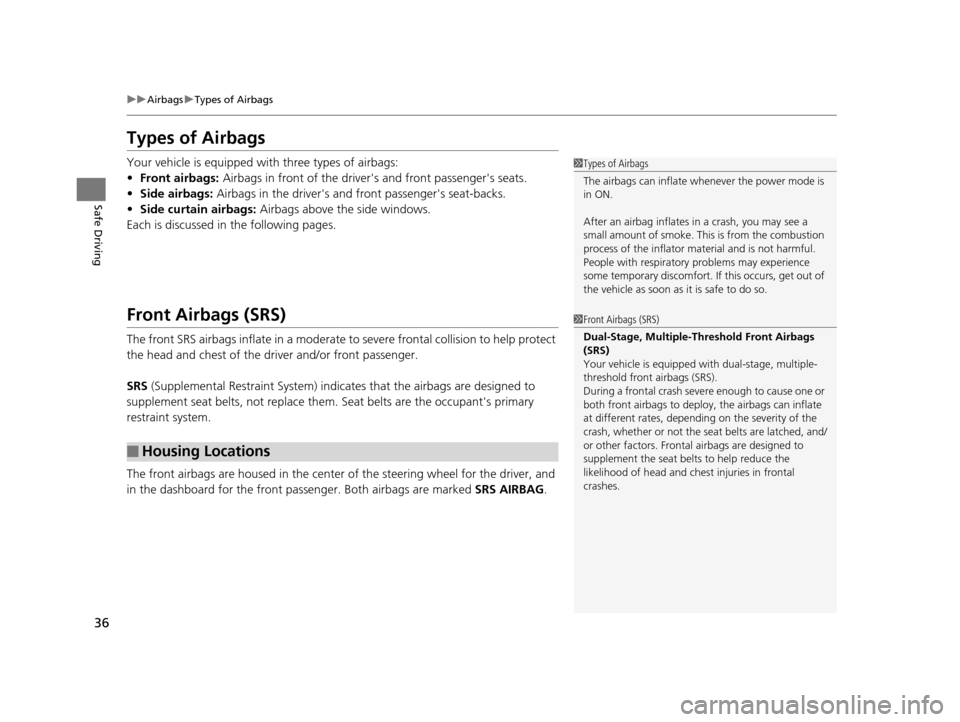

36
uuAirbags uTypes of Airbags
Safe Driving
Types of Airbags
Your vehicle is equipped with three types of airbags:
• Front airbags: Airbags in front of the driver 's and front passenger's seats.
• Side airbags: Airbags in the driver's and front passenger's seat-backs.
• Side curtain airbags: Airbags above the side windows.
Each is discussed in the following pages.
Front Airbags (SRS)
The front SRS airbags inflate in a moderate to severe frontal collision to help protect
the head and chest of the driver and/or front passenger.
SRS (Supplemental Restraint System) indicates that the airbags are designed to
supplement seat belts, not replace them. Seat belts are the occupant's primary
restraint system.
The front airbags are housed in the center of the steering wheel for the driver, and
in the dashboard for the front pass enger. Both airbags are marked SRS AIRBAG.
■Housing Locations
1Types of Airbags
The airbags can inflate whenever the power mode is
in ON.
After an airbag inflates in a crash, you may see a
small amount of smoke. This is from the combustion
process of the infl ator material and is not harmful.
People with respiratory pr oblems may experience
some temporary discomfort. If this occurs, get out of
the vehicle as soon as it is safe to do so.
1 Front Airbags (SRS)
Dual-Stage, Multiple-Threshold Front Airbags
(SRS)
Your vehicle is equipped wi th dual-stage, multiple-
threshold front airbags (SRS).
During a frontal crash severe enough to cause one or
both front airbags to deploy, the airbags can inflate
at different rates, dependi ng on the severity of the
crash, whether or not the se at belts are latched, and/
or other factors. Frontal airbags are designed to
supplement the seat belts to help reduce the
likelihood of head and chest injuries in frontal
crashes.
15 ACURA ILX-31TX66200.book 36 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

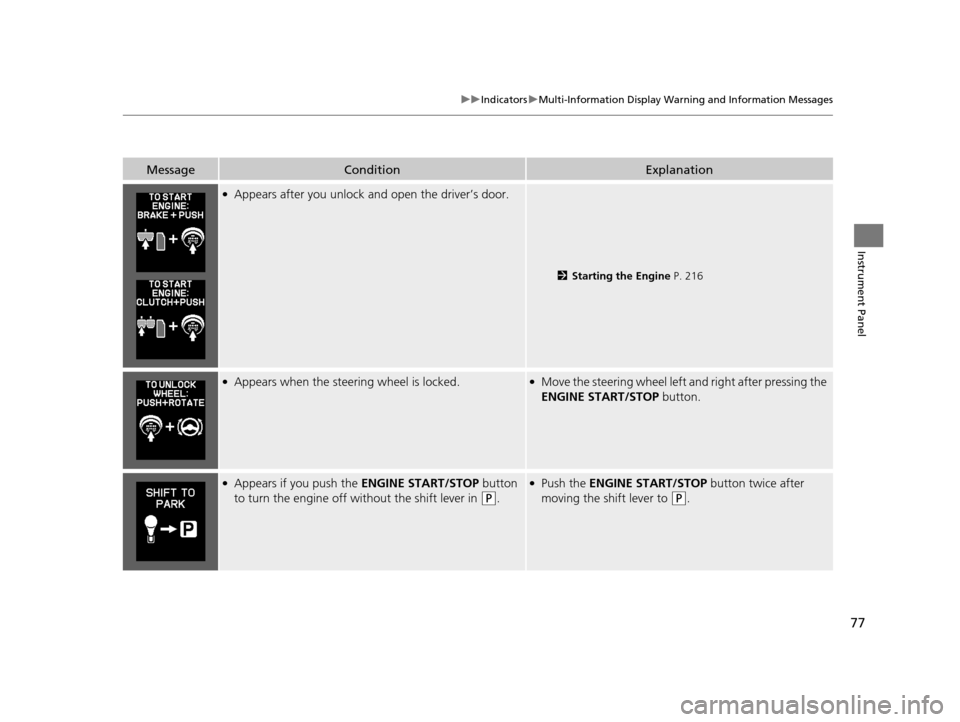

77
uuIndicators uMulti-Information Display Warning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears after you unlock and open the driver’s door.
2 Starting the Engine P. 216
●Appears when the steering wheel is locked.●Move the steering wheel left and right after pressing the
ENGINE START/STOP button.
●Appears if you push the ENGINE START/STOP button
to turn the engine off wi thout the shift lever in
(P.
●Push the ENGINE START/STOP button twice after
moving the shift lever to
(P.
15 ACURA ILX-31TX66200.book 77 ページ ２０１４年３月２７日　木曜日　午前１０時３４分

91
Controls
This chapter explains how to operate the various controls necessary for driving.
Setting the Clock................................ 92
Locking and Unlocking the Doors
Key Types and Functions .................... 93
Low Keyless Access Remote Signal Strength ........................................... 94
Locking/Unlocking the Doors from the Outside ............................................ 95
Locking/Unlocking the Doors from the
Inside ............................................... 99
Childproof Door Locks ..................... 100
Auto Door Locking/Unlocking .......... 101
Opening and Closing the Trunk ....... 102
Security System ................................ 106
Immobilizer System .......................... 106 Security System Alarm...................... 106Opening and Closing the Windows
.... 108Opening and Closing the Moonroof....... 111Operating the Switches Around the
Steering Wheel
ENGINE START/STOP Button............. 112
Turn Signals ..................................... 114
Light Switches.................................. 114
Fog Lights
*...................................... 117
Daytime Running Lights ................... 117
Wipers and Washers ........................ 118
Brightness Control ........................... 119
Rear Defogger/Heated Door Mirror Button...120
Adjusting the Steering Wheel........... 120 Adjusting the Mirrors
....................... 121
Interior Rearview Mirror ................... 121
Power Door Mirrors ......................... 122
Adjusting the Seats .......................... 123
Adjusting the Seat Positions ............. 123
Interior Lights/Interior Convenience Items ................................................ 131
Interior Lights .................................. 131
Interior Convenience Items .............. 132
Climate Control System ................... 136
Using Automatic Climate Control .... 136
Synchronized Mode ......................... 138
Automatic Climate Control Sensors......139
* Not available on all models
15 ACURA ILX-31TX66200.book 91 ページ ２０１４年３月２７日　木曜日　午前１０時３４分
