stop start Acura ILX 2016 Owner's Guide

484
uuEngine Does Not Start uEmergency Engine Stop
Handling the Unexpected
Emergency Engine Stop
The ENGINE START/STOP button may be used to st op the engine due to an
emergency situation even while driving. If you must stop the engine, do either of the
following operations:
• Press and hold the ENGINE START/STOP button for about two seconds.
• Firmly press the ENGINE START/STOP button twice.
The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort an d time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place.
The power mode is in ACCESSORY when the engine is stopped.
To change the mode to VEHICLE OFF, move the shift lever to
(P after the vehicle
comes to a complete stop.
1 Emergency Engine Stop
Do not press the button while driving unless it is
absolutely necessary for th e engine to be switched
off.
16 ACURA ILX-31TX66300.book 484 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

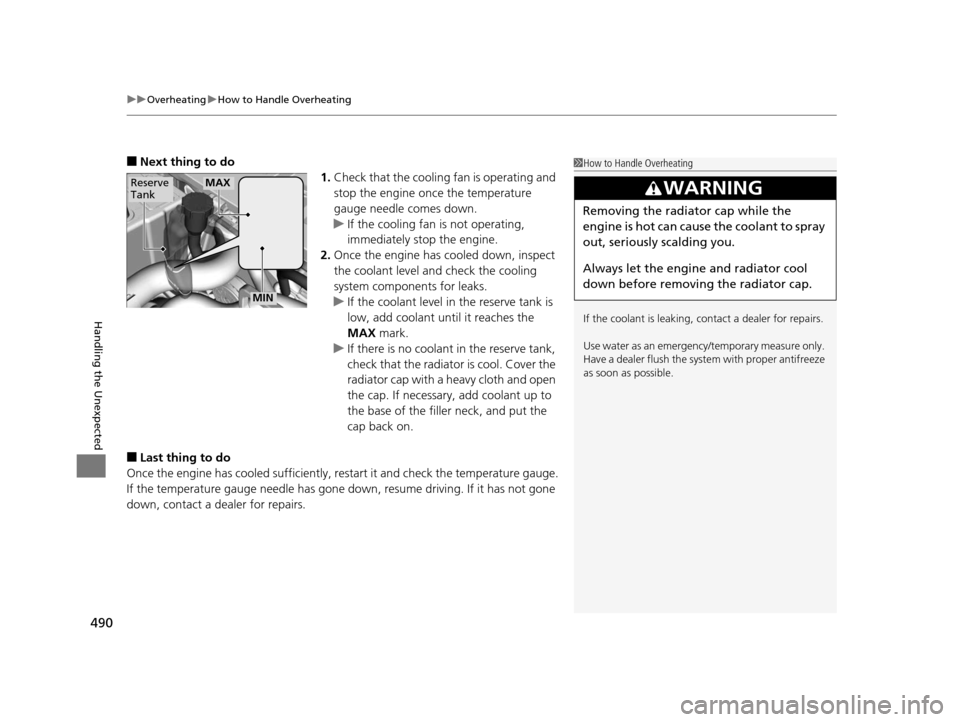

uuOverheating uHow to Handle Overheating
490
Handling the Unexpected
■Next thing to do
1.Check that the cooling fan is operating and
stop the engine once the temperature
gauge needle comes down.
u If the cooling fan is not operating,
immediately stop the engine.
2. Once the engine has cooled down, inspect
the coolant level an d check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If there is no coolan t in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■Last thing to do
Once the engine has cooled sufficiently, restart it and check the temperature gauge.
If the temperature gauge needle has gone do wn, resume driving. If it has not gone
down, contact a dealer for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Reserve
TankMAX
MIN
16 ACURA ILX-31TX66300.book 490 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

491
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle in a safe place.
2. If necessary, turn the hazard warning lights on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for about one minute.
2. Open the hood and check the oil level.
u Add oil as necessary.
3. Start the engine and check th e low oil pressure indicator.
u The indicator goes off: Start driving again.
u The indicator does not go off with in 10 seconds: Stop the engine
and contact a dealer for repairs immediately.
If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when the battery is not being charged.
■What to do when th e indicator comes on
Turn off the climate control system, rear defogger, and other electrical
systems, and immediately co ntact a dealer for repairs.
1If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engi ne may rapidly discharge
the battery.
16 ACURA ILX-31TX66300.book 491 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

492

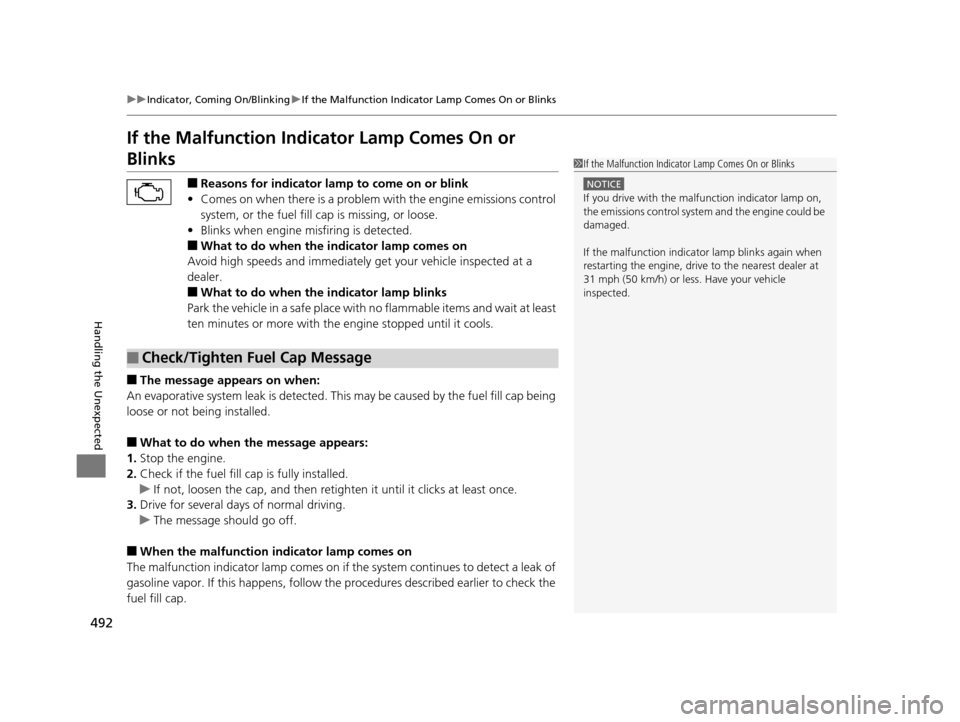

uuIndicator, Coming On/Blinking uIf the Malfunction Indicato r Lamp Comes On or Blinks
Handling the Unexpected
If the Malfunction Indicator Lamp Comes On or
Blinks
■Reasons for indicator lamp to come on or blink
• Comes on when there is a problem with the engine emissions control
system, or the fuel fill cap is missing, or loose.
• Blinks when engine misfiring is detected.
■What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at a
dealer.
■What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
ten minutes or more with the engine stopped until it cools.
■The message appears on when:
An evaporative system leak is detected. This may be caused by the fuel fill cap being
loose or not being installed.
■What to do when the message appears:
1. Stop the engine.
2. Check if the fuel fill cap is fully installed.
u If not, loosen the cap, and then reti ghten it until it clicks at least once.
3. Drive for several days of normal driving.
u The message should go off.
■When the malfunction indicator lamp comes on
The malfunction indicator lamp comes on if the system continues to detect a leak of
gasoline vapor. If this happens, follow th e procedures described earlier to check the
fuel fill cap.
■Check/Tighten Fuel Cap Message
1 If the Malfunction Indicato r Lamp Comes On or Blinks
NOTICE
If you drive with the malf unction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.
16 ACURA ILX-31TX66300.book 492 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

493
uuIndicator, Comin g On/BlinkinguIf the Brake System Indicator (Red) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indica tor comes on while driving
Press the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate acti on. If necessary, downshift the
transmission to slow the vehicle using engine braking.
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with EPS.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when th e indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.U.S.
Canada
16 ACURA ILX-31TX66300.book 493 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

495Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
EPS70 A
−−
ABS/VSA FSR30 A
ABS/VSA Motor40 A
WIPER30 A
Main Fuse120 A
2
IG Main50 A
Fuse Box Main 60 A
Fuse Box Main 260 A
Headlight Main 30 A
ST/MG SW30 A
Rear Defogger 30 A IG Main1 30 ABlower 40 A
IG Main2 30 A
Sub Fan Motor 20 A
Main Fan Motor 20 A
3−−
4− −
5Starter DIAG7.5 A
6− −
7−−
8− −
9−−
10 − −
11Oil Level7.5 A
12 Fog Lights*(20 A)
13Injector20 A
14 Hazard 10 A
15FI Sub15 A
16 IG Coil 15 A
17Daytime Running Lights7.5 A
18 Stop & Horn 10 A
19−−
20 Right Headlight Low Beam 10 A
21IGP15 A
22 DBW 15 A
23Left Headlight Low Beam10 A
24 − −
25MG Clutch7.5 A
26 Washer 15 A
27Small20 A
28 Interior Lights 7.5 A
29Backup10 A
Circuit ProtectedAmps
* Not available on all models
16 ACURA ILX-31TX66300.book 495 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

514
Index
Doors......................................................... 110
Auto Door Locking .................................. 121
Auto Door Unlocking ............................... 121
Door Open Indicator ............................ 27, 71
Door Open Message .................................. 85
Keys ........................................................ 110
Locking/Unlocking the Doors from the Inside ..................................................... 118
Locking/Unlocking the Doors from the Outside .................................................. 113
Lockout Prevention System ...................... 116
DOT Tire Quality Grading ........................ 445
Driving ....................................................... 331
Braking .................................................... 388
Cruise Control ......................................... 349
Dual Clutch Transmission ......................... 344
Shifting Gear ........................................... 345
Starting the Engine .................................. 338
Driving Position Memory System ............. 144
Dual Clutch Transmission ......................... 344
Creeping ................................................. 344
Fluid ................................................ 429, 501
Kickdown ................................................ 344
Operating the Shift Lever ................... 16, 345
Shift Lever Does Not Move....................... 488
Shifting.................................................... 345
Dust and Pollen Filter ............................... 454
E
Elapsed Time............................................... 95 Electric Power Steering System (EPS)
Indicator............................................ 70, 493
Electronic Stability Control (ESC) ............. 380
Emergency ................................................ 498
Emissions Testing (Readiness Codes) ....... 505
Engine ....................................................... 502
Coolant ................................................... 427
Jump Starting .......................................... 485
Oil ........................................................... 422
Remote Engine Start................................ 340
Starting ................................................... 338
Switch Buzzer.......................................... 133
Engine Coolant ......................................... 427
Adding to the Radiator ............................ 428
Adding to the Reserve Tank..................... 427
Overheating ............................................ 489
Temperature Gauge .................................. 88
Engine Oil ................................................. 422
Adding .................................................... 424
Checking................................................. 423
Displaying Oil Life .................................... 416
Low Oil Pressure Indicator ................. 65, 491
Recommended Engine Oil ....................... 422
ENGINE START/STOP Button .................... 133
EPS (Electric Power Steering)
System ............................................... 70, 493
Exhaust Gas Hazard (Carbon Monoxide) .. 60
Expanded View Driver’s Mirror ............... 147
Exterior Care (Cleaning) ........................... 457
Exterior Mirrors ........................................ 147
F
Features.................................................... 165
Filters Dust and Pollen....................................... 454
Oil .......................................................... 425
Flat Tire ..................................................... 463
Floor Mats ................................................ 456
Fluids
Brake ...................................................... 430
Dual Clutch Transmission ........................ 429
Engine Coolant ....................................... 427
Windshield Washer ................................. 430
Fog Light Indicator .................................... 73
Folding Down the Rear Seat ................... 154
Foot Brake ................................................ 389
Front Airbags (SRS) .................................... 38
Front Seats ................................................ 148
Adjusting ................................................ 148
Front Sensor Camera ............................... 352
Fuel ..................................................... 17, 406
Economy................................................. 408
Gauge ...................................................... 88
Instant Fuel Economy ................................ 95
Low Fuel Indicator ..................................... 68
Range ....................................................... 95
Recommendation.................................... 406
Refueling ................................................ 406
Fuel Economy ........................................... 408
Fuel Fill Cap ........................................ 17, 407
Message ................................................. 492
Fuel Fill Door ...................................... 17, 407
16 ACURA ILX-31TX66300.book 514 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分

518
Index
Readiness Codes (Emissions Testing)....... 505
Rear Defogger/Heated Door Mirror
Button ...................................................... 143
Rear Seat (Folding Down) ........................ 154
Rearview Mirror ........................................ 146
Refueling ................................................... 406
Fuel Gauge ................................................ 88
Gasoline .......................................... 406, 500
Low Fuel Indicator ..................................... 68
Regulations ............................... 386, 445, 503
Remote Engine Start with Vehicle
Feedback ................................................. 340
Remote Transmitter .................................. 113
Replacement
Battery..................................................... 452
Bulbs ....................................................... 431
Fuses ............................................... 495, 496
Tires ........................................................ 448
Wiper Blade Rubber ................................. 440
Reporting Safety Defects ......................... 504
Resetting a Trip Meter ............................... 94
Road Departure Mitigation (RDM) .......... 367
On and Off .............................................. 369
S
Safe Driving ................................................. 23
Safety Check ................................................ 27
Safety Labels ............................................... 61
Safety Message ............................................. 1 Seat Belts
.................................................... 28
Adjusting the Shoulder Anchor.................. 32
Automatic Seat Belt Tensioners ................. 30
Checking................................................... 34
Fastening .................................................. 31
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 55
Pregnant Women ...................................... 33
Reminder .................................................. 29
Warning Indicator ............................... 29, 68
Seat Heaters .............................................. 160
Seats .......................................................... 148
Adjusting ................................................ 148
Front Seats .............................................. 148
Rear Seat................................................. 154
Seat Heaters ............................................ 160
Security System ......................................... 126
Immobilizer System Indicator ..................... 73
Security System Alarm Indicator................. 74
Select Lever ......................................... 16, 345
Operation.......................................... 16, 346
Releasing................................................. 488
Won’t Move ............................................ 488
Selecting a Child Seat ................................. 52
Selector Knob (Audio) .............................. 171
Sequential Shift Mode ............................. 347
Sequential Shift Mode Operation ........... 348
Setting the Clock ...................................... 108
Shift Lever ........................................... 16, 345
Shift Lever Position Indicator ............ 66, 346
Shifting (Transmission) ............................. 345 Shoulder Anchor
........................................ 32
Side Airbags ............................................... 42
Side Curtain Airbags .................................. 44
SiriusXM ® Radio ....................................... 211
SMS Text Message ............................ 280, 292
Snow Tires ................................................ 450
Spare Tire ................................................. 501
Spark Plugs ............................................... 500
Specifications ........................................... 500
Specified Fuel ................................... 406, 500
SRS Airbags (Airbags) ................................ 38
Starting the Engine .................................. 338
Does Not Start ........................................ 482
Engine Switch Buzzer .............................. 133
Jump Starting ......................................... 485
Remote Engine Start ............................... 340
Steering Wheel ........................................ 143
Adjusting ................................................ 143
Stopping ................................................... 401
Summer Tires ............................................ 450
Supplemental Restraint System (SRS) ....... 38
Switches (Around the Steering Wheel) .. 4, 5
System Message Indicator ......................... 72
T
Temperature Sensor................................ 164
Temporary Tire Repair Kit ....................... 464
Text Message .................... 280, 292, 324, 326
Time (Setting) ........................................... 108
16 ACURA ILX-31TX66300.book 518 ページ ２０１４年１２月２２日　月曜日　午後１０時１５分
