uuIndicators u
Instrument Panel
*1:On the left: Models without full color display
On the right: Models with full color display
IndicatorNameOn/BlinkingExplanationMessage*1
Electric Power
Steering (EPS)
System
Indicator●Comes on when you set the
power mode to ON, and goes
off when the engine starts.
●Comes on if there is a problem
with the EPS system.
●Stays on constantly or does not
come on at all - Have the vehicle
checked by a dealer.
2 If the Electric Power Steering (EPS)
System Indicator Comes On P. 493
Vehicle
Stability Assist
(VSA®)
System
Indicator
●Comes on for a few seconds
when you set the power mode
to ON, then goes off.
●Blinks when VSA ® is active.●Comes on if there is a problem
with the VSA® system or hill
start assist system.
●Stays on constantly - Have the
vehicle checked by a dealer.
2 Vehicle Stability Assist (VSA ®),
aka Electronic Stability Control
(ESC), System P. 380
Vehicle
Stability Assist
(VSA®) OFF
Indicator●Comes on for a few seconds
when you set the power mode
to ON, then goes off.
●Comes on when you
deactivate VSA ®.
2VSA ® On and Off P. 381——
16 ACURA ILX-31TX66300.book 70 ページ 2014年12月22日 月曜日 午後10時15分
Page 72 of 521
71
uuIndicators u
Continued
Instrument Panel
*1:On the left: Models wi thout full color display
On the right: Models with full color display
*2:Models without full color display
IndicatorNameOn/BlinkingExplanationMessage*1
Door and
Trunk Open
Indicator
●Comes on for a few seconds if
you set the power mode to
ON, then goes off.
●Comes on if any door or the
trunk is not completely closed.
●Comes on if any door is
opened while driving. The
beeper sounds.
●Goes off when all doors and the trunk
are closed.
—
Low Tire
Pressure/
TPMS
Indicator
●Comes on for a few seconds
when you set the power mode
to ON.
●Comes on if the tire pressure
of any of the tires becomes
significantly low.
●Blinks for about one minute,
and then stays on if there is a
problem with the TPMS, or
when a compact spare tire is
temporarily installed.
●Comes on while driving - Stop in a
safe place, check tire pressures, and
inflate the tire(s) if necessary.
●Blinks and remains on - Have the
vehicle checked by a dealer. If the
vehicle is fitted with a compact spare,
get your regular tire repaired or
replaced and put back on your vehicle
as soon as you can.
*2
16 ACURA ILX-31TX66300.book 71 ページ 2014年12月22日 月曜日 午後10時15分
Page 73 of 521

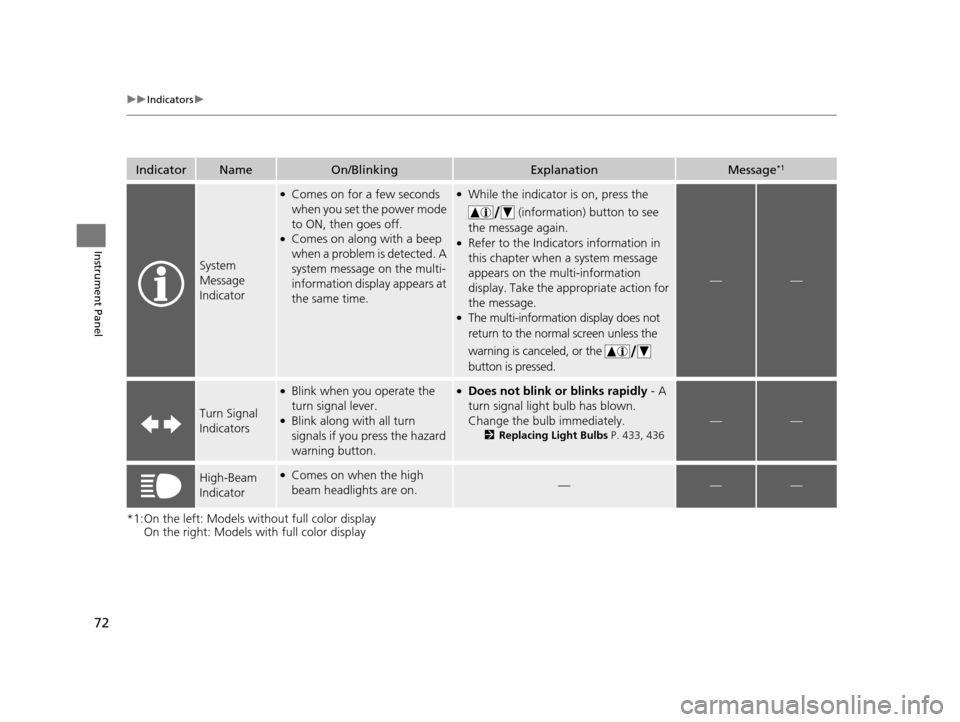

72
uuIndicators u
Instrument Panel
*1:On the left: Models without full color display
On the right: Models with full color display
IndicatorNameOn/BlinkingExplanationMessage*1
System
Message
Indicator
●Comes on for a few seconds
when you set the power mode
to ON, then goes off.
●Comes on along with a beep
when a problem is detected. A
system message on the multi-
information display appears at
the same time.
●While the indicator is on, press the
(information) button to see
the message again.
●Refer to the Indicators information in
this chapter when a system message
appears on the multi-information
display. Take the appropriate action for
the message.
●The multi-information display does not
return to the normal screen unless the
warning is canceled, or the
button is pressed.
——
Turn Signal
Indicators
●Blink when you operate the
turn signal lever.
●Blink along with all turn
signals if you press the hazard
warning button.
●Does not blink or blinks rapidly - A
turn signal light bulb has blown.
Change the bulb immediately.
2 Replacing Light Bulbs P. 433, 436
——
High-Beam
Indicator●Comes on when the high
beam headlights are on.———
16 ACURA ILX-31TX66300.book 72 ページ 2014年12月22日 月曜日 午後10時15分
Page 74 of 521
73
uuIndicators u
Continued
Instrument Panel
*1:On the left: Models wi thout full color display
On the right: Models with full color display
IndicatorNameOn/BlinkingExplanationMessage*1
Lights On
Indicator
●Comes on whenever the light
switch is on, or in AUTO when
the exterior lights are on.●If you set the power mode to
ACCESSORY or VEHICLE OFF (LOCK)
while the exterior lights are on, a chime
sounds when the driver's door is
opened.
——
Fog Light
Indicator*
●Comes on when the fog lights
are on.———
Immobilizer
System
Indicator
●Comes on briefly when you
set the power mode to ON,
then goes off.
●Comes on if the immobilizer
system cannot recognize the
key information.
●Blinks - You cannot start the engine.
Set the power mode to VEHICLE OFF
(LOCK), then select the ON mode
again.
●Repeatedly blinks - The system may
be malfunctioning. Have the vehicle
checked by a dealer.
●Do not attempt to alter this system or
add other devices to it. Electrical
problems can occur.
——
* Not available on all models
16 ACURA ILX-31TX66300.book 73 ページ 2014年12月22日 月曜日 午後10時15分
Page 75 of 521
74
uuIndicators u
Instrument Panel
*1:On the left: Models without full color display
On the right: Models with full color display
IndicatorNameOn/BlinkingExplanationMessage*1
Security
System Alarm
Indicator●Blinks when the Security
System Alarm has been set.
2Security System Alarm P. 126——
Keyless
Access
System
Indicator
●Comes on for a few seconds
when you set the power mode
to ON, then goes off.
●Comes on as soon as a
problem is detected in the
keyless access system or
keyless starting system.
●Have your vehicle checked by a dealer.
CRUISE
MAIN
Indicator
*
●Comes on when you press the
CRUISE button.
2Cruise Control* P. 349——
CRUISE
CONTROL
Indicator
*
●Comes on when you have set
a speed for cruise control.
2 Cruise Control* P. 349——
Indicator
* Not available on all models
16 ACURA ILX-31TX66300.book 74 ページ 2014年12月22日 月曜日 午後10時15分
Page 76 of 521
75
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Road Departure
Mitigation (RDM)
Indicator
●Comes on for a few seconds when
you change the power mode to ON,
then goes off.
●Comes on if there is a problem with
the RDM system.
●Stays on constantly - Have your vehicle
checked by a dealer.
●Comes on when the RDM system
shuts itself off.●Stays on - The temperature inside the
camera is too high.
Use the climate control system to cool down
the camera.
The system activates when the temperature
inside the camera cools down.
2 Front Sensor Camera* P. 352
●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your vehicle
in a safe place, and wipe it off with a soft
cloth.
●Have your vehicle checked by a dealer if the
indicator and message come back on after
you cleaned the area around the camera.
2 Front Sensor Camera* P. 352
Models with RDM
* Not available on all models
16 ACURA ILX-31TX66300.book 75 ページ 2014年12月22日 月曜日 午後10時15分
Page 77 of 521
76
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Adaptive Cruise
Control (ACC)
Indicator (Amber)
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on if there is a problem with
ACC.
●Comes on while driving - Have your
vehicle checked by a dealer.
●Comes on if anything covers the
radar sensor cover and prevents the
sensor from detecting a vehicle in
front.
●May come on when driving in bad
weather (rain, snow, fog, etc.)
●ACC has been automatically
canceled.
●When the radar sensor gets dirty, stop your
vehicle in a safe place, and wipe off dirt
using a soft cloth.
●Have your vehicle checked by a dear if the
indicator does not go off even after you
clean the sensor cover.
Adaptive Cruise
Control ( ACC)
Indicator (Green)
●Comes on when you press the MAIN
button.2 Adaptive Cruise Control (ACC)* P. 354—
●Comes on if the temperature inside
the camera is too high.
●ACC has been automatically
canceled.
●Use the climate control system to cool down
the camera.
●Goes off - The camera has been cooled
down. Pressing the MAIN button can
resume the system.
2 Front Sensor Camera* P. 352
2 Adaptive Cruise Control (ACC)* P. 354
Models with ACC
* Not available on all models
16 ACURA ILX-31TX66300.book 76 ページ 2014年12月22日 月曜日 午後10時15分
Page 78 of 521
77
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Lane Keeping
Assist System
(LKAS ) Indicator
(Amber)●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on if there is a problem with
the LKAS.
●Stays on constantly - Have your vehicle
checked by a dealer.
Lane Keeping
Assist System
( LKAS ) Indicator
(Green)
●Comes on when you press the MAIN
button.2 Lane Keeping Assist System (LKAS)*
P. 372—
●Comes on if the temperature inside
the camera is too high.
●The LKAS has been automatically
canceled.
●Use the climate control system to cool down
the camera.
●Appears when the LKAS is in
operation, or the LKAS button is
pressed, but the temperature inside
the front sensor camera is too high.
The LKAS cancels automatically. The
beeper sounds simultaneously.●Goes off - The camera has been cooled
down. Pressing the LKAS button can
resume the system.
2 Front Sensor Camera* P. 352
2 Lane Keeping Assist System (LKAS)*
P. 372
●Comes on when the area around the
camera is blocked by dirt, mud, etc.
Stop your vehicle in a safe place, and
wipe it off with a soft cloth.
●May come on when driving in bad
weather (rain, snow, fog, etc.)
●Have your vehicle checked by a dealer if the
indicator and message come back on after
you cleaned the area around the camera.
Models with LKAS
* Not available on all models
16 ACURA ILX-31TX66300.book 77 ページ 2014年12月22日 月曜日 午後10時15分
Page 79 of 521
78
uuIndicators u
Instrument Panel
*1:On the left: Models without full color display
On the right: Models with full color display
IndicatorNameOn/BlinkingExplanationMessage*1
Blind Spot
Information
(BSI)
Indicator
*
●Comes on for a few seconds
when you change the power
mode to ON, then goes off.
●Stays on while BSI is turned
off.
——
●Comes on when mud, snow,
or ice accumulates in the
vicinity of sensor.●Comes on while driving - Remove
the obstacle in the vicinity of sensor.
2Blind Spot Information (BSI)
System* P. 382
●Comes on if there is a problem
with the system.●Comes on while driving - Have your
vehicle checked by a dealer.
* Not available on all models
16 ACURA ILX-31TX66300.book 78 ページ 2014年12月22日 月曜日 午後10時15分
Page 80 of 521
79
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Collision
Mitigation Braking
System
TM
(CMBSTM)
Indicator*
●Comes on for a few seconds when
you change the power mode to ON,
then goes off.
●Comes on when you deactivate the
CMBSTM. A multi-information display
message appears for five seconds.
●Comes on if there is a problem with
the CMBSTM.
●Stays on constantly without the
CMBSTM off - Have your vehicle checked by
a dealer.
2 Collision Mitigation Braking SystemTM
(CMBSTM)* P. 392
Models with CMBSTM
* Not available on all models
16 ACURA ILX-31TX66300.book 79 ページ 2014年12月22日 月曜日 午後10時15分
