Page 19 of 521
18
Quick Reference Guide
Maintenance (P411)
Under the Hood (P420)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, slide the lever and lift the
hood.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P431)
● Inspect all lights regularly.
Wiper Blades (P440)
● Replace blades if they leave streaks
across the windshield.
Tires (P442)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter driving.
16 ACURA ILX-31TX66300.book 18 ページ 2014年12月22日 月曜日 午後10時15分
Page 61 of 521
60
Safe Driving
Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system in spected for leaks whenever
• The exhaust system is m aking an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the trunk open, airflow can pull exhaust gas into
the interior and create a hazardous condition. If you must drive with the trunk open,
open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.
1 Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediately afte r starting the engine.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
16 ACURA ILX-31TX66300.book 60 ページ 2014年12月22日 月曜日 午後10時15分
Page 66 of 521
65
uuIndicators u
Continued
Instrument Panel
*1:On the left: Models wi thout full color display
On the right: Models with full color display
IndicatorNameOn/BlinkingExplanationMessage*1
Brake System
Indicator
(Amber)
●Comes on for a few seconds
when you set the power mode
to ON, then goes off.
●Comes on if there is a problem
with a system related to
braking other than the
conventional brake system.
●Comes on while driving - Have your
vehicle checked by a dealer.
●Stays on constantly - Avoid high
speeds and sudden braking. Take the
vehicle to a dealer immediately.
●With this indicator on, your vehicle still
has normal braking ability.
—
Low Oil
Pressure
Indicator
●Comes on when you set the
power mode to ON, and goes
off when the engine starts.
●Comes on when the engine oil
pressure is low.
●Comes on while driving -
Immediately stop in a safe place.
2 If the Low Oil Pressure Indicator
Comes On P. 491
U.S.
Canada
(Amber)
U.S.
Canada
U.S.
Canada
16 ACURA ILX-31TX66300.book 65 ページ 2014年12月22日 月曜日 午後10時15分

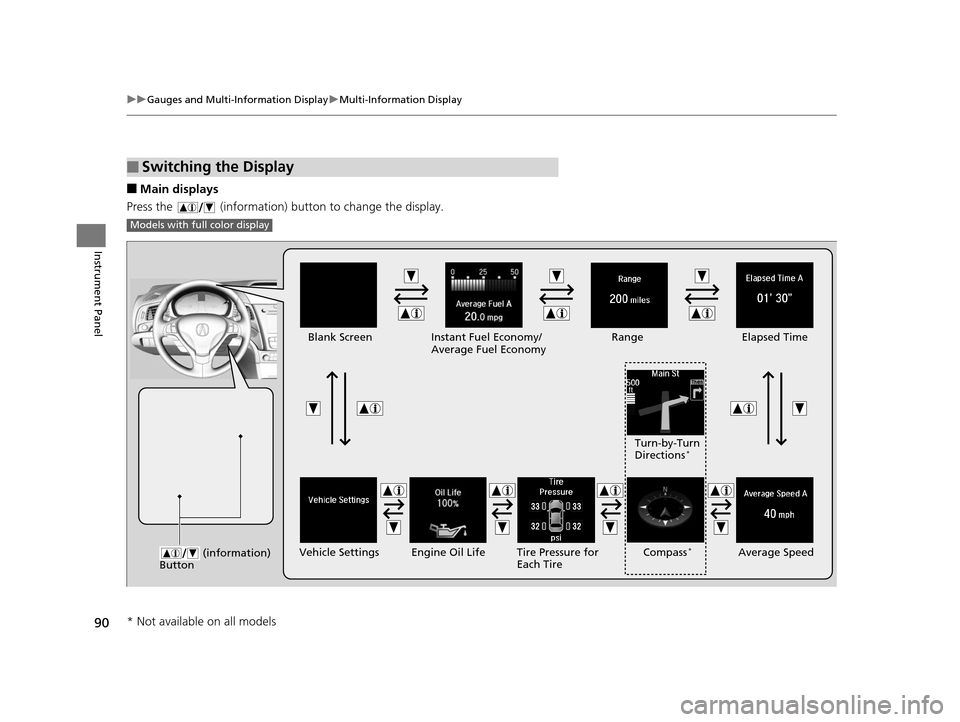

Page 91 of 521
90
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
■Main displays
Press the (information) button to change the display.
■Switching the Display
Models with full color display
QP QQ
QP
QQ
(information)
ButtonEngine Oil Life
Vehicle Settings Elapsed Time
Blank Screen
Average Speed
Range
Instant Fuel Economy/
Average Fuel Economy
Compass*Tire Pressure for
Each TireTurn-by-Turn
Directions
*
* Not available on all models
16 ACURA ILX-31TX66300.book 90 ページ 2014年12月22日 月曜日 午後10時15分

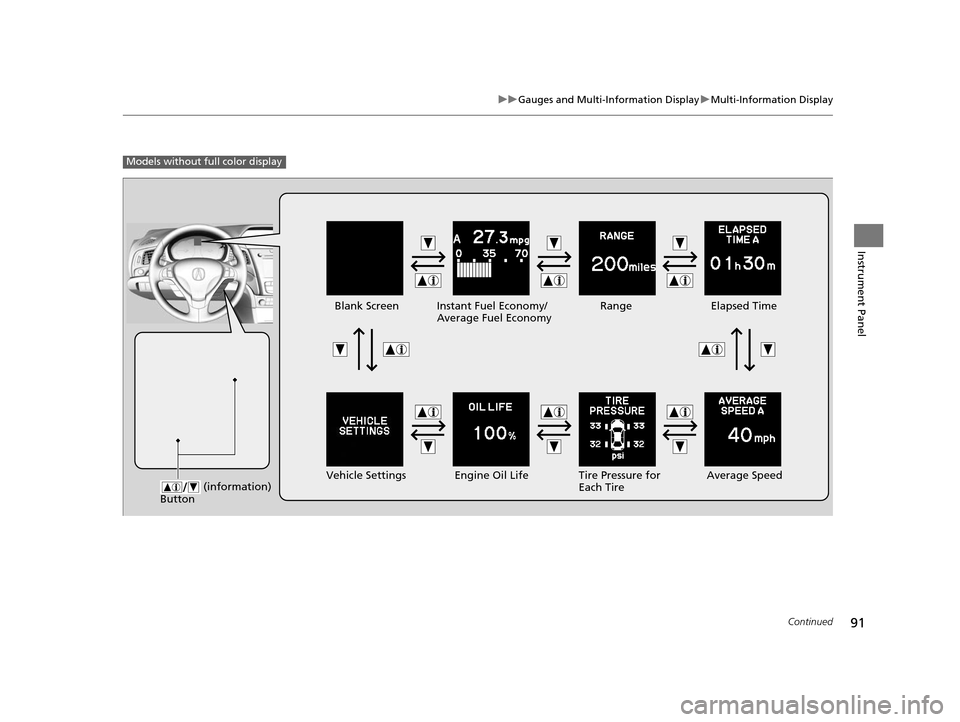

Page 92 of 521
91
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
Models without fu ll color display
Engine Oil Life
Vehicle Settings Elapsed Time
Blank Screen
Average Speed
Range
Instant Fuel Economy/
Average Fuel Economy
Tire Pressure for
Each Tire
(information)
Button
16 ACURA ILX-31TX66300.book 91 ページ 2014年12月22日 月曜日 午後10時15分

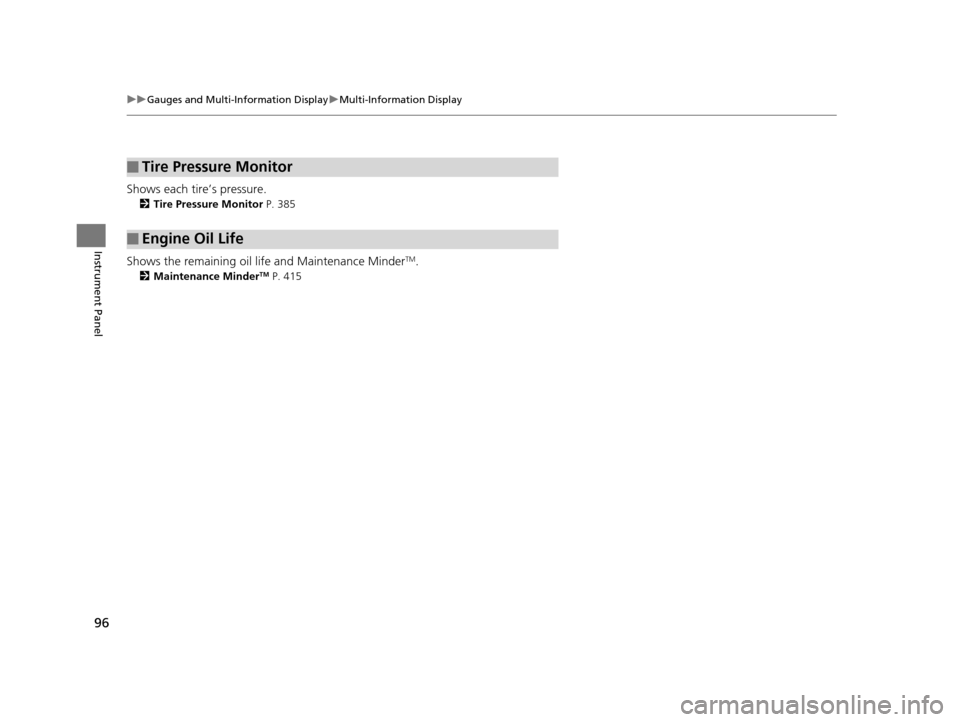

Page 97 of 521
96
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
Shows each tire’s pressure.
2 Tire Pressure Monitor P. 385
Shows the remaining oil life and Maintenance MinderTM.
2Maintenance MinderTM P. 415
■Tire Pressure Monitor
■Engine Oil Life
16 ACURA ILX-31TX66300.book 96 ページ 2014年12月22日 月曜日 午後10時15分
Page 105 of 521
104
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
*1: Default SettingSetup Group Customizable Features Description Selectable Settings
Maintenance
Info.Maintenance ResetResets/Cancels the engine oil life display when you
have performed the maintenance service. Cancel
/Reset
Default All —Cancels/Resets all the cu
stomized settings as
default. Cancel
/Set
16 ACURA ILX-31TX66300.book 104 ページ 2014年12月22日 月曜日 午後10時15分

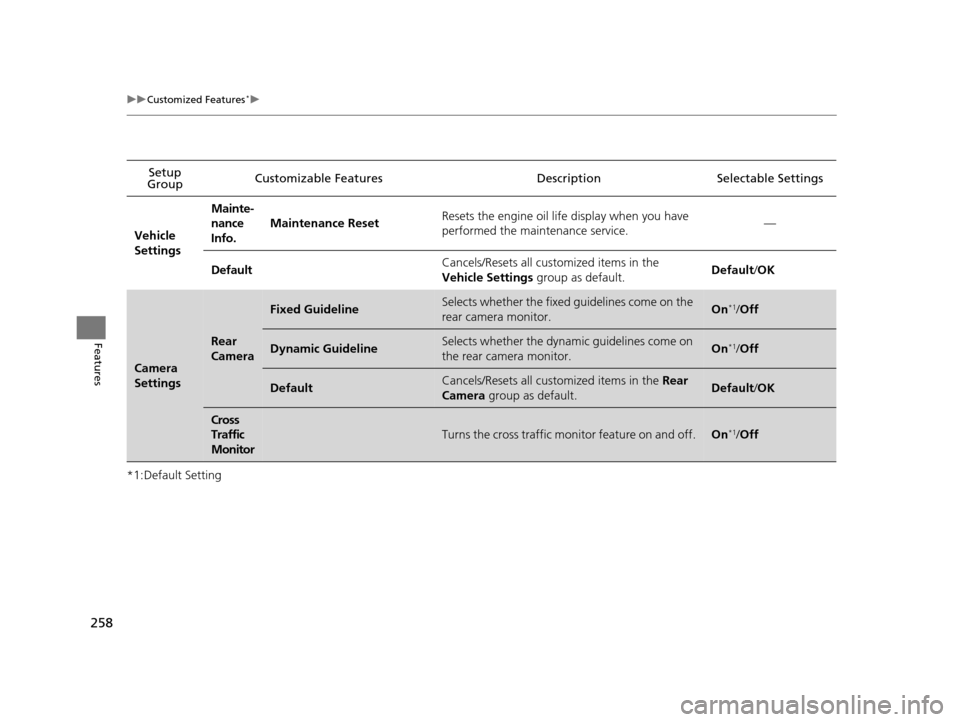

Page 259 of 521
258
uuCustomized Features*u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Vehicle
Settings Mainte-
nance
Info.
Maintenance Reset
Resets the engine oil life display when you have
performed the maintenance service. —
Default Cancels/Resets all cust
omized items in the
Vehicle Settings group as default. Default
/OK
Camera
Settings
Rear
Camera
Fixed GuidelineSelects whether the fixed guidelines come on the
rear camera monitor.On*1/ Off
Dynamic GuidelineSelects whether the dynamic guidelines come on
the rear camera monitor.On*1/Off
DefaultCancels/Resets all cust omized items in the Rear
Camera group as default.Default/OK
Cross
Traffic
Monitor
Turns the cross traffic m onitor feature on and off.On*1/Off
16 ACURA ILX-31TX66300.book 258 ページ 2014年12月22日 月曜日 午後10時15分
Page 342 of 521
Continued341
uuWhen Driving uStarting the Engine
Driving
■To stop the engine
Press and hold the button
for one second.
Go within the range,
and try again.
Amber LED: Blinks when any
button is pressed. Red LED:
●Comes on for one second to let you
know that the engine has stopped.
●Blinks when the remote is out of
the keyless access system range.
The engine will not stop.
1
Remote Engine Start with Vehicle Feedback*
•The engine oil pressure is low.•The engine coolant temper ature is extremely high.
•The telematics unit malfunctions.
•The security system alarm is not set.
Before starting the engine, make sure to check the
door lock status using the remote. When you press
the button, wait for the green LED to blink. If
the red LED turns on, the doors and trunk did not
lock, and the engine does not start.
While the engine is running, the vehicle will
automatically preconditi on inside the vehicle.
When it is warm outside:
•The air conditioning is acti vated in recirculation
mode.
When it is cold outside:
•The defroster is activated at a moderately warm
temperature.
•The rear defogger and door mirror heaters are
activated.
•The seat heater is activated*.
2 Seat Heaters* P. 160
* Not available on all models
16 ACURA ILX-31TX66300.book 341 ページ 2014年12月22日 月曜日 午後10時15分

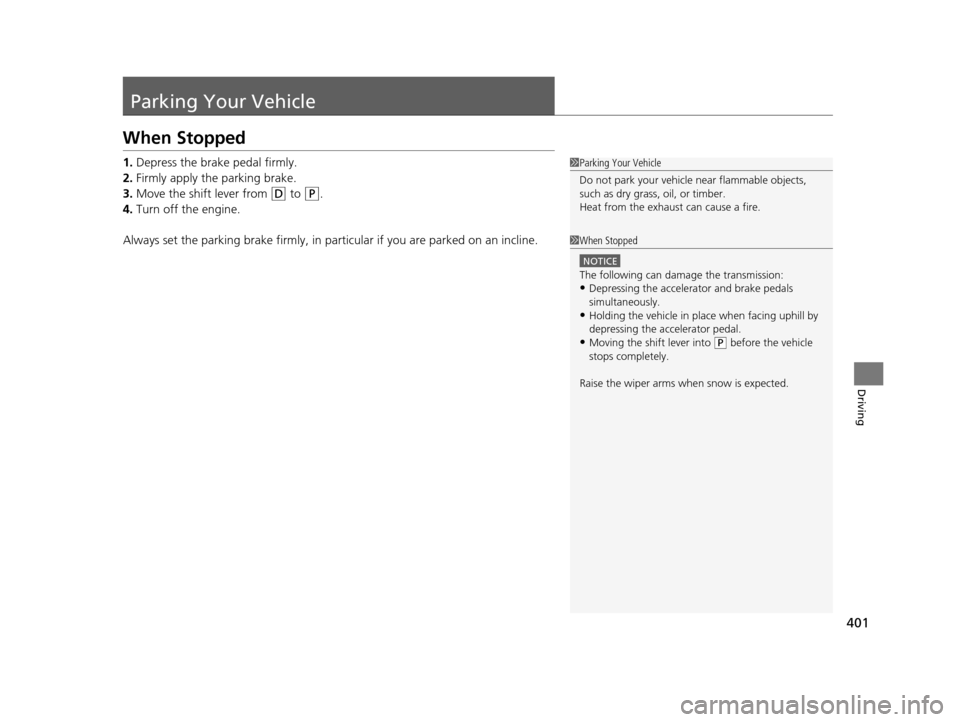

Page 402 of 521
401
Driving
Parking Your Vehicle
When Stopped
1.Depress the brake pedal firmly.
2. Firmly apply the parking brake.
3. Move the shift lever from
(D to (P.
4. Turn off the engine.
Always set the parking brake firmly, in pa rticular if you are parked on an incline.
1Parking Your Vehicle
Do not park your vehicle near flammable objects,
such as dry grass, oil, or timber.
Heat from the exhaust can cause a fire.
1 When Stopped
NOTICE
The following can dama ge the transmission:•Depressing the accelerator and brake pedals
simultaneously.
•Holding the vehicle in place when facing uphill by
depressing the accelerator pedal.
•Moving the shift lever into ( P before the vehicle
stops completely.
Raise the wiper arms when snow is expected.
16 ACURA ILX-31TX66300.book 401 ページ 2014年12月22日 月曜日 午後10時15分
