Information
Specifications
■Vehicle Specifications
*1: Vehicle without blind spot information system
*2: 17 inch wheel vehicle with blind spot information system
*3: Vehicle with 18 inch wheel
■Air Conditioning
ModelAcura ILX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:
Gross Vehicle Weight
Rating
U.S.: 4,001 lbs (1,815 kg)*1
Canada: 1,815 kg*1
U.S.: 4,023 lbs (1,825 kg)*2
Canada: 1,825 kg*2
U.S.: 4,045 lbs (1,835 kg)*3
Canada: 1,835 kg*3
Gross Axle Weight
Rating (Front) U.S.: 2,205 lbs (1,000 kg)
*1
Canada: 1,000 kg*1
U.S.: 2,216 lbs (1,005 kg)*2
Canada: 1,005 kg*2
U.S.: 2,227 lbs (1,010 kg)*3
Canada: 1,010 kg*3
Gross Axle Weight
Rating (Rear)
U.S.: 1,797 lbs (815 kg)*1
Canada: 815 kg*1
U.S.: 1,808 lbs (820 kg)*2
Canada: 820 kg*2
U.S.: 1,819 lbs (825 kg)*3
Canada: 825 kg*3
Refrigerant TypeHFC-134a (R-134a)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeSP-10
Quantity 4.88 – 5.49 cu-in (80 – 90 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement144 cu-in (2,356 cm3)
Spark Plugs NGK
DILKAR7G11GS
DILKAR7H11GS
DENSO DXE22HQR-D11S
TypeUnleaded gasoline, Pump octane number
of 91 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.12 US qt (4.85 ℓ)
■ Light Bulbs
Headlights (High/Low Beam)LED
Fog Lights*55 W (H11)Front Turn Signal LightsLED
Parking/Daytime Running Lights LED
Front Side Marker Lights3 CP
Brake/Taillights/Rear Side Marker
Lights LED
Back-Up Lights16 W
Rear Turn Signal Lights 21 W (Amber)
High-Mount Brake LightLED
Rear License Plate Light 5 W
Trunk Light5 W
Interior Lights Map Lights LED
Ceiling Light 8 W
Foot light 1.4 W
Glove Box light LED
Vanity Mirror light 1.4 W
* Not available on all models
17 ACURA ILX-31TX66400.book 500 ページ ２０１６年３月１５日　火曜日　午後５時０分

501
uuSpecifications u
Information
■Brake Fluid
■ Dual Clutch Transmission Fluid
SpecifiedAcura Heavy Duty Brake Fluid DOT 3
SpecifiedAcura Automatic Transmission Fluid
ATF-TYPE 2.0
Capacity Change 4.3 US qt (4.1 ℓ)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.4 US qt (4.2 ℓ)
Change
including
filter
4.6 US qt (4.4 ℓ)
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.71 US gal (6.49 ℓ)
(change including the remaining
0.166 US gal (0.63 ℓ) in the reserve tank)
■ Tire
*1: Vehicle with 18 inch wheel
*2: Vehicle with 17 inch wheel
*3: Vehicle with optional spare tire
Regular
Size*1225/40R18 92VPressure*1
psi (kPa [kgf/cm2])Front33 (230 [2.3])Rear32 (220 [2.2])Size*2P215/45R17 87VPressure*2
psi (kPa [kgf/cm2])Front35 (240 [2.4])Rear33 (230 [2.3])
Compact
Spare
*3
Size T135/70D17 92M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular18 x 7 1/2J*1
17 x 7J*2
Compact Spare*317 x 4T
17 ACURA ILX-31TX66400.book 501 ページ ２０１６年３月１５日　火曜日　午後５時０分

502
Information

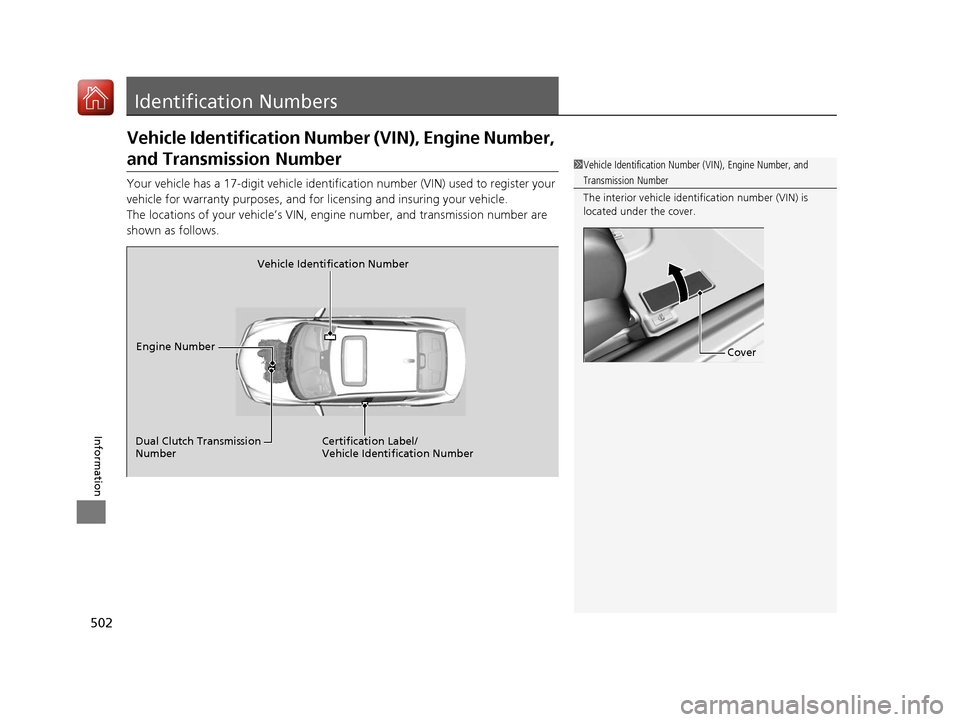

Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, en gine number, and transmission number are
shown as follows.
1 Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification Number
Dual Clutch Transmission
Number
17 ACURA ILX-31TX66400.book 502 ページ ２０１６年３月１５日　火曜日　午後５時０分

503
Information
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
AcuraLink*
Audio System
Blind Spot Information System*
Bluetooth ® Audio
Bluetooth® HandsFreeLink ®
Collision Mitigati on Braking SystemTM *
HomeLink® Universal Transceiver*
Immobilizer System
Keyless Access System
Tire Pressure Monitoring System (TPMS)
Remote Engine Start with Vehicle Feedback*
* Not available on all models
17 ACURA ILX-31TX66400.book 503 ページ ２０１６年３月１５日　火曜日　午後５時０分

505Continued
Information

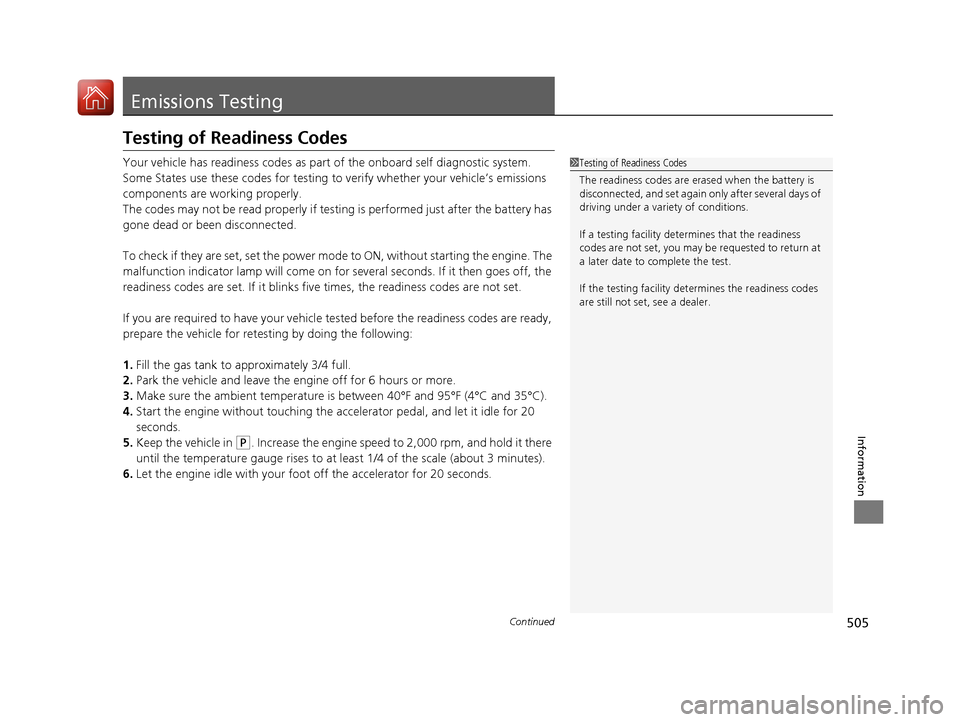

Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness codes as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
until the temperature gauge rises to at least 1/4 of the scale (about 3 minutes).
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
17 ACURA ILX-31TX66400.book 505 ページ ２０１６年３月１５日　火曜日　午後５時０分

506

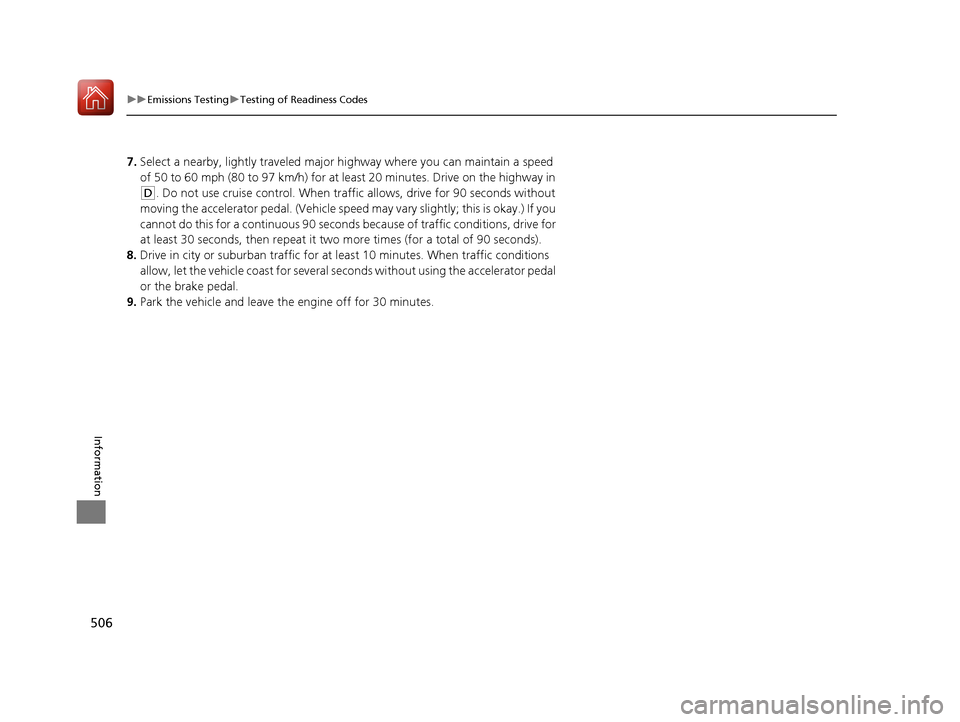

uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When tra ffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle spee d may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two mo re times (for a total of 90 seconds).
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
17 ACURA ILX-31TX66400.book 506 ページ ２０１６年３月１５日　火曜日　午後５時０分

510
Information

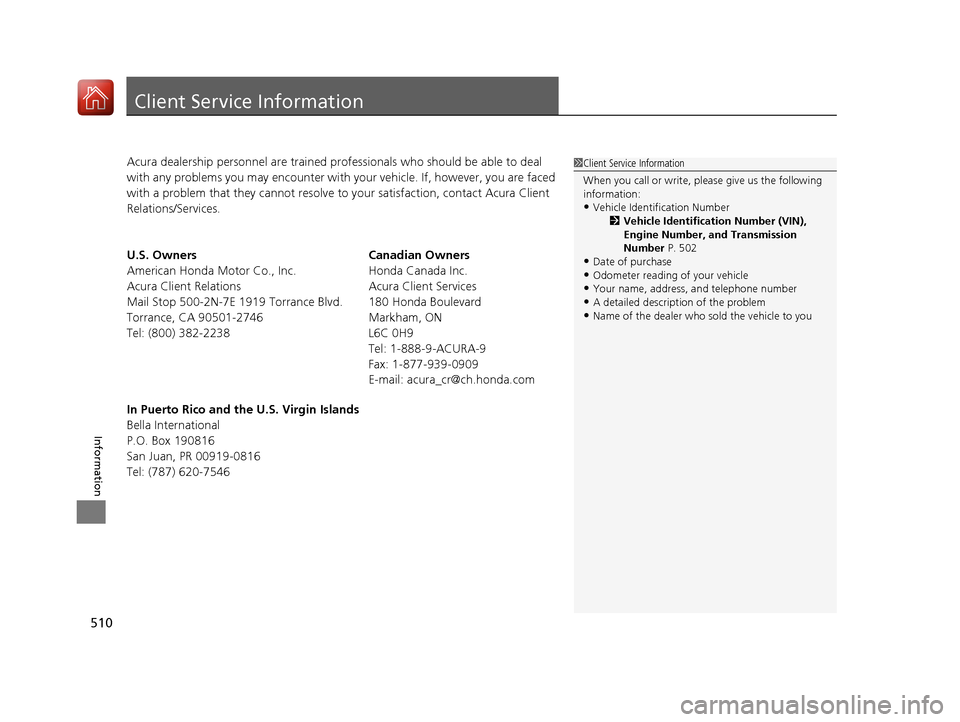

Client Service Information
Acura dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolve to your satisfaction, contact Acura Client
Relations/Services.
U.S. Owners
American Honda Motor Co., Inc.
Acura Client Relations
Mail Stop 500-2N-7E 1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: (800) 382-2238 Canadian Owners
Honda Canada Inc.
Acura Client Services
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-ACURA-9
Fax: 1-877-939-0909
E-mail: acura_c
[email protected]
In Puerto Rico and the U.S. Virgin Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: (787) 620-75461 Client Service Information
When you call or write, pl ease give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number P. 502
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
17 ACURA ILX-31TX66400.book 510 ページ ２０１６年３月１５日　火曜日　午後５時０分

Index
512
Index
Index
A
AAC.................................................... 218, 228
ABS (Anti-lock Brake System) ................... 391
Accessories and Modifications ................. 460
Accessory Power Sockets .......................... 159
Adaptive Cruise Control (ACC) ........... 76, 354
Additives Coolant ................................................... 427
Engine Oil ................................................ 422
Washer .................................................... 430
Additives, Engine Oil ................................ 422
Adjusting Armrest ................................................... 155
Front Seats .............................................. 148
Head Restraints........................................ 151
Mirrors .................................................... 146
Rear Seat ................................................. 154
Steering Wheel ........................................ 143
Temperature .............................................. 94
Aha
TM Menu .............................................. 227
AhaTM Radio .............................................. 240
Air Conditioning System (Climate Control
System) .................................................... 161
Changing the Mode ................................ 161
Defrosting the Windshield and
Windows ............................................... 162
Dust and Pollen Filter ............................... 454
Recirculation/Fresh Air Mode ................... 161
Sensors .................................................... 164
Synchronized Mode ................................. 163
Using Automatic Climate Control ............ 161 Air Pressure
....................................... 443, 501
Airbags ........................................................ 35
Advanced Airbags ..................................... 41
After a Collision ........................................ 38
Airbag Care............................................... 47
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 38
Indicator.............................................. 45, 69
Passenger Airbag Off Indicator .................. 46
Sensors ..................................................... 35
Side Airbags .............................................. 42
Side Curtain Airbags.................................. 44
AM/FM Radio .................................... 178, 206
Anti-lock Brake System (ABS) .................. 391
Indicator.................................................... 69
Armrest ..................................................... 155
Audio Remote Controls ........................... 170
Audio System ............................................ 166
Adjusting the Sound........................ 177, 204
Auxiliary Input Jack.................................. 167
Error Messages ........................................ 235
General Information ................................ 241
Internet Radio ......................................... 225
iPhone............................................. 225, 244
iPod ................................................ 183, 221
MP3/WMA/AAC ...................... 188, 218, 228
Pandora ®................................................. 186
Reactivating ............................................ 169
Recommended CDs ................................. 242
Recommended Devices............................ 244
Security Code .......................................... 169 Shortcuts ................................................ 195
Theft Protection ...................................... 169
USB Adapter Cable ................................. 167
USB Flash Drives...................................... 244
USB Port ................................................. 168
Audio/Information Screen ............... 172, 200
Authorized Manuals ................................ 509
Auto Door Locking/Unlocking ................ 121
Customize ...................................... 103, 257
Automatic Lighting .................................. 137
Auxiliary Input Jack ................................. 167
Average Fuel Economy .............................. 94
Average Speed ........................................... 95
B
Battery...................................................... 451
Charging System Indicator ................ 67, 491
Jump Starting ......................................... 485
Maintenance (Checking the Battery) ....... 451
Maintenance (Replacing) ......................... 452
Belts (Seat) .................................................. 28
Beverage Holders ..................................... 158
Blind Spot Information (BSI) System ....... 383
Bluetooth ® Audio ............................. 191, 231
Bluetooth ® HandsFreeLink ®..................... 269
Booster Seats (For Children) ...................... 59
Brake System ............................................ 389
Anti-lock Brake System (ABS) .................. 391
Brake Assist System................................. 392
Fluid ....................................................... 430
17 ACURA ILX-31TX66400.book 512 ページ ２０１６年３月１５日　火曜日　午後５時０分

513
Index
Foot Brake .............................................. 390
Indicator ........................................... 64, 493
Parking Brake.......................................... 389
Brake System (Amber) Indicator ................................................... 65
Brightness Control (Instrument Panel) ... 142
BSI (Blind Spot Information) System ....... 383
Bulb Replacement .................................... 431
Back-Up Light Bulbs ................................ 438
Brake Light, Taillight a nd Rear Side Marker
Lights .................................................... 436
Fog Light Bulbs ....................................... 431
Front Side Marker Light Bulbs ................. 434
Front Turn Signal Lights .......................... 433
Headlights .............................................. 431
High-Mount Brake Light.......................... 439
Parking/Daytime Running Lights .............. 433
Rear License Plate Light Bulbs.................. 439
Rear Turn Signal Light Bulbs .................... 436
Bulb Specifications ................................... 500
C
Carbon Monoxide Gas ............................... 60
Carrying Cargo ................................. 333, 335
CD Player .......................................... 180, 218
Certification Label ................................... 502
Changing Bulbs ........................................ 431
Charging System Indicator ................ 67, 491
Child Safety ................................................ 48
Childproof Door Locks ............................ 120 Child Seat
.................................................... 48
Booster Seats ............................................. 59
Child Seat for Infants ................................. 50
Child Seat for Small Children ..................... 51
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 55
Larger Children .......................................... 58
Rear-facing Child Seat ............................... 50
Selecting a Child Seat ................................ 52
Using a Tether ........................................... 57
Childproof Door Locks ............................. 120
Cleaning the Exterior ............................... 457
Cleaning the Interior ................................ 455
Client Service Information ....................... 510
Climate Control System ............................ 161
Changing the Mode ................................ 161
Defrosting the Windshield and
Windows ............................................... 162
Dust and Pollen Filter ............................... 454
Recirculation/Fresh Air Mode ................... 161
Sensors .................................................... 164
Synchronized Mode ................................. 163
Using Automatic Climate Control ............ 161
Clock .......................................................... 108
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................. 393
Coat Hook ................................................. 159
Collision Mitigation Braking System
TM
(CMBSTM) .................................................. 393
Compact Spare Tire .......................... 475, 501
Console Compartment ............................. 157 Controls
..................................................... 107
Coolant (Engine) ...................................... 427
Adding to the Radiator ............................ 428
Adding to the Reserve Tank..................... 427
Overheating ............................................ 489
Creeping (Dual Clutch Transmission) ...... 344
Cross Traffic Monitor ............................... 403
Cruise Control ........................................... 349
Indicator.................................................... 74
Cup Holders .............................................. 158
Customized Features .......................... 97, 245
D
Daytime Running Lights .......................... 139
Dead Battery ............................................. 485
Defrosting the Windshield and Windows ................................................. 162
Devices that Emit Radio Waves ............... 503
Dimming Headlights ............................................... 136
Rearview Mirror....................................... 146
Dipstick (Engine Oil) ................................. 423
Directional Signals (Turn Signal) ............. 136
Door Mirrors ............................................. 147
17 ACURA ILX-31TX66400.book 513 ページ ２０１６年３月１５日　火曜日　午後５時０分

514
Index
Doors......................................................... 110
Auto Door Locking .................................. 121
Auto Door Unlocking ............................... 121
Door Open Indicator ............................ 27, 71
Door Open Message .................................. 85
Keys ........................................................ 110
Locking/Unlocking the Doors from the Inside ..................................................... 118
Locking/Unlocking the Doors from the Outside .................................................. 113
Lockout Prevention System ...................... 116
DOT Tire Quality Grading ........................ 445
Driving ....................................................... 331
Braking .................................................... 389
Cruise Control ......................................... 349
Dual Clutch Transmission ......................... 344
Shifting Gear ........................................... 345
Starting the Engine .................................. 338
Driving Position Memory System ............. 144
Dual Clutch Transmission ......................... 344
Creeping ................................................. 344
Fluid ................................................ 429, 501
Kickdown ................................................ 344
Operating the Shift Lever ................... 16, 345
Shift Lever Does Not Move....................... 488
Shifting.................................................... 345
Dust and Pollen Filter ............................... 454
E
Elapsed Time............................................... 95 Electric Power Steering System (EPS)
Indicator............................................ 70, 493
Electronic Stability Control (ESC) ............. 381
Emergency ................................................ 498
Emissions Testing (Readiness Codes) ....... 505
Engine ....................................................... 502
Coolant ................................................... 427
Jump Starting .......................................... 485
Oil ........................................................... 422
Remote Engine Start................................ 340
Starting ................................................... 338
Switch Buzzer.......................................... 133
Engine Coolant ......................................... 427
Adding to the Radiator ............................ 428
Adding to the Reserve Tank..................... 427
Overheating ............................................ 489
Temperature Gauge .................................. 88
Engine Oil ................................................. 422
Adding .................................................... 424
Checking................................................. 423
Displaying Oil Life .................................... 416
Low Oil Pressure Indicator ................. 65, 491
Recommended Engine Oil ....................... 422
ENGINE START/STOP Button .................... 133
EPS (Electric Power Steering)
System ............................................... 70, 493
Exhaust Gas Hazard (Carbon Monoxide) .. 60
Expanded View Driver’s Mirror ............... 147
Exterior Care (Cleaning) ........................... 457
Exterior Mirrors ........................................ 147
F
Features.................................................... 165
Filters Dust and Pollen....................................... 454
Oil .......................................................... 425
Flat Tire ..................................................... 463
Floor Mats ................................................ 456
Fluids
Brake ...................................................... 430
Dual Clutch Transmission ........................ 429
Engine Coolant ....................................... 427
Windshield Washer ................................. 430
Fog Light Indicator .................................... 73
Folding Down the Rear Seat ................... 154
Foot Brake ................................................ 390
Front Airbags (SRS) .................................... 38
Front Seats ................................................ 148
Adjusting ................................................ 148
Front Sensor Camera ............................... 352
Fuel ..................................................... 17, 407
Economy................................................. 409
Gauge ...................................................... 88
Instant Fuel Economy ................................ 95
Low Fuel Indicator..................................... 68
Range ....................................................... 95
Recommendation.................................... 407
Refueling ................................................ 407
Fuel Economy ........................................... 409
Fuel Fill Cap ........................................ 17, 408
Message ................................................. 492
Fuel Fill Door ...................................... 17, 408
17 ACURA ILX-31TX66400.book 514 ページ ２０１６年３月１５日　火曜日　午後５時０分
