Acura ILX 2017 User Guide

10
Quick Reference Guide
Instrument Panel (P63)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator Vehicle Stability Assist
(VSA®) System Indicator
VSA ® OFF Indicator
Electric Power Steering
(EPS) System Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Immobilizer System
Indicator
System Indicators
System Message
Indicator
Gauges (P88)/Multi-Information Display (P89)/System Indicators (P64)
Low Tire Pressure/
TPMS Indicator
Keyless Access System
Indicator Blind Spot Information
(BSI) Indicator
*
Collision Mitigation Braking
SystemTM (CMBSTM) Indicator*
Road Departure Mitigation
(RDM) Indicator*Fog Light Indicator*
Temperature
Gauge Security
System Alarm
IndicatorFuel Gauge
Tachometer
Multi-Information Display
Speedometer
Shift Lever Position
Indicator M (sequential mode)
Indicator/Gear
Position Indicator
System Indicators
Lane Keeping Assist
System ( LKAS) Indicator*Adaptive Cruise Control
(ACC ) Indicator*
Models without
full color display
Anti-lock Brake
System ( ABS)
Indicator
Seat Belt Reminder
Indicator CRUISE CONTROL
Indicator
*
Parking Brake
and Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
CRUISE MAIN
Indicator
*
Low Fuel Indicator Turn Signal and
Hazard Warning
Indicators
Brake System
Indicator (Amber)
U.S.
Canada
U.S.
Canada
Door and Trunk
Open Indicator*
17 ACURA ILX-31TX66400.book 10 ページ ２０１６年３月１５日　火曜日　午後５時０分

11
Quick Reference Guide
Controls (P107)
Clock (P108)
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
You can also adjust the time manually.
aEnter the Clock Adjustment screen.
2 Adjusting the Clock (P108)
bRotate to change hour, then press
.
cRotate to change minute, then
press .
Models with navigation system
Models without navigation system
Models with two displays
aPress the CLOCK (AUX ) button until the
displayed time begins flashing.
bPress Preset ( 4 (Hour) or (5 (Minute)
to set the time. Press Preset ( 6 (Reset)
to set the time to the nearest hour.
cPress the CLOCK button again to set
the time.
ENGINE START/STOP
Button
(P133)
Press the button to ch ange the vehicle’s
power mode.
Models with one displayTurn Signals (P136)
Lights (P136)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
* Not available on all models
17 ACURA ILX-31TX66400.book 11 ページ ２０１６年３月１５日　火曜日　午後５時０分

12
Quick Reference Guide
Wipers and Washers
(P140)
*1:Models with automatic intermittent wipers
*2:Models without automatic intermittent wipers
Wiper/Washer Control Lever
Adjustment Ring: Low Sensitivity
*1
: Lower speed, fewer sweeps*2
: High Sensitivity*1
: Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies
automatically
INT
*2: Low speed with
intermittent
LO : Low speed wipe
HI: High speed wipe
Pull toward
you to spray
washer fluid.
Steering Wheel (P143)
● To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P118)
●Pull either front door inner handle to
unlock and open it in one motion.
Trunk (P122)
● To unlock and open the trunk:
•Pull the trunk release.
• Press the trunk release button on the
keyless access remote.
• Press the trunk release button on the
trunk lid.
Power Door Mirrors
(P147)
● With the power mode in ON, move the
selector switch to L or R .
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
Trunk Release
Selector Switch
Adjustment Switch
17 ACURA ILX-31TX66400.book 12 ページ ２０１６年３月１５日　火曜日　午後５時０分

13
Quick Reference Guide
Power Windows (P129)
● With the power mode in ON, open and
close the power windows.
● If the power window lock button is in the
off position, each passenger's window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator is on), each
passenger's window switch is disabled.
Power Window Lock Button
Window SwitchIndicator
Climate Control System (P161)
● Press the AUTO button to activate the climate control system.
● Press the button to turn the system on or off.
● Press the button to defrost the windshield.
The climate control system is voice operable. See the Navigation System Manual for
complete details.
On models with navigation system
Driver's Side
Temperature
Control Dial
A/C (Air Conditioning) Button
Air flows from floor and
windshield defroster vents. Air flows from floor vents. Air flows from floor and
dashboard vents. Air flows from dashboard vents.
AUTO Button
(Recirculation) Button
Passenger's Side
Temperature
Control Dial
MODE Control Button
(ON/OFF) Button
SYNC (Synchronized) Button
(Windshield Defroster) Button
/ (Fan Control) Buttons
17 ACURA ILX-31TX66400.book 13 ページ ２０１６年３月１５日　火曜日　午後５時０分

14
Quick Reference Guide
Features (P165)
Audio Remote Controls
(P170)
●VOL (Volume) Button
Press / to adjust the volume up/
down.
● MODE Button
Press to change the audio mode: FM1/
FM2/AM/CD/AUX.
Press to change the audio mode: FM/AM/
SiriusXM ®/CD/USB/iPod/Bluetooth ® Audio/
Pandora®
*/AhaTM/AUX HDMI®
● CH (Channel) Button
Radio: Press to change the preset station. Press and hold to select the next or
previous strong station.
CD/USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
CH Button MODE
Button
VOL
Button
Models with one display
Models with two displays
Audio system (P166)
For navigation system operation () See the Navigation System Manual
Models with one display
Audio/
Information Screen
Selector Knob VOL
/ (Volume/Power) Knob
CD Button
CD Slot
(CD Eject)
Button
Preset Buttons
SETUP Button
PHONE Button DISPLAY Button A.SEL (Auto
Select) Button SKIP Bar AUX
Button
BACK Button
SCAN
Button
FM
Button
AM
Button
FOLDER Bar
17 ACURA ILX-31TX66400.book 14 ページ ２０１６年３月１５日　火曜日　午後５時０分

15
Quick Reference Guide
*1:Icons that appear on the screen vary by the source selected.

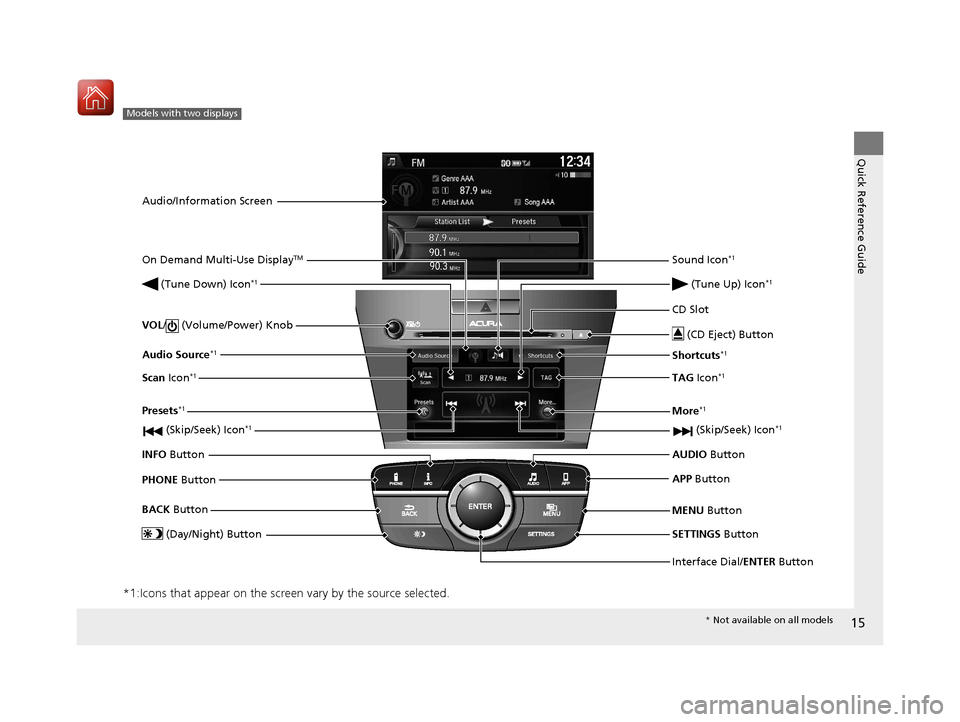

Models with two displays
Audio/Information ScreenInterface Dial/ENTER Button
VOL
/ (Volume/Power) Knob
CD Slot
(CD Eject) Button
SETTINGS Button
BACK
Button
MENU Button
AUDIO
Button
INFO Button
On Demand Multi-Use Display
TM
PHONE
Button
(Tune Down) Icon
*1
(Skip/Seek) Icon*1
Audio Source*1
(Skip/Seek) Icon*1
Presets*1
(Tune Up) Icon*1
More*1
(Day/Night) Button
Shortcuts*1
APP
Button
Sound Icon*1
Scan Icon*1TAG Icon*1
* Not available on all models
17 ACURA ILX-31TX66400.book 15 ページ ２０１６年３月１５日　火曜日　午後５時０分

16
Quick Reference Guide
Driving (P331)
Release Button
Depress the brake pedal and press the
release button to move out of
( P.
Move the shift lever without pressing
the release button. Press the release button to move the
shift lever.
Dual Clutch Transmission (P345)
● Shift to
(P and depress the brake pedal when starting the
engine.
● Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
S Position
Sequential shift mode can be used. Drive
Normal driving. D-paddle
shift mode can be used.Paddle Shifters (P348)
● Paddle shifters allow you to shift gears much like a manual
transmission (1st through 8th). This is useful for engine braking.
●D-paddle shift mode: The
transmission will shift
back to automatic mode
once the system detects
that the vehicle is cruising.
● Sequential shift mode:
Holds the selected gear,
and the M indicator
comes on.
● The selected gear position
is shown in the instrument
panel.
Shift Lever
Shift Down
(-
Paddle Shifter Shift Up (
+
Paddle Shifter
M Indicator
Shift
Lever
Position
Indicator
Models with full color display
Models without full color display
Selected
Gear
Number
M Indicator
Shift
Lever
Position
Indicator
Selected
Gear
Number
17 ACURA ILX-31TX66400.book 16 ページ ２０１６年３月１５日　火曜日　午後５時０分

17
Quick Reference Guide
VSA® OFF Button (P382)
● The vehicle stability assist (VSA® ) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To turn VSA ® on or off, press and hold
the button until you hear a beep.
Cruise Control* (P349)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
button, then press DECEL/SET once you
have achieved the desired speed (above
25 mph or 40 km/h).
Collision Mitigation
Braking System
TM
(CMBS
TM) OFF Button*
(P393)
● When a possible collision is likely
unavoidable, the CMBS
TM can help you to
reduce the vehicle speed and the severity
of the collision.
● To turn the CMBS
TM on or off, press and
hold the button until you hear a beep.
Tire Pressure Monitoring System (TPMS) (P385)
● The TPMS monitors tire pressure.
● The TPMS is turned on automatically every time you start the engine.
Refueling (P407)
aPush the fuel fill door
release handle.
bTurn the fuel fill cap
slowly to remove the
cap.
cPlace the cap in the
holder on the fuel fill
door.
dAfter refueling, screw
the cap back on until it
clicks at least once.
Fuel recommendation: Unleaded premiu m gasoline with a pump octane
number 91 or higher recommended
Fuel tank capacity: 13.2 US gal (50 L)
* Not available on all models
17 ACURA ILX-31TX66400.book 17 ページ ２０１６年３月１５日　火曜日　午後５時０分

18
Quick Reference Guide
Maintenance (P411)
Under the Hood (P420)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, slide the lever and lift the
hood.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P431)
● Inspect all lights regularly.
Wiper Blades (P440)
● Replace blades if they leave streaks
across the windshield.
Tires (P442)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter driving.
17 ACURA ILX-31TX66400.book 18 ページ ２０１６年３月１５日　火曜日　午後５時０分

Quick Reference Guide
19
Handling the Unexpected (P461)
Flat Tire (P463)
● Park in a safe location and repair the flat
tire using the temporary tire repair kit.
Park in a safe location and replace the
flat tire with the comp act spare tire in the
trunk.
Indicators Come On
(P491)
● Identify the indica tor and consult the
owner's manual.
Vehicles with tire repair kit
Vehicles with optional spare tire
Engine Won't Start (P482)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P495)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P489)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P498)
●Call a professional towing service if you
need to tow your vehicle.
17 ACURA ILX-31TX66400.book 19 ページ ２０１６年３月１５日　火曜日　午後５時０分
