463Continued
Handling the Unexpected
If a Tire Goes Flat
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a small puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, and n on-slippery surface and apply the parking
brake.
2. Move the shift lever to
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
1 Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact a dealer or a roadside assistant to
have the vehicle towed.
•The tire sealant has expired.
•More than one tire is punctured.•The puncture or cut is larger than 3/16 inch (4 mm).
•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.
•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
NOTICE
Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
a different agent is used, you may permanently
damage the tire pressure sensor.
When the puncture is:Kit Use
Smaller than 3/16 inch (4 mm)Yes
Larger than 3/16 inch (4 mm)No
Contact
Area
17 ACURA ILX-31TX66400.book 463 ページ ２０１６年３月１５日　火曜日　午後５時０分

475
uuIf a Tire Goes Flat uChanging a Flat Tire
Continued
Handling the Unexpected
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full size tire repaired or
replaced.
1. Park the vehicle on firm, level, and non- slippery surface and apply the parking
brake.
2. Move the shift lever in
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
Vehicles with optional spare tire
1 Changing a Flat Tire
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use a puncture-repairi ng agent on a flat tire,
as it can damage the tire pressure sensor.
17 ACURA ILX-31TX66400.book 475 ページ ２０１６年３月１５日　火曜日　午後５時０分

493
uuIndicator, Comin g On/BlinkinguIf the Brake System Indicator (Red) Comes On
Handling the Unexpected

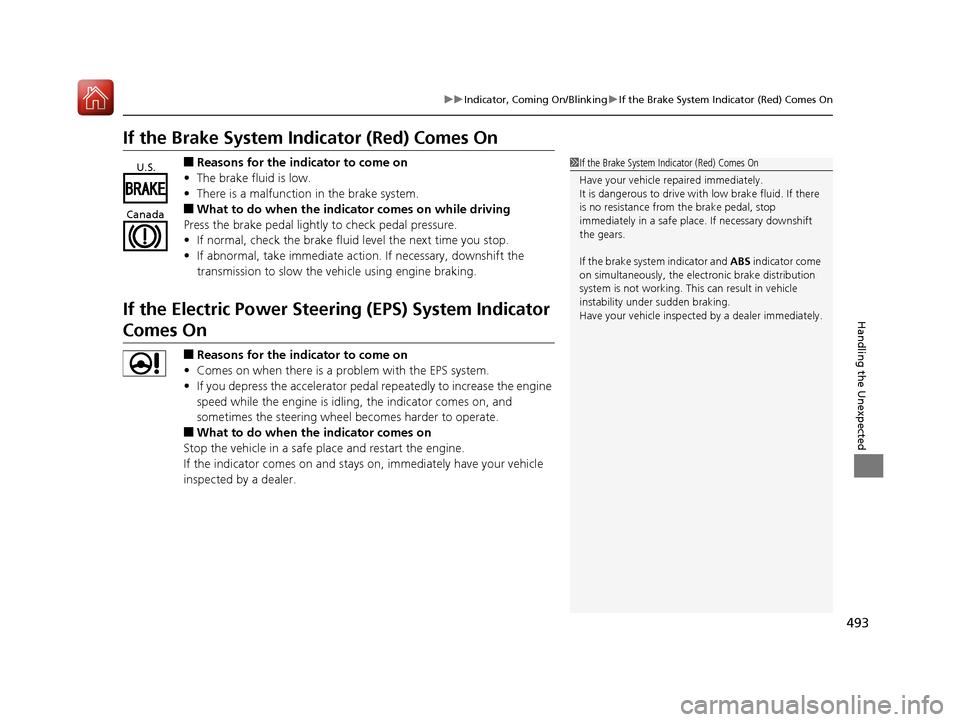

If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indica tor comes on while driving
Press the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate acti on. If necessary, downshift the
transmission to slow the vehicle using engine braking.
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when th e indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.U.S.
Canada
17 ACURA ILX-31TX66400.book 493 ページ ２０１６年３月１５日　火曜日　午後５時０分

Index
512
Index
Index
A
AAC.................................................... 218, 228
ABS (Anti-lock Brake System) ................... 391
Accessories and Modifications ................. 460
Accessory Power Sockets .......................... 159
Adaptive Cruise Control (ACC) ........... 76, 354
Additives Coolant ................................................... 427
Engine Oil ................................................ 422
Washer .................................................... 430
Additives, Engine Oil ................................ 422
Adjusting Armrest ................................................... 155
Front Seats .............................................. 148
Head Restraints........................................ 151
Mirrors .................................................... 146
Rear Seat ................................................. 154
Steering Wheel ........................................ 143
Temperature .............................................. 94
Aha
TM Menu .............................................. 227
AhaTM Radio .............................................. 240
Air Conditioning System (Climate Control
System) .................................................... 161
Changing the Mode ................................ 161
Defrosting the Windshield and
Windows ............................................... 162
Dust and Pollen Filter ............................... 454
Recirculation/Fresh Air Mode ................... 161
Sensors .................................................... 164
Synchronized Mode ................................. 163
Using Automatic Climate Control ............ 161 Air Pressure
....................................... 443, 501
Airbags ........................................................ 35
Advanced Airbags ..................................... 41
After a Collision ........................................ 38
Airbag Care............................................... 47
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 38
Indicator.............................................. 45, 69
Passenger Airbag Off Indicator .................. 46
Sensors ..................................................... 35
Side Airbags .............................................. 42
Side Curtain Airbags.................................. 44
AM/FM Radio .................................... 178, 206
Anti-lock Brake System (ABS) .................. 391
Indicator.................................................... 69
Armrest ..................................................... 155
Audio Remote Controls ........................... 170
Audio System ............................................ 166
Adjusting the Sound........................ 177, 204
Auxiliary Input Jack.................................. 167
Error Messages ........................................ 235
General Information ................................ 241
Internet Radio ......................................... 225
iPhone............................................. 225, 244
iPod ................................................ 183, 221
MP3/WMA/AAC ...................... 188, 218, 228
Pandora ®................................................. 186
Reactivating ............................................ 169
Recommended CDs ................................. 242
Recommended Devices............................ 244
Security Code .......................................... 169 Shortcuts ................................................ 195
Theft Protection ...................................... 169
USB Adapter Cable ................................. 167
USB Flash Drives...................................... 244
USB Port ................................................. 168
Audio/Information Screen ............... 172, 200
Authorized Manuals ................................ 509
Auto Door Locking/Unlocking ................ 121
Customize ...................................... 103, 257
Automatic Lighting .................................. 137
Auxiliary Input Jack ................................. 167
Average Fuel Economy .............................. 94
Average Speed ........................................... 95
B
Battery...................................................... 451
Charging System Indicator ................ 67, 491
Jump Starting ......................................... 485
Maintenance (Checking the Battery) ....... 451
Maintenance (Replacing) ......................... 452
Belts (Seat) .................................................. 28
Beverage Holders ..................................... 158
Blind Spot Information (BSI) System ....... 383
Bluetooth ® Audio ............................. 191, 231
Bluetooth ® HandsFreeLink ®..................... 269
Booster Seats (For Children) ...................... 59
Brake System ............................................ 389
Anti-lock Brake System (ABS) .................. 391
Brake Assist System................................. 392
Fluid ....................................................... 430
17 ACURA ILX-31TX66400.book 512 ページ ２０１６年３月１５日　火曜日　午後５時０分

514
Index
Doors......................................................... 110
Auto Door Locking .................................. 121
Auto Door Unlocking ............................... 121
Door Open Indicator ............................ 27, 71
Door Open Message .................................. 85
Keys ........................................................ 110
Locking/Unlocking the Doors from the Inside ..................................................... 118
Locking/Unlocking the Doors from the Outside .................................................. 113
Lockout Prevention System ...................... 116
DOT Tire Quality Grading ........................ 445
Driving ....................................................... 331
Braking .................................................... 389
Cruise Control ......................................... 349
Dual Clutch Transmission ......................... 344
Shifting Gear ........................................... 345
Starting the Engine .................................. 338
Driving Position Memory System ............. 144
Dual Clutch Transmission ......................... 344
Creeping ................................................. 344
Fluid ................................................ 429, 501
Kickdown ................................................ 344
Operating the Shift Lever ................... 16, 345
Shift Lever Does Not Move....................... 488
Shifting.................................................... 345
Dust and Pollen Filter ............................... 454
E
Elapsed Time............................................... 95 Electric Power Steering System (EPS)
Indicator............................................ 70, 493
Electronic Stability Control (ESC) ............. 381
Emergency ................................................ 498
Emissions Testing (Readiness Codes) ....... 505
Engine ....................................................... 502
Coolant ................................................... 427
Jump Starting .......................................... 485
Oil ........................................................... 422
Remote Engine Start................................ 340
Starting ................................................... 338
Switch Buzzer.......................................... 133
Engine Coolant ......................................... 427
Adding to the Radiator ............................ 428
Adding to the Reserve Tank..................... 427
Overheating ............................................ 489
Temperature Gauge .................................. 88
Engine Oil ................................................. 422
Adding .................................................... 424
Checking................................................. 423
Displaying Oil Life .................................... 416
Low Oil Pressure Indicator ................. 65, 491
Recommended Engine Oil ....................... 422
ENGINE START/STOP Button .................... 133
EPS (Electric Power Steering)
System ............................................... 70, 493
Exhaust Gas Hazard (Carbon Monoxide) .. 60
Expanded View Driver’s Mirror ............... 147
Exterior Care (Cleaning) ........................... 457
Exterior Mirrors ........................................ 147
F
Features.................................................... 165
Filters Dust and Pollen....................................... 454
Oil .......................................................... 425
Flat Tire ..................................................... 463
Floor Mats ................................................ 456
Fluids
Brake ...................................................... 430
Dual Clutch Transmission ........................ 429
Engine Coolant ....................................... 427
Windshield Washer ................................. 430
Fog Light Indicator .................................... 73
Folding Down the Rear Seat ................... 154
Foot Brake ................................................ 390
Front Airbags (SRS) .................................... 38
Front Seats ................................................ 148
Adjusting ................................................ 148
Front Sensor Camera ............................... 352
Fuel ..................................................... 17, 407
Economy................................................. 409
Gauge ...................................................... 88
Instant Fuel Economy ................................ 95
Low Fuel Indicator..................................... 68
Range ....................................................... 95
Recommendation.................................... 407
Refueling ................................................ 407
Fuel Economy ........................................... 409
Fuel Fill Cap ........................................ 17, 408
Message ................................................. 492
Fuel Fill Door ...................................... 17, 408
17 ACURA ILX-31TX66400.book 514 ページ ２０１６年３月１５日　火曜日　午後５時０分

516
Index
Indicators..................................................... 64
Adaptive Cruise Control (ACC) .......... 76, 354
Anti-lock Brake System (ABS) ..................... 69
Blind Spot Information (BSI) ............... 78, 384
Brake System (Amber)................................ 65
Brake System (Red) .................................... 64
Charging System ............................... 67, 491
Collision Mitigati on Braking System
TM
(CMBSTM) ........................................... 79, 80
CRUISE CONTROL .............................. 74, 350
CRUISE MAIN .................................... 74, 349
Door and Trunk Open .......................... 27, 71
Electric Power Steering (EPS) System .. 70, 493
Fog Light ................................................... 73
Gear Position ............................................. 66
High-Beam ................................................ 72
Immobilizer System .................................... 73
Keyless Access System ............................... 74
Lane Keeping Assist System (LKAS) .... 77, 375
Lights On ................................................... 73
Low Fuel .................................................... 68
Low Oil Pressure ................................ 65, 491
Low Tire Pressure/TPMS ............. 71, 385, 387
Maintenance Minder ............................... 415
Malfunction Indicator Lamp ............... 67, 492
Parking Brake and Brak e System ........ 64, 493
Road Departure Mitigation (RDM) .............. 75
Seat Belt Reminder .............................. 29, 68
Security System Alarm ............................... 74
Sequential mode...................................... 348
Supplemental Restraint System ............ 45, 69 System Message ........................................ 72
Transmission ............................................. 66
Turn Signal ................................................ 72
Vehicle Stability Assist (VSA
®)
System ............................................ 70, 381
VSA ® OFF .......................................... 70, 382
Information .............................................. 499
Instant Fuel Economy ................................. 95
Instrument Panel ........................................ 63
Brightness Control................................... 142
Interface Dial ............................................ 193
Interior Lights ........................................... 156
Interior Rearview Mirror .......................... 146
Internet Radio .................................. 186, 225
iPhone ............................................... 225, 244
iPod ................................................... 183, 221
J
Jack (Wheel Nut Wrench) ........................ 478
Jump Starting ........................................... 485
K
Key Number Tag ....................................... 112
Keyless Access System .............................. 113
Keyless Lockout Prevention ..................... 116
Keys ........................................................... 110
Lockout Prevention.................................. 116
Number Tag ............................................ 112
Rear Door Won’t Open............................ 120 Remote Transmitter ................................ 115
Two-way Keyless Access Remote..... 117, 340
Types and Functions................................ 110
Kickdown (Dual Clutch Transmission) .... 344
L
Lane Keeping Assist System (LKAS)........ 373
Language (HFL) ................................ 270, 299
LATCH (Child Seats) ................................... 53
Lights ................................................ 136, 431
Automatic............................................... 137
Bulb Replacement ................................... 431
Daytime Running Lights .......................... 139
Fog Lights ............................................... 139
High-Beam Indicator ................................. 72
Interior.................................................... 156
Light Switches......................................... 136
Lights On Indicator.................................... 73
Turn Signals ............................................ 136
Limitations for Manual Operation .......... 270
Load Limits ............................................... 335
Locking/Unlocking ................................... 110
Auto Door Locking/Unlocking ................. 121
Childproof Door Locks ............................ 120
From Inside ............................................. 118
From Outside .......................................... 113
Keys........................................................ 110
Using a Key............................................. 116
Lockout Prevention System ..................... 116
Low Battery Charge ................................. 491
17 ACURA ILX-31TX66400.book 516 ページ ２０１６年３月１５日　火曜日　午後５時０分

517
Index
Low Fuel Indicator..................................... 68
Low Keyless Access Remote Signal
Strength .................................................. 112
Low Oil Pressure Indicator ................. 65, 491
Lower Anchors ........................................... 53
Luggage (Maximum Load Limit) ............. 335
M
Maintenance............................................ 411
Battery .................................................... 451
Brake Fluid .............................................. 430
Cleaning ................................................. 455
Climate Control System .......................... 454
Coolant .................................................. 427
Maintenance Minder
TM............................ 415
Oil .......................................................... 423
Precautions ............................................. 412
Radiator .................................................. 428
Remote Transmitter ................................ 452
Replacing Light Bulbs .............................. 431
Safety ..................................................... 413
Service Items ........................................... 418
Tires........................................................ 442
Transmission Fluid ................................... 429
Under the Hood ...................................... 420
Malfunction Indicator Lamp ............. 67, 492
Map Lights ................................................ 156
Maximum Load Limit ............................... 335
Meters, Gauges .......................................... 88 Mirrors
....................................................... 146
Adjusting ................................................. 146
Door........................................................ 147
Exterior .................................................... 147
Interior Rearview ..................................... 146
Modifications (and Accessories) .............. 460
Moonroof .................................................. 132
MP3 ................................... 180, 188, 218, 228
Multi-Information Display ......................... 89
Multi-View Rear Camera .......................... 406
N
Numbers (Identification).......................... 502
O
Odometer.................................................... 94
Oil (Engine) ............................................... 422
Adding .................................................... 424
Checking ................................................. 423
Displaying Oil Life .................................... 416
Low Oil Pressure Indicator .................. 65, 491
Recommended Engine Oil ........................ 422
Viscosity .................................................. 422
On Demand Multi-Use Display
TM............. 194
Opening/Closing Hood ....................................................... 421
Moonroof................................................ 132
Power Windows ...................................... 129
Trunk ...................................................... 122 Operating the Switches Around the
Steering Wheel ....................................... 133
Outside Temperature ................................. 94
Adjusting .................................................. 94
Overheating .............................................. 489
P
Paddle Shifters (Sequential Shift Mode) ... 16
Pandora ®........................................... 186, 226
Panic Mode ............................................... 128
Parking ...................................................... 402
Parking Brake ........................................... 389
Parking Brake and Brake System Indicator ............................................ 64, 493
Passenger Airbag Off Indicator ................. 46
Passing Indicators ..................................... 136
Power Windows ....................................... 129
Precautions While Driving ....................... 343
Rain ........................................................ 343
Pregnant Women ....................................... 33
Puncture (Tire) .......................................... 463
R
Radiator.................................................... 428
Radio (AM/FM) ................................. 178, 206
Radio (SiriusXM ®) ..................................... 211
Radio Data System (RDS) ................. 179, 208
Range .......................................................... 95
RDS (Radio Data System) ................. 179, 208
17 ACURA ILX-31TX66400.book 517 ページ ２０１６年３月１５日　火曜日　午後５時０分
