Page 4 of 521
Contents
Child Safety P. 48Exhaust Gas Hazard P. 60Safety Labels P. 61
Opening and Closing the Trunk P. 122 Security System P. 126 Opening and Closing the Windows P. 129
Operating the Switches Around the Steering Wheel P. 133 Adjusting the Mirrors P. 146
Interior Lights/Interior Convenience It ems P. 156 Climate Control System P. 161
Audio Error Messages P. 235General Information on the Audio System P. 241
Bluetooth® HandsFreeLink ® P. 269, 298
When Driving P. 338 Braking P. 389Parking Your Vehicle P. 402
Fuel Economy and CO
2 Emissions P. 409
Maintenance Under the Hood P. 420 Replacing Light Bulbs P. 431
Checking and Maintaining Tires P. 442 Battery P. 451 Remote Transmitter Care P. 452
Cleaning P. 455 Accessories and Modifications P. 460
Engine Does Not Start P. 482 Jump Starting P. 485 Shift Lever Does Not Move P. 488
Fuses P. 495 Emergency Towing P. 498
Devices that Emit Radio Waves P. 503 Reporting Safety Defects P. 504
Authorized Manuals P. 509 Client Service Information P. 510
Quick Reference GuideP. 4
Safe DrivingP. 23
Instrument PanelP. 63
ControlsP. 107
FeaturesP. 165
DrivingP. 331
MaintenanceP. 411
Handling the UnexpectedP. 461
InformationP. 499
IndexP. 512
17 ACURA ILX-31TX66400.book 3 ページ 2016年3月15日 火曜日 午後5時0分
Page 5 of 521
4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙Audio System (P166)
❙Rear Window Defogger/
Heated Mirror Button
(P143)
❙Steering Wheel Adjustments (P143)
❙ (Vehicle Stability Assist (VSA®) System OFF) Button (P382)
❙Climate Control System (P161)
❙System Indicators (P64)
❙Gauges (P88)
❙Multi-Information Display (P89)
❙Hazard Warning Button
❙ENGINE START/STOP Button (P133)
❙Navigation System*
() See the Navigation System Manual
❙Audio/Information Screen* (P172)
❙On Demand Multi-Use DisplayTM * (P194)
❙Collision Mitigation Braking SystemTM (CMBSTM) Button* (P396)
❙Road Departure Mitigation (RDM) Button* (P370)
17 ACURA ILX-31TX66400.book 4 ページ 2016年3月15日 火曜日 午後5時0分
Page 10 of 521
9
Quick Reference Guide
Safe Driving (P23)
Airbags (P35)
● Your vehicle is fitted with ai rbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P48)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restra ined in a forward-facing child seat.
● Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P60)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P27)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P28)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
* Not available on all models
17 ACURA ILX-31TX66400.book 9 ページ 2016年3月15日 火曜日 午後5時0分
Page 12 of 521
11
Quick Reference Guide
Controls (P107)
Clock (P108)
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
You can also adjust the time manually.
aEnter the Clock Adjustment screen.
2 Adjusting the Clock (P108)
bRotate to change hour, then press
.
cRotate to change minute, then
press .
Models with navigation system
Models without navigation system
Models with two displays
aPress the CLOCK (AUX ) button until the
displayed time begins flashing.
bPress Preset ( 4 (Hour) or (5 (Minute)
to set the time. Press Preset ( 6 (Reset)
to set the time to the nearest hour.
cPress the CLOCK button again to set
the time.
ENGINE START/STOP
Button
(P133)
Press the button to ch ange the vehicle’s
power mode.
Models with one displayTurn Signals (P136)
Lights (P136)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
* Not available on all models
17 ACURA ILX-31TX66400.book 11 ページ 2016年3月15日 火曜日 午後5時0分
Page 17 of 521
16
Quick Reference Guide

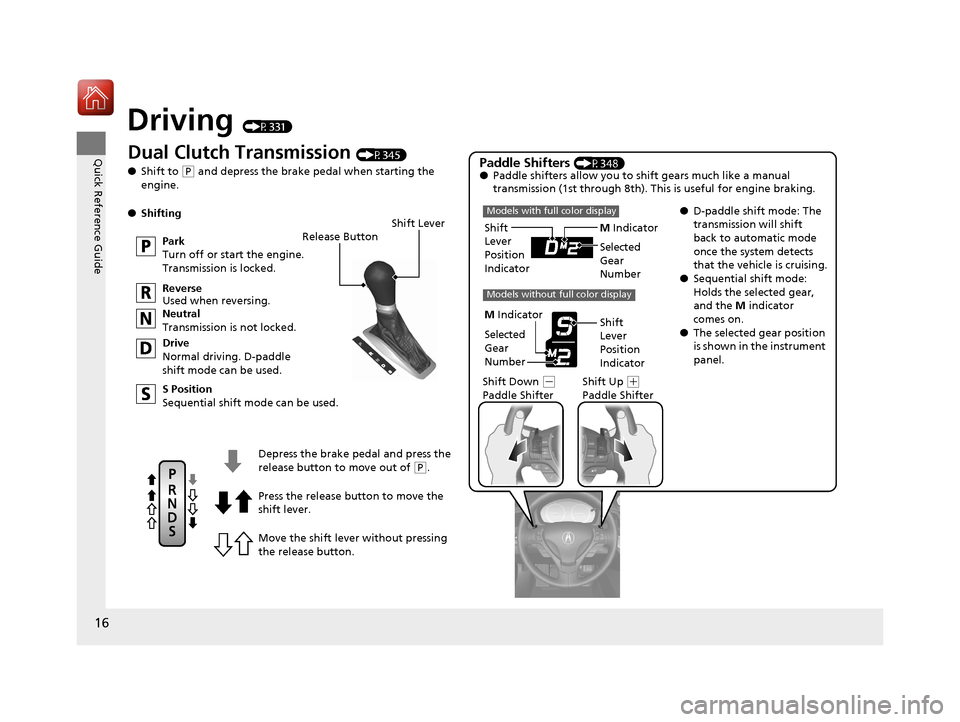

Driving (P331)
Release Button
Depress the brake pedal and press the
release button to move out of
( P.
Move the shift lever without pressing
the release button. Press the release button to move the
shift lever.
Dual Clutch Transmission (P345)
● Shift to
(P and depress the brake pedal when starting the
engine.
● Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
S Position
Sequential shift mode can be used. Drive
Normal driving. D-paddle
shift mode can be used.Paddle Shifters (P348)
● Paddle shifters allow you to shift gears much like a manual
transmission (1st through 8th). This is useful for engine braking.
●D-paddle shift mode: The
transmission will shift
back to automatic mode
once the system detects
that the vehicle is cruising.
● Sequential shift mode:
Holds the selected gear,
and the M indicator
comes on.
● The selected gear position
is shown in the instrument
panel.
Shift Lever
Shift Down
(-
Paddle Shifter Shift Up (
+
Paddle Shifter
M Indicator
Shift
Lever
Position
Indicator
Models with full color display
Models without full color display
Selected
Gear
Number
M Indicator
Shift
Lever
Position
Indicator
Selected
Gear
Number
17 ACURA ILX-31TX66400.book 16 ページ 2016年3月15日 火曜日 午後5時0分
Page 18 of 521
17
Quick Reference Guide

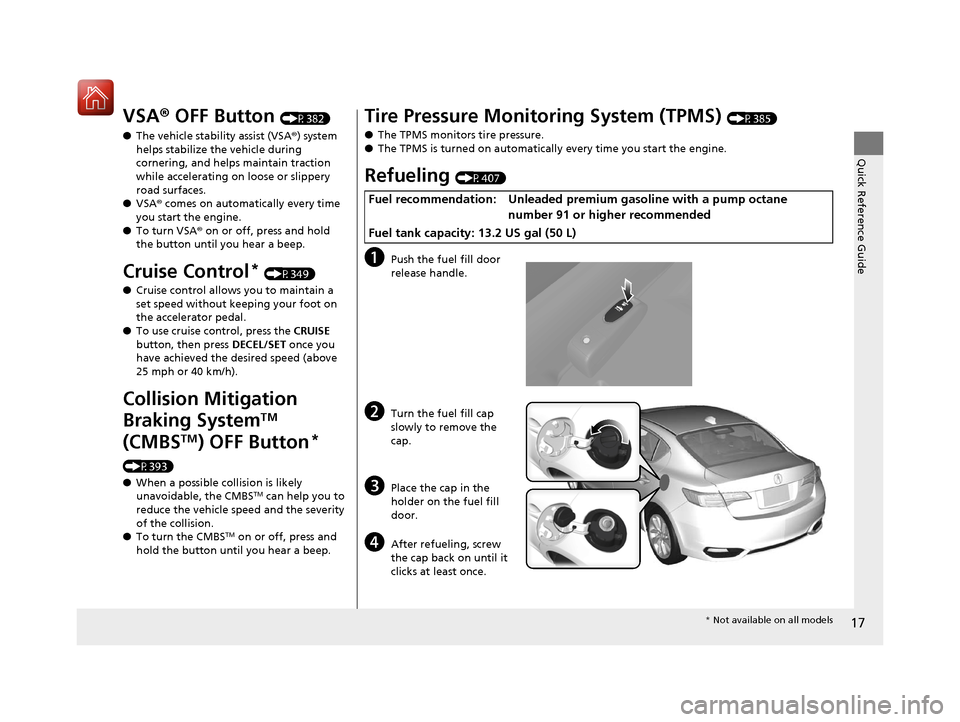

VSA® OFF Button (P382)
● The vehicle stability assist (VSA® ) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To turn VSA ® on or off, press and hold
the button until you hear a beep.
Cruise Control* (P349)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
button, then press DECEL/SET once you
have achieved the desired speed (above
25 mph or 40 km/h).
Collision Mitigation
Braking System
TM
(CMBS
TM) OFF Button*
(P393)
● When a possible collision is likely
unavoidable, the CMBS
TM can help you to
reduce the vehicle speed and the severity
of the collision.
● To turn the CMBS
TM on or off, press and
hold the button until you hear a beep.
Tire Pressure Monitoring System (TPMS) (P385)
● The TPMS monitors tire pressure.
● The TPMS is turned on automatically every time you start the engine.
Refueling (P407)
aPush the fuel fill door
release handle.
bTurn the fuel fill cap
slowly to remove the
cap.
cPlace the cap in the
holder on the fuel fill
door.
dAfter refueling, screw
the cap back on until it
clicks at least once.
Fuel recommendation: Unleaded premiu m gasoline with a pump octane
number 91 or higher recommended
Fuel tank capacity: 13.2 US gal (50 L)
* Not available on all models
17 ACURA ILX-31TX66400.book 17 ページ 2016年3月15日 火曜日 午後5時0分
Page 19 of 521
18
Quick Reference Guide
Maintenance (P411)
Under the Hood (P420)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, slide the lever and lift the
hood.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P431)
● Inspect all lights regularly.
Wiper Blades (P440)
● Replace blades if they leave streaks
across the windshield.
Tires (P442)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter driving.
17 ACURA ILX-31TX66400.book 18 ページ 2016年3月15日 火曜日 午後5時0分
Page 20 of 521
Quick Reference Guide
19
Handling the Unexpected (P461)
Flat Tire (P463)
● Park in a safe location and repair the flat
tire using the temporary tire repair kit.
Park in a safe location and replace the
flat tire with the comp act spare tire in the
trunk.
Indicators Come On
(P491)
● Identify the indica tor and consult the
owner's manual.
Vehicles with tire repair kit
Vehicles with optional spare tire
Engine Won't Start (P482)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P495)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P489)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P498)
●Call a professional towing service if you
need to tow your vehicle.
17 ACURA ILX-31TX66400.book 19 ページ 2016年3月15日 火曜日 午後5時0分
Page 22 of 521
21
Quick Reference Guide

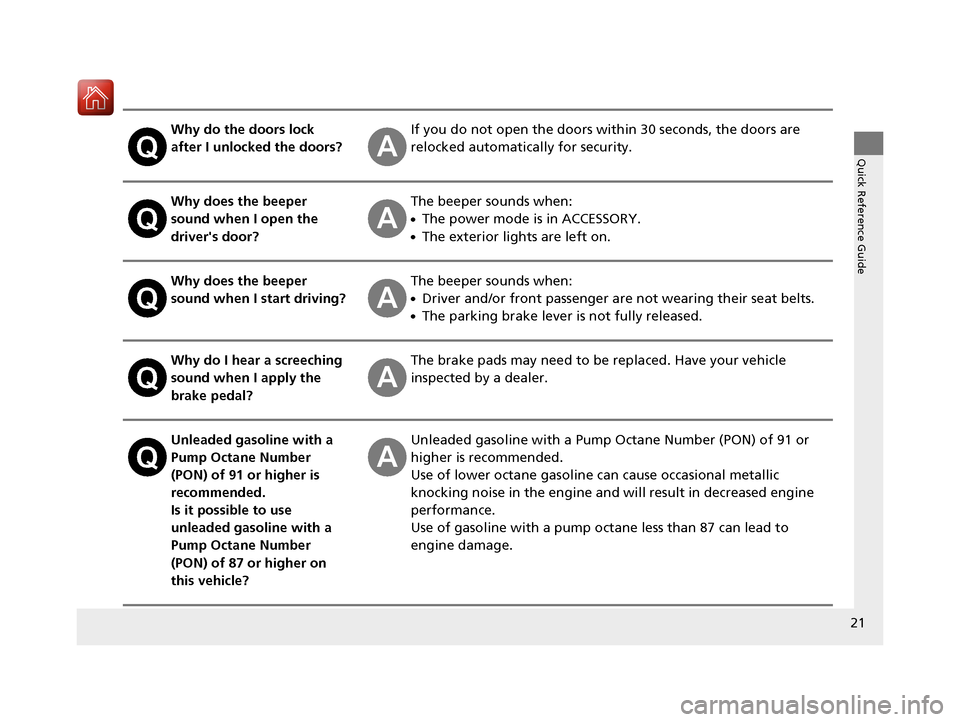

Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver's door?The beeper sounds when:
●The power mode is in ACCESSORY.
●The exterior lights are left on.
Why does the beeper
sound when I start driving?The beeper sounds when:
●Driver and/or front passenger are not wearing their seat belts.
●The parking brake lever is not fully released.
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
Unleaded gasoline with a
Pump Octane Number
(PON) of 91 or higher is
recommended.
Is it possible to use
unleaded gasoline with a
Pump Octane Number
(PON) of 87 or higher on
this vehicle?Unleaded gasoline with a Pump Octane Number (PON) of 91 or
higher is recommended.
Use of lower octane gasoline can cause occasional metallic
knocking noise in the engine and will result in decreased engine
performance.
Use of gasoline with a pump octane less than 87 can lead to
engine damage.
17 ACURA ILX-31TX66400.book 21 ページ 2016年3月15日 火曜日 午後5時0分
Page 61 of 521
60
Safe Driving

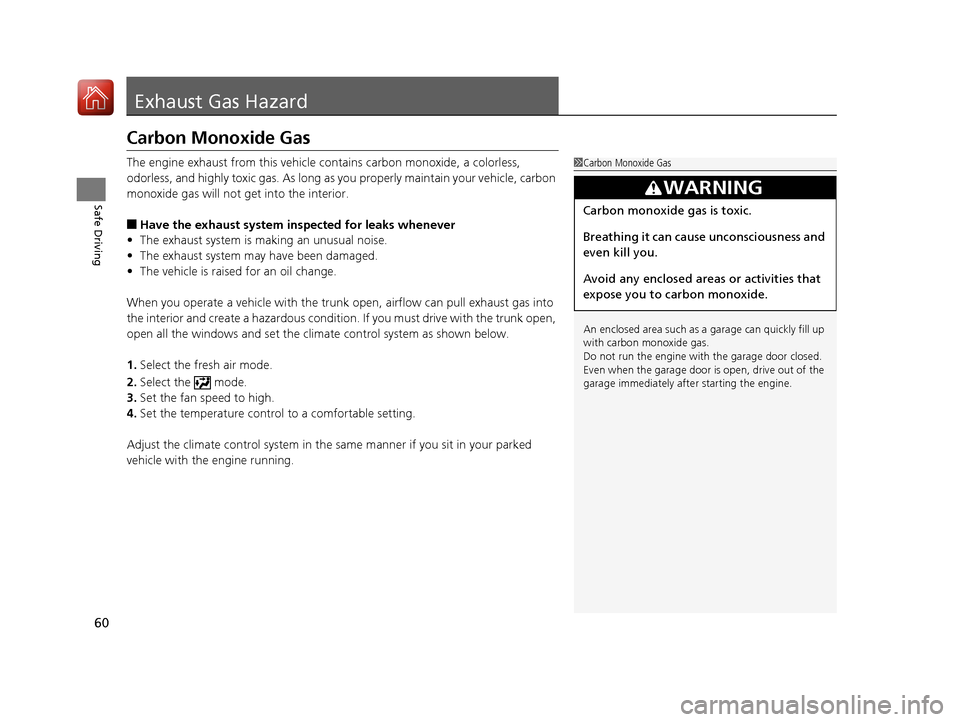

Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system in spected for leaks whenever
• The exhaust system is m aking an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the trunk open, airflow can pull exhaust gas into
the interior and create a hazardous condition. If you must drive with the trunk open,
open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.
1 Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediately afte r starting the engine.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
17 ACURA ILX-31TX66400.book 60 ページ 2016年3月15日 火曜日 午後5時0分
