Page 5 of 521
4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙Audio System (P166)
❙Rear Window Defogger/
Heated Mirror Button
(P143)
❙Steering Wheel Adjustments (P143)
❙ (Vehicle Stability Assist (VSA®) System OFF) Button (P382)
❙Climate Control System (P161)
❙System Indicators (P64)
❙Gauges (P88)
❙Multi-Information Display (P89)
❙Hazard Warning Button
❙ENGINE START/STOP Button (P133)
❙Navigation System*
() See the Navigation System Manual
❙Audio/Information Screen* (P172)
❙On Demand Multi-Use DisplayTM * (P194)
❙Collision Mitigation Braking SystemTM (CMBSTM) Button* (P396)
❙Road Departure Mitigation (RDM) Button* (P370)
17 ACURA ILX-31TX66400.book 4 ページ 2016年3月15日 火曜日 午後5時0分
Page 6 of 521
5
Quick Reference Guide
❙Wipers/Washers (P140)
❙Cruise Control Buttons* (P349)
❙Remote Audio Control Buttons (P170)
❙Brightness Control (P142)
❙Headlights/Turn Signals (P136)
❙Fog Lights* (P139)
❙Paddle Shifter (Shift down) (P348)
❙Paddle Shifter (Shift up) (P348)
❙Horn (Press an area around .)
❙Navigation System Voice Control Buttons*
() See the Navigation System Manual
❙Bluetooth ® HandsFreeLink ® System
Voice Control Buttons
(P269)
❙SEL/RESET Button (P92)
❙ (Information) Button (P90)
❙Lane Keeping Assist System (LKAS) Button*
(P375)
❙Adaptive Cruise Control (ACC) Buttons* (P354)
❙Distance Button* (P362)
* Not available on all models
17 ACURA ILX-31TX66400.book 5 ページ 2016年3月15日 火曜日 午後5時0分
Page 12 of 521
11
Quick Reference Guide

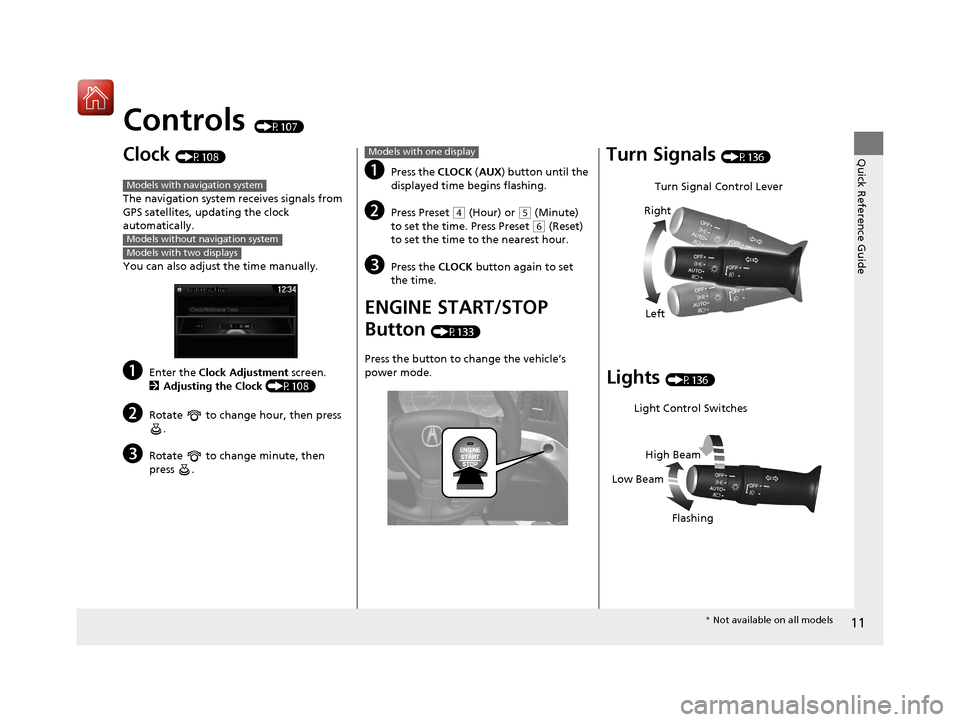

Controls (P107)
Clock (P108)
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
You can also adjust the time manually.
aEnter the Clock Adjustment screen.
2 Adjusting the Clock (P108)
bRotate to change hour, then press
.
cRotate to change minute, then
press .
Models with navigation system
Models without navigation system
Models with two displays
aPress the CLOCK (AUX ) button until the
displayed time begins flashing.
bPress Preset ( 4 (Hour) or (5 (Minute)
to set the time. Press Preset ( 6 (Reset)
to set the time to the nearest hour.
cPress the CLOCK button again to set
the time.
ENGINE START/STOP
Button
(P133)
Press the button to ch ange the vehicle’s
power mode.
Models with one displayTurn Signals (P136)
Lights (P136)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
* Not available on all models
17 ACURA ILX-31TX66400.book 11 ページ 2016年3月15日 火曜日 午後5時0分
Page 14 of 521
13
Quick Reference Guide
Power Windows (P129)
● With the power mode in ON, open and
close the power windows.
● If the power window lock button is in the
off position, each passenger's window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator is on), each
passenger's window switch is disabled.
Power Window Lock Button
Window SwitchIndicator
Climate Control System (P161)
● Press the AUTO button to activate the climate control system.
● Press the button to turn the system on or off.
● Press the button to defrost the windshield.
The climate control system is voice operable. See the Navigation System Manual for
complete details.
On models with navigation system
Driver's Side
Temperature
Control Dial
A/C (Air Conditioning) Button
Air flows from floor and
windshield defroster vents. Air flows from floor vents. Air flows from floor and
dashboard vents. Air flows from dashboard vents.
AUTO Button
(Recirculation) Button
Passenger's Side
Temperature
Control Dial
MODE Control Button
(ON/OFF) Button
SYNC (Synchronized) Button
(Windshield Defroster) Button
/ (Fan Control) Buttons
17 ACURA ILX-31TX66400.book 13 ページ 2016年3月15日 火曜日 午後5時0分
Page 15 of 521
14
Quick Reference Guide

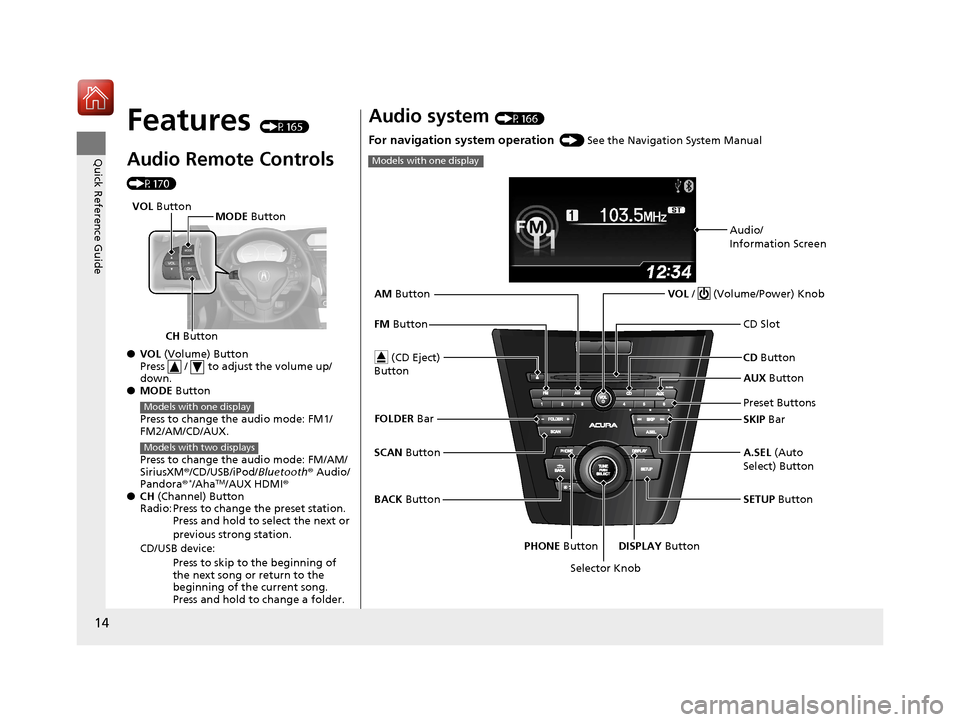

Features (P165)
Audio Remote Controls
(P170)
●VOL (Volume) Button
Press / to adjust the volume up/
down.
● MODE Button
Press to change the audio mode: FM1/
FM2/AM/CD/AUX.
Press to change the audio mode: FM/AM/
SiriusXM ®/CD/USB/iPod/Bluetooth ® Audio/
Pandora®
*/AhaTM/AUX HDMI®
● CH (Channel) Button
Radio: Press to change the preset station. Press and hold to select the next or
previous strong station.
CD/USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
CH Button MODE
Button
VOL
Button
Models with one display
Models with two displays
Audio system (P166)
For navigation system operation () See the Navigation System Manual
Models with one display
Audio/
Information Screen
Selector Knob VOL
/ (Volume/Power) Knob
CD Button
CD Slot
(CD Eject)
Button
Preset Buttons
SETUP Button
PHONE Button DISPLAY Button A.SEL (Auto
Select) Button SKIP Bar AUX
Button
BACK Button
SCAN
Button
FM
Button
AM
Button
FOLDER Bar
17 ACURA ILX-31TX66400.book 14 ページ 2016年3月15日 火曜日 午後5時0分
Page 96 of 521
Continued95
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel

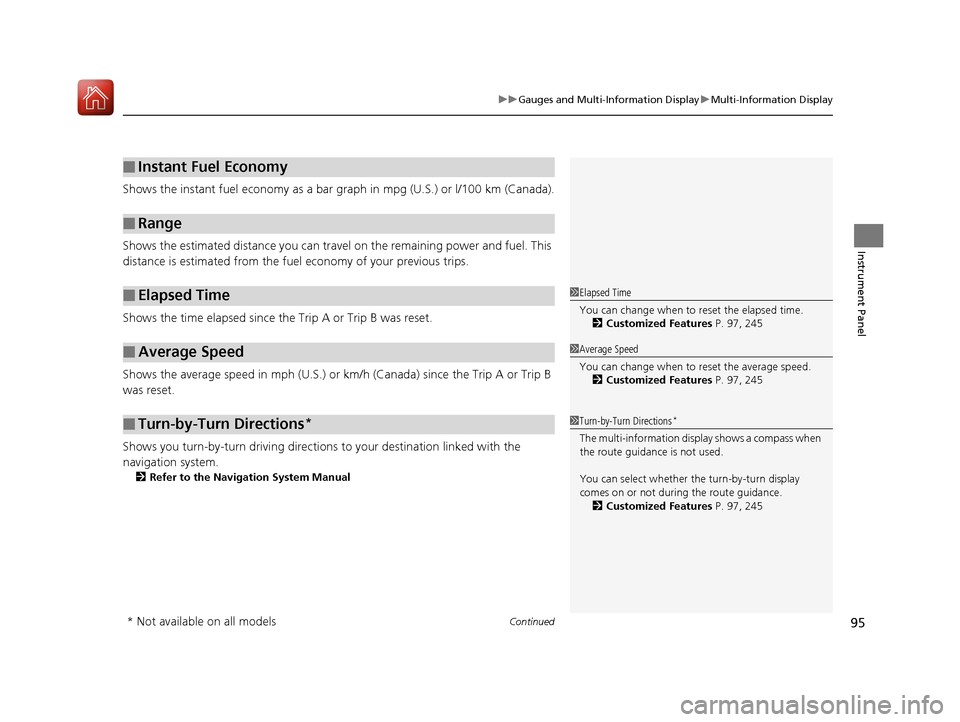

Shows the instant fuel economy as a bar gr aph in mpg (U.S.) or l/100 km (Canada).
Shows the estimated distance you can travel on the remaining power and fuel. This
distance is estimated from the fuel economy of your previous trips.
Shows the time elapsed since the Trip A or Trip B was reset.
Shows the average speed in mph (U.S.) or km /h (Canada) since the Trip A or Trip B
was reset.
Shows you turn-by-turn driv ing directions to your destination linked with the
navigation system.
2 Refer to the Navigation System Manual
■Instant Fuel Economy
■Range
■Elapsed Time
■Average Speed
■Turn-by-Turn Directions*
1Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 97, 245
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 97, 245
1Turn-by-Turn Directions*
The multi-information disp lay shows a compass when
the route guidance is not used.
You can select whether the turn-by-turn display
comes on or not during the route guidance. 2 Customized Features P. 97, 245
* Not available on all models
17 ACURA ILX-31TX66400.book 95 ページ 2016年3月15日 火曜日 午後5時0分
Page 109 of 521
108
Controls

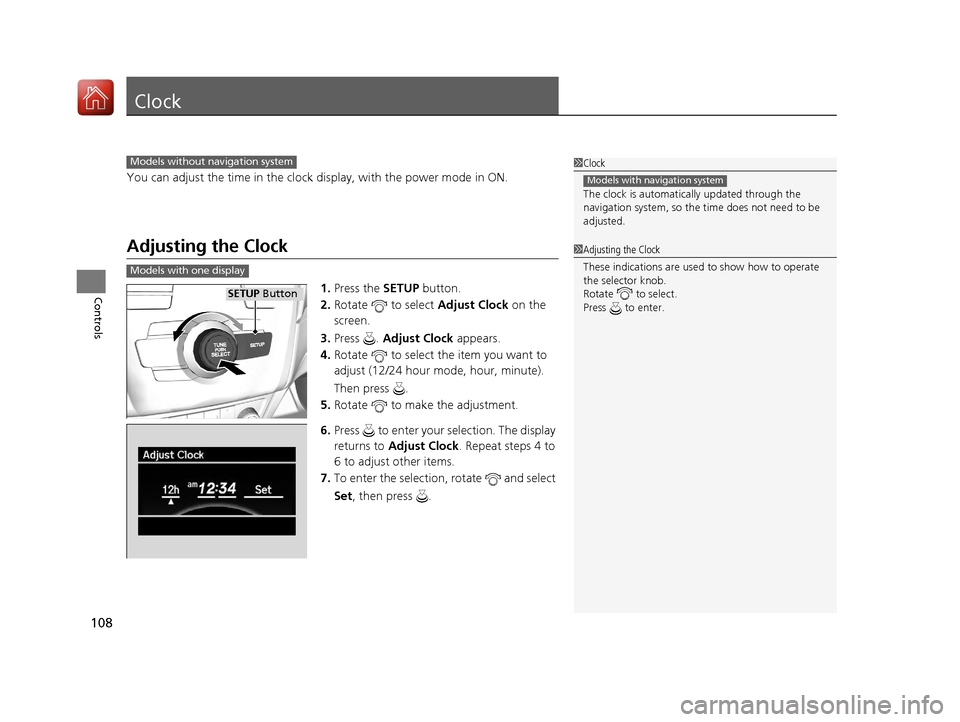

Clock
You can adjust the time in the clock display, with the power mode in ON.
Adjusting the Clock
1.Press the SETUP button.
2. Rotate to select Adjust Clock on the
screen.
3. Press . Adjust Clock appears.
4. Rotate to select the item you want to
adjust (12/24 hour mode, hour, minute).
Then press .
5. Rotate to make the adjustment.
6. Press to enter your selection. The display
returns to Adjust Clock . Repeat steps 4 to
6 to adjust other items.
7. To enter the selection, rotate and select
Set , then press .
1Clock
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
Models with navigation system
Models without navigation system
1 Adjusting the Clock
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
Models with one display
SETUP Button
17 ACURA ILX-31TX66400.book 108 ページ 2016年3月15日 火曜日 午後5時0分
Page 202 of 521
201
uuAudio System Basic Operation uAudio/Information Screen
Continued
Features

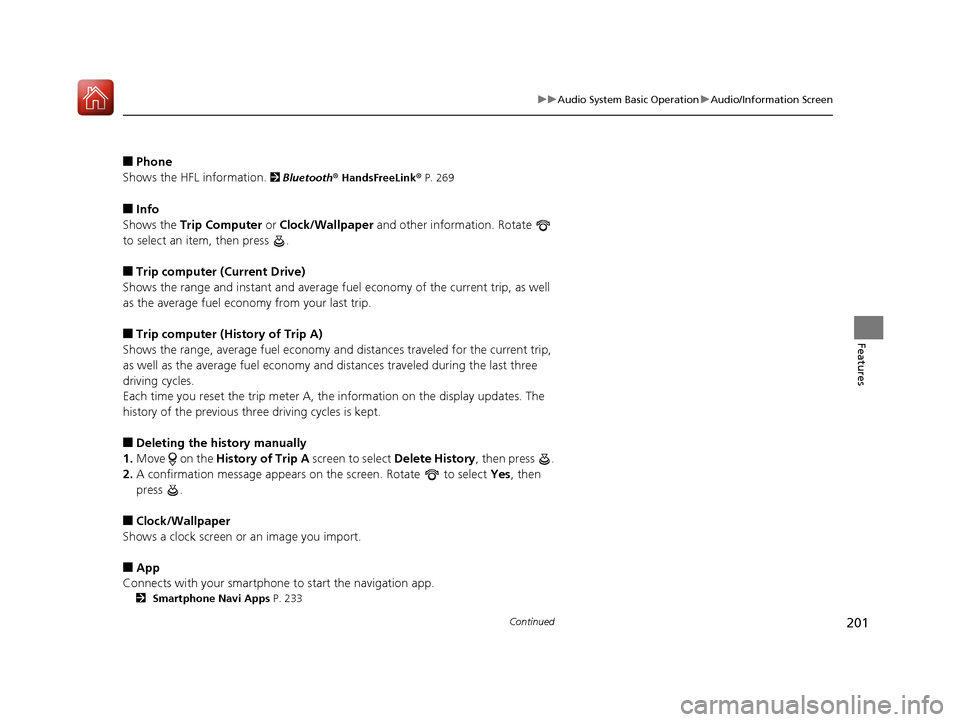

■Phone
Shows the HFL information.
2 Bluetooth ® HandsFreeLink® P. 269
■Info
Shows the Trip Computer or Clock/Wallpaper and other information. Rotate
to select an item, then press .
■Trip computer (Current Drive)
Shows the range and instant and average fu el economy of the current trip, as well
as the average fuel economy from your last trip.
■Trip computer (History of Trip A)
Shows the range, average fuel economy and distances traveled for the current trip,
as well as the average fuel economy and distances traveled during the last three
driving cycles.
Each time you reset the trip meter A, th e information on the display updates. The
history of the previous three driving cycles is kept.
■Deleting the history manually
1. Move on the History of Trip A screen to select Delete History , then press .
2. A confirmation message appears on the screen. Rotate to select Yes, then
press .
■Clock/Wallpaper
Shows a clock screen or an image you import.
■App
Connects with your smartphone to start the navigation app.
2 Smartphone Navi Apps P. 233
17 ACURA ILX-31TX66400.book 201 ページ 2016年3月15日 火曜日 午後5時0分
Page 234 of 521
233
uuAudio System Basic Operation uSmartphone Navi Apps
Features

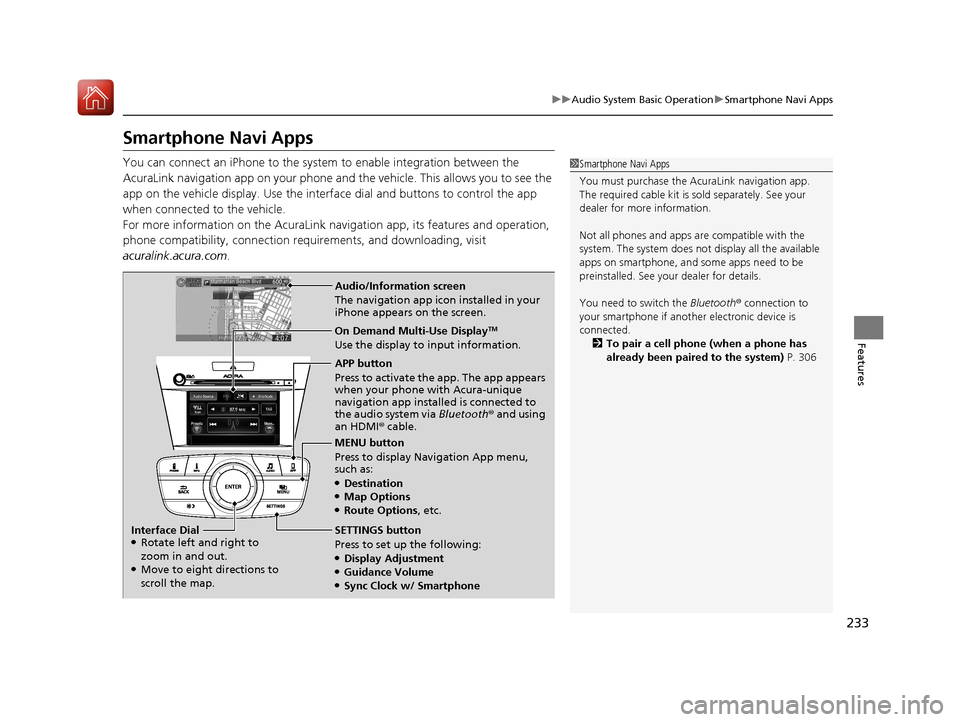

Smartphone Navi Apps
You can connect an iPhone to the syst em to enable integration between the
AcuraLink navigation app on your phone and the vehicle. This allows you to see the
app on the vehicle display. Use the interface dial and buttons to control the app
when connected to the vehicle.
For more information on the AcuraLink navi gation app, its features and operation,
phone compatibility, connection requ irements, and downloading, visit
acuralink.acura.com .1Smartphone Navi Apps
You must purchase the AcuraLink navigation app.
The required cable kit is so ld separately. See your
dealer for more information.
Not all phones and apps ar e compatible with the
system. The system does not display all the available
apps on smartphone, and so me apps need to be
preinstalled. See your dealer for details.
You need to switch the Bluetooth® connection to
your smartphone if another electronic device is
connected. 2 To pair a cell phone (when a phone has
already been paired to the system) P. 306
Audio/Information screen
The navigation app icon installed in your
iPhone appears on the screen.
On Demand Multi-Use DisplayTM
Use the display to input information.
APP button
Press to activate the app. The app appears
when your phone with Acura-unique
navigation app installed is connected to
the audio system via Bluetooth® and using
an HDMI® cable.
MENU button
Press to display Navigation App menu,
such as:
●Destination●Map Options●Route Options, etc.
SETTINGS button
Press to set up the following:
●Display Adjustment●Guidance Volume●Sync Clock w/ Smartphone
Interface Dial
●Rotate left and right to
zoom in and out.
●Move to eight directions to
scroll the map.
17 ACURA ILX-31TX66400.book 233 ページ 2016年3月15日 火曜日 午後5時0分
Page 246 of 521
245Continued
Features

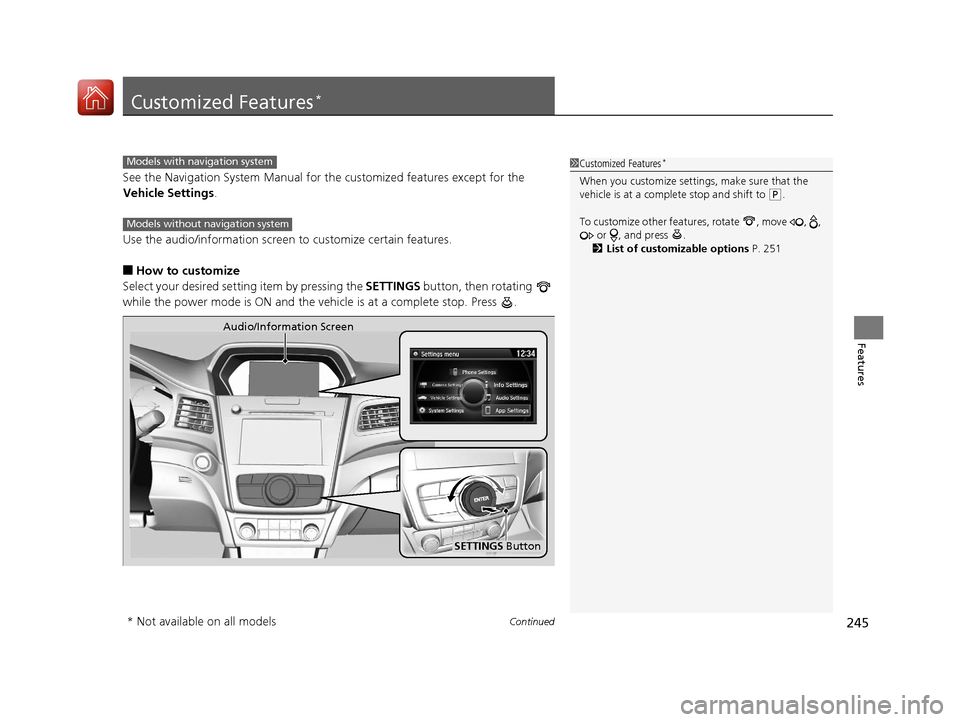

Customized Features*
See the Navigation System Manual for the customized features except for the
Vehicle Settings .
Use the audio/information screen to customize certain features.
■How to customize
Select your desired setting item by pressing the SETTINGS button, then rotating
while the power mode is ON and the vehicle is at a complete stop. Press .
1 Customized Features*
When you customize settings, make sure that the
vehicle is at a complete stop and shift to
(P.
To customize other featur es, rotate , move , ,
or , and press .
2 List of customizable options P. 251
Models with navigation system
Models without navigation system
SETTINGS Button
Audio/Information Screen
* Not available on all models
