Acura ILX 2019 Owner's Manual

590
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
EPS70 A
−−
ABS/VSA FSR30 A
ABS/VSA Motor40 A
WIPER30 A
Main Fuse120 A
2
IG Main50 A
Fuse Box Main 60 A
Fuse Box Main 260 A
Headlight Main 30 A
ST/MG SW30 A
Rear Defogger 30 A IG Main1 30 ABlower 40 A
IG Main2 30 A
Sub Fan Motor 20 A
Main Fan Motor 20 A
3
−−
−−
−−
−−
4− −
5Starter DIAG7.5 A
6− −
7−−
8− −
9−−
10 − −
11Oil Level7.5 A
12 Fog Lights*(20 A)
13Injector20 A
14 Hazard 10 A
15FI Sub15 A
16 IG Coil 15 A
17Daytime Running Lights7.5 A
18 Stop & Horn 10 A
19−−
20 Right Headlight Low Beam 10 A
21IGP15 A
22 DBW 15 A
23Left Headlight Low Beam10 A
24 − −
25MG Clutch7.5 A
26 Washer 15 A
27Small20 A
28 Interior Lights 7.5 A
29Backup10 A
Circuit ProtectedAmps
* Not available on all models
19 ACURA ILX-31TX66610.book 590 ページ ２０２０年４月１７日　金曜日　午前８時５２分

591
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■Circuit protected and fuse rating
■Interior Fuse Box
Fuse Label
Circuit ProtectedAmps
1−−
2ACG15 A
3SRS10 A
4Fuel Pump15 A
5Meter7.5 A
6Power Window7.5 A
7VB SOL7.5 A
8Right Door Lock Motor
(Unlock)15 A
9Left Door Lock Motor
(Unlock)15 A
10Audio*(15 A)
11Moonroof20 A
12Driver’s Power Seat Sliding(20 A)
13Driver’s Power Seat Reclining(20 A)
14Seat Heaters(20 A)
15Driver’s Door Lock Motor (Unlock)10 A
16Passenger’s Power Seat
Sliding*(20 A)
17Passenger’s Power Seat Reclining*(20 A)
18Driver’s Power Lumbar10 A
19Accessory7.5 A
20ACC Key Lock7.5 A
21Daytime Running Lights7.5 A
22HAC7.5 A
23−−
24ABS/VSA7.5 A
25ACC7.5 A
26−−
27Accessory Power Socket20 A
28−−
29ODS7.5 A
Circuit ProtectedAmps
*1:Model with Navigation system
30Driver’s Door Lock Motor
(Lock)10 A
31SMART10 A
32Right Door Lock Motor (Lock)15 A
33Left Door Lock Motor (Lock)15 A
34Small Lights7.5 A
35Illumination7.5 A
36−−
37Premium Audio*(30 A)*1
(20 A)*
38Left Headlight High Beam10 A
39Right Headlight High Beam10 A
40−−
41Door Lock20 A
42Driver’s Power Window20 A
43Rear Passenger’s Side Power Window20 A
44Front Passenger’s Side Power Window20 A
45Rear Driver’s Side Power
Window20 A
46−−
Circuit ProtectedAmps
* Not available on all models
19 ACURA ILX-31TX66610.book 591 ページ ２０２０年４月１７日　金曜日　午前８時５２分

592
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn headlight s and all accessories
off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperageM
Confirm the specified ampe rage using the charts on
the fuse labelM 2 Fuse Locations P. 590
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
19 ACURA ILX-31TX66610.book 592 ページ ２０２０年４月１７日　金曜日　午前８時５２分

593
Handling the Unexpected

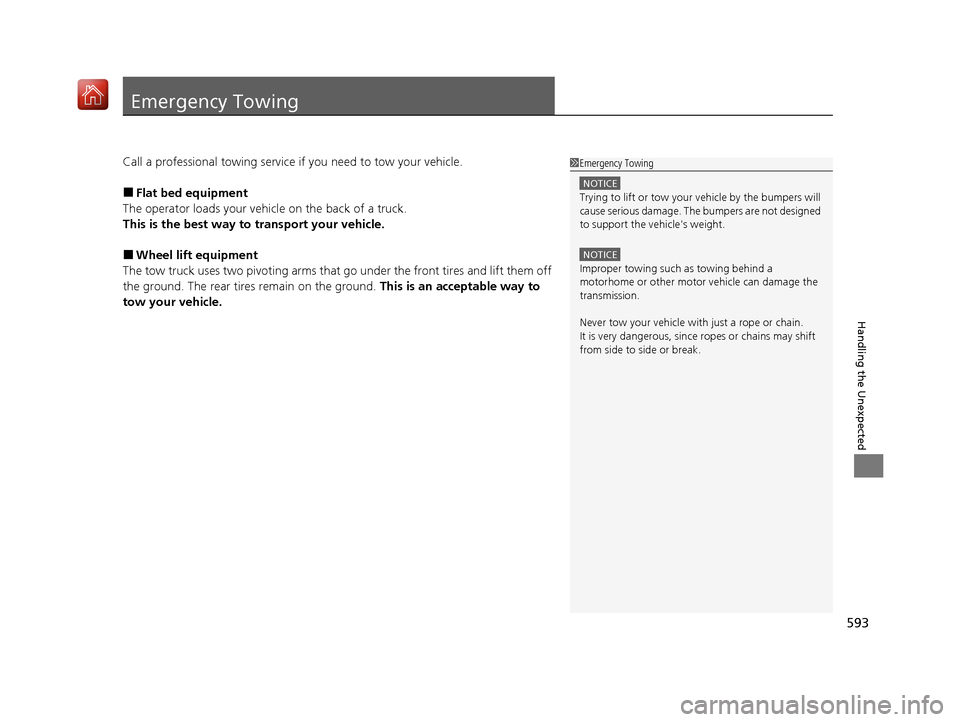

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
19 ACURA ILX-31TX66610.book 593 ページ ２０２０年４月１７日　金曜日　午前８時５２分

594
19 ACURA ILX-31TX66610.book 594 ページ ２０２０年４月１７日　金曜日　午前８時５２分

595

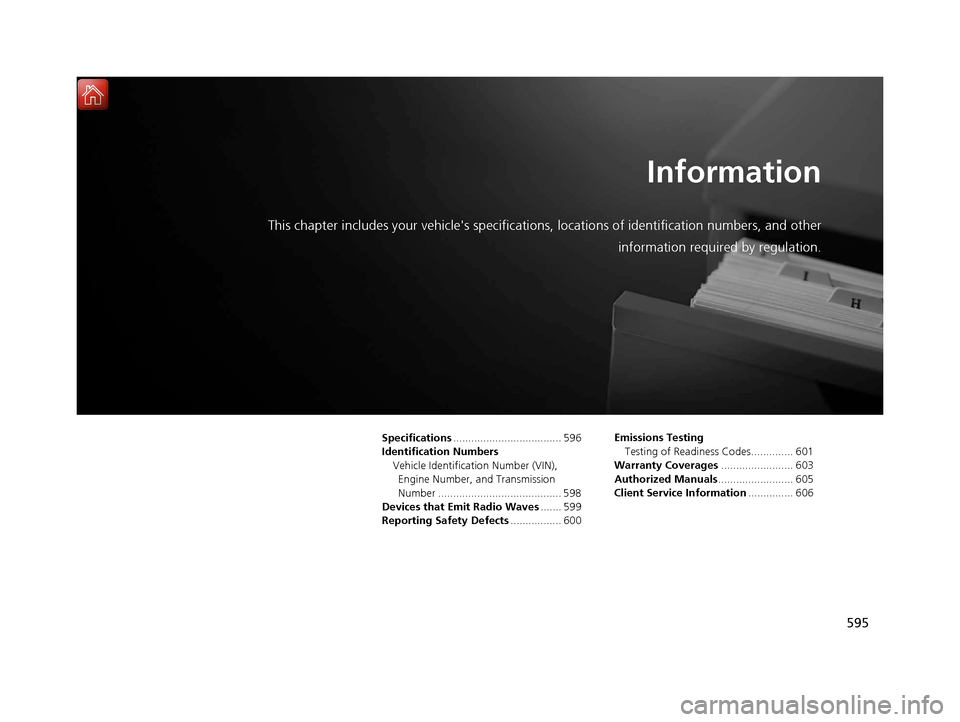

Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 596
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 598
Devices that Emit Radio Waves ....... 599
Reporting Safety Defects ................. 600Emissions Testing
Testing of Readiness Codes.............. 601
Warranty Coverages ........................ 603
Authorized Manuals ......................... 605
Client Service Information ............... 606
19 ACURA ILX-31TX66610.book 595 ページ ２０２０年４月１７日　金曜日　午前８時５２分

596
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelILX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
RatingSee the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front) See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 17.1 – 18.9 oz (485 – 535 g)
Lubricant TypeSE-A1 (POE)
Quantity 4.88 – 5.49 cu-in (80 – 90 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement144 cu-in (2,356 cm3)
Spark Plugs NGK
DILKAR7G11GS
DILKAR7H11GS
DENSO DXE22HQR-D11S
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 13.2 US gal (50 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 5.12 US qt (4.85 L)
■ Light Bulbs
Headlights (High/Low Beam)LED
Fog Lights*LEDFront Turn Signal LightsLED
Parking/Daytime Running Lights LED
Front Side Marker LightsLED
Brake Lights LED
Rear Side Marker LightsLED
Back-Up Lights 16 W
TaillightsLED
Rear Turn Signal Lights 21 W (Amber)
High-Mount Brake LightLED
Rear License Plate Light 5 W
Interior LightsMap LightsLEDCeiling Light8 WAmbient LightsLEDFoot Lights1.4 WGlove Box LightLEDVanity Mirror Lights1.4 WTrunk Light5 W
* Not available on all models
19 ACURA ILX-31TX66610.book 596 ページ ２０２０年４月１７日　金曜日　午前８時５２分

597
uuSpecifications u
Information
■
Brake Fluid
■ Dual Clutch Transmission Fluid
SpecifiedAcura Heavy Duty Brake Fluid DOT 3
SpecifiedAcura ATF-TYPE 2.0
Capacity Change 4.1 US qt (3.9 L)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.4 US qt (4.2 L)
Change
including
filter
4.6 US qt (4.4 L)
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.71 US gal (6.49 L)
(change including the remaining
0.166 US gal (0.63 L) in the reserve tank)
■ Tire
*1: Vehicle with 18 inch wheel
*2: Vehicle with 17 inch wheel
*3: Vehicle with optional spare tire
Regular
Size225/40R18 92V*1
P215/45R17 87V*2
Pressure
psi (kPa [kgf/cm2])
Front33 (230 [2.3])*1
35 (240 [2.4])*2
Rear32 (220 [2.2])*1
33 (230 [2.3])*2
Compact
Spare*3
Size T135/70D17 92M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular18 x 7 1/2J*1
17 x 7J*2
Compact Spare*317 x 4T
19 ACURA ILX-31TX66610.book 597 ページ ２０２０年４月１７日　金曜日　午前８時５２分

598
Information

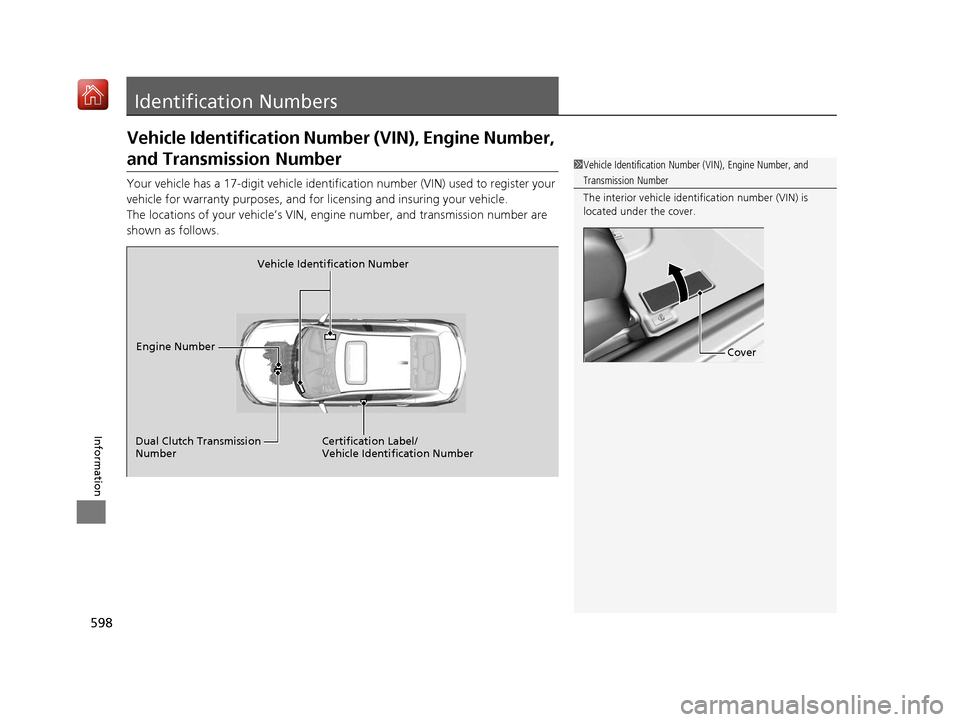

Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, en gine number, and transmission number are
shown as follows.
1 Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification Number
Dual Clutch Transmission
Nu
mb
e

r
19 ACURA ILX-31TX66610.book 598 ページ ２０２０年４月１７日　金曜日　午前８時５２分

599
Information

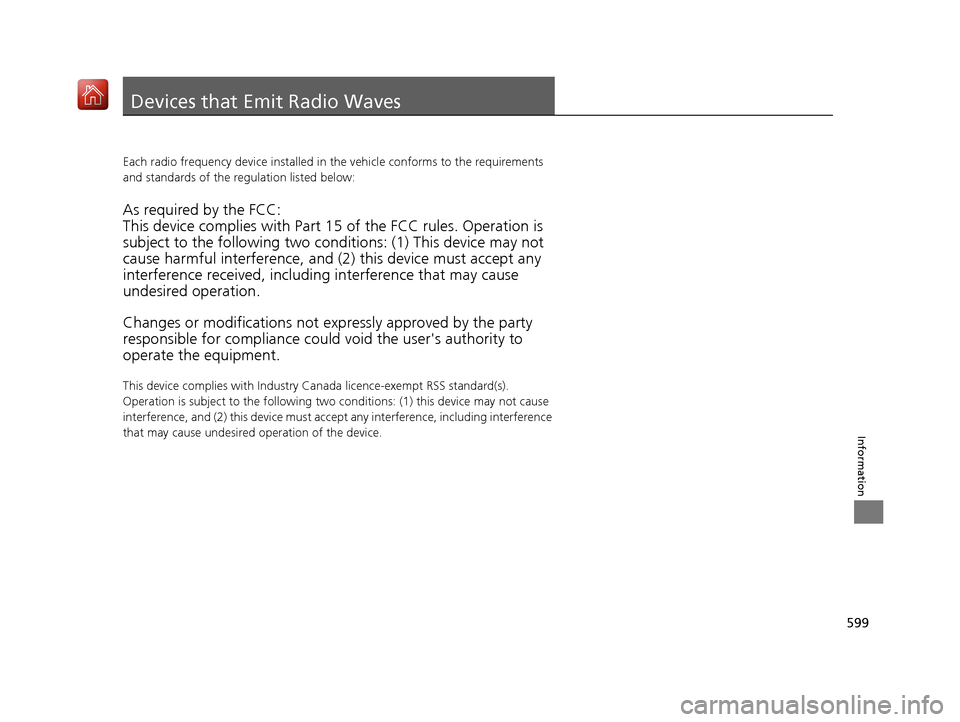

Devices that Emit Radio Waves
Each radio frequency device installed in the vehicle conforms to the requirements
and standards of the regulation listed below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must acce pt any interference, including interference
that may cause undesired operation of the device.
