Page 147 of 621
146

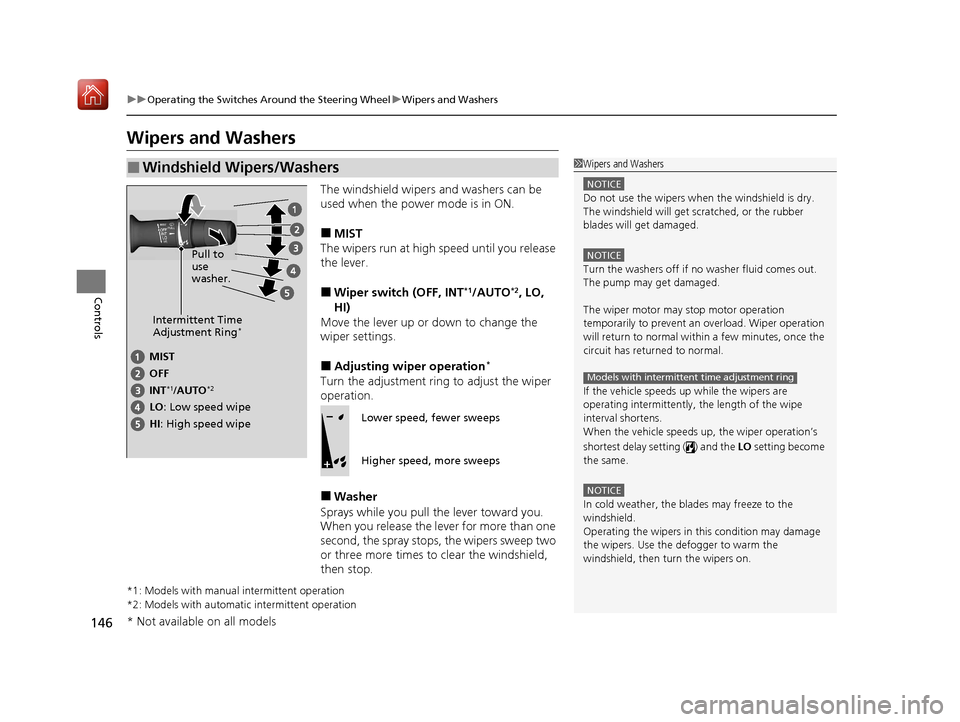

uuOperating the Switches Around the Steering Wheel uWipers and Washers
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the power mode is in ON.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, INT*1/AUTO*2, LO,
HI)
Move the lever up or down to change the
wiper settings.
■Adjusting wiper operation*
Turn the adjustment ring to adjust the wiper
operation.
■Washer
Sprays while you pull the lever toward you.
When you release the lever for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.
*1: Models with manual intermittent operation
*2: Models with automati c intermittent operation
■Windshield Wipers/Washers1Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle speeds up, the wiper operation’s
shortest delay setting ( ) and the LO setting become
the same.
NOTICE
In cold weather, the blades may freeze to the
windshield.
Operating the wipers in th is condition may damage
the wipers. Use the defogger to warm the
windshield, then turn the wipers on.
Models with intermittent time adjustment ring
Intermittent Time
Adjustment Ring*
MIST
INT
*1/AUTO*2
OFF
LO: Low speed wipe
HI: High speed wipe Pull to
use
washer.
Lower speed, fewer sweeps
Higher speed, more sweeps
* Not available on all models
19 ACURA ILX-31TX66610.book 146 ページ 2020年4月17日 金曜日 午前8時52分
Page 432 of 621
431
uuWhen Driving uPrecautions While Driving
Driving
Precautions While Driving
Avoid driving in deep water and on flooded roads. This can damage the engine or
driveline, or cause electrical component failure.
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks.
■In Rain
■Other Precautions
1 Precautions While Driving
NOTICE
Do not operate the shift lever while pressing the
accelerator pedal. You could damage the transmission.
NOTICE
If you repeatedly turn the steering wheel at an
extremely low speed, or hold the steering wheel in
the full left or right position for a while, the electric
power steering (EPS) system heats up. The system
goes into a protective mode, and limits its
performance. The steering wheel becomes harder
and harder to operate. Once the system cools down,
the EPS system is restored.
Repeated operation under these conditions can
eventually damage the system.
If the power mode is set to ACCESSORY while
driving, the engine will shut down and all steering
and brake power assist functi ons will stop, making it
difficult to control the vehicle.
Do not put the shift lever in
( N, as you will lose
engine braking (and acce leration) performance.
During the first 600 miles (1,000 km) of operation,
avoid sudden acceleration or full throttle operation so
as not to damage the engine or powertrain.
Avoid hard braking for the first 200 miles (300 km).
You should also follow this when the brake pads are
replaced.
19 ACURA ILX-31TX66610.book 431 ページ 2020年4月17日 金曜日 午前8時52分
Page 513 of 621
512
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.Maintenance Minder
Message
System Message
Indicator
Main Item
Sub Items
*1: If a message SERVICE does not appear more than 12 months after the display is reset, change the
engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check parking brake adjustment●Check expiry date for tire repair kit bottle●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA ®)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperature. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
at 40,000 miles (64,000 km), then every 30,000 miles (48,000 km).
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
19 ACURA ILX-31TX66610.book 512 ページ 2020年4月17日 金曜日 午前8時52分
Page 589 of 621
588
uuIndicator, Coming On/Blinking uIf the Brake System Indicator (Red) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action . If necessary, downshift the
transmission to slow the vehicle using engine braking.
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when the indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.
If both red and amber brake system indicators come
on, stop the vehicle in a safe place and have it
inspected by a dealer immediately.U.S.
Canada
19 ACURA ILX-31TX66610.book 588 ページ 2020年4月17日 金曜日 午前8時52分
Page 613 of 621
612
Index
Doors......................................................... 108
Auto Door Locking .................................. 123
Auto Door Unlocking ............................... 123
Door Open Indicator .................................. 31
Door Open Message .................................. 83
Keys ........................................................ 108
Locking/Unlocking the Doors from the Inside ..................................................... 120
Locking/Unlocking the Doors from the Outside .................................................. 111
Lockout Prevention System ...................... 118
DOT Tire Quality Grading ........................ 535
Driving ....................................................... 419
Braking .................................................... 491
Dual Clutch Transmission ......................... 432
Shifting Gear ........................................... 433
Starting the Engine .................................. 426
Driving Position Memory System ............. 150
Dual Clutch Transmission ......................... 432
Creeping ................................................. 432
Fluid ................................................ 523, 597
Kickdown ................................................ 432
Operating the Shift Lever ................... 18, 433
Shift Lever Does Not Move....................... 583
Shifting.................................................... 433
E
Elapsed Time ............................................... 93
Electric Power Steering System (EPS)
Indicator ............................................ 72, 588 Electronic Stability Control (ESC)
............. 437
Emergency ................................................ 593
Emissions Testing (Readiness Codes) ....... 601
Engine ....................................................... 598
Coolant ................................................... 521
Jump Starting .......................................... 580
Oil ........................................................... 516
Remote Engine Start................................ 428
Starting ................................................... 426
Switch Buzzer.......................................... 135
Engine Coolant ......................................... 521
Adding to the Radiator ............................ 522
Adding to the Reserve Tank..................... 521
Overheating ............................................ 584
Temperature Gauge .................................. 88
Engine Oil ................................................. 516
Adding .................................................... 518
Checking................................................. 517
Displaying Oil Life .................................... 510
Low Oil Pressure Indicator ................. 69, 586
Recommended Engine Oil ....................... 516
ENGINE START/STOP Button .................... 135
EPS (Electric Power Steering) System ............................................... 72, 588
Exhaust Gas Hazard (Carbon Monoxide) .. 65
Exterior Care (Cleaning) ........................... 548
Exterior Mirrors ........................................ 153F
Features.................................................... 175 Filters
Oil .......................................................... 519
Flat Tire ..................................................... 555
Floor Mats ................................................ 546
Fluids
Brake ...................................................... 524
Dual Clutch Transmission ........................ 523
Engine Coolant ....................................... 521
Windshield Washer ................................. 524
Fog Light Indicator .................................... 74
Folding Down the Rear Seat ................... 162
Foot Brake ................................................ 492
Front Airbags (SRS) .................................... 42
Front Seats ................................................ 154
Adjusting ................................................ 154
Front Sensor Camera ............................... 488
Fuel ..................................................... 19, 502
Fuel Economy and CO
2 Emissions ............ 504
Gauge ...................................................... 88
Instant Fuel Economy ................................ 93
Low Fuel Indicator ..................................... 71
Range ....................................................... 93
Recommendation.................................... 502
Refueling ................................................ 502
Fuel Economy and CO
2 Emissions ............ 504
Fuel Fill Cap ........................................ 19, 503
Message ................................................. 587
Fuel Fill Door ...................................... 19, 503
Fuses ......................................................... 590
Inspecting and Changing ........................ 592
Locations ........................................ 590, 591
19 ACURA ILX-31TX66610.book 612 ページ 2020年4月17日 金曜日 午前8時52分
Page 616 of 621
615
Index
Low Keyless Access Remote Signal Strength .................................................. 110
Low Oil Pressure Indicator ................. 69, 586
Lower Anchors ........................................... 57
Luggage (Maximum Load Limit) ............. 423
M
Maintenance............................................ 505
Battery .................................................... 541
Brake Fluid .............................................. 524
Cleaning ................................................. 545
Climate Control System .......................... 544
Coolant .................................................. 521
Maintenance Minder
TM............................ 509
Oil .......................................................... 517
Precautions ............................................. 506
Radiator .................................................. 522
Remote Transmitter ................................ 542
Replacing Light Bulbs .............................. 525
Safety ..................................................... 507
Service Items ........................................... 512
Tires........................................................ 532
Transmission Fluid ................................... 523
Under the Hood ...................................... 514
Malfunction Indicator Lamp ............. 70, 587
Map Lights ................................................ 165
Maximum Load Limit ............................... 423
Meters, Gauges .......................................... 88
Mirrors ...................................................... 152
Adjusting ................................................ 152 Door ........................................................ 153
Exterior .................................................... 153
Interior Rearview ..................................... 152
Modifications (and Accessories) .............. 551
Moonroof .................................................. 134
MP3 ................................... 192, 201, 235, 260
Multi-Information Display ......................... 89
Multi-View Rear Camera .......................... 500
N
Numbers (Identification).......................... 598
O
Odometer.................................................... 92
Oil (Engine) ............................................... 516
Adding .................................................... 518
Checking ................................................. 517
Displaying Oil Life .................................... 510
Low Oil Pressure Indicator .................. 69, 586
Recommended Engine Oil ........................ 516
Viscosity .................................................. 516
On Demand Multi-Use Display
TM............. 207
Open Source Licenses ............................... 302
Opening/Closing
Hood ....................................................... 515
Moonroof ................................................ 134
Power Windows ...................................... 131
Trunk ...................................................... 124 Operating the Switches Around the
Steering Wheel ....................................... 135
Outside Temperature ................................. 92
Adjusting .................................................. 92
Overheating .............................................. 584
P
Paddle Shifters (Sequential Mode) ............ 18
Pandora ®......................................... 198, 258
Panic Mode ............................................... 130
Parking ...................................................... 495
Parking Brake ........................................... 491
Parking Brake and Brake System Indicator ............................................ 68, 588
Passenger Airbag Off Indicator ................. 50
Passing Indicators ..................................... 139
Power Windows ....................................... 131
Precautions While Driving ....................... 431
Rain ........................................................ 431
Pregnant Women ....................................... 37
Puncture (Tire) .......................................... 555
R
Radar Sensor............................................. 490
Radiator .................................................... 522
Radio (AM/FM) ................................. 190, 221
Radio (SiriusXM ®) ..................................... 224
Radio Data System (RDS) ................. 191, 222
Range .......................................................... 93
19 ACURA ILX-31TX66610.book 615 ページ 2020年4月17日 金曜日 午前8時52分
