Page 3 of 621
Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 27
For Safe Driving P. 28 Seat Belts P. 32 Airbags P. 39
2Instrument Panel P. 67
Indicators P. 68 Gauges and Multi-Information Display P. 88
2Controls P. 105
Clock P. 106 Locking and Unlocking the Doors P. 108
Moonroof P. 134
Adjusting the Seats P. 154
2 Features P. 175
Audio System P. 176 Audio System Basic Operation P. 183, 206
Customized Features P. 304, 310 HomeLink ® Universal Transceiver* P. 336
2 Driving P. 419
Before Driving P. 420 Towing a Trailer P. 425
Parking Your Vehicle P. 495 Multi-View Rear Camera P. 500
2Maintenance P. 505
Before Performing Maintenance P. 506 Maintenance MinderTM P. 509
Checking and Maintaining Wiper Blades P. 530
Climate Control System Main tenance P. 544 Cleaning P. 545
2Handling the Unexpected P. 553
Tools P. 554 If a Tire Goes Flat P. 555
Overheating P. 584 Indicator, Coming On/Blinking P. 586
2Information P. 595
Specifications P. 596 Identification Numbers P. 598
Warranty Coverages P. 603 Authorized Manuals P. 605
19 ACURA ILX-31TX66610.book 2 ページ 2020年4月17日 金曜日 午前8時52分
Page 22 of 621
21
Quick Reference Guide
Maintenance (P505)
Under the Hood (P514)
●Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
●Check brake fluid.●Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly, you
can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lever
Lights (P525)
●Inspect all lights regularly.
Wiper Blades (P530)
●Replace blades if they leave streaks
across the windshield.
Tires (P532)
●Inspect tires and wheels regularly.●Check tire pressures regularly.●Install snow tires for winter driving.
19 ACURA ILX-31TX66610.book 21 ページ 2020年4月17日 金曜日 午前8時52分
Page 147 of 621
146
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the power mode is in ON.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, INT*1/AUTO*2, LO,
HI)
Move the lever up or down to change the
wiper settings.
■Adjusting wiper operation*
Turn the adjustment ring to adjust the wiper
operation.
■Washer
Sprays while you pull the lever toward you.
When you release the lever for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.
*1: Models with manual intermittent operation
*2: Models with automati c intermittent operation
■Windshield Wipers/Washers1Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle speeds up, the wiper operation’s
shortest delay setting ( ) and the LO setting become
the same.
NOTICE
In cold weather, the blades may freeze to the
windshield.
Operating the wipers in th is condition may damage
the wipers. Use the defogger to warm the
windshield, then turn the wipers on.
Models with intermittent time adjustment ring
Intermittent Time
Adjustment Ring*
MIST
INT
*1/AUTO*2
OFF
LO: Low speed wipe
HI: High speed wipe Pull to
use
washer.
Lower speed, fewer sweeps
Higher speed, more sweeps
* Not available on all models
19 ACURA ILX-31TX66610.book 146 ページ 2020年4月17日 金曜日 午前8時52分
Page 506 of 621
505
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 506
Safety When Performing Maintenance ..507
Parts and Fluids Used in Maintenance Service ........................................... 508
Maintenance Minder
TM..................... 509
Maintenance Under the Hood Maintenance Items Under the Hood .. 514
Opening the Hood ........................... 515
Recommended Engine Oil ................ 516
Oil Check ......................................... 517
Adding Engine Oil ............................ 518
Changing the Engine Oil and Oil Filter ...519
Engine Coolant ................................ 521
Transmission Fluid ............................ 523
Brake Fluid ....................................... 524
Refilling Window Washer Fluid......... 524
Replacing Light Bulbs ....................... 525
Checking and Maintaining Wiper
Blades .......................................... 530
Checking and Maintaining Tires
Checking Tires ................................. 532
Tire and Loading Information Label .. 533
Tire Labeling .................................... 533
DOT Tire Quality Grading (U.S. Vehicles) ..535Wear Indicators................................ 537 Tire Service Life ................................ 537
Tire and Wheel Replacement ........... 538
Tire Rotation .................................... 539
Winter Tires ..................................... 540
Battery ............................................... 541
Remote Transmitter Care
Replacing the Button Battery ........... 542
Climate Control System Maintenance.. 544Cleaning
Interior Care .................................... 545
Exterior Care.................................... 548
Accessories and Modifications ........ 551
19 ACURA ILX-31TX66610.book 505 ページ 2020年4月17日 金曜日 午前8時52分
Page 507 of 621

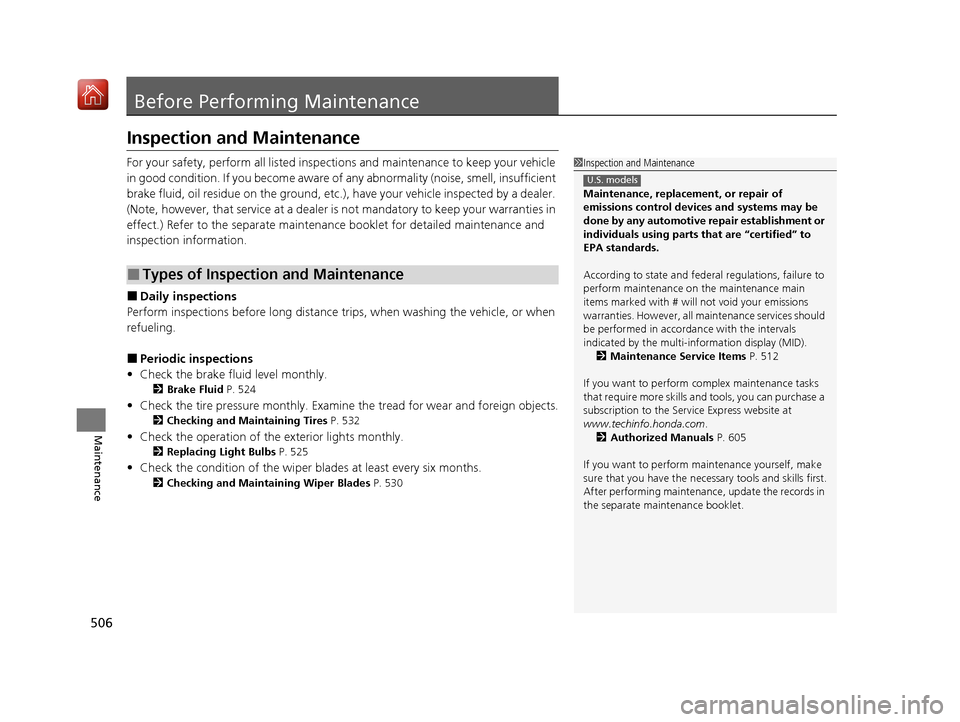

506
Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of an y abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.) Refer to the separate maintena nce booklet for detailed maintenance and
inspection information.
■Daily inspections
Perform inspections before long distance trips, when washing the vehicle, or when
refueling.
■Periodic inspections
• Check the brake fluid level monthly.
2 Brake Fluid P. 524
•Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 532
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 525
•Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 530
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all ma intenance services should
be performed in accordan ce with the intervals
indicated by the multi-information display (MID).
2 Maintenance Service Items P. 512
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 605
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing maintenanc e, update the records in
the separate maintenance booklet.
U.S. models
19 ACURA ILX-31TX66610.book 506 ページ 2020年4月17日 金曜日 午前8時52分
Page 531 of 621

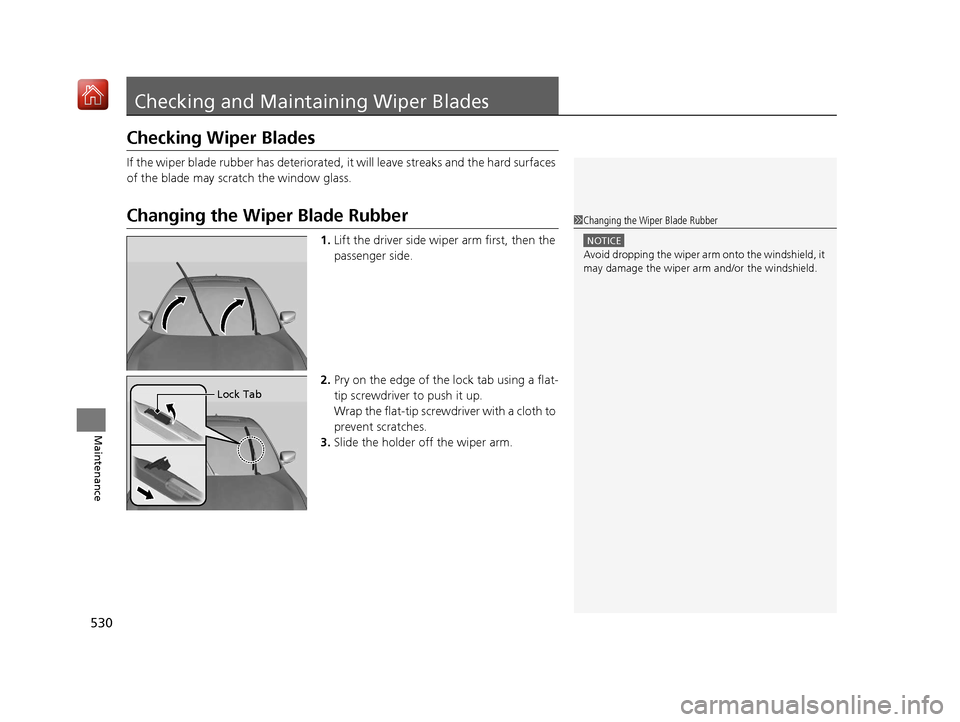

530
Maintenance
Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.
Changing the Wiper Blade Rubber
1. Lift the driver side wiper arm first, then the
passenger side.
2. Pry on the edge of the lock tab using a flat-
tip screwdriver to push it up.
Wrap the flat-tip screwdriver with a cloth to
prevent scratches.
3. Slide the holder off the wiper arm.
1Changing the Wiper Blade Rubber
NOTICE
Avoid dropping the wiper arm onto the windshield, it
may damage the wiper arm and/or the windshield.
Lock Tab
19 ACURA ILX-31TX66610.book 530 ページ 2020年4月17日 金曜日 午前8時52分
Page 532 of 621

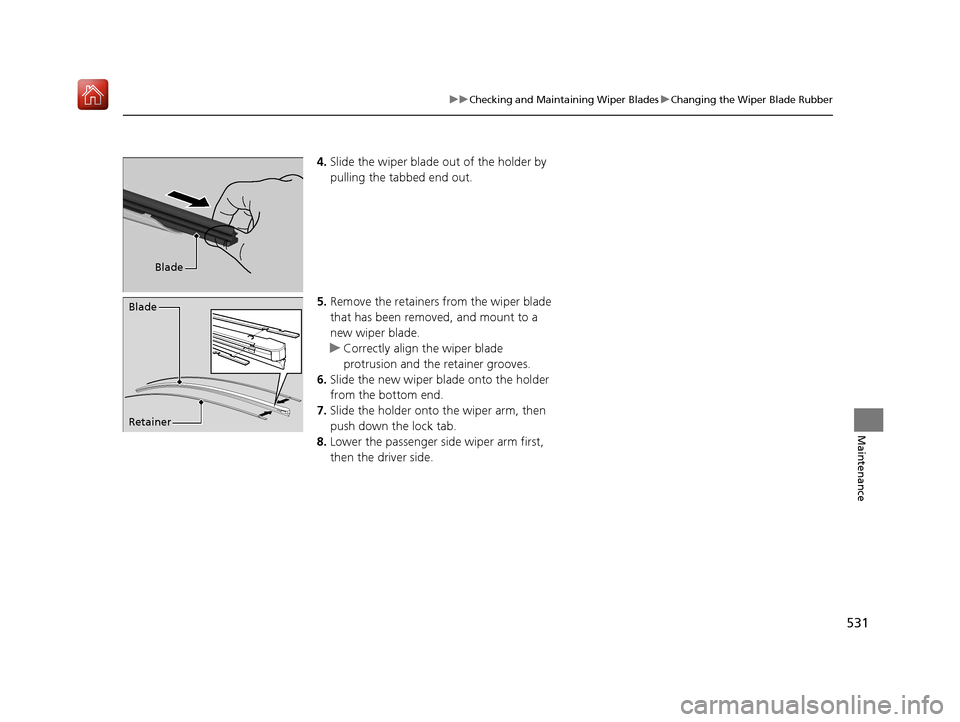

531
uuChecking and Maintaining Wiper Blades uChanging the Wiper Blade Rubber
Maintenance
4. Slide the wiper blade out of the holder by
pulling the tabbed end out.
5. Remove the retainers from the wiper blade
that has been removed, and mount to a
new wiper blade.
u Correctly align the wiper blade
protrusion and the retainer grooves.
6. Slide the new wiper bl ade onto the holder
from the bottom end.
7. Slide the holder onto the wiper arm, then
push down the lock tab.
8. Lower the passenger side wiper arm first,
then the driver side.
Blade
Retainer Blade
19 ACURA ILX-31TX66610.book 531 ページ 2020年4月17日 金曜日 午前8時52分
Page 619 of 621

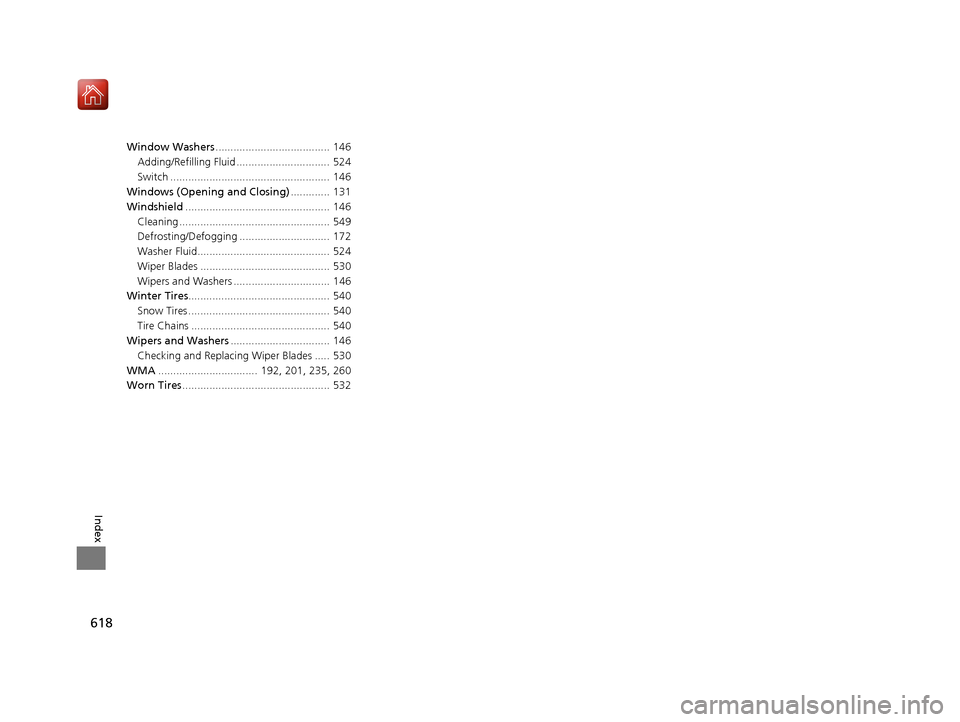

618
Index
Window Washers...................................... 146
Adding/Refilling Fluid ............................... 524
Switch ..................................................... 146
Windows (Opening and Closing) ............. 131
Windshield ................................................ 146
Cleaning .................................................. 549
Defrosting/Defogging .............................. 172
Washer Fluid............................................ 524
Wiper Blades ........................................... 530
Wipers and Washers ................................ 146
Winter Tires............................................... 540
Snow Tires ............................................... 540
Tire Chains .............................................. 540
Wipers and Washers ................................. 146
Checking and Replacing Wiper Blades ..... 530
WMA ................................. 192, 201, 235, 260
Worn Tires ................................................. 532
