508
Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of an y abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.) Refer to the separate maintena nce booklet for detailed maintenance and
inspection information.
■Daily inspections
Perform inspections before long distance trips, when washing the vehicle, or when
refueling.
■Periodic inspections
• Check the brake fluid level monthly.
2 Brake Fluid P. 526
•Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 534
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 527
•Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 532
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all ma intenance services should
be performed in accordan ce with the intervals
indicated by the multi-information display (MID).
2 Maintenance Service Items P. 514
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 607
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing maintenanc e, update the records in
the separate maintenance booklet.
U.S. models
20 ACURA ILX-31TX66710.book 508 ページ ２０２０年４月１６日　木曜日　午後８時４６分

542
uuChecking and Maintaining Tires uWinter Tires
Maintenance
Winter Tires
If driving on snowy or frozen roads, mount all season marked M+S tires, snow tires,
or tire chains; reduce speed; and maintain sufficient distance between vehicles when
driving.
Be particularly careful when operating the steering wheel or brakes to prevent
skidding.
Use tire chains, snow tires, or all season ti res when necessary or according to the law.
When mounting, refer to the following points.
For winter tires:
• Select the size and load ranges that are the same as the original tires.
• Mount the tires to all four wheels.
For tire chains:
• Install them on the front tires only.
• Because your vehicle has limited tire clearance, we strongly recommend using the
chains listed below:
• Follow the chain manufacturer's instruction when installing. Mount them as
tightly as you can.
• Check that the chains do not to uch the brake lines or suspension.
• Drive slowly.
Cable-type: SCC Ra dial Chain SC1032
Cable-type: SCC Radial Chain SC1036
1Winter Tires
NOTICE
Traction devices that are the wrong size or improperly
installed can damage your vehicle's brake lines,
suspension, body, and wheels. Stop driving if they are
hitting any part of the vehicle.
When tire chains are mounted, follow the chain
manufacturer's instructi ons regarding vehicle
operational limits.
If your vehicle is equipp ed with summer tires, be
aware that these tires are not designed for winter
driving conditions. For more information, contact a
dealer.
3WARNING
Using the wrong chains, or not properly
installing chains, can damage the brake
lines and cause a crash in which you can be
seriously injured or killed.
Follow all instruction s in this owner's
manual regarding the selection and use of
tire chains.
Models with P215/45R17 87V tires
Models with 225/40R18 92V tires
20 ACURA ILX-31TX66710.book 542 ページ ２０２０年４月１６日　木曜日　午後８時４６分

Continued561
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
4. Plug in the compressor to the accessory
power socket.
u Be careful not to pinch the cord in a
door or window.
5. Start the engine.
u Keep the engine running while injecting
sealant and air.
2 Carbon Monoxide Gas P. 65
6.Turn the selector knob to REPAIR*1,
SEALANT/AIR*2, PRODUIT ANTIFUITE/
AIR*2.
*1: U.S. models
*2: Canadian models
1 Injecting Sealant and Air
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
U.S.
Canada
20 ACURA ILX-31TX66710.book 561 ページ ２０２０年４月１６日　木曜日　午後８時４６分

580
uuEngine Does Not Start uIf the Keyless Access Remote Battery is Weak
Handling the Unexpected
If the Keyless Access Re mote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the multi-information display, and the ENGINE START/STOP button
flashes, and the engine won’t start, start the engine as follows:
1.Touch the center of the ENGINE START/
STOP button with the A logo on the keyless
access remote while the ENGINE START/
STOP button is flashing. The buttons on
the keyless access remo te should be facing
you.
u The ENGINE START/STOP button
flashes for about 30 seconds.
2. Depress the brake pedal and press the
ENGINE START/STOP button within 10
seconds after the beeper sounds and the
ENGINE START/STOP button changes
from flashing to on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
20 ACURA ILX-31TX66710.book 580 ページ ２０２０年４月１６日　木曜日　午後８時４６分

581
uuEngine Does Not Start uEmergency Engine Stop
Handling the Unexpected
Emergency Engine Stop
The ENGINE START/STOP button may be used to stop the engine due to an
emergency situation even while driving. If you must stop the engine, do either of the
following operations:
• Press and hold the ENGINE START/STOP button for about two seconds.
• Firmly press the ENGINE START/STOP button three times.
The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort an d time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place.
The power mode is in ACCESSORY when the engine is stopped.
To change the mode to VEHICLE OFF, put the transmission into
(P after the vehicle
comes to a complete stop.
1 Emergency Engine Stop
Do not press the ENGINE START/STOP button while
driving unless it is absolute ly necessary for the engine
to be turned off.
If you press the ENGINE START/STOP button while
driving, the beeper sounds.
20 ACURA ILX-31TX66710.book 581 ページ ２０２０年４月１６日　木曜日　午後８時４６分

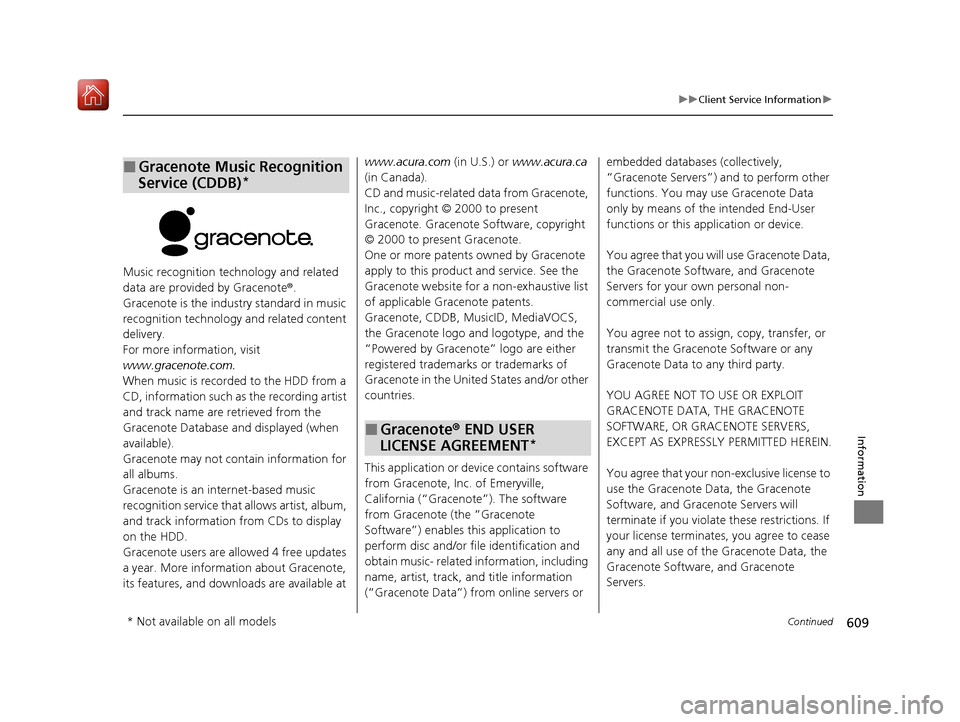

609
uuClient Service Information u
Continued
Information
Music recognition technology and related
data are provided by Gracenote ®.
Gracenote is the indus try standard in music
recognition technology and related content
delivery.
For more information, visit
www.gracenote.com.
When music is recorded to the HDD from a
CD, information such as the recording artist
and track name are retrieved from the
Gracenote Database and displayed (when
available).
Gracenote may not contain information for
all albums.
Gracenote is an in ternet-based music
recognition service that allows artist, album,
and track information from CDs to display
on the HDD.
Gracenote users are allowed 4 free updates
a year. More information about Gracenote,
its features, and downloads are available at
■Gracenote Music Recognition
Service (CDDB)*
www.acura.com (in U.S.) or www.acura.ca
(in Canada).
CD and music-related data from Gracenote,
Inc., copyright © 2000 to present
Gracenote. Gracenote Software, copyright
© 2000 to present Gracenote.
One or more patents owned by Gracenote
apply to this produc t and service. See the
Gracenote website for a non-exhaustive list
of applicable Gracenote patents.
Gracenote, CDDB, MusicID, MediaVOCS,
the Gracenote logo and logotype, and the
“Powered by Gracenote” logo are either
registered trademarks or trademarks of
Gracenote in the United States and/or other
countries.
This application or device contains software
from Gracenote, Inc. of Emeryville,
California (“Grace note”). The software
from Gracenote (the “Gracenote
Software”) enables this application to
perform disc and/or f ile identification and
obtain music- related information, including
name, artist, track, and title information
(“Gracenote Data”) from online servers or
■Gracenote® END USER
LICENSE AGREEMENT*
embedded databases (collectively,
“Gracenote Servers”) and to perform other
functions. You may use Gracenote Data
only by means of th e intended End-User
functions or this application or device.
You agree that you will use Gracenote Data,
the Gracenote Software, and Gracenote
Servers for your own personal non-
commercial use only.
You agree not to assign, copy, transfer, or
transmit the Gracenote Software or any
Gracenote Data to any third party.
YOU AGREE NOT TO USE OR EXPLOIT
GRACENOTE DATA, THE GRACENOTE
SOFTWARE, OR GRACENOTE SERVERS,
EXCEPT AS EXPRESSLY PERMITTED HEREIN.
You agree that your non-exclusive license to
use the Gracenote Data, the Gracenote
Software, and Gracenote Servers will
terminate if you violate these restrictions. If
your license terminates , you agree to cease
any and all use of the Gracenote Data, the
Gracenote Software, and Gracenote
Servers.
* Not available on all models
20 ACURA ILX-31TX66710.book 609 ページ ２０２０年４月１６日　木曜日　午後８時４６分

Index
612
Index
Index
A
AAC.................................................... 235, 260
ABS (Anti-lock Brake System) ................... 494
Accessories and Modifications ................. 553
Accessory Power Sockets .......................... 169
AcuraLink .................................................. 410
AcuraWatch
TM..................................... 20, 446
Adaptive Cruise Control (ACC) ........... 76, 459
Additives Coolant ................................................... 523
Engine Oil ................................................ 518
Washer .................................................... 526
Additives, Engine Oil ................................ 518
Adjusting
Armrest ................................................... 163
Front Seats .............................................. 154
Head Restraints........................................ 158
Mirrors .................................................... 152
Rear Seat ................................................. 162
Steering Wheel ........................................ 149
Temperature .............................................. 92
Air Conditioning System (Climate Control
System) .................................................... 171
Changing the Mode ................................ 171
Defrosting the Windshield and
Windows ............................................... 172
Maintenance ........................................... 546
Recirculation/Fresh Air Mode ................... 171
Sensors .................................................... 174
Synchronization Mode ............................. 173
Using Automatic Climate Control ............ 171 Air Pressure
....................................... 535, 599
Airbags ........................................................ 39
Advanced Airbags ..................................... 45
After a Collision ........................................ 42
Airbag Care............................................... 51
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 42
Indicator.............................................. 49, 72
Passenger Airbag Off Indicator .................. 50
Sensors ..................................................... 39
Side Airbags .............................................. 46
Side Curtain Airbags.................................. 48
AM/FM Radio .................................... 190, 221
Android Auto ........................................... 270
Anti-lock Brake System (ABS) .................. 494
Indicator.................................................... 71
Apple CarPlay ........................................... 266
Armrest ..................................................... 163
Audio Remote Controls ........................... 181
Audio System ............................................ 176
Adjusting the Sound........................ 188, 216
Auxiliary Input Jack.................................. 179
Bluetooth ® Audio ............................ 204, 263
CD .................................................. 192, 235
Display Setup .................................. 189, 217
Error Messages ........................................ 275
General Information ................................ 286
HDD ........................................................ 238
iPhone............................................. 258, 289
iPod ................................................ 195, 251
MP3/WMA/AAC ...................... 201, 235, 260 Pandora
®...................................... 198, 258
Reactivating ............................................ 180
Recommended CDs ................................ 287
Recommended Devices ........................... 289
Security Code ......................................... 180
Siri Eyes Free ........................................... 265
SiriusXM ® Radio ...................................... 224
Song By VoiceTM (SBV) ............................. 254
Theft Protection ...................................... 180
USB Adapter Cable ................................. 177
USB Flash Drives...................... 201, 260, 289
USB Port ................................................. 178
Audio/Information Screen ....................... 184
Authorized Manuals ................................ 607
Auto Door Locking/Unlocking ................ 123
Customize ...................................... 101, 323
Auto High-Beam ...................................... 143
Automatic Lighting .................................. 140
Auxiliary Input Jack ................................. 179
Average Fuel Economy .............................. 92
Average Speed ........................................... 93
B
Battery...................................................... 543
Charging System Indicator ................ 70, 588
Jump Starting ......................................... 582
Maintenance (Checking the Battery) ....... 543
Maintenance (Replacing) ......................... 544
Belts (Seat) .................................................. 32
Beverage Holders ..................................... 168
20 ACURA ILX-31TX66710.book 612 ページ ２０２０年４月１６日　木曜日　午後８時４６分

616
Index
Indicators..................................................... 68
Adaptive Cruise Control (ACC) .... 76, 77, 459
Anti-lock Brake System (ABS) ..................... 71
Auto High-Beam ........................................ 74
Blind spot information System ........... 79, 440
Brake System (Amber)................................ 68
Brake System (Red) ............................ 68, 590
Charging System ............................... 70, 588
Collision Mitigation Braking System
TM (CMBSTM) ............................ 79, 80
Electric Power Steering (EPS) System .. 72, 590
Fog Light ................................................... 74
Gear Position ............................................. 69
High Beam................................................. 74
Immobilizer System .................................... 75
Keyless Access System ............................... 75
Lane Keeping Assist System (LKAS) .... 78, 477
Lights On ................................................... 74
Low Fuel .................................................... 71
Low Oil Pressure ................................ 69, 588
Low Tire Pressure/TPMS ..... 73, 442, 444, 591
Maintenance Minder ............................... 511
Malfunction Indicator Lamp ............... 70, 589
Parking Brake and Brak e System ........ 68, 590
Road Departure Mitigation (RDM) .............. 76
Seat Belt Reminder .............................. 33, 71
Security System Alarm ............................... 75
Sequential mode...................................... 436
Shift Lever Position .................................... 69
Supplemental Restraint System ............ 49, 72
System Message ........................................ 73 Transmission System.................................. 69
Turn Signal ................................................ 74
Vehicle Stability Assist
TM (VSA
®)
System ............................................ 72, 437
VSA ® OFF .......................................... 73, 438
Information .............................................. 597
Information Screen .................................. 211
Instant Fuel Economy ................................. 93
Instrument Panel ........................................ 67
Brightness Control................................... 148
Interface Dial ............................................ 206
Interior Lights ........................................... 164
Interior Rearview Mirror .......................... 152
iPhone ............................................... 258, 289
iPod ................................................... 195, 251
J
Jack (Wheel Nut Wrench) ........................ 575
Jump Starting ........................................... 582
K
Key Number Tag ....................................... 110
Keyless Access System .............................. 111
Keyless Lockout Prevention ..................... 118
Keys ........................................................... 108
Lockout Prevention.................................. 118
Number Tag ............................................ 110
Rear Door Won’t Open............................ 122
Remote Transmitter ................................. 116 Two-way Keyless Access Remote..... 119, 428
Types and Functions................................ 108
Kickdown (Dual Clutch Transmission) .... 432
L
Lane Keeping Assist System (LKAS)........ 474
LATCH (Child Seats) ................................... 57
License information ................................. 303
Lights ................................................ 139, 527
Automatic............................................... 140
Bulb Replacement ................................... 527
Daytime Running Lights .......................... 142
Fog Lights ............................................... 142
High-Beam Indicator ................................. 74
Interior.................................................... 164
Light Switches......................................... 139
Lights On Indicator .................................... 74
Turn Signals ............................................ 138
Limitations for Manual Operation .. 340, 370
Load Limits ............................................... 423
Locking/Unlocking ................................... 108
Auto Door Locking/Unlocking ................. 123
Childproof Door Locks ............................ 122
From Inside ............................................. 120
From Outside .......................................... 111
Keys........................................................ 108
Using a Key............................................. 117
Lockout Prevention System ..................... 118
Low Battery Charge ................................. 588
Low Fuel Indicator ..................................... 71
20 ACURA ILX-31TX66710.book 616 ページ ２０２０年４月１６日　木曜日　午後８時４６分

617
Index
Low Keyless Access Remote Signal Strength .................................................. 110
Low Oil Pressure Indicator ................. 69, 588
Lower Anchors ........................................... 57
Luggage (Maximum Load Limit) ............. 423
M
Maintenance............................................ 507
Battery .................................................... 543
Brake Fluid .............................................. 526
Cleaning ................................................. 547
Climate Control System .......................... 546
Coolant .................................................. 523
Maintenance Minder
TM............................ 511
Oil .......................................................... 519
Precautions ............................................. 508
Radiator .................................................. 524
Remote Transmitter ................................ 544
Replacing Light Bulbs .............................. 527
Safety ..................................................... 509
Service Items ........................................... 514
Tires........................................................ 534
Transmission Fluid ................................... 525
Under the Hood ...................................... 516
Malfunction Indicator Lamp ............. 70, 589
Map Lights ................................................ 165
Maximum Load Limit ............................... 423
Meters, Gauges .......................................... 88
Mirrors ...................................................... 152
Adjusting ................................................ 152 Door ........................................................ 153
Exterior .................................................... 153
Interior Rearview ..................................... 152
Modifications (and Accessories) .............. 553
Moonroof .................................................. 134
MP3 ................................... 192, 201, 235, 260
Multi-Information Display ......................... 89
Multi-View Rear Camera .......................... 501
N
Numbers (Identification).......................... 600
O
Odometer.................................................... 92
Oil (Engine) ............................................... 518
Adding .................................................... 520
Checking ................................................. 519
Displaying Oil Life .................................... 512
Low Oil Pressure Indicator .................. 69, 588
Recommended Engine Oil ........................ 518
Viscosity .................................................. 518
On Demand Multi-Use Display
TM............. 207
Open Source Licenses ............................... 302
Opening/Closing
Hood ....................................................... 517
Moonroof ................................................ 134
Power Windows ...................................... 131
Trunk ...................................................... 124 Operating the Switches Around the
Steering Wheel ....................................... 135
Outside Temperature ................................. 92
Adjusting .................................................. 92
Overheating .............................................. 586
P
Paddle Shifters (Sequential Mode) ............ 18
Pandora ®......................................... 198, 258
Panic Mode ............................................... 130
Parking ...................................................... 496
Parking Brake ........................................... 492
Parking Brake and Brake System Indicator ............................................ 68, 590
Passenger Airbag Off Indicator ................. 50
Passing Indicators ..................................... 139
Power Windows ....................................... 131
Precautions While Driving ....................... 431
Rain ........................................................ 431
Pregnant Women ....................................... 37
Puncture (Tire) .......................................... 557
R
Radar Sensor............................................. 491
Radiator .................................................... 524
Radio (AM/FM) ................................. 190, 221
Radio (SiriusXM ®) ..................................... 224
Radio Data System (RDS) ................. 191, 222
Range .......................................................... 93
20 ACURA ILX-31TX66710.book 617 ページ ２０２０年４月１６日　木曜日　午後８時４６分

619
Index
Tire Pressure Monitoring System (TPMS) ..................................................... 442
Indicator ........................................... 73, 591
Tires .......................................................... 534
Air Pressure..................................... 535, 599
Checking and Maintaining ...................... 534
Flat Tire (Puncture) .................................. 557
Inspection ............................................... 534
Labeling .................................................. 535
Puncture (Flat Tire) .................................. 557
Regulations ............................................. 537
Rotation.................................................. 541
Spare Tire ............................................... 599
Summer .................................................. 542
Temporary Tire Repair Kit ........................ 558
Tire Chains.............................................. 542
Wear Indicators....................................... 539
Winter .................................................... 542
Tools ......................................................... 556
Towing a Trailer ....................................... 425
Towing Your Vehicle ............................... 425
Emergency .............................................. 595
TPMS (Tire Pressure Monitoring System) .................................................... 442
Transmission ............................................. 433
Automatic............................................... 433
Fluid ....................................................... 525
Gear Position Indicator .............................. 69
Number .................................................. 600
Sequential Mode..................................... 435
Shift Lever Position Indicator ................... 434 Trip Meter
................................................... 92
Troubleshooting ....................................... 555
Blown Fuse ...................................... 592, 593
Brake Pedal Vibrates .................................. 23
Buzzer Sounds When Opening Door .......... 24
Emergency Towing .................................. 595
Engine Won’t Start .................................. 579
Flat Tire/Puncture ..................................... 557
Noise When Braking .................................. 24
Overheating ............................................ 586
Premium Gasoline ........................... 503, 598
Puncture/Flat Tire ..................................... 557
Rear Door Won’t Open ...................... 23, 122
Select Lever Won’t Move ......................... 585
Warning Indicators .................................... 68
Trunk ......................................................... 124
Lid ........................................................... 124
Light Bulb ................................................ 598
Open Message .......................................... 83
Turn Signals .............................................. 138
Indicators (Instrument Panel) ...................... 74
Turn-by-Turn Directions ............................. 93
Two-way Keyless Access Remote ..... 119, 428
U
Unlocking the Doors................................ 111
Unlocking the Front Doors from the Inside ................................................. 12, 120
USB Adapter Cable ........................... 176, 177
USB Flash Drives ........................................ 289 USB Port
.................................................... 178
Using the Keyless Access System ............. 111
V
Vanity Mirrors............................................... 7
Vehicle Identification Number ................ 600
Vehicle Stability Assist
TM (VSA® ).............. 437
Off Button............................................... 438
Off Indicator.............................................. 73
System Indicator ........................................ 72
Viscosity (Oil) .................................... 518, 599
Voice Control Operation .......................... 218
Voice Portal Screen.................................. 219
Voice Recognition ................................... 218
VSA ® (Vehicle Stability Assist
TM) .............. 437
W
Wallpaper ................................................. 214
Wallpaper Setup ....................................... 186
Warning and Info rmation Messages ......... 81
Warning Indicator On/Blinking ............... 588
Warning Labels ........................................... 66
Warranties (Warranty Manual provided separately) .............................................. 605
Watts ......................................................... 598
Wear Indicators (Tire) .............................. 539
Wheel Nut Wrench (Jack Handle) ........... 575
20 ACURA ILX-31TX66710.book 619 ページ ２０２０年４月１６日　木曜日　午後８時４６分
