rear view mirror Acura ILX 2020 User Guide

459
uuAcuraWatchTMuAdaptive Cruise Control (ACC)
Continued
Driving
Adaptive Cruise Control (ACC)
Helps maintain a constant vehicle speed a nd a set following-interval behind a vehicle
detected ahead of yours, without you having to keep your foot on the brake or the
accelerator.
When ACC slows your vehicle by applying the brakes, your vehicle’s brake lights will
illuminate.1 Adaptive Cruise Control (ACC)
Important Reminder
As with any system, there are limits to ACC. Use the
brake pedal whenever necessary, and always keep a
safe interval betw een your vehicle and other vehicles.
For directions on the prop er handling of the radar
sensor, refer to the following page. 2 Radar Sensor P. 491
3WARNING
Improper use of ACC can lead to a crash.
Use ACC only when driving on expressways
or freeways and in good weather
conditions.
3WARNING
ACC has limited braking capability.
When your vehicle speed drops below 22
mph (35 km/h), ACC will automatically
cancel and no longer will apply your
vehicle’s brakes.
Always be prepared to apply the brake
pedal when conditions require.
When to use
■Vehicle speed for adaptive cruise control: Desired speed in a range above
roughly 25 mph (40 km/h) ~
■Shift positions for ACC: In ( D or (S. The radar sensor is
behind the emblem.
The camera is
located behind the
rearview mirror.
20 ACURA ILX-31TX66710.book 459 ページ ２０２０年４月１６日　木曜日　午後８時４６分

Continued471
uuAcuraWatchTMuAdaptive Cruise Control (ACC)
Driving
■Automatic cancellation
The beeper sounds and a message appears on the multi-information display when
ACC is automatically cancel ed. Any of these conditions may cause the ACC to
automatically cancel:
• Bad weather (rain, fog, snow, etc.)
• When the radar sensor behind the emblem gets dirty.
• The vehicle ahead of yo u cannot be detected.
• An abnormal tire condition is de tected, or the tires are skidding.
• Driving on a mountainous road, or driving off road for extended periods.
• Abrupt steering wheel movement.
• When the ABS, VSA ® or CMBS
TM is activated.
• When the ABS or VSA ® system indicator comes on.
• When you manually apply the parking brake.
• When the detected vehicle within the AC C range is too close to your vehicle.
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
1 Automatic cancellation
Even though ACC has been automatically canceled,
you can still resume the prior set speed. Wait until the
condition that caused ACC to cancel improves, then
press the RES/ACCEL button.
20 ACURA ILX-31TX66710.book 471 ページ ２０２０年４月１６日　木曜日　午後８時４６分

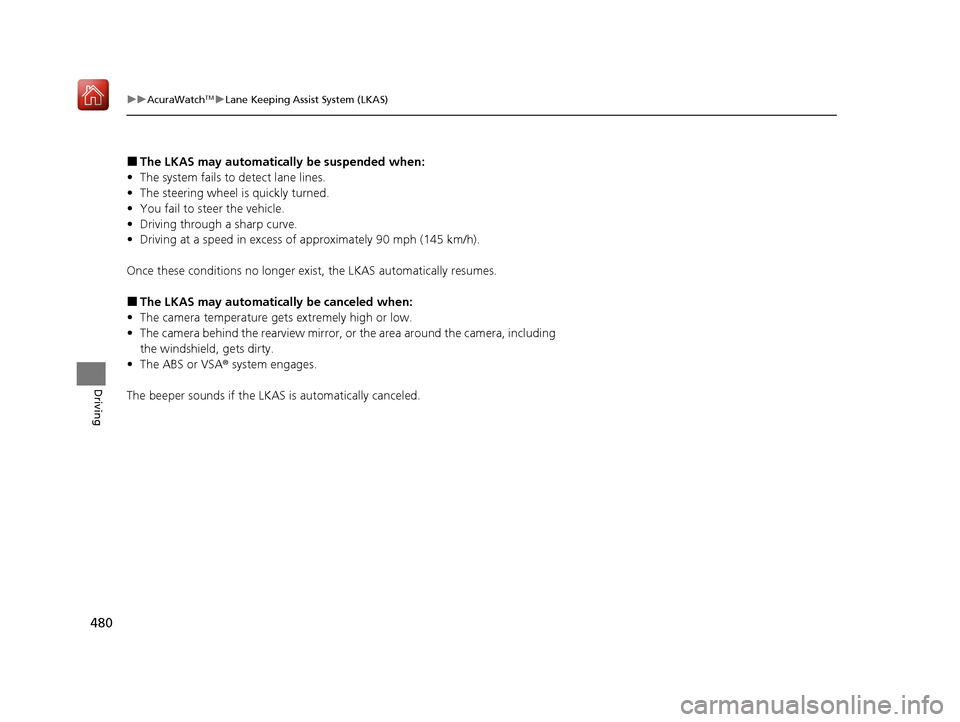

480
uuAcuraWatchTMuLane Keeping Assist System (LKAS)
Driving
■The LKAS may automatically be suspended when:
• The system fails to detect lane lines.
• The steering wheel is quickly turned.
• You fail to steer the vehicle.
• Driving through a sharp curve.
• Driving at a speed in excess of approximately 90 mph (145 km/h).
Once these conditions no longer exis t, the LKAS automatically resumes.
■The LKAS may automatically be canceled when:
• The camera temperature gets extremely high or low.
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
• The ABS or VSA ® system engages.
The beeper sounds if the LKAS is automatically canceled.
20 ACURA ILX-31TX66710.book 480 ページ ２０２０年４月１６日　木曜日　午後８時４６分

484
uuAcuraWatchTMuRoad Departure Mitigation (RDM) System
Driving
Road Departure Mitigation (RDM) System
Alerts and helps to assist you when the system detects a possibility of your vehicle
unintentionally crossing over detected la ne markings and/or leaving the roadway
altogether.
The front camera behind the rearview mirror
monitors left and right lane markings (in white
or yellow). If your vehicle is getting too close to
detected lane markings without a turn signal
activated, the system, in addition to a visual
alert, applies steering torque and alerts you
with rapid vibrations on the steering wheel, to
help you remain within the detected lane.
2 Customized Features P. 95, 310
As a visual alert, the Lane Departure message
appears on the multi-information display.
If the system determines that its steering input
is insufficient to keep your vehicle on the
roadway, it may apply braking.
u Braking is applied only when the lane
markings are solid continuous lines.
The system cancels assisting operations when you turn th e steering wheel to avoid
crossing over detected lane markings.
If the system operates several times without detecting driver response, the system
beeps to alert you.
■How the System Works
1 Road Departure Mitigation (RDM) System
Important Safety Reminder
Like all assistance systems, the RDM system has
limitations.
Over-reliance on the RDM system may result in a
collision. It is always your responsibility to keep the
vehicle within your driving lane.
The RDM system only alerts you when lane drift is
detected without a turn signal in use. The RDM
system may not detect all la ne markings or lane or
roadway departures; accu racy will vary based on
weather, speed and lane marker condition. It is
always your responsibilit y to safely operate the
vehicle and avoid collisions.
You can read about handling information for the
camera equipped with this system.
2 Front Sensor Camera P. 489
The RDM system may not wo rk properly or may work
improperly under the certain conditions: 2 RDM Conditions and Limitations P. 487
There are times when you may not notice RDM
functions due to your opera tion of the vehicle, or
road surface conditions.
20 ACURA ILX-31TX66710.book 484 ページ ２０２０年４月１６日　木曜日　午後８時４６分

489
uuAcuraWatchTMuFront Sensor Camera
Continued
Driving
Front Sensor Camera
The camera, used in systems su ch as LKAS, RDM, ACC, and CMBSTM, is designed to
detect an object that triggers any of the systems to operate their functions.
This camera is located behind the rearview
mirror.
To help reduce the likelihood that high interior
temperatures will cause the camera’s sensing
system to shut off, when parking, find a shady
area or face the front of the vehicle away from
the sun. If you use a reflective sun shade, do
not allow it to cover the camera housing.
Covering the camera can concentrate heat on
it.
■Camera Location and Handling Tips
1 Front Sensor Camera
Never apply a film or attach any objects to the
windshield, the hood, or th e front grille that could
obstruct the camera’s fiel d of vision and cause the
system to operate abnormally.
Scratches, nicks, and othe r damage to the windshield
within the camera’s fiel d of vision can cause the
system to operate abnormall y. If this occurs, we
recommend that you replac e the windshield with a
genuine Acura replacement windshield. Making even
minor repairs within the ca mera’s field of vision or
installing an aftermarke t replacement windshield
may also cause the system to operate abnormally.
After replacing the winds hield, have a dealer
recalibrate the camera. Pr oper calibration of the
camera is necessary for the system to operate
properly.
Do not place an object on the top of the instrument
panel. It may reflect onto the windshield and prevent
the system from detecting lane lines properly.
Front Sensor
Camera
20 ACURA ILX-31TX66710.book 489 ページ ２０２０年４月１６日　木曜日　午後８時４６分

613
Index
Blind spot information System................ 439
Bluetooth ® Audio ............................. 204, 263
Bluetooth ® HandsFreeLink ®........... 339, 368
Booster Seats (For Children) ...................... 64
Brake System ............................................ 492
Anti-lock Brake System (ABS) .................. 494
Brake Assist System................................. 495
Fluid ....................................................... 526
Foot Brake .............................................. 493
Indicator ........................................... 68, 590
Parking Brake.......................................... 492
Brake System (Amber) Indicator ................................................... 68
Brightness Control (Instrument Panel) ... 148
Built-in Key ............................................... 109
Bulb Replacement .................................... 527
Back-Up Light ......................................... 530
Fog Lights ............................................... 527
Front Turn Signal, Parking/Daytime
Running and Front Side Marker Lights ... 527
Headlights .............................................. 527
High-Mount Brake Light.......................... 531
Rear License Plate Light ........................... 531
Rear Turn Signal Light ............................. 528
Taillights, Brake and Rear Side Marker
Lights .................................................... 528
Bulb Specifications ................................... 598
C
Carbon Monoxide Gas ............................... 65 Carrying Cargo
.................................. 421, 423
CD Player ........................................... 192, 235
Center Pocket ........................................... 167
Certification Label .................................... 600
Changing Bulbs ......................................... 527
Charging System Indicator ................. 70, 588
Child Safety ................................................. 52
Childproof Door Locks ............................. 122
Child Seat .................................................... 52
Booster Seats ............................................. 64
Child Seat for Infants ................................. 54
Child Seat for Small Children ..................... 55
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 59
Larger Children .......................................... 63
Rear-facing Child Seat ............................... 54
Selecting a Child Seat ................................ 56
Using a Tether ........................................... 61
Childproof Door Locks ............................. 122
Cleaning the Exterior ............................... 550
Cleaning the Interior ................................ 547
Client Service Information ....................... 608
Climate Control System ............................ 171
Changing the Mode ................................ 171
Defrosting the Windshield and
Windows ............................................... 172
Maintenance ........................................... 546
Recirculation/Fresh Air Mode ................... 171
Sensors .................................................... 174
Using Automatic Climate Control ............ 171
Clock .......................................................... 106 CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 449
Coat Hook ................................................. 169
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 449
Compact Spare Tire .......................... 572, 599
Compass ...................................................... 93
Console Compartment ............................. 166
Controls ..................................................... 105
Coolant (Engine) ...................................... 523
Adding to the Radiator ............................ 524
Adding to the Reserve Tank..................... 523
Overheating ............................................ 586
Creeping ................................................... 432
Cross Traffic Monitor ............................... 498
Cup Holders .............................................. 168
Customized Features .................. 95, 304, 310
D
Daytime Running Lights .......................... 142
Dead Battery ............................................. 582
Defrosting the Windshield and Windows ................................................. 172
Devices that Emit Radio Waves ............... 601
Dimming Headlights ............................................... 139
Rearview Mirror....................................... 152
Dipstick (Engine Oil) ................................. 519
Directional Signals (Turn Signal) ............. 138
Door Mirrors ............................................. 153
20 ACURA ILX-31TX66710.book 613 ページ ２０２０年４月１６日　木曜日　午後８時４６分

616
Index
Indicators..................................................... 68
Adaptive Cruise Control (ACC) .... 76, 77, 459
Anti-lock Brake System (ABS) ..................... 71
Auto High-Beam ........................................ 74
Blind spot information System ........... 79, 440
Brake System (Amber)................................ 68
Brake System (Red) ............................ 68, 590
Charging System ............................... 70, 588
Collision Mitigation Braking System
TM (CMBSTM) ............................ 79, 80
Electric Power Steering (EPS) System .. 72, 590
Fog Light ................................................... 74
Gear Position ............................................. 69
High Beam................................................. 74
Immobilizer System .................................... 75
Keyless Access System ............................... 75
Lane Keeping Assist System (LKAS) .... 78, 477
Lights On ................................................... 74
Low Fuel .................................................... 71
Low Oil Pressure ................................ 69, 588
Low Tire Pressure/TPMS ..... 73, 442, 444, 591
Maintenance Minder ............................... 511
Malfunction Indicator Lamp ............... 70, 589
Parking Brake and Brak e System ........ 68, 590
Road Departure Mitigation (RDM) .............. 76
Seat Belt Reminder .............................. 33, 71
Security System Alarm ............................... 75
Sequential mode...................................... 436
Shift Lever Position .................................... 69
Supplemental Restraint System ............ 49, 72
System Message ........................................ 73 Transmission System.................................. 69
Turn Signal ................................................ 74
Vehicle Stability Assist
TM (VSA
®)
System ............................................ 72, 437
VSA ® OFF .......................................... 73, 438
Information .............................................. 597
Information Screen .................................. 211
Instant Fuel Economy ................................. 93
Instrument Panel ........................................ 67
Brightness Control................................... 148
Interface Dial ............................................ 206
Interior Lights ........................................... 164
Interior Rearview Mirror .......................... 152
iPhone ............................................... 258, 289
iPod ................................................... 195, 251
J
Jack (Wheel Nut Wrench) ........................ 575
Jump Starting ........................................... 582
K
Key Number Tag ....................................... 110
Keyless Access System .............................. 111
Keyless Lockout Prevention ..................... 118
Keys ........................................................... 108
Lockout Prevention.................................. 118
Number Tag ............................................ 110
Rear Door Won’t Open............................ 122
Remote Transmitter ................................. 116 Two-way Keyless Access Remote..... 119, 428
Types and Functions................................ 108
Kickdown (Dual Clutch Transmission) .... 432
L
Lane Keeping Assist System (LKAS)........ 474
LATCH (Child Seats) ................................... 57
License information ................................. 303
Lights ................................................ 139, 527
Automatic............................................... 140
Bulb Replacement ................................... 527
Daytime Running Lights .......................... 142
Fog Lights ............................................... 142
High-Beam Indicator ................................. 74
Interior.................................................... 164
Light Switches......................................... 139
Lights On Indicator .................................... 74
Turn Signals ............................................ 138
Limitations for Manual Operation .. 340, 370
Load Limits ............................................... 423
Locking/Unlocking ................................... 108
Auto Door Locking/Unlocking ................. 123
Childproof Door Locks ............................ 122
From Inside ............................................. 120
From Outside .......................................... 111
Keys........................................................ 108
Using a Key............................................. 117
Lockout Prevention System ..................... 118
Low Battery Charge ................................. 588
Low Fuel Indicator ..................................... 71
20 ACURA ILX-31TX66710.book 616 ページ ２０２０年４月１６日　木曜日　午後８時４６分

617
Index
Low Keyless Access Remote Signal Strength .................................................. 110
Low Oil Pressure Indicator ................. 69, 588
Lower Anchors ........................................... 57
Luggage (Maximum Load Limit) ............. 423
M
Maintenance............................................ 507
Battery .................................................... 543
Brake Fluid .............................................. 526
Cleaning ................................................. 547
Climate Control System .......................... 546
Coolant .................................................. 523
Maintenance Minder
TM............................ 511
Oil .......................................................... 519
Precautions ............................................. 508
Radiator .................................................. 524
Remote Transmitter ................................ 544
Replacing Light Bulbs .............................. 527
Safety ..................................................... 509
Service Items ........................................... 514
Tires........................................................ 534
Transmission Fluid ................................... 525
Under the Hood ...................................... 516
Malfunction Indicator Lamp ............. 70, 589
Map Lights ................................................ 165
Maximum Load Limit ............................... 423
Meters, Gauges .......................................... 88
Mirrors ...................................................... 152
Adjusting ................................................ 152 Door ........................................................ 153
Exterior .................................................... 153
Interior Rearview ..................................... 152
Modifications (and Accessories) .............. 553
Moonroof .................................................. 134
MP3 ................................... 192, 201, 235, 260
Multi-Information Display ......................... 89
Multi-View Rear Camera .......................... 501
N
Numbers (Identification).......................... 600
O
Odometer.................................................... 92
Oil (Engine) ............................................... 518
Adding .................................................... 520
Checking ................................................. 519
Displaying Oil Life .................................... 512
Low Oil Pressure Indicator .................. 69, 588
Recommended Engine Oil ........................ 518
Viscosity .................................................. 518
On Demand Multi-Use Display
TM............. 207
Open Source Licenses ............................... 302
Opening/Closing
Hood ....................................................... 517
Moonroof ................................................ 134
Power Windows ...................................... 131
Trunk ...................................................... 124 Operating the Switches Around the
Steering Wheel ....................................... 135
Outside Temperature ................................. 92
Adjusting .................................................. 92
Overheating .............................................. 586
P
Paddle Shifters (Sequential Mode) ............ 18
Pandora ®......................................... 198, 258
Panic Mode ............................................... 130
Parking ...................................................... 496
Parking Brake ........................................... 492
Parking Brake and Brake System Indicator ............................................ 68, 590
Passenger Airbag Off Indicator ................. 50
Passing Indicators ..................................... 139
Power Windows ....................................... 131
Precautions While Driving ....................... 431
Rain ........................................................ 431
Pregnant Women ....................................... 37
Puncture (Tire) .......................................... 557
R
Radar Sensor............................................. 491
Radiator .................................................... 524
Radio (AM/FM) ................................. 190, 221
Radio (SiriusXM ®) ..................................... 224
Radio Data System (RDS) ................. 191, 222
Range .......................................................... 93
20 ACURA ILX-31TX66710.book 617 ページ ２０２０年４月１６日　木曜日　午後８時４６分

618
Index
RDS (Radio Data System).................. 191, 222
Readiness Codes (Emissions Testing) ....... 603
Rear Defogger/Heated Door Mirror Button ...................................................... 149
Rear Seat (Folding Down) ........................ 162
Rearview Mirror ........................................ 152
Refueling ................................................... 503
Fuel Gauge ................................................ 88
Gasoline .......................................... 503, 598
Low Fuel Indicator ..................................... 71
Regulations ............................... 444, 537, 601
Remote Engine Start ................................ 428
Remote Transmitter .................................. 116
Replacement
Battery..................................................... 544
Bulbs ....................................................... 527
Fuses ............................................... 592, 593
Tires ........................................................ 540
Wiper Blade Rubber ................................. 532
Reporting Safety Defects ......................... 602
Resetting a Trip Meter ............................... 92
Road Departure Mitigation (RDM) .......... 484
On and Off .............................................. 486
S
Safe Driving ................................................. 27
Safety Labels ............................................... 66
Safety Message ............................................. 1
Seat Belts ..................................................... 32
Adjusting the Shoulder Anchor .................. 36 Automatic Seat Belt Tensioners ................. 34
Checking................................................... 38
Fastening .................................................. 35
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 59
Pregnant Women ...................................... 37
Reminder .................................................. 33
Warning Indicator ............................... 33, 71
Seat Heaters .............................................. 170
Seats .......................................................... 154
Adjusting ................................................ 154
Front Seats .............................................. 154
Rear Seat................................................. 162
Seat Heaters ............................................ 170
Security System ......................................... 128
Immobilizer System Indicator ..................... 75
Security System Alarm Indicator................. 75
Select Lever ......................................... 18, 433
Operation.......................................... 18, 434
Releasing................................................. 585
Won’t Move ............................................ 585
Selecting a Child Seat ................................. 56
Selector Knob (Audio) .............................. 183
Sequential Mode ...................................... 435
Sequential Mode Operation .................... 436
Setting the Clock ...................................... 106
Shift Lever ........................................... 18, 433
Shift Lever Position Indicator ............ 69, 434
Shift Lever Positions ................................. 433
Shifting (Transmission) ............................. 433
Shoulder Anchor ........................................ 36 Side Airbags
............................................... 46
Side Curtain Airbags .................................. 48
SiriusXM ® Radio ....................................... 224
SMS Text Message ............................ 351, 363
Snow Tires ................................................ 542
Spare Tire ................................................. 599
Spark Plugs ............................................... 598
Specifications ........................................... 598
Specified Fuel ................................... 503, 598
SRS Airbags (Airbags) ................................ 42
Starting the Engine .................................. 426
Does Not Start ........................................ 579
Engine Switch Buzzer .............................. 135
Jump Starting ......................................... 582
Remote Engine Start ............................... 428
Steering Wheel ........................................ 149
Adjusting ................................................ 149
Stopping ................................................... 496
Summer Tires ............................................ 542
Supplemental Restraint System (SRS) ....... 42
Switches (Around the Steering Wheel) .. 4, 5
Synchronization Mode ............................ 173
System Message Indicator ......................... 73
T
Temperature Sensor................................ 174
Temporary Tire Repair Kit ....................... 558
Text Message .................... 351, 363, 403, 405
Time (Setting) ........................................... 106
20 ACURA ILX-31TX66710.book 618 ページ ２０２０年４月１６日　木曜日　午後８時４６分
