556
Handling the Unexpected

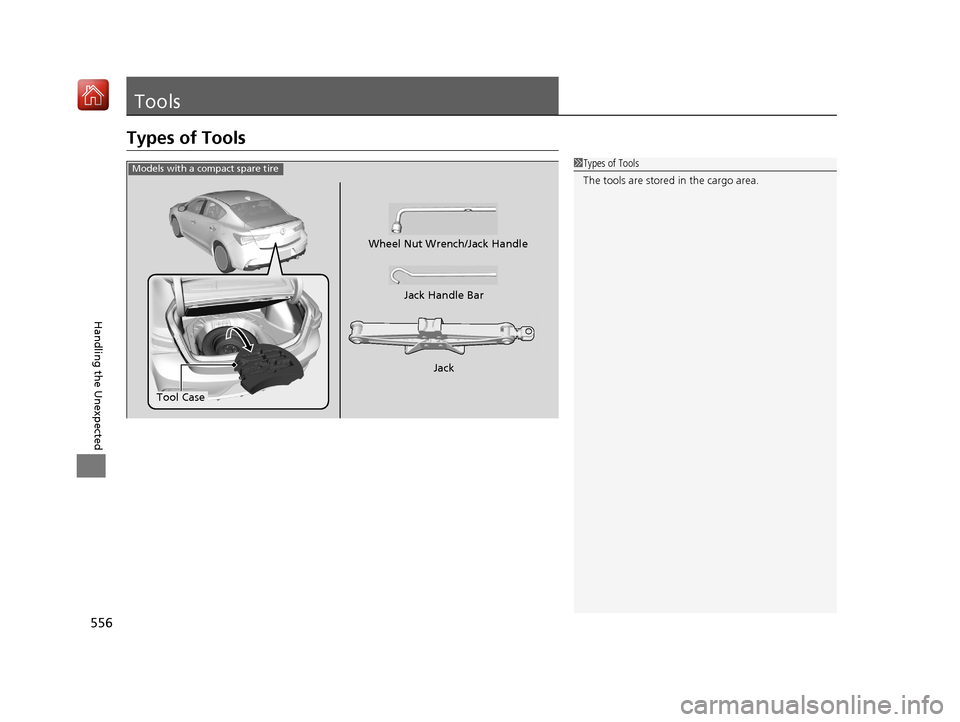

Tools
Types of Tools
1Types of Tools
The tools are stored in the cargo area.
Jack
Tool Case Wheel Nut Wrench/Jack Handle
Jack Handle Bar
Models with a compact spare tire
20 ACURA ILX-31TX66710.book 556 ページ ２０２０年４月１６日　木曜日　午後８時４６分

572
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe place. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possible to have th e full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, non-slip pery surface and apply the parking brake.
2. Put the transmission into
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
Models with a compact spare tire
1 Changing a Flat Tire
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use a puncture-repairi ng agent on a flat tire,
as it can damage the tire pressure sensor.
Do not mount the compact spare on the front. If
mounted on the front, the compact spare, smaller in
size than the full-size tire, may damage the
differential.
If either front tire goes flat, remove the rear tire on
the same side, and mount the compact spare on the
rear and the rear tire on the front.
20 ACURA ILX-31TX66710.book 572 ページ ２０２０年４月１６日　木曜日　午後８時４６分

599
uuSpecifications u
Information
■
Brake Fluid
■ Dual Clutch Transmission Fluid
SpecifiedAcura Heavy Duty Brake Fluid DOT 3
SpecifiedAcura ATF-TYPE 2.0
Capacity Change 4.1 US qt (3.9 L)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.4 US qt (4.2 L)
Change
including
filter
4.6 US qt (4.4 L)
SpecifiedAcura Long Life Antifreeze/Coolant Type 2
Ratio 50/50 with distilled water
Capacity1.71 US gal (6.49 L)
(change including the remaining
0.166 US gal (0.63 L) in the reserve tank)
■ Tire
*1: Vehicle with 18 inch wheel
*2: Vehicle with 17 inch wheel
*3: Vehicle with optional spare tire
Regular
Size225/40R18 92V*1
P215/45R17 87V*2
Pressure
psi (kPa [kgf/cm2])
Front33 (230 [2.3])*1
35 (240 [2.4])*2
Rear32 (220 [2.2])*1
33 (230 [2.3])*2
Compact
Spare*3
Size T135/70D17 92M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular18 x 7 1/2J*1
17 x 7J*2
Compact Spare*317 x 4T
20 ACURA ILX-31TX66710.book 599 ページ ２０２０年４月１６日　木曜日　午後８時４６分

616
Index
Indicators..................................................... 68
Adaptive Cruise Control (ACC) .... 76, 77, 459
Anti-lock Brake System (ABS) ..................... 71
Auto High-Beam ........................................ 74
Blind spot information System ........... 79, 440
Brake System (Amber)................................ 68
Brake System (Red) ............................ 68, 590
Charging System ............................... 70, 588
Collision Mitigation Braking System
TM (CMBSTM) ............................ 79, 80
Electric Power Steering (EPS) System .. 72, 590
Fog Light ................................................... 74
Gear Position ............................................. 69
High Beam................................................. 74
Immobilizer System .................................... 75
Keyless Access System ............................... 75
Lane Keeping Assist System (LKAS) .... 78, 477
Lights On ................................................... 74
Low Fuel .................................................... 71
Low Oil Pressure ................................ 69, 588
Low Tire Pressure/TPMS ..... 73, 442, 444, 591
Maintenance Minder ............................... 511
Malfunction Indicator Lamp ............... 70, 589
Parking Brake and Brak e System ........ 68, 590
Road Departure Mitigation (RDM) .............. 76
Seat Belt Reminder .............................. 33, 71
Security System Alarm ............................... 75
Sequential mode...................................... 436
Shift Lever Position .................................... 69
Supplemental Restraint System ............ 49, 72
System Message ........................................ 73 Transmission System.................................. 69
Turn Signal ................................................ 74
Vehicle Stability Assist
TM (VSA
®)
System ............................................ 72, 437
VSA ® OFF .......................................... 73, 438
Information .............................................. 597
Information Screen .................................. 211
Instant Fuel Economy ................................. 93
Instrument Panel ........................................ 67
Brightness Control................................... 148
Interface Dial ............................................ 206
Interior Lights ........................................... 164
Interior Rearview Mirror .......................... 152
iPhone ............................................... 258, 289
iPod ................................................... 195, 251
J
Jack (Wheel Nut Wrench) ........................ 575
Jump Starting ........................................... 582
K
Key Number Tag ....................................... 110
Keyless Access System .............................. 111
Keyless Lockout Prevention ..................... 118
Keys ........................................................... 108
Lockout Prevention.................................. 118
Number Tag ............................................ 110
Rear Door Won’t Open............................ 122
Remote Transmitter ................................. 116 Two-way Keyless Access Remote..... 119, 428
Types and Functions................................ 108
Kickdown (Dual Clutch Transmission) .... 432
L
Lane Keeping Assist System (LKAS)........ 474
LATCH (Child Seats) ................................... 57
License information ................................. 303
Lights ................................................ 139, 527
Automatic............................................... 140
Bulb Replacement ................................... 527
Daytime Running Lights .......................... 142
Fog Lights ............................................... 142
High-Beam Indicator ................................. 74
Interior.................................................... 164
Light Switches......................................... 139
Lights On Indicator .................................... 74
Turn Signals ............................................ 138
Limitations for Manual Operation .. 340, 370
Load Limits ............................................... 423
Locking/Unlocking ................................... 108
Auto Door Locking/Unlocking ................. 123
Childproof Door Locks ............................ 122
From Inside ............................................. 120
From Outside .......................................... 111
Keys........................................................ 108
Using a Key............................................. 117
Lockout Prevention System ..................... 118
Low Battery Charge ................................. 588
Low Fuel Indicator ..................................... 71
