tow Acura ILX 2020 Owner's Guide

Continued573
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
1. Open the trunk floor lid.
2. Take the tool case out of the trunk. Take
the jack and wheel nut wrench out of the
tool case.
3. Unscrew the wing bolt, and remove the
spacer cone. Then, remove the spare tire.
4. Place a wheel block or rock in front and rear
of the wheel diagonal to the flat tire.
■Getting Ready to Replace the Flat Tire1Changing a Flat Tire
NOTICE
Do not use the jack if it doesn’t work properly. Call
your dealer or a prof essional towing service.
1Getting Ready to Replace the Flat Tire
The shape of the tool case varies by model.
Spare TireTool Case
Wheel
Blocks
The tire to be replaced.
20 ACURA ILX-31TX66710.book 573 ページ ２０２０年４月１６日　木曜日　午後８時４６分

579
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the multi-information display.
●If the To Start, Hold Remote Near Start Button message appears
2If the Keyless Access Remote Battery is Weak P. 580
uMake sure the keyless remote is in its operating range.
2 ENGINE START/STOP Button Operating Range P. 135
Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all
2 Battery P. 543●If the interior lights come on normally 2 Fuses P. 592
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try
to start the engine again.
2 Starting the Engine P. 426
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 128
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 88
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 594
If the problem continues:
2Emergency Towing P. 595
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 Jump Starting P. 582
20 ACURA ILX-31TX66710.book 579 ページ ２０２０年４月１６日　木曜日　午後８時４６分

595
Handling the Unexpected

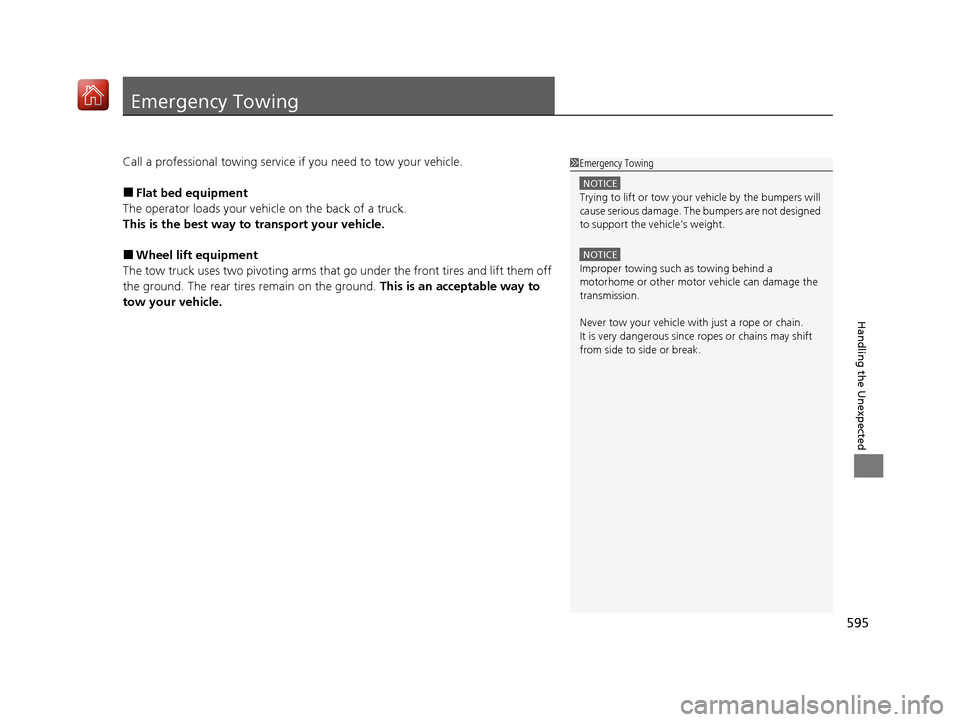

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
20 ACURA ILX-31TX66710.book 595 ページ ２０２０年４月１６日　木曜日　午後８時４６分

619
Index
Tire Pressure Monitoring System (TPMS) ..................................................... 442
Indicator ........................................... 73, 591
Tires .......................................................... 534
Air Pressure..................................... 535, 599
Checking and Maintaining ...................... 534
Flat Tire (Puncture) .................................. 557
Inspection ............................................... 534
Labeling .................................................. 535
Puncture (Flat Tire) .................................. 557
Regulations ............................................. 537
Rotation.................................................. 541
Spare Tire ............................................... 599
Summer .................................................. 542
Temporary Tire Repair Kit ........................ 558
Tire Chains.............................................. 542
Wear Indicators....................................... 539
Winter .................................................... 542
Tools ......................................................... 556
Towing a Trailer ....................................... 425
Towing Your Vehicle ............................... 425
Emergency .............................................. 595
TPMS (Tire Pressure Monitoring System) .................................................... 442
Transmission ............................................. 433
Automatic............................................... 433
Fluid ....................................................... 525
Gear Position Indicator .............................. 69
Number .................................................. 600
Sequential Mode..................................... 435
Shift Lever Position Indicator ................... 434 Trip Meter
................................................... 92
Troubleshooting ....................................... 555
Blown Fuse ...................................... 592, 593
Brake Pedal Vibrates .................................. 23
Buzzer Sounds When Opening Door .......... 24
Emergency Towing .................................. 595
Engine Won’t Start .................................. 579
Flat Tire/Puncture ..................................... 557
Noise When Braking .................................. 24
Overheating ............................................ 586
Premium Gasoline ........................... 503, 598
Puncture/Flat Tire ..................................... 557
Rear Door Won’t Open ...................... 23, 122
Select Lever Won’t Move ......................... 585
Warning Indicators .................................... 68
Trunk ......................................................... 124
Lid ........................................................... 124
Light Bulb ................................................ 598
Open Message .......................................... 83
Turn Signals .............................................. 138
Indicators (Instrument Panel) ...................... 74
Turn-by-Turn Directions ............................. 93
Two-way Keyless Access Remote ..... 119, 428
U
Unlocking the Doors................................ 111
Unlocking the Front Doors from the Inside ................................................. 12, 120
USB Adapter Cable ........................... 176, 177
USB Flash Drives ........................................ 289 USB Port
.................................................... 178
Using the Keyless Access System ............. 111
V
Vanity Mirrors............................................... 7
Vehicle Identification Number ................ 600
Vehicle Stability Assist
TM (VSA® ).............. 437
Off Button............................................... 438
Off Indicator.............................................. 73
System Indicator ........................................ 72
Viscosity (Oil) .................................... 518, 599
Voice Control Operation .......................... 218
Voice Portal Screen.................................. 219
Voice Recognition ................................... 218
VSA ® (Vehicle Stability Assist
TM) .............. 437
W
Wallpaper ................................................. 214
Wallpaper Setup ....................................... 186
Warning and Info rmation Messages ......... 81
Warning Indicator On/Blinking ............... 588
Warning Labels ........................................... 66
Warranties (Warranty Manual provided separately) .............................................. 605
Watts ......................................................... 598
Wear Indicators (Tire) .............................. 539
Wheel Nut Wrench (Jack Handle) ........... 575
